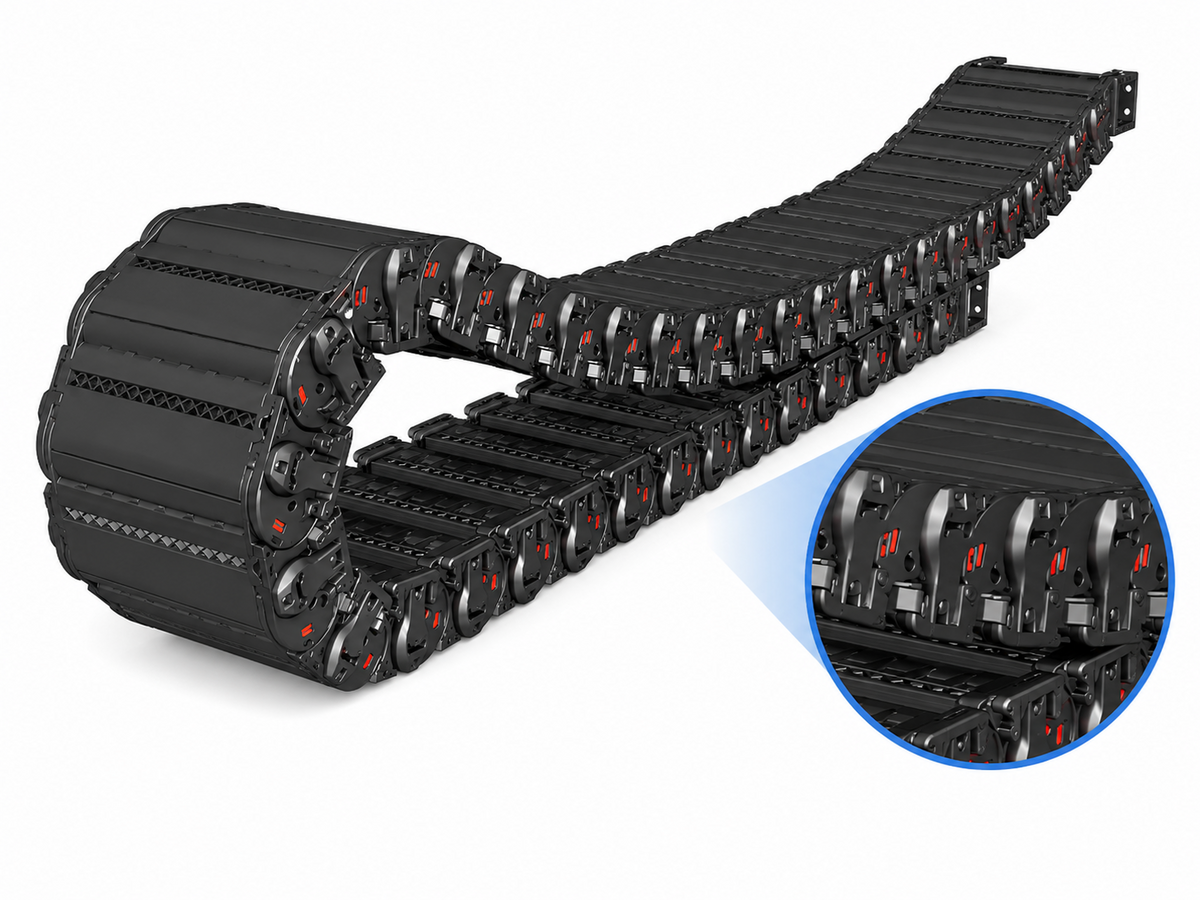

CP System Shift Chain ST072ES Enclosed Skid Type Cable Carrier (Pitch 72, Inside Width 50-150mm, BR R120-R300)

CP System Shift Chain ST072ES Enclosed Skid Type Cable Carrier (Pitch 72, Inside Width 50-150mm, BR R120-R300)

Shift Chain Enclosed Skid Type ST072ES, combining Steel Plate enclosure with a skid side band for long-travel applications; can be applied to all kinds of machine tools and factory lines.

Key features

  • Bending Radius is determined by each interchangeable 'BR' unit inserted into the side band
  • Pitch 72mm
  • Inside width 50-150mm; bending radius R120-R300
  • Material CPS-Amide (PA6+G.F)
  • Max speed 6 m/s, acceleration 12 m/s². Temperature -30 to +130℃. ESD/UV available
  • Bracket: Free End Bracket (M.FEB)

Specifications

Model ST072ES
Type Enclosed Skid (ES)
Pitch 72mm
Outer Height (B) 71.8mm
Inner Height (D) 44mm
Material CPS-Amide (PA6+G.F)
Max Speed 6 m/s
Max Acceleration 12 m/s²
Temperature -30 ~ +130℃
Special Production ESD, UV (optional)
Bracket Free End Bracket (M.FEB) (made-to-order)
Steel Plate made-to-order
ST072ES.50.R120 Shift Chain Enclosed Skid ST072ES, inside width 50mm, bending radius R120mm | Model: ST072ES | Type: Enclosed Skid (ES) | Pitch: 72mm | Inside Width (C): 50mm | Outer Width (A): 105mm | Outer Height (B): 71.8mm | Inner Height (D): 44mm | Bending Radius (R): 120mm | Weight: 2.77 kg/m | Material: CPS-Amide (PA6+G.F) | Max Speed: 6 m/s | Max Acceleration: 12 m/s² | Temperature: -30 ~ +130℃ | Special Production: ESD, UV (optional) | Bracket: Free End Bracket (M.FEB) (made-to-order) | Steel Plate: made-to-order | Length: made-to-order | Divider/Separator: made-to-order | Certificate: CE, ATEX(Ex), RoHS2
ST072ES.50.R145 Shift Chain Enclosed Skid ST072ES, inside width 50mm, bending radius R145mm | Model: ST072ES | Type: Enclosed Skid (ES) | Pitch: 72mm | Inside Width (C): 50mm | Outer Width (A): 105mm | Outer Height (B): 71.8mm | Inner Height (D): 44mm | Bending Radius (R): 145mm | Weight: 2.77 kg/m | Material: CPS-Amide (PA6+G.F) | Max Speed: 6 m/s | Max Acceleration: 12 m/s² | Temperature: -30 ~ +130℃ | Special Production: ESD, UV (optional) | Bracket: Free End Bracket (M.FEB) (made-to-order) | Steel Plate: made-to-order | Length: made-to-order | Divider/Separator: made-to-order | Certificate: CE, ATEX(Ex), RoHS2
ST072ES.50.R200 Shift Chain Enclosed Skid ST072ES, inside width 50mm, bending radius R200mm | Model: ST072ES | Type: Enclosed Skid (ES) | Pitch: 72mm | Inside Width (C): 50mm | Outer Width (A): 105mm | Outer Height (B): 71.8mm | Inner Height (D): 44mm | Bending Radius (R): 200mm | Weight: 2.77 kg/m | Material: CPS-Amide (PA6+G.F) | Max Speed: 6 m/s | Max Acceleration: 12 m/s² | Temperature: -30 ~ +130℃ | Special Production: ESD, UV (optional) | Bracket: Free End Bracket (M.FEB) (made-to-order) | Steel Plate: made-to-order | Length: made-to-order | Divider/Separator: made-to-order | Certificate: CE, ATEX(Ex), RoHS2
ST072ES.50.R250 Shift Chain Enclosed Skid ST072ES, inside width 50mm, bending radius R250mm | Model: ST072ES | Type: Enclosed Skid (ES) | Pitch: 72mm | Inside Width (C): 50mm | Outer Width (A): 105mm | Outer Height (B): 71.8mm | Inner Height (D): 44mm | Bending Radius (R): 250mm | Weight: 2.77 kg/m | Material: CPS-Amide (PA6+G.F) | Max Speed: 6 m/s | Max Acceleration: 12 m/s² | Temperature: -30 ~ +130℃ | Special Production: ESD, UV (optional) | Bracket: Free End Bracket (M.FEB) (made-to-order) | Steel Plate: made-to-order | Length: made-to-order | Divider/Separator: made-to-order | Certificate: CE, ATEX(Ex), RoHS2
ST072ES.50.R300 Shift Chain Enclosed Skid ST072ES, inside width 50mm, bending radius R300mm | Model: ST072ES | Type: Enclosed Skid (ES) | Pitch: 72mm | Inside Width (C): 50mm | Outer Width (A): 105mm | Outer Height (B): 71.8mm | Inner Height (D): 44mm | Bending Radius (R): 300mm | Weight: 2.77 kg/m | Material: CPS-Amide (PA6+G.F) | Max Speed: 6 m/s | Max Acceleration: 12 m/s² | Temperature: -30 ~ +130℃ | Special Production: ESD, UV (optional) | Bracket: Free End Bracket (M.FEB) (made-to-order) | Steel Plate: made-to-order | Length: made-to-order | Divider/Separator: made-to-order | Certificate: CE, ATEX(Ex), RoHS2
ST072ES.75.R120 Shift Chain Enclosed Skid ST072ES, inside width 75mm, bending radius R120mm | Model: ST072ES | Type: Enclosed Skid (ES) | Pitch: 72mm | Inside Width (C): 75mm | Outer Width (A): 130mm | Outer Height (B): 71.8mm | Inner Height (D): 44mm | Bending Radius (R): 120mm | Weight: 3.01 kg/m | Material: CPS-Amide (PA6+G.F) | Max Speed: 6 m/s | Max Acceleration: 12 m/s² | Temperature: -30 ~ +130℃ | Special Production: ESD, UV (optional) | Bracket: Free End Bracket (M.FEB) (made-to-order) | Steel Plate: made-to-order | Length: made-to-order | Divider/Separator: made-to-order | Certificate: CE, ATEX(Ex), RoHS2
ST072ES.75.R145 Shift Chain Enclosed Skid ST072ES, inside width 75mm, bending radius R145mm | Model: ST072ES | Type: Enclosed Skid (ES) | Pitch: 72mm | Inside Width (C): 75mm | Outer Width (A): 130mm | Outer Height (B): 71.8mm | Inner Height (D): 44mm | Bending Radius (R): 145mm | Weight: 3.01 kg/m | Material: CPS-Amide (PA6+G.F) | Max Speed: 6 m/s | Max Acceleration: 12 m/s² | Temperature: -30 ~ +130℃ | Special Production: ESD, UV (optional) | Bracket: Free End Bracket (M.FEB) (made-to-order) | Steel Plate: made-to-order | Length: made-to-order | Divider/Separator: made-to-order | Certificate: CE, ATEX(Ex), RoHS2
ST072ES.75.R200 Shift Chain Enclosed Skid ST072ES, inside width 75mm, bending radius R200mm | Model: ST072ES | Type: Enclosed Skid (ES) | Pitch: 72mm | Inside Width (C): 75mm | Outer Width (A): 130mm | Outer Height (B): 71.8mm | Inner Height (D): 44mm | Bending Radius (R): 200mm | Weight: 3.01 kg/m | Material: CPS-Amide (PA6+G.F) | Max Speed: 6 m/s | Max Acceleration: 12 m/s² | Temperature: -30 ~ +130℃ | Special Production: ESD, UV (optional) | Bracket: Free End Bracket (M.FEB) (made-to-order) | Steel Plate: made-to-order | Length: made-to-order | Divider/Separator: made-to-order | Certificate: CE, ATEX(Ex), RoHS2
ST072ES.75.R250 Shift Chain Enclosed Skid ST072ES, inside width 75mm, bending radius R250mm | Model: ST072ES | Type: Enclosed Skid (ES) | Pitch: 72mm | Inside Width (C): 75mm | Outer Width (A): 130mm | Outer Height (B): 71.8mm | Inner Height (D): 44mm | Bending Radius (R): 250mm | Weight: 3.01 kg/m | Material: CPS-Amide (PA6+G.F) | Max Speed: 6 m/s | Max Acceleration: 12 m/s² | Temperature: -30 ~ +130℃ | Special Production: ESD, UV (optional) | Bracket: Free End Bracket (M.FEB) (made-to-order) | Steel Plate: made-to-order | Length: made-to-order | Divider/Separator: made-to-order | Certificate: CE, ATEX(Ex), RoHS2
ST072ES.75.R300 Shift Chain Enclosed Skid ST072ES, inside width 75mm, bending radius R300mm | Model: ST072ES | Type: Enclosed Skid (ES) | Pitch: 72mm | Inside Width (C): 75mm | Outer Width (A): 130mm | Outer Height (B): 71.8mm | Inner Height (D): 44mm | Bending Radius (R): 300mm | Weight: 3.01 kg/m | Material: CPS-Amide (PA6+G.F) | Max Speed: 6 m/s | Max Acceleration: 12 m/s² | Temperature: -30 ~ +130℃ | Special Production: ESD, UV (optional) | Bracket: Free End Bracket (M.FEB) (made-to-order) | Steel Plate: made-to-order | Length: made-to-order | Divider/Separator: made-to-order | Certificate: CE, ATEX(Ex), RoHS2
ST072ES.100.R120 Shift Chain Enclosed Skid ST072ES, inside width 100mm, bending radius R120mm | Model: ST072ES | Type: Enclosed Skid (ES) | Pitch: 72mm | Inside Width (C): 100mm | Outer Width (A): 155mm | Outer Height (B): 71.8mm | Inner Height (D): 44mm | Bending Radius (R): 120mm | Weight: 3.25 kg/m | Material: CPS-Amide (PA6+G.F) | Max Speed: 6 m/s | Max Acceleration: 12 m/s² | Temperature: -30 ~ +130℃ | Special Production: ESD, UV (optional) | Bracket: Free End Bracket (M.FEB) (made-to-order) | Steel Plate: made-to-order | Length: made-to-order | Divider/Separator: made-to-order | Certificate: CE, ATEX(Ex), RoHS2
ST072ES.100.R145 Shift Chain Enclosed Skid ST072ES, inside width 100mm, bending radius R145mm | Model: ST072ES | Type: Enclosed Skid (ES) | Pitch: 72mm | Inside Width (C): 100mm | Outer Width (A): 155mm | Outer Height (B): 71.8mm | Inner Height (D): 44mm | Bending Radius (R): 145mm | Weight: 3.25 kg/m | Material: CPS-Amide (PA6+G.F) | Max Speed: 6 m/s | Max Acceleration: 12 m/s² | Temperature: -30 ~ +130℃ | Special Production: ESD, UV (optional) | Bracket: Free End Bracket (M.FEB) (made-to-order) | Steel Plate: made-to-order | Length: made-to-order | Divider/Separator: made-to-order | Certificate: CE, ATEX(Ex), RoHS2
ST072ES.100.R200 Shift Chain Enclosed Skid ST072ES, inside width 100mm, bending radius R200mm | Model: ST072ES | Type: Enclosed Skid (ES) | Pitch: 72mm | Inside Width (C): 100mm | Outer Width (A): 155mm | Outer Height (B): 71.8mm | Inner Height (D): 44mm | Bending Radius (R): 200mm | Weight: 3.25 kg/m | Material: CPS-Amide (PA6+G.F) | Max Speed: 6 m/s | Max Acceleration: 12 m/s² | Temperature: -30 ~ +130℃ | Special Production: ESD, UV (optional) | Bracket: Free End Bracket (M.FEB) (made-to-order) | Steel Plate: made-to-order | Length: made-to-order | Divider/Separator: made-to-order | Certificate: CE, ATEX(Ex), RoHS2
ST072ES.100.R250 Shift Chain Enclosed Skid ST072ES, inside width 100mm, bending radius R250mm | Model: ST072ES | Type: Enclosed Skid (ES) | Pitch: 72mm | Inside Width (C): 100mm | Outer Width (A): 155mm | Outer Height (B): 71.8mm | Inner Height (D): 44mm | Bending Radius (R): 250mm | Weight: 3.25 kg/m | Material: CPS-Amide (PA6+G.F) | Max Speed: 6 m/s | Max Acceleration: 12 m/s² | Temperature: -30 ~ +130℃ | Special Production: ESD, UV (optional) | Bracket: Free End Bracket (M.FEB) (made-to-order) | Steel Plate: made-to-order | Length: made-to-order | Divider/Separator: made-to-order | Certificate: CE, ATEX(Ex), RoHS2
ST072ES.100.R300 Shift Chain Enclosed Skid ST072ES, inside width 100mm, bending radius R300mm | Model: ST072ES | Type: Enclosed Skid (ES) | Pitch: 72mm | Inside Width (C): 100mm | Outer Width (A): 155mm | Outer Height (B): 71.8mm | Inner Height (D): 44mm | Bending Radius (R): 300mm | Weight: 3.25 kg/m | Material: CPS-Amide (PA6+G.F) | Max Speed: 6 m/s | Max Acceleration: 12 m/s² | Temperature: -30 ~ +130℃ | Special Production: ESD, UV (optional) | Bracket: Free End Bracket (M.FEB) (made-to-order) | Steel Plate: made-to-order | Length: made-to-order | Divider/Separator: made-to-order | Certificate: CE, ATEX(Ex), RoHS2
ST072ES.125.R120 Shift Chain Enclosed Skid ST072ES, inside width 125mm, bending radius R120mm | Model: ST072ES | Type: Enclosed Skid (ES) | Pitch: 72mm | Inside Width (C): 125mm | Outer Width (A): 180mm | Outer Height (B): 71.8mm | Inner Height (D): 44mm | Bending Radius (R): 120mm | Weight: 3.49 kg/m | Material: CPS-Amide (PA6+G.F) | Max Speed: 6 m/s | Max Acceleration: 12 m/s² | Temperature: -30 ~ +130℃ | Special Production: ESD, UV (optional) | Bracket: Free End Bracket (M.FEB) (made-to-order) | Steel Plate: made-to-order | Length: made-to-order | Divider/Separator: made-to-order | Certificate: CE, ATEX(Ex), RoHS2
ST072ES.125.R145 Shift Chain Enclosed Skid ST072ES, inside width 125mm, bending radius R145mm | Model: ST072ES | Type: Enclosed Skid (ES) | Pitch: 72mm | Inside Width (C): 125mm | Outer Width (A): 180mm | Outer Height (B): 71.8mm | Inner Height (D): 44mm | Bending Radius (R): 145mm | Weight: 3.49 kg/m | Material: CPS-Amide (PA6+G.F) | Max Speed: 6 m/s | Max Acceleration: 12 m/s² | Temperature: -30 ~ +130℃ | Special Production: ESD, UV (optional) | Bracket: Free End Bracket (M.FEB) (made-to-order) | Steel Plate: made-to-order | Length: made-to-order | Divider/Separator: made-to-order | Certificate: CE, ATEX(Ex), RoHS2
ST072ES.125.R200 Shift Chain Enclosed Skid ST072ES, inside width 125mm, bending radius R200mm | Model: ST072ES | Type: Enclosed Skid (ES) | Pitch: 72mm | Inside Width (C): 125mm | Outer Width (A): 180mm | Outer Height (B): 71.8mm | Inner Height (D): 44mm | Bending Radius (R): 200mm | Weight: 3.49 kg/m | Material: CPS-Amide (PA6+G.F) | Max Speed: 6 m/s | Max Acceleration: 12 m/s² | Temperature: -30 ~ +130℃ | Special Production: ESD, UV (optional) | Bracket: Free End Bracket (M.FEB) (made-to-order) | Steel Plate: made-to-order | Length: made-to-order | Divider/Separator: made-to-order | Certificate: CE, ATEX(Ex), RoHS2
ST072ES.125.R250 Shift Chain Enclosed Skid ST072ES, inside width 125mm, bending radius R250mm | Model: ST072ES | Type: Enclosed Skid (ES) | Pitch: 72mm | Inside Width (C): 125mm | Outer Width (A): 180mm | Outer Height (B): 71.8mm | Inner Height (D): 44mm | Bending Radius (R): 250mm | Weight: 3.49 kg/m | Material: CPS-Amide (PA6+G.F) | Max Speed: 6 m/s | Max Acceleration: 12 m/s² | Temperature: -30 ~ +130℃ | Special Production: ESD, UV (optional) | Bracket: Free End Bracket (M.FEB) (made-to-order) | Steel Plate: made-to-order | Length: made-to-order | Divider/Separator: made-to-order | Certificate: CE, ATEX(Ex), RoHS2
ST072ES.125.R300 Shift Chain Enclosed Skid ST072ES, inside width 125mm, bending radius R300mm | Model: ST072ES | Type: Enclosed Skid (ES) | Pitch: 72mm | Inside Width (C): 125mm | Outer Width (A): 180mm | Outer Height (B): 71.8mm | Inner Height (D): 44mm | Bending Radius (R): 300mm | Weight: 3.49 kg/m | Material: CPS-Amide (PA6+G.F) | Max Speed: 6 m/s | Max Acceleration: 12 m/s² | Temperature: -30 ~ +130℃ | Special Production: ESD, UV (optional) | Bracket: Free End Bracket (M.FEB) (made-to-order) | Steel Plate: made-to-order | Length: made-to-order | Divider/Separator: made-to-order | Certificate: CE, ATEX(Ex), RoHS2
ST072ES.150.R120 Shift Chain Enclosed Skid ST072ES, inside width 150mm, bending radius R120mm | Model: ST072ES | Type: Enclosed Skid (ES) | Pitch: 72mm | Inside Width (C): 150mm | Outer Width (A): 205mm | Outer Height (B): 71.8mm | Inner Height (D): 44mm | Bending Radius (R): 120mm | Weight: 3.73 kg/m | Material: CPS-Amide (PA6+G.F) | Max Speed: 6 m/s | Max Acceleration: 12 m/s² | Temperature: -30 ~ +130℃ | Special Production: ESD, UV (optional) | Bracket: Free End Bracket (M.FEB) (made-to-order) | Steel Plate: made-to-order | Length: made-to-order | Divider/Separator: made-to-order | Certificate: CE, ATEX(Ex), RoHS2
ST072ES.150.R145 Shift Chain Enclosed Skid ST072ES, inside width 150mm, bending radius R145mm | Model: ST072ES | Type: Enclosed Skid (ES) | Pitch: 72mm | Inside Width (C): 150mm | Outer Width (A): 205mm | Outer Height (B): 71.8mm | Inner Height (D): 44mm | Bending Radius (R): 145mm | Weight: 3.73 kg/m | Material: CPS-Amide (PA6+G.F) | Max Speed: 6 m/s | Max Acceleration: 12 m/s² | Temperature: -30 ~ +130℃ | Special Production: ESD, UV (optional) | Bracket: Free End Bracket (M.FEB) (made-to-order) | Steel Plate: made-to-order | Length: made-to-order | Divider/Separator: made-to-order | Certificate: CE, ATEX(Ex), RoHS2
ST072ES.150.R200 Shift Chain Enclosed Skid ST072ES, inside width 150mm, bending radius R200mm | Model: ST072ES | Type: Enclosed Skid (ES) | Pitch: 72mm | Inside Width (C): 150mm | Outer Width (A): 205mm | Outer Height (B): 71.8mm | Inner Height (D): 44mm | Bending Radius (R): 200mm | Weight: 3.73 kg/m | Material: CPS-Amide (PA6+G.F) | Max Speed: 6 m/s | Max Acceleration: 12 m/s² | Temperature: -30 ~ +130℃ | Special Production: ESD, UV (optional) | Bracket: Free End Bracket (M.FEB) (made-to-order) | Steel Plate: made-to-order | Length: made-to-order | Divider/Separator: made-to-order | Certificate: CE, ATEX(Ex), RoHS2
ST072ES.150.R250 Shift Chain Enclosed Skid ST072ES, inside width 150mm, bending radius R250mm | Model: ST072ES | Type: Enclosed Skid (ES) | Pitch: 72mm | Inside Width (C): 150mm | Outer Width (A): 205mm | Outer Height (B): 71.8mm | Inner Height (D): 44mm | Bending Radius (R): 250mm | Weight: 3.73 kg/m | Material: CPS-Amide (PA6+G.F) | Max Speed: 6 m/s | Max Acceleration: 12 m/s² | Temperature: -30 ~ +130℃ | Special Production: ESD, UV (optional) | Bracket: Free End Bracket (M.FEB) (made-to-order) | Steel Plate: made-to-order | Length: made-to-order | Divider/Separator: made-to-order | Certificate: CE, ATEX(Ex), RoHS2
ST072ES.150.R300 Shift Chain Enclosed Skid ST072ES, inside width 150mm, bending radius R300mm | Model: ST072ES | Type: Enclosed Skid (ES) | Pitch: 72mm | Inside Width (C): 150mm | Outer Width (A): 205mm | Outer Height (B): 71.8mm | Inner Height (D): 44mm | Bending Radius (R): 300mm | Weight: 3.73 kg/m | Material: CPS-Amide (PA6+G.F) | Max Speed: 6 m/s | Max Acceleration: 12 m/s² | Temperature: -30 ~ +130℃ | Special Production: ESD, UV (optional) | Bracket: Free End Bracket (M.FEB) (made-to-order) | Steel Plate: made-to-order | Length: made-to-order | Divider/Separator: made-to-order | Certificate: CE, ATEX(Ex), RoHS2
Cable CarriersCP System
25 product codes available in this family
Sourced direct from KoreaExport-ready supplyCompetitive pricing
RFQ List 0 Email about this

Need a different model, or a part not listed here? Send us your parts list →

CP System Shift Chain ST072ES Enclosed Skid Type Cable Carrier (Pitch 72, Inside Width 50-150mm, BR R120-R300)

Brand CP System·Cable Carriers

Available part numbers (25)

ST072ES.50.R120, ST072ES.50.R145, ST072ES.50.R200, ST072ES.50.R250, ST072ES.50.R300, ST072ES.75.R120, ST072ES.75.R145, ST072ES.75.R200, ST072ES.75.R250, ST072ES.75.R300 + 15 more — see full table ↓

How to order

Send the CP System part numbers and quantities through our RFQ form or to info@prosourcemro.com. We confirm price, availability and lead time within 1 business day — no account needed.
