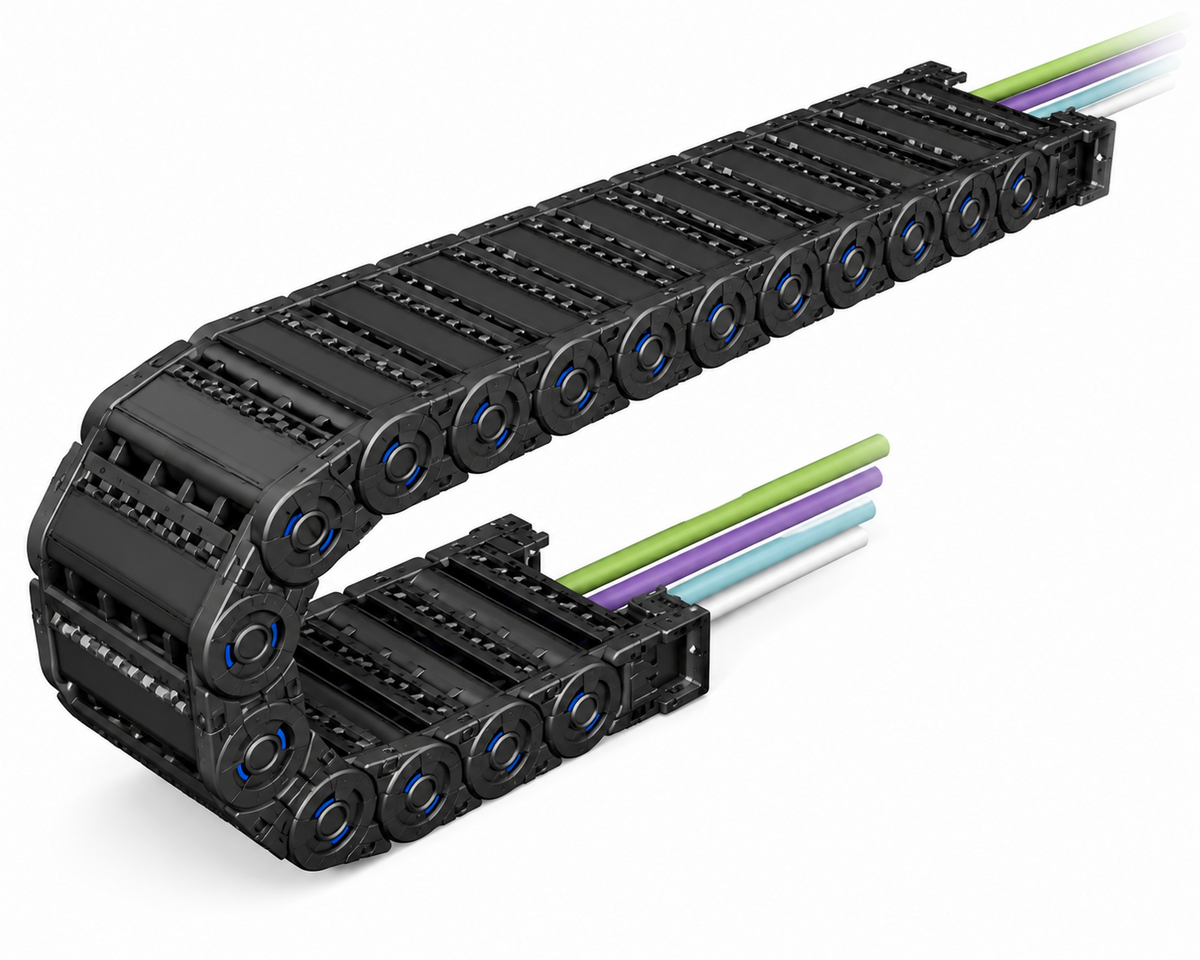

CP System Shift Chain ST120E Enclosed Type Cable Carrier (Pitch 120, Inside Width 150-300mm, BR R200-R500)

CP System Shift Chain ST120E Enclosed Type Cable Carrier (Pitch 120, Inside Width 150-300mm, BR R200-R500)

Shift Chain Enclosed Type ST120E, fully enclosed cable & hose carrier.

Key features

  • The Free End Bracket can be fully enclosed by inserting a Steel Plate
  • Bending Radius is determined by each interchangeable 'BR' unit inserted into the side band
  • Pitch 120mm
  • Inside width 150-300mm; bending radius R200-R500
  • Material CPS-Amide (PA6+G.F)
  • Max speed 6 m/s, acceleration 12 m/s². Temperature -30 to +130℃. ESD/UV available

Specifications

Model ST120E
Type Enclosed (E)
Pitch 120mm
Outer Height (B) 108mm
Inner Height (D) 76mm
Material CPS-Amide (PA6+G.F)
Max Speed 6 m/s
Max Acceleration 12 m/s²
Temperature -30 ~ +130℃
Special Production ESD, UV (optional)
Bracket FEB (Steel Plate enclosure) or Steel End Bracket (SEB), B1/B2/B3 (made-to-order)
Steel Plate made-to-order
ST120E.150.R200 Shift Chain Enclosed ST120E, inside width 150mm, bending radius R200mm | Model: ST120E | Type: Enclosed (E) | Pitch: 120mm | Inside Width (C): 150mm | Outer Width (A): 192mm | Outer Height (B): 108mm | Inner Height (D): 76mm | Bending Radius (R): 200mm | Weight: 5.79 kg/m | Material: CPS-Amide (PA6+G.F) | Max Speed: 6 m/s | Max Acceleration: 12 m/s² | Temperature: -30 ~ +130℃ | Special Production: ESD, UV (optional) | Bracket: FEB (Steel Plate enclosure) or Steel End Bracket (SEB), B1/B2/B3 (made-to-order) | Steel Plate: made-to-order | Length: made-to-order | Divider/Separator: made-to-order | Certificate: CE, ATEX(Ex), RoHS2
ST120E.150.R250 Shift Chain Enclosed ST120E, inside width 150mm, bending radius R250mm | Model: ST120E | Type: Enclosed (E) | Pitch: 120mm | Inside Width (C): 150mm | Outer Width (A): 192mm | Outer Height (B): 108mm | Inner Height (D): 76mm | Bending Radius (R): 250mm | Weight: 5.79 kg/m | Material: CPS-Amide (PA6+G.F) | Max Speed: 6 m/s | Max Acceleration: 12 m/s² | Temperature: -30 ~ +130℃ | Special Production: ESD, UV (optional) | Bracket: FEB (Steel Plate enclosure) or Steel End Bracket (SEB), B1/B2/B3 (made-to-order) | Steel Plate: made-to-order | Length: made-to-order | Divider/Separator: made-to-order | Certificate: CE, ATEX(Ex), RoHS2
ST120E.150.R300 Shift Chain Enclosed ST120E, inside width 150mm, bending radius R300mm | Model: ST120E | Type: Enclosed (E) | Pitch: 120mm | Inside Width (C): 150mm | Outer Width (A): 192mm | Outer Height (B): 108mm | Inner Height (D): 76mm | Bending Radius (R): 300mm | Weight: 5.79 kg/m | Material: CPS-Amide (PA6+G.F) | Max Speed: 6 m/s | Max Acceleration: 12 m/s² | Temperature: -30 ~ +130℃ | Special Production: ESD, UV (optional) | Bracket: FEB (Steel Plate enclosure) or Steel End Bracket (SEB), B1/B2/B3 (made-to-order) | Steel Plate: made-to-order | Length: made-to-order | Divider/Separator: made-to-order | Certificate: CE, ATEX(Ex), RoHS2
ST120E.150.R350 Shift Chain Enclosed ST120E, inside width 150mm, bending radius R350mm | Model: ST120E | Type: Enclosed (E) | Pitch: 120mm | Inside Width (C): 150mm | Outer Width (A): 192mm | Outer Height (B): 108mm | Inner Height (D): 76mm | Bending Radius (R): 350mm | Weight: 5.79 kg/m | Material: CPS-Amide (PA6+G.F) | Max Speed: 6 m/s | Max Acceleration: 12 m/s² | Temperature: -30 ~ +130℃ | Special Production: ESD, UV (optional) | Bracket: FEB (Steel Plate enclosure) or Steel End Bracket (SEB), B1/B2/B3 (made-to-order) | Steel Plate: made-to-order | Length: made-to-order | Divider/Separator: made-to-order | Certificate: CE, ATEX(Ex), RoHS2
ST120E.150.R400 Shift Chain Enclosed ST120E, inside width 150mm, bending radius R400mm | Model: ST120E | Type: Enclosed (E) | Pitch: 120mm | Inside Width (C): 150mm | Outer Width (A): 192mm | Outer Height (B): 108mm | Inner Height (D): 76mm | Bending Radius (R): 400mm | Weight: 5.79 kg/m | Material: CPS-Amide (PA6+G.F) | Max Speed: 6 m/s | Max Acceleration: 12 m/s² | Temperature: -30 ~ +130℃ | Special Production: ESD, UV (optional) | Bracket: FEB (Steel Plate enclosure) or Steel End Bracket (SEB), B1/B2/B3 (made-to-order) | Steel Plate: made-to-order | Length: made-to-order | Divider/Separator: made-to-order | Certificate: CE, ATEX(Ex), RoHS2
ST120E.150.R500 Shift Chain Enclosed ST120E, inside width 150mm, bending radius R500mm | Model: ST120E | Type: Enclosed (E) | Pitch: 120mm | Inside Width (C): 150mm | Outer Width (A): 192mm | Outer Height (B): 108mm | Inner Height (D): 76mm | Bending Radius (R): 500mm | Weight: 5.79 kg/m | Material: CPS-Amide (PA6+G.F) | Max Speed: 6 m/s | Max Acceleration: 12 m/s² | Temperature: -30 ~ +130℃ | Special Production: ESD, UV (optional) | Bracket: FEB (Steel Plate enclosure) or Steel End Bracket (SEB), B1/B2/B3 (made-to-order) | Steel Plate: made-to-order | Length: made-to-order | Divider/Separator: made-to-order | Certificate: CE, ATEX(Ex), RoHS2
ST120E.200.R200 Shift Chain Enclosed ST120E, inside width 200mm, bending radius R200mm | Model: ST120E | Type: Enclosed (E) | Pitch: 120mm | Inside Width (C): 200mm | Outer Width (A): 242mm | Outer Height (B): 108mm | Inner Height (D): 76mm | Bending Radius (R): 200mm | Weight: 6.43 kg/m | Material: CPS-Amide (PA6+G.F) | Max Speed: 6 m/s | Max Acceleration: 12 m/s² | Temperature: -30 ~ +130℃ | Special Production: ESD, UV (optional) | Bracket: FEB (Steel Plate enclosure) or Steel End Bracket (SEB), B1/B2/B3 (made-to-order) | Steel Plate: made-to-order | Length: made-to-order | Divider/Separator: made-to-order | Certificate: CE, ATEX(Ex), RoHS2
ST120E.200.R250 Shift Chain Enclosed ST120E, inside width 200mm, bending radius R250mm | Model: ST120E | Type: Enclosed (E) | Pitch: 120mm | Inside Width (C): 200mm | Outer Width (A): 242mm | Outer Height (B): 108mm | Inner Height (D): 76mm | Bending Radius (R): 250mm | Weight: 6.43 kg/m | Material: CPS-Amide (PA6+G.F) | Max Speed: 6 m/s | Max Acceleration: 12 m/s² | Temperature: -30 ~ +130℃ | Special Production: ESD, UV (optional) | Bracket: FEB (Steel Plate enclosure) or Steel End Bracket (SEB), B1/B2/B3 (made-to-order) | Steel Plate: made-to-order | Length: made-to-order | Divider/Separator: made-to-order | Certificate: CE, ATEX(Ex), RoHS2
ST120E.200.R300 Shift Chain Enclosed ST120E, inside width 200mm, bending radius R300mm | Model: ST120E | Type: Enclosed (E) | Pitch: 120mm | Inside Width (C): 200mm | Outer Width (A): 242mm | Outer Height (B): 108mm | Inner Height (D): 76mm | Bending Radius (R): 300mm | Weight: 6.43 kg/m | Material: CPS-Amide (PA6+G.F) | Max Speed: 6 m/s | Max Acceleration: 12 m/s² | Temperature: -30 ~ +130℃ | Special Production: ESD, UV (optional) | Bracket: FEB (Steel Plate enclosure) or Steel End Bracket (SEB), B1/B2/B3 (made-to-order) | Steel Plate: made-to-order | Length: made-to-order | Divider/Separator: made-to-order | Certificate: CE, ATEX(Ex), RoHS2
ST120E.200.R350 Shift Chain Enclosed ST120E, inside width 200mm, bending radius R350mm | Model: ST120E | Type: Enclosed (E) | Pitch: 120mm | Inside Width (C): 200mm | Outer Width (A): 242mm | Outer Height (B): 108mm | Inner Height (D): 76mm | Bending Radius (R): 350mm | Weight: 6.43 kg/m | Material: CPS-Amide (PA6+G.F) | Max Speed: 6 m/s | Max Acceleration: 12 m/s² | Temperature: -30 ~ +130℃ | Special Production: ESD, UV (optional) | Bracket: FEB (Steel Plate enclosure) or Steel End Bracket (SEB), B1/B2/B3 (made-to-order) | Steel Plate: made-to-order | Length: made-to-order | Divider/Separator: made-to-order | Certificate: CE, ATEX(Ex), RoHS2
ST120E.200.R400 Shift Chain Enclosed ST120E, inside width 200mm, bending radius R400mm | Model: ST120E | Type: Enclosed (E) | Pitch: 120mm | Inside Width (C): 200mm | Outer Width (A): 242mm | Outer Height (B): 108mm | Inner Height (D): 76mm | Bending Radius (R): 400mm | Weight: 6.43 kg/m | Material: CPS-Amide (PA6+G.F) | Max Speed: 6 m/s | Max Acceleration: 12 m/s² | Temperature: -30 ~ +130℃ | Special Production: ESD, UV (optional) | Bracket: FEB (Steel Plate enclosure) or Steel End Bracket (SEB), B1/B2/B3 (made-to-order) | Steel Plate: made-to-order | Length: made-to-order | Divider/Separator: made-to-order | Certificate: CE, ATEX(Ex), RoHS2
ST120E.200.R500 Shift Chain Enclosed ST120E, inside width 200mm, bending radius R500mm | Model: ST120E | Type: Enclosed (E) | Pitch: 120mm | Inside Width (C): 200mm | Outer Width (A): 242mm | Outer Height (B): 108mm | Inner Height (D): 76mm | Bending Radius (R): 500mm | Weight: 6.43 kg/m | Material: CPS-Amide (PA6+G.F) | Max Speed: 6 m/s | Max Acceleration: 12 m/s² | Temperature: -30 ~ +130℃ | Special Production: ESD, UV (optional) | Bracket: FEB (Steel Plate enclosure) or Steel End Bracket (SEB), B1/B2/B3 (made-to-order) | Steel Plate: made-to-order | Length: made-to-order | Divider/Separator: made-to-order | Certificate: CE, ATEX(Ex), RoHS2
ST120E.250.R200 Shift Chain Enclosed ST120E, inside width 250mm, bending radius R200mm | Model: ST120E | Type: Enclosed (E) | Pitch: 120mm | Inside Width (C): 250mm | Outer Width (A): 292mm | Outer Height (B): 108mm | Inner Height (D): 76mm | Bending Radius (R): 200mm | Weight: 7.07 kg/m | Material: CPS-Amide (PA6+G.F) | Max Speed: 6 m/s | Max Acceleration: 12 m/s² | Temperature: -30 ~ +130℃ | Special Production: ESD, UV (optional) | Bracket: FEB (Steel Plate enclosure) or Steel End Bracket (SEB), B1/B2/B3 (made-to-order) | Steel Plate: made-to-order | Length: made-to-order | Divider/Separator: made-to-order | Certificate: CE, ATEX(Ex), RoHS2
ST120E.250.R250 Shift Chain Enclosed ST120E, inside width 250mm, bending radius R250mm | Model: ST120E | Type: Enclosed (E) | Pitch: 120mm | Inside Width (C): 250mm | Outer Width (A): 292mm | Outer Height (B): 108mm | Inner Height (D): 76mm | Bending Radius (R): 250mm | Weight: 7.07 kg/m | Material: CPS-Amide (PA6+G.F) | Max Speed: 6 m/s | Max Acceleration: 12 m/s² | Temperature: -30 ~ +130℃ | Special Production: ESD, UV (optional) | Bracket: FEB (Steel Plate enclosure) or Steel End Bracket (SEB), B1/B2/B3 (made-to-order) | Steel Plate: made-to-order | Length: made-to-order | Divider/Separator: made-to-order | Certificate: CE, ATEX(Ex), RoHS2
ST120E.250.R300 Shift Chain Enclosed ST120E, inside width 250mm, bending radius R300mm | Model: ST120E | Type: Enclosed (E) | Pitch: 120mm | Inside Width (C): 250mm | Outer Width (A): 292mm | Outer Height (B): 108mm | Inner Height (D): 76mm | Bending Radius (R): 300mm | Weight: 7.07 kg/m | Material: CPS-Amide (PA6+G.F) | Max Speed: 6 m/s | Max Acceleration: 12 m/s² | Temperature: -30 ~ +130℃ | Special Production: ESD, UV (optional) | Bracket: FEB (Steel Plate enclosure) or Steel End Bracket (SEB), B1/B2/B3 (made-to-order) | Steel Plate: made-to-order | Length: made-to-order | Divider/Separator: made-to-order | Certificate: CE, ATEX(Ex), RoHS2
ST120E.250.R350 Shift Chain Enclosed ST120E, inside width 250mm, bending radius R350mm | Model: ST120E | Type: Enclosed (E) | Pitch: 120mm | Inside Width (C): 250mm | Outer Width (A): 292mm | Outer Height (B): 108mm | Inner Height (D): 76mm | Bending Radius (R): 350mm | Weight: 7.07 kg/m | Material: CPS-Amide (PA6+G.F) | Max Speed: 6 m/s | Max Acceleration: 12 m/s² | Temperature: -30 ~ +130℃ | Special Production: ESD, UV (optional) | Bracket: FEB (Steel Plate enclosure) or Steel End Bracket (SEB), B1/B2/B3 (made-to-order) | Steel Plate: made-to-order | Length: made-to-order | Divider/Separator: made-to-order | Certificate: CE, ATEX(Ex), RoHS2
ST120E.250.R400 Shift Chain Enclosed ST120E, inside width 250mm, bending radius R400mm | Model: ST120E | Type: Enclosed (E) | Pitch: 120mm | Inside Width (C): 250mm | Outer Width (A): 292mm | Outer Height (B): 108mm | Inner Height (D): 76mm | Bending Radius (R): 400mm | Weight: 7.07 kg/m | Material: CPS-Amide (PA6+G.F) | Max Speed: 6 m/s | Max Acceleration: 12 m/s² | Temperature: -30 ~ +130℃ | Special Production: ESD, UV (optional) | Bracket: FEB (Steel Plate enclosure) or Steel End Bracket (SEB), B1/B2/B3 (made-to-order) | Steel Plate: made-to-order | Length: made-to-order | Divider/Separator: made-to-order | Certificate: CE, ATEX(Ex), RoHS2
ST120E.250.R500 Shift Chain Enclosed ST120E, inside width 250mm, bending radius R500mm | Model: ST120E | Type: Enclosed (E) | Pitch: 120mm | Inside Width (C): 250mm | Outer Width (A): 292mm | Outer Height (B): 108mm | Inner Height (D): 76mm | Bending Radius (R): 500mm | Weight: 7.07 kg/m | Material: CPS-Amide (PA6+G.F) | Max Speed: 6 m/s | Max Acceleration: 12 m/s² | Temperature: -30 ~ +130℃ | Special Production: ESD, UV (optional) | Bracket: FEB (Steel Plate enclosure) or Steel End Bracket (SEB), B1/B2/B3 (made-to-order) | Steel Plate: made-to-order | Length: made-to-order | Divider/Separator: made-to-order | Certificate: CE, ATEX(Ex), RoHS2
ST120E.300.R200 Shift Chain Enclosed ST120E, inside width 300mm, bending radius R200mm | Model: ST120E | Type: Enclosed (E) | Pitch: 120mm | Inside Width (C): 300mm | Outer Width (A): 342mm | Outer Height (B): 108mm | Inner Height (D): 76mm | Bending Radius (R): 200mm | Weight: 7.71 kg/m | Material: CPS-Amide (PA6+G.F) | Max Speed: 6 m/s | Max Acceleration: 12 m/s² | Temperature: -30 ~ +130℃ | Special Production: ESD, UV (optional) | Bracket: FEB (Steel Plate enclosure) or Steel End Bracket (SEB), B1/B2/B3 (made-to-order) | Steel Plate: made-to-order | Length: made-to-order | Divider/Separator: made-to-order | Certificate: CE, ATEX(Ex), RoHS2
ST120E.300.R250 Shift Chain Enclosed ST120E, inside width 300mm, bending radius R250mm | Model: ST120E | Type: Enclosed (E) | Pitch: 120mm | Inside Width (C): 300mm | Outer Width (A): 342mm | Outer Height (B): 108mm | Inner Height (D): 76mm | Bending Radius (R): 250mm | Weight: 7.71 kg/m | Material: CPS-Amide (PA6+G.F) | Max Speed: 6 m/s | Max Acceleration: 12 m/s² | Temperature: -30 ~ +130℃ | Special Production: ESD, UV (optional) | Bracket: FEB (Steel Plate enclosure) or Steel End Bracket (SEB), B1/B2/B3 (made-to-order) | Steel Plate: made-to-order | Length: made-to-order | Divider/Separator: made-to-order | Certificate: CE, ATEX(Ex), RoHS2
ST120E.300.R300 Shift Chain Enclosed ST120E, inside width 300mm, bending radius R300mm | Model: ST120E | Type: Enclosed (E) | Pitch: 120mm | Inside Width (C): 300mm | Outer Width (A): 342mm | Outer Height (B): 108mm | Inner Height (D): 76mm | Bending Radius (R): 300mm | Weight: 7.71 kg/m | Material: CPS-Amide (PA6+G.F) | Max Speed: 6 m/s | Max Acceleration: 12 m/s² | Temperature: -30 ~ +130℃ | Special Production: ESD, UV (optional) | Bracket: FEB (Steel Plate enclosure) or Steel End Bracket (SEB), B1/B2/B3 (made-to-order) | Steel Plate: made-to-order | Length: made-to-order | Divider/Separator: made-to-order | Certificate: CE, ATEX(Ex), RoHS2
ST120E.300.R350 Shift Chain Enclosed ST120E, inside width 300mm, bending radius R350mm | Model: ST120E | Type: Enclosed (E) | Pitch: 120mm | Inside Width (C): 300mm | Outer Width (A): 342mm | Outer Height (B): 108mm | Inner Height (D): 76mm | Bending Radius (R): 350mm | Weight: 7.71 kg/m | Material: CPS-Amide (PA6+G.F) | Max Speed: 6 m/s | Max Acceleration: 12 m/s² | Temperature: -30 ~ +130℃ | Special Production: ESD, UV (optional) | Bracket: FEB (Steel Plate enclosure) or Steel End Bracket (SEB), B1/B2/B3 (made-to-order) | Steel Plate: made-to-order | Length: made-to-order | Divider/Separator: made-to-order | Certificate: CE, ATEX(Ex), RoHS2
ST120E.300.R400 Shift Chain Enclosed ST120E, inside width 300mm, bending radius R400mm | Model: ST120E | Type: Enclosed (E) | Pitch: 120mm | Inside Width (C): 300mm | Outer Width (A): 342mm | Outer Height (B): 108mm | Inner Height (D): 76mm | Bending Radius (R): 400mm | Weight: 7.71 kg/m | Material: CPS-Amide (PA6+G.F) | Max Speed: 6 m/s | Max Acceleration: 12 m/s² | Temperature: -30 ~ +130℃ | Special Production: ESD, UV (optional) | Bracket: FEB (Steel Plate enclosure) or Steel End Bracket (SEB), B1/B2/B3 (made-to-order) | Steel Plate: made-to-order | Length: made-to-order | Divider/Separator: made-to-order | Certificate: CE, ATEX(Ex), RoHS2
ST120E.300.R500 Shift Chain Enclosed ST120E, inside width 300mm, bending radius R500mm | Model: ST120E | Type: Enclosed (E) | Pitch: 120mm | Inside Width (C): 300mm | Outer Width (A): 342mm | Outer Height (B): 108mm | Inner Height (D): 76mm | Bending Radius (R): 500mm | Weight: 7.71 kg/m | Material: CPS-Amide (PA6+G.F) | Max Speed: 6 m/s | Max Acceleration: 12 m/s² | Temperature: -30 ~ +130℃ | Special Production: ESD, UV (optional) | Bracket: FEB (Steel Plate enclosure) or Steel End Bracket (SEB), B1/B2/B3 (made-to-order) | Steel Plate: made-to-order | Length: made-to-order | Divider/Separator: made-to-order | Certificate: CE, ATEX(Ex), RoHS2
Cable CarriersCP System
24 product codes available in this family
Sourced direct from KoreaExport-ready supplyCompetitive pricing
RFQ List 0 Email about this

Need a different model, or a part not listed here? Send us your parts list →

CP System Shift Chain ST120E Enclosed Type Cable Carrier (Pitch 120, Inside Width 150-300mm, BR R200-R500)

Brand CP System·Cable Carriers

Available part numbers (24)

ST120E.150.R200, ST120E.150.R250, ST120E.150.R300, ST120E.150.R350, ST120E.150.R400, ST120E.150.R500, ST120E.200.R200, ST120E.200.R250, ST120E.200.R300, ST120E.200.R350 + 14 more — see full table ↓

How to order

Send the CP System part numbers and quantities through our RFQ form or to info@prosourcemro.com. We confirm price, availability and lead time within 1 business day — no account needed.

RFQ List 0 →
View full details
Product codes & specifications
0 selected
RFQ List (0)
Product codeSpec
ST120E.150.R200Shift Chain Enclosed ST120E, inside width 150mm, bending radius R200mm | Model: ST120E | Type: Enclosed (E) | Pitch: 120mm | Inside Width (C): 150mm | Outer Width (A): 192mm | Outer Height (B): 108mm | Inner Height (D): 76mm | Bending Radius (R): 200mm | Weight: 5.79 kg/m | Material: CPS-Amide (PA6+G.F) | Max Speed: 6 m/s | Max Acceleration: 12 m/s² | Temperature: -30 ~ +130℃ | Special Production: ESD, UV (optional) | Bracket: FEB (Steel Plate enclosure) or Steel End Bracket (SEB), B1/B2/B3 (made-to-order) | Steel Plate: made-to-order | Length: made-to-order | Divider/Separator: made-to-order | Certificate: CE, ATEX(Ex), RoHS2
ST120E.150.R250Shift Chain Enclosed ST120E, inside width 150mm, bending radius R250mm | Model: ST120E | Type: Enclosed (E) | Pitch: 120mm | Inside Width (C): 150mm | Outer Width (A): 192mm | Outer Height (B): 108mm | Inner Height (D): 76mm | Bending Radius (R): 250mm | Weight: 5.79 kg/m | Material: CPS-Amide (PA6+G.F) | Max Speed: 6 m/s | Max Acceleration: 12 m/s² | Temperature: -30 ~ +130℃ | Special Production: ESD, UV (optional) | Bracket: FEB (Steel Plate enclosure) or Steel End Bracket (SEB), B1/B2/B3 (made-to-order) | Steel Plate: made-to-order | Length: made-to-order | Divider/Separator: made-to-order | Certificate: CE, ATEX(Ex), RoHS2
ST120E.150.R300Shift Chain Enclosed ST120E, inside width 150mm, bending radius R300mm | Model: ST120E | Type: Enclosed (E) | Pitch: 120mm | Inside Width (C): 150mm | Outer Width (A): 192mm | Outer Height (B): 108mm | Inner Height (D): 76mm | Bending Radius (R): 300mm | Weight: 5.79 kg/m | Material: CPS-Amide (PA6+G.F) | Max Speed: 6 m/s | Max Acceleration: 12 m/s² | Temperature: -30 ~ +130℃ | Special Production: ESD, UV (optional) | Bracket: FEB (Steel Plate enclosure) or Steel End Bracket (SEB), B1/B2/B3 (made-to-order) | Steel Plate: made-to-order | Length: made-to-order | Divider/Separator: made-to-order | Certificate: CE, ATEX(Ex), RoHS2
ST120E.150.R350Shift Chain Enclosed ST120E, inside width 150mm, bending radius R350mm | Model: ST120E | Type: Enclosed (E) | Pitch: 120mm | Inside Width (C): 150mm | Outer Width (A): 192mm | Outer Height (B): 108mm | Inner Height (D): 76mm | Bending Radius (R): 350mm | Weight: 5.79 kg/m | Material: CPS-Amide (PA6+G.F) | Max Speed: 6 m/s | Max Acceleration: 12 m/s² | Temperature: -30 ~ +130℃ | Special Production: ESD, UV (optional) | Bracket: FEB (Steel Plate enclosure) or Steel End Bracket (SEB), B1/B2/B3 (made-to-order) | Steel Plate: made-to-order | Length: made-to-order | Divider/Separator: made-to-order | Certificate: CE, ATEX(Ex), RoHS2
ST120E.150.R400Shift Chain Enclosed ST120E, inside width 150mm, bending radius R400mm | Model: ST120E | Type: Enclosed (E) | Pitch: 120mm | Inside Width (C): 150mm | Outer Width (A): 192mm | Outer Height (B): 108mm | Inner Height (D): 76mm | Bending Radius (R): 400mm | Weight: 5.79 kg/m | Material: CPS-Amide (PA6+G.F) | Max Speed: 6 m/s | Max Acceleration: 12 m/s² | Temperature: -30 ~ +130℃ | Special Production: ESD, UV (optional) | Bracket: FEB (Steel Plate enclosure) or Steel End Bracket (SEB), B1/B2/B3 (made-to-order) | Steel Plate: made-to-order | Length: made-to-order | Divider/Separator: made-to-order | Certificate: CE, ATEX(Ex), RoHS2
ST120E.150.R500Shift Chain Enclosed ST120E, inside width 150mm, bending radius R500mm | Model: ST120E | Type: Enclosed (E) | Pitch: 120mm | Inside Width (C): 150mm | Outer Width (A): 192mm | Outer Height (B): 108mm | Inner Height (D): 76mm | Bending Radius (R): 500mm | Weight: 5.79 kg/m | Material: CPS-Amide (PA6+G.F) | Max Speed: 6 m/s | Max Acceleration: 12 m/s² | Temperature: -30 ~ +130℃ | Special Production: ESD, UV (optional) | Bracket: FEB (Steel Plate enclosure) or Steel End Bracket (SEB), B1/B2/B3 (made-to-order) | Steel Plate: made-to-order | Length: made-to-order | Divider/Separator: made-to-order | Certificate: CE, ATEX(Ex), RoHS2
ST120E.200.R200Shift Chain Enclosed ST120E, inside width 200mm, bending radius R200mm | Model: ST120E | Type: Enclosed (E) | Pitch: 120mm | Inside Width (C): 200mm | Outer Width (A): 242mm | Outer Height (B): 108mm | Inner Height (D): 76mm | Bending Radius (R): 200mm | Weight: 6.43 kg/m | Material: CPS-Amide (PA6+G.F) | Max Speed: 6 m/s | Max Acceleration: 12 m/s² | Temperature: -30 ~ +130℃ | Special Production: ESD, UV (optional) | Bracket: FEB (Steel Plate enclosure) or Steel End Bracket (SEB), B1/B2/B3 (made-to-order) | Steel Plate: made-to-order | Length: made-to-order | Divider/Separator: made-to-order | Certificate: CE, ATEX(Ex), RoHS2
ST120E.200.R250Shift Chain Enclosed ST120E, inside width 200mm, bending radius R250mm | Model: ST120E | Type: Enclosed (E) | Pitch: 120mm | Inside Width (C): 200mm | Outer Width (A): 242mm | Outer Height (B): 108mm | Inner Height (D): 76mm | Bending Radius (R): 250mm | Weight: 6.43 kg/m | Material: CPS-Amide (PA6+G.F) | Max Speed: 6 m/s | Max Acceleration: 12 m/s² | Temperature: -30 ~ +130℃ | Special Production: ESD, UV (optional) | Bracket: FEB (Steel Plate enclosure) or Steel End Bracket (SEB), B1/B2/B3 (made-to-order) | Steel Plate: made-to-order | Length: made-to-order | Divider/Separator: made-to-order | Certificate: CE, ATEX(Ex), RoHS2
ST120E.200.R300Shift Chain Enclosed ST120E, inside width 200mm, bending radius R300mm | Model: ST120E | Type: Enclosed (E) | Pitch: 120mm | Inside Width (C): 200mm | Outer Width (A): 242mm | Outer Height (B): 108mm | Inner Height (D): 76mm | Bending Radius (R): 300mm | Weight: 6.43 kg/m | Material: CPS-Amide (PA6+G.F) | Max Speed: 6 m/s | Max Acceleration: 12 m/s² | Temperature: -30 ~ +130℃ | Special Production: ESD, UV (optional) | Bracket: FEB (Steel Plate enclosure) or Steel End Bracket (SEB), B1/B2/B3 (made-to-order) | Steel Plate: made-to-order | Length: made-to-order | Divider/Separator: made-to-order | Certificate: CE, ATEX(Ex), RoHS2
ST120E.200.R350Shift Chain Enclosed ST120E, inside width 200mm, bending radius R350mm | Model: ST120E | Type: Enclosed (E) | Pitch: 120mm | Inside Width (C): 200mm | Outer Width (A): 242mm | Outer Height (B): 108mm | Inner Height (D): 76mm | Bending Radius (R): 350mm | Weight: 6.43 kg/m | Material: CPS-Amide (PA6+G.F) | Max Speed: 6 m/s | Max Acceleration: 12 m/s² | Temperature: -30 ~ +130℃ | Special Production: ESD, UV (optional) | Bracket: FEB (Steel Plate enclosure) or Steel End Bracket (SEB), B1/B2/B3 (made-to-order) | Steel Plate: made-to-order | Length: made-to-order | Divider/Separator: made-to-order | Certificate: CE, ATEX(Ex), RoHS2
ST120E.200.R400Shift Chain Enclosed ST120E, inside width 200mm, bending radius R400mm | Model: ST120E | Type: Enclosed (E) | Pitch: 120mm | Inside Width (C): 200mm | Outer Width (A): 242mm | Outer Height (B): 108mm | Inner Height (D): 76mm | Bending Radius (R): 400mm | Weight: 6.43 kg/m | Material: CPS-Amide (PA6+G.F) | Max Speed: 6 m/s | Max Acceleration: 12 m/s² | Temperature: -30 ~ +130℃ | Special Production: ESD, UV (optional) | Bracket: FEB (Steel Plate enclosure) or Steel End Bracket (SEB), B1/B2/B3 (made-to-order) | Steel Plate: made-to-order | Length: made-to-order | Divider/Separator: made-to-order | Certificate: CE, ATEX(Ex), RoHS2
ST120E.200.R500Shift Chain Enclosed ST120E, inside width 200mm, bending radius R500mm | Model: ST120E | Type: Enclosed (E) | Pitch: 120mm | Inside Width (C): 200mm | Outer Width (A): 242mm | Outer Height (B): 108mm | Inner Height (D): 76mm | Bending Radius (R): 500mm | Weight: 6.43 kg/m | Material: CPS-Amide (PA6+G.F) | Max Speed: 6 m/s | Max Acceleration: 12 m/s² | Temperature: -30 ~ +130℃ | Special Production: ESD, UV (optional) | Bracket: FEB (Steel Plate enclosure) or Steel End Bracket (SEB), B1/B2/B3 (made-to-order) | Steel Plate: made-to-order | Length: made-to-order | Divider/Separator: made-to-order | Certificate: CE, ATEX(Ex), RoHS2
ST120E.250.R200Shift Chain Enclosed ST120E, inside width 250mm, bending radius R200mm | Model: ST120E | Type: Enclosed (E) | Pitch: 120mm | Inside Width (C): 250mm | Outer Width (A): 292mm | Outer Height (B): 108mm | Inner Height (D): 76mm | Bending Radius (R): 200mm | Weight: 7.07 kg/m | Material: CPS-Amide (PA6+G.F) | Max Speed: 6 m/s | Max Acceleration: 12 m/s² | Temperature: -30 ~ +130℃ | Special Production: ESD, UV (optional) | Bracket: FEB (Steel Plate enclosure) or Steel End Bracket (SEB), B1/B2/B3 (made-to-order) | Steel Plate: made-to-order | Length: made-to-order | Divider/Separator: made-to-order | Certificate: CE, ATEX(Ex), RoHS2
ST120E.250.R250Shift Chain Enclosed ST120E, inside width 250mm, bending radius R250mm | Model: ST120E | Type: Enclosed (E) | Pitch: 120mm | Inside Width (C): 250mm | Outer Width (A): 292mm | Outer Height (B): 108mm | Inner Height (D): 76mm | Bending Radius (R): 250mm | Weight: 7.07 kg/m | Material: CPS-Amide (PA6+G.F) | Max Speed: 6 m/s | Max Acceleration: 12 m/s² | Temperature: -30 ~ +130℃ | Special Production: ESD, UV (optional) | Bracket: FEB (Steel Plate enclosure) or Steel End Bracket (SEB), B1/B2/B3 (made-to-order) | Steel Plate: made-to-order | Length: made-to-order | Divider/Separator: made-to-order | Certificate: CE, ATEX(Ex), RoHS2
ST120E.250.R300Shift Chain Enclosed ST120E, inside width 250mm, bending radius R300mm | Model: ST120E | Type: Enclosed (E) | Pitch: 120mm | Inside Width (C): 250mm | Outer Width (A): 292mm | Outer Height (B): 108mm | Inner Height (D): 76mm | Bending Radius (R): 300mm | Weight: 7.07 kg/m | Material: CPS-Amide (PA6+G.F) | Max Speed: 6 m/s | Max Acceleration: 12 m/s² | Temperature: -30 ~ +130℃ | Special Production: ESD, UV (optional) | Bracket: FEB (Steel Plate enclosure) or Steel End Bracket (SEB), B1/B2/B3 (made-to-order) | Steel Plate: made-to-order | Length: made-to-order | Divider/Separator: made-to-order | Certificate: CE, ATEX(Ex), RoHS2
ST120E.250.R350Shift Chain Enclosed ST120E, inside width 250mm, bending radius R350mm | Model: ST120E | Type: Enclosed (E) | Pitch: 120mm | Inside Width (C): 250mm | Outer Width (A): 292mm | Outer Height (B): 108mm | Inner Height (D): 76mm | Bending Radius (R): 350mm | Weight: 7.07 kg/m | Material: CPS-Amide (PA6+G.F) | Max Speed: 6 m/s | Max Acceleration: 12 m/s² | Temperature: -30 ~ +130℃ | Special Production: ESD, UV (optional) | Bracket: FEB (Steel Plate enclosure) or Steel End Bracket (SEB), B1/B2/B3 (made-to-order) | Steel Plate: made-to-order | Length: made-to-order | Divider/Separator: made-to-order | Certificate: CE, ATEX(Ex), RoHS2
ST120E.250.R400Shift Chain Enclosed ST120E, inside width 250mm, bending radius R400mm | Model: ST120E | Type: Enclosed (E) | Pitch: 120mm | Inside Width (C): 250mm | Outer Width (A): 292mm | Outer Height (B): 108mm | Inner Height (D): 76mm | Bending Radius (R): 400mm | Weight: 7.07 kg/m | Material: CPS-Amide (PA6+G.F) | Max Speed: 6 m/s | Max Acceleration: 12 m/s² | Temperature: -30 ~ +130℃ | Special Production: ESD, UV (optional) | Bracket: FEB (Steel Plate enclosure) or Steel End Bracket (SEB), B1/B2/B3 (made-to-order) | Steel Plate: made-to-order | Length: made-to-order | Divider/Separator: made-to-order | Certificate: CE, ATEX(Ex), RoHS2
ST120E.250.R500Shift Chain Enclosed ST120E, inside width 250mm, bending radius R500mm | Model: ST120E | Type: Enclosed (E) | Pitch: 120mm | Inside Width (C): 250mm | Outer Width (A): 292mm | Outer Height (B): 108mm | Inner Height (D): 76mm | Bending Radius (R): 500mm | Weight: 7.07 kg/m | Material: CPS-Amide (PA6+G.F) | Max Speed: 6 m/s | Max Acceleration: 12 m/s² | Temperature: -30 ~ +130℃ | Special Production: ESD, UV (optional) | Bracket: FEB (Steel Plate enclosure) or Steel End Bracket (SEB), B1/B2/B3 (made-to-order) | Steel Plate: made-to-order | Length: made-to-order | Divider/Separator: made-to-order | Certificate: CE, ATEX(Ex), RoHS2
ST120E.300.R200Shift Chain Enclosed ST120E, inside width 300mm, bending radius R200mm | Model: ST120E | Type: Enclosed (E) | Pitch: 120mm | Inside Width (C): 300mm | Outer Width (A): 342mm | Outer Height (B): 108mm | Inner Height (D): 76mm | Bending Radius (R): 200mm | Weight: 7.71 kg/m | Material: CPS-Amide (PA6+G.F) | Max Speed: 6 m/s | Max Acceleration: 12 m/s² | Temperature: -30 ~ +130℃ | Special Production: ESD, UV (optional) | Bracket: FEB (Steel Plate enclosure) or Steel End Bracket (SEB), B1/B2/B3 (made-to-order) | Steel Plate: made-to-order | Length: made-to-order | Divider/Separator: made-to-order | Certificate: CE, ATEX(Ex), RoHS2
ST120E.300.R250Shift Chain Enclosed ST120E, inside width 300mm, bending radius R250mm | Model: ST120E | Type: Enclosed (E) | Pitch: 120mm | Inside Width (C): 300mm | Outer Width (A): 342mm | Outer Height (B): 108mm | Inner Height (D): 76mm | Bending Radius (R): 250mm | Weight: 7.71 kg/m | Material: CPS-Amide (PA6+G.F) | Max Speed: 6 m/s | Max Acceleration: 12 m/s² | Temperature: -30 ~ +130℃ | Special Production: ESD, UV (optional) | Bracket: FEB (Steel Plate enclosure) or Steel End Bracket (SEB), B1/B2/B3 (made-to-order) | Steel Plate: made-to-order | Length: made-to-order | Divider/Separator: made-to-order | Certificate: CE, ATEX(Ex), RoHS2
ST120E.300.R300Shift Chain Enclosed ST120E, inside width 300mm, bending radius R300mm | Model: ST120E | Type: Enclosed (E) | Pitch: 120mm | Inside Width (C): 300mm | Outer Width (A): 342mm | Outer Height (B): 108mm | Inner Height (D): 76mm | Bending Radius (R): 300mm | Weight: 7.71 kg/m | Material: CPS-Amide (PA6+G.F) | Max Speed: 6 m/s | Max Acceleration: 12 m/s² | Temperature: -30 ~ +130℃ | Special Production: ESD, UV (optional) | Bracket: FEB (Steel Plate enclosure) or Steel End Bracket (SEB), B1/B2/B3 (made-to-order) | Steel Plate: made-to-order | Length: made-to-order | Divider/Separator: made-to-order | Certificate: CE, ATEX(Ex), RoHS2
ST120E.300.R350Shift Chain Enclosed ST120E, inside width 300mm, bending radius R350mm | Model: ST120E | Type: Enclosed (E) | Pitch: 120mm | Inside Width (C): 300mm | Outer Width (A): 342mm | Outer Height (B): 108mm | Inner Height (D): 76mm | Bending Radius (R): 350mm | Weight: 7.71 kg/m | Material: CPS-Amide (PA6+G.F) | Max Speed: 6 m/s | Max Acceleration: 12 m/s² | Temperature: -30 ~ +130℃ | Special Production: ESD, UV (optional) | Bracket: FEB (Steel Plate enclosure) or Steel End Bracket (SEB), B1/B2/B3 (made-to-order) | Steel Plate: made-to-order | Length: made-to-order | Divider/Separator: made-to-order | Certificate: CE, ATEX(Ex), RoHS2
ST120E.300.R400Shift Chain Enclosed ST120E, inside width 300mm, bending radius R400mm | Model: ST120E | Type: Enclosed (E) | Pitch: 120mm | Inside Width (C): 300mm | Outer Width (A): 342mm | Outer Height (B): 108mm | Inner Height (D): 76mm | Bending Radius (R): 400mm | Weight: 7.71 kg/m | Material: CPS-Amide (PA6+G.F) | Max Speed: 6 m/s | Max Acceleration: 12 m/s² | Temperature: -30 ~ +130℃ | Special Production: ESD, UV (optional) | Bracket: FEB (Steel Plate enclosure) or Steel End Bracket (SEB), B1/B2/B3 (made-to-order) | Steel Plate: made-to-order | Length: made-to-order | Divider/Separator: made-to-order | Certificate: CE, ATEX(Ex), RoHS2
ST120E.300.R500Shift Chain Enclosed ST120E, inside width 300mm, bending radius R500mm | Model: ST120E | Type: Enclosed (E) | Pitch: 120mm | Inside Width (C): 300mm | Outer Width (A): 342mm | Outer Height (B): 108mm | Inner Height (D): 76mm | Bending Radius (R): 500mm | Weight: 7.71 kg/m | Material: CPS-Amide (PA6+G.F) | Max Speed: 6 m/s | Max Acceleration: 12 m/s² | Temperature: -30 ~ +130℃ | Special Production: ESD, UV (optional) | Bracket: FEB (Steel Plate enclosure) or Steel End Bracket (SEB), B1/B2/B3 (made-to-order) | Steel Plate: made-to-order | Length: made-to-order | Divider/Separator: made-to-order | Certificate: CE, ATEX(Ex), RoHS2
