• CP System Shift Chain ST150E Enclosed Type Cable Carrier (Pitch 150, Inside Width 200-400mm, BR R305-R605)
1 1

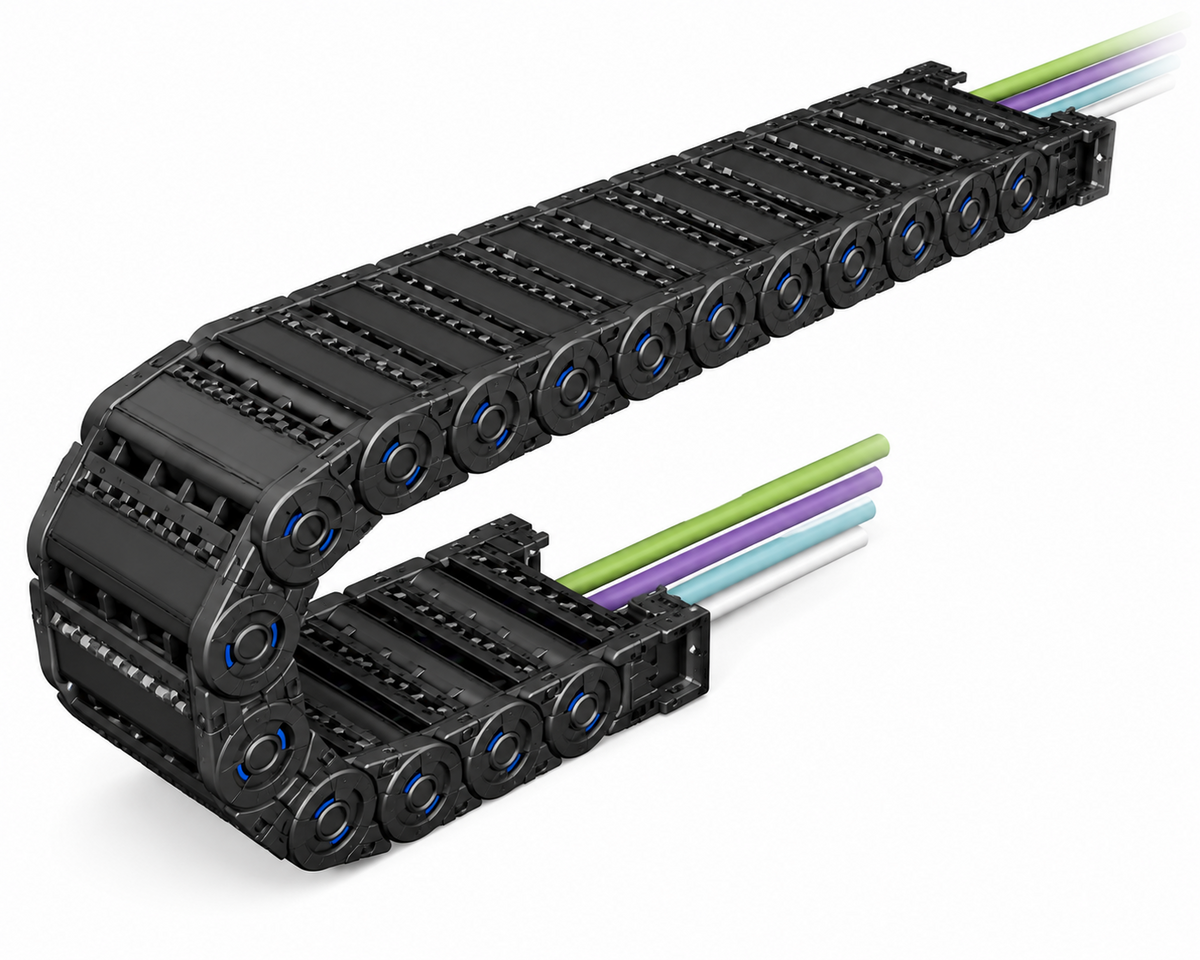

CP System Shift Chain ST150E Enclosed Type Cable Carrier (Pitch 150, Inside Width 200-400mm, BR R305-R605)

CP System Shift Chain ST150E Enclosed Type Cable Carrier (Pitch 150, Inside Width 200-400mm, BR R305-R605)

Shift Chain Enclosed Type ST150E, fully enclosed cable & hose carrier.

Key features

  • The Free End Bracket can be fully enclosed by inserting a Steel Plate
  • Bending Radius is determined by each interchangeable 'BR' unit inserted into the side band
  • Pitch 150mm
  • Inside width 200-400mm; bending radius R305-R605
  • Material CPS-Amide (PA6+G.F)
  • Max speed 6 m/s, acceleration 12 m/s². Temperature -30 to +130℃. ESD/UV available

Specifications

Model ST150E
Type Enclosed (E)
Pitch 150mm
Outer Height (B) 141mm
Inner Height (D) 110mm
Material CPS-Amide (PA6+G.F)
Max Speed 6 m/s
Max Acceleration 12 m/s²
Temperature -30 ~ +130℃
Special Production ESD, UV (optional)
Bracket Steel End Bracket (SEB), B1/B2/B3 (made-to-order)
Steel Plate made-to-order
ST150E.200.R305 Shift Chain Enclosed ST150E, inside width 200mm, bending radius R305mm | Model: ST150E | Type: Enclosed (E) | Pitch: 150mm | Inside Width (C): 200mm | Outer Width (A): 246mm | Outer Height (B): 141mm | Inner Height (D): 110mm | Bending Radius (R): 305mm | Weight: 8.16 kg/m | Material: CPS-Amide (PA6+G.F) | Max Speed: 6 m/s | Max Acceleration: 12 m/s² | Temperature: -30 ~ +130℃ | Special Production: ESD, UV (optional) | Bracket: Steel End Bracket (SEB), B1/B2/B3 (made-to-order) | Steel Plate: made-to-order | Length: made-to-order | Divider/Separator: made-to-order | Certificate: CE, ATEX(Ex), RoHS2
ST150E.200.R405 Shift Chain Enclosed ST150E, inside width 200mm, bending radius R405mm | Model: ST150E | Type: Enclosed (E) | Pitch: 150mm | Inside Width (C): 200mm | Outer Width (A): 246mm | Outer Height (B): 141mm | Inner Height (D): 110mm | Bending Radius (R): 405mm | Weight: 8.16 kg/m | Material: CPS-Amide (PA6+G.F) | Max Speed: 6 m/s | Max Acceleration: 12 m/s² | Temperature: -30 ~ +130℃ | Special Production: ESD, UV (optional) | Bracket: Steel End Bracket (SEB), B1/B2/B3 (made-to-order) | Steel Plate: made-to-order | Length: made-to-order | Divider/Separator: made-to-order | Certificate: CE, ATEX(Ex), RoHS2
ST150E.200.R505 Shift Chain Enclosed ST150E, inside width 200mm, bending radius R505mm | Model: ST150E | Type: Enclosed (E) | Pitch: 150mm | Inside Width (C): 200mm | Outer Width (A): 246mm | Outer Height (B): 141mm | Inner Height (D): 110mm | Bending Radius (R): 505mm | Weight: 8.16 kg/m | Material: CPS-Amide (PA6+G.F) | Max Speed: 6 m/s | Max Acceleration: 12 m/s² | Temperature: -30 ~ +130℃ | Special Production: ESD, UV (optional) | Bracket: Steel End Bracket (SEB), B1/B2/B3 (made-to-order) | Steel Plate: made-to-order | Length: made-to-order | Divider/Separator: made-to-order | Certificate: CE, ATEX(Ex), RoHS2
ST150E.200.R605 Shift Chain Enclosed ST150E, inside width 200mm, bending radius R605mm | Model: ST150E | Type: Enclosed (E) | Pitch: 150mm | Inside Width (C): 200mm | Outer Width (A): 246mm | Outer Height (B): 141mm | Inner Height (D): 110mm | Bending Radius (R): 605mm | Weight: 8.16 kg/m | Material: CPS-Amide (PA6+G.F) | Max Speed: 6 m/s | Max Acceleration: 12 m/s² | Temperature: -30 ~ +130℃ | Special Production: ESD, UV (optional) | Bracket: Steel End Bracket (SEB), B1/B2/B3 (made-to-order) | Steel Plate: made-to-order | Length: made-to-order | Divider/Separator: made-to-order | Certificate: CE, ATEX(Ex), RoHS2
ST150E.250.R305 Shift Chain Enclosed ST150E, inside width 250mm, bending radius R305mm | Model: ST150E | Type: Enclosed (E) | Pitch: 150mm | Inside Width (C): 250mm | Outer Width (A): 296mm | Outer Height (B): 141mm | Inner Height (D): 110mm | Bending Radius (R): 305mm | Weight: 8.76 kg/m | Material: CPS-Amide (PA6+G.F) | Max Speed: 6 m/s | Max Acceleration: 12 m/s² | Temperature: -30 ~ +130℃ | Special Production: ESD, UV (optional) | Bracket: Steel End Bracket (SEB), B1/B2/B3 (made-to-order) | Steel Plate: made-to-order | Length: made-to-order | Divider/Separator: made-to-order | Certificate: CE, ATEX(Ex), RoHS2
ST150E.250.R405 Shift Chain Enclosed ST150E, inside width 250mm, bending radius R405mm | Model: ST150E | Type: Enclosed (E) | Pitch: 150mm | Inside Width (C): 250mm | Outer Width (A): 296mm | Outer Height (B): 141mm | Inner Height (D): 110mm | Bending Radius (R): 405mm | Weight: 8.76 kg/m | Material: CPS-Amide (PA6+G.F) | Max Speed: 6 m/s | Max Acceleration: 12 m/s² | Temperature: -30 ~ +130℃ | Special Production: ESD, UV (optional) | Bracket: Steel End Bracket (SEB), B1/B2/B3 (made-to-order) | Steel Plate: made-to-order | Length: made-to-order | Divider/Separator: made-to-order | Certificate: CE, ATEX(Ex), RoHS2
ST150E.250.R505 Shift Chain Enclosed ST150E, inside width 250mm, bending radius R505mm | Model: ST150E | Type: Enclosed (E) | Pitch: 150mm | Inside Width (C): 250mm | Outer Width (A): 296mm | Outer Height (B): 141mm | Inner Height (D): 110mm | Bending Radius (R): 505mm | Weight: 8.76 kg/m | Material: CPS-Amide (PA6+G.F) | Max Speed: 6 m/s | Max Acceleration: 12 m/s² | Temperature: -30 ~ +130℃ | Special Production: ESD, UV (optional) | Bracket: Steel End Bracket (SEB), B1/B2/B3 (made-to-order) | Steel Plate: made-to-order | Length: made-to-order | Divider/Separator: made-to-order | Certificate: CE, ATEX(Ex), RoHS2
ST150E.250.R605 Shift Chain Enclosed ST150E, inside width 250mm, bending radius R605mm | Model: ST150E | Type: Enclosed (E) | Pitch: 150mm | Inside Width (C): 250mm | Outer Width (A): 296mm | Outer Height (B): 141mm | Inner Height (D): 110mm | Bending Radius (R): 605mm | Weight: 8.76 kg/m | Material: CPS-Amide (PA6+G.F) | Max Speed: 6 m/s | Max Acceleration: 12 m/s² | Temperature: -30 ~ +130℃ | Special Production: ESD, UV (optional) | Bracket: Steel End Bracket (SEB), B1/B2/B3 (made-to-order) | Steel Plate: made-to-order | Length: made-to-order | Divider/Separator: made-to-order | Certificate: CE, ATEX(Ex), RoHS2
ST150E.300.R305 Shift Chain Enclosed ST150E, inside width 300mm, bending radius R305mm | Model: ST150E | Type: Enclosed (E) | Pitch: 150mm | Inside Width (C): 300mm | Outer Width (A): 346mm | Outer Height (B): 141mm | Inner Height (D): 110mm | Bending Radius (R): 305mm | Weight: 10.50 kg/m | Material: CPS-Amide (PA6+G.F) | Max Speed: 6 m/s | Max Acceleration: 12 m/s² | Temperature: -30 ~ +130℃ | Special Production: ESD, UV (optional) | Bracket: Steel End Bracket (SEB), B1/B2/B3 (made-to-order) | Steel Plate: made-to-order | Length: made-to-order | Divider/Separator: made-to-order | Certificate: CE, ATEX(Ex), RoHS2
ST150E.300.R405 Shift Chain Enclosed ST150E, inside width 300mm, bending radius R405mm | Model: ST150E | Type: Enclosed (E) | Pitch: 150mm | Inside Width (C): 300mm | Outer Width (A): 346mm | Outer Height (B): 141mm | Inner Height (D): 110mm | Bending Radius (R): 405mm | Weight: 10.50 kg/m | Material: CPS-Amide (PA6+G.F) | Max Speed: 6 m/s | Max Acceleration: 12 m/s² | Temperature: -30 ~ +130℃ | Special Production: ESD, UV (optional) | Bracket: Steel End Bracket (SEB), B1/B2/B3 (made-to-order) | Steel Plate: made-to-order | Length: made-to-order | Divider/Separator: made-to-order | Certificate: CE, ATEX(Ex), RoHS2
ST150E.300.R505 Shift Chain Enclosed ST150E, inside width 300mm, bending radius R505mm | Model: ST150E | Type: Enclosed (E) | Pitch: 150mm | Inside Width (C): 300mm | Outer Width (A): 346mm | Outer Height (B): 141mm | Inner Height (D): 110mm | Bending Radius (R): 505mm | Weight: 10.50 kg/m | Material: CPS-Amide (PA6+G.F) | Max Speed: 6 m/s | Max Acceleration: 12 m/s² | Temperature: -30 ~ +130℃ | Special Production: ESD, UV (optional) | Bracket: Steel End Bracket (SEB), B1/B2/B3 (made-to-order) | Steel Plate: made-to-order | Length: made-to-order | Divider/Separator: made-to-order | Certificate: CE, ATEX(Ex), RoHS2
ST150E.300.R605 Shift Chain Enclosed ST150E, inside width 300mm, bending radius R605mm | Model: ST150E | Type: Enclosed (E) | Pitch: 150mm | Inside Width (C): 300mm | Outer Width (A): 346mm | Outer Height (B): 141mm | Inner Height (D): 110mm | Bending Radius (R): 605mm | Weight: 10.50 kg/m | Material: CPS-Amide (PA6+G.F) | Max Speed: 6 m/s | Max Acceleration: 12 m/s² | Temperature: -30 ~ +130℃ | Special Production: ESD, UV (optional) | Bracket: Steel End Bracket (SEB), B1/B2/B3 (made-to-order) | Steel Plate: made-to-order | Length: made-to-order | Divider/Separator: made-to-order | Certificate: CE, ATEX(Ex), RoHS2
ST150E.350.R305 Shift Chain Enclosed ST150E, inside width 350mm, bending radius R305mm | Model: ST150E | Type: Enclosed (E) | Pitch: 150mm | Inside Width (C): 350mm | Outer Width (A): 396mm | Outer Height (B): 141mm | Inner Height (D): 110mm | Bending Radius (R): 305mm | Weight: 12.33 kg/m | Material: CPS-Amide (PA6+G.F) | Max Speed: 6 m/s | Max Acceleration: 12 m/s² | Temperature: -30 ~ +130℃ | Special Production: ESD, UV (optional) | Bracket: Steel End Bracket (SEB), B1/B2/B3 (made-to-order) | Steel Plate: made-to-order | Length: made-to-order | Divider/Separator: made-to-order | Certificate: CE, ATEX(Ex), RoHS2
ST150E.350.R405 Shift Chain Enclosed ST150E, inside width 350mm, bending radius R405mm | Model: ST150E | Type: Enclosed (E) | Pitch: 150mm | Inside Width (C): 350mm | Outer Width (A): 396mm | Outer Height (B): 141mm | Inner Height (D): 110mm | Bending Radius (R): 405mm | Weight: 12.33 kg/m | Material: CPS-Amide (PA6+G.F) | Max Speed: 6 m/s | Max Acceleration: 12 m/s² | Temperature: -30 ~ +130℃ | Special Production: ESD, UV (optional) | Bracket: Steel End Bracket (SEB), B1/B2/B3 (made-to-order) | Steel Plate: made-to-order | Length: made-to-order | Divider/Separator: made-to-order | Certificate: CE, ATEX(Ex), RoHS2
ST150E.350.R505 Shift Chain Enclosed ST150E, inside width 350mm, bending radius R505mm | Model: ST150E | Type: Enclosed (E) | Pitch: 150mm | Inside Width (C): 350mm | Outer Width (A): 396mm | Outer Height (B): 141mm | Inner Height (D): 110mm | Bending Radius (R): 505mm | Weight: 12.33 kg/m | Material: CPS-Amide (PA6+G.F) | Max Speed: 6 m/s | Max Acceleration: 12 m/s² | Temperature: -30 ~ +130℃ | Special Production: ESD, UV (optional) | Bracket: Steel End Bracket (SEB), B1/B2/B3 (made-to-order) | Steel Plate: made-to-order | Length: made-to-order | Divider/Separator: made-to-order | Certificate: CE, ATEX(Ex), RoHS2
ST150E.350.R605 Shift Chain Enclosed ST150E, inside width 350mm, bending radius R605mm | Model: ST150E | Type: Enclosed (E) | Pitch: 150mm | Inside Width (C): 350mm | Outer Width (A): 396mm | Outer Height (B): 141mm | Inner Height (D): 110mm | Bending Radius (R): 605mm | Weight: 12.33 kg/m | Material: CPS-Amide (PA6+G.F) | Max Speed: 6 m/s | Max Acceleration: 12 m/s² | Temperature: -30 ~ +130℃ | Special Production: ESD, UV (optional) | Bracket: Steel End Bracket (SEB), B1/B2/B3 (made-to-order) | Steel Plate: made-to-order | Length: made-to-order | Divider/Separator: made-to-order | Certificate: CE, ATEX(Ex), RoHS2
ST150E.400.R305 Shift Chain Enclosed ST150E, inside width 400mm, bending radius R305mm | Model: ST150E | Type: Enclosed (E) | Pitch: 150mm | Inside Width (C): 400mm | Outer Width (A): 446mm | Outer Height (B): 141mm | Inner Height (D): 110mm | Bending Radius (R): 305mm | Weight: 14.16 kg/m | Material: CPS-Amide (PA6+G.F) | Max Speed: 6 m/s | Max Acceleration: 12 m/s² | Temperature: -30 ~ +130℃ | Special Production: ESD, UV (optional) | Bracket: Steel End Bracket (SEB), B1/B2/B3 (made-to-order) | Steel Plate: made-to-order | Length: made-to-order | Divider/Separator: made-to-order | Certificate: CE, ATEX(Ex), RoHS2
ST150E.400.R405 Shift Chain Enclosed ST150E, inside width 400mm, bending radius R405mm | Model: ST150E | Type: Enclosed (E) | Pitch: 150mm | Inside Width (C): 400mm | Outer Width (A): 446mm | Outer Height (B): 141mm | Inner Height (D): 110mm | Bending Radius (R): 405mm | Weight: 14.16 kg/m | Material: CPS-Amide (PA6+G.F) | Max Speed: 6 m/s | Max Acceleration: 12 m/s² | Temperature: -30 ~ +130℃ | Special Production: ESD, UV (optional) | Bracket: Steel End Bracket (SEB), B1/B2/B3 (made-to-order) | Steel Plate: made-to-order | Length: made-to-order | Divider/Separator: made-to-order | Certificate: CE, ATEX(Ex), RoHS2
ST150E.400.R505 Shift Chain Enclosed ST150E, inside width 400mm, bending radius R505mm | Model: ST150E | Type: Enclosed (E) | Pitch: 150mm | Inside Width (C): 400mm | Outer Width (A): 446mm | Outer Height (B): 141mm | Inner Height (D): 110mm | Bending Radius (R): 505mm | Weight: 14.16 kg/m | Material: CPS-Amide (PA6+G.F) | Max Speed: 6 m/s | Max Acceleration: 12 m/s² | Temperature: -30 ~ +130℃ | Special Production: ESD, UV (optional) | Bracket: Steel End Bracket (SEB), B1/B2/B3 (made-to-order) | Steel Plate: made-to-order | Length: made-to-order | Divider/Separator: made-to-order | Certificate: CE, ATEX(Ex), RoHS2
ST150E.400.R605 Shift Chain Enclosed ST150E, inside width 400mm, bending radius R605mm | Model: ST150E | Type: Enclosed (E) | Pitch: 150mm | Inside Width (C): 400mm | Outer Width (A): 446mm | Outer Height (B): 141mm | Inner Height (D): 110mm | Bending Radius (R): 605mm | Weight: 14.16 kg/m | Material: CPS-Amide (PA6+G.F) | Max Speed: 6 m/s | Max Acceleration: 12 m/s² | Temperature: -30 ~ +130℃ | Special Production: ESD, UV (optional) | Bracket: Steel End Bracket (SEB), B1/B2/B3 (made-to-order) | Steel Plate: made-to-order | Length: made-to-order | Divider/Separator: made-to-order | Certificate: CE, ATEX(Ex), RoHS2
Cable CarriersCP System
20 product codes available in this family
Sourced direct from KoreaExport-ready supplyCompetitive pricing
RFQ List 0 Email about this

Need a different model, or a part not listed here? Send us your parts list →

CP System Shift Chain ST150E Enclosed Type Cable Carrier (Pitch 150, Inside Width 200-400mm, BR R305-R605)

Brand CP System·Cable Carriers

Available part numbers (20)

ST150E.200.R305, ST150E.200.R405, ST150E.200.R505, ST150E.200.R605, ST150E.250.R305, ST150E.250.R405, ST150E.250.R505, ST150E.250.R605, ST150E.300.R305, ST150E.300.R405 + 10 more — see full table ↓

How to order

Send the CP System part numbers and quantities through our RFQ form or to info@prosourcemro.com. We confirm price, availability and lead time within 1 business day — no account needed.

RFQ List 0 →
View full details
Product codes & specifications
0 selected
RFQ List (0)
Product codeSpec
ST150E.200.R305Shift Chain Enclosed ST150E, inside width 200mm, bending radius R305mm | Model: ST150E | Type: Enclosed (E) | Pitch: 150mm | Inside Width (C): 200mm | Outer Width (A): 246mm | Outer Height (B): 141mm | Inner Height (D): 110mm | Bending Radius (R): 305mm | Weight: 8.16 kg/m | Material: CPS-Amide (PA6+G.F) | Max Speed: 6 m/s | Max Acceleration: 12 m/s² | Temperature: -30 ~ +130℃ | Special Production: ESD, UV (optional) | Bracket: Steel End Bracket (SEB), B1/B2/B3 (made-to-order) | Steel Plate: made-to-order | Length: made-to-order | Divider/Separator: made-to-order | Certificate: CE, ATEX(Ex), RoHS2
ST150E.200.R405Shift Chain Enclosed ST150E, inside width 200mm, bending radius R405mm | Model: ST150E | Type: Enclosed (E) | Pitch: 150mm | Inside Width (C): 200mm | Outer Width (A): 246mm | Outer Height (B): 141mm | Inner Height (D): 110mm | Bending Radius (R): 405mm | Weight: 8.16 kg/m | Material: CPS-Amide (PA6+G.F) | Max Speed: 6 m/s | Max Acceleration: 12 m/s² | Temperature: -30 ~ +130℃ | Special Production: ESD, UV (optional) | Bracket: Steel End Bracket (SEB), B1/B2/B3 (made-to-order) | Steel Plate: made-to-order | Length: made-to-order | Divider/Separator: made-to-order | Certificate: CE, ATEX(Ex), RoHS2
ST150E.200.R505Shift Chain Enclosed ST150E, inside width 200mm, bending radius R505mm | Model: ST150E | Type: Enclosed (E) | Pitch: 150mm | Inside Width (C): 200mm | Outer Width (A): 246mm | Outer Height (B): 141mm | Inner Height (D): 110mm | Bending Radius (R): 505mm | Weight: 8.16 kg/m | Material: CPS-Amide (PA6+G.F) | Max Speed: 6 m/s | Max Acceleration: 12 m/s² | Temperature: -30 ~ +130℃ | Special Production: ESD, UV (optional) | Bracket: Steel End Bracket (SEB), B1/B2/B3 (made-to-order) | Steel Plate: made-to-order | Length: made-to-order | Divider/Separator: made-to-order | Certificate: CE, ATEX(Ex), RoHS2
ST150E.200.R605Shift Chain Enclosed ST150E, inside width 200mm, bending radius R605mm | Model: ST150E | Type: Enclosed (E) | Pitch: 150mm | Inside Width (C): 200mm | Outer Width (A): 246mm | Outer Height (B): 141mm | Inner Height (D): 110mm | Bending Radius (R): 605mm | Weight: 8.16 kg/m | Material: CPS-Amide (PA6+G.F) | Max Speed: 6 m/s | Max Acceleration: 12 m/s² | Temperature: -30 ~ +130℃ | Special Production: ESD, UV (optional) | Bracket: Steel End Bracket (SEB), B1/B2/B3 (made-to-order) | Steel Plate: made-to-order | Length: made-to-order | Divider/Separator: made-to-order | Certificate: CE, ATEX(Ex), RoHS2
ST150E.250.R305Shift Chain Enclosed ST150E, inside width 250mm, bending radius R305mm | Model: ST150E | Type: Enclosed (E) | Pitch: 150mm | Inside Width (C): 250mm | Outer Width (A): 296mm | Outer Height (B): 141mm | Inner Height (D): 110mm | Bending Radius (R): 305mm | Weight: 8.76 kg/m | Material: CPS-Amide (PA6+G.F) | Max Speed: 6 m/s | Max Acceleration: 12 m/s² | Temperature: -30 ~ +130℃ | Special Production: ESD, UV (optional) | Bracket: Steel End Bracket (SEB), B1/B2/B3 (made-to-order) | Steel Plate: made-to-order | Length: made-to-order | Divider/Separator: made-to-order | Certificate: CE, ATEX(Ex), RoHS2
ST150E.250.R405Shift Chain Enclosed ST150E, inside width 250mm, bending radius R405mm | Model: ST150E | Type: Enclosed (E) | Pitch: 150mm | Inside Width (C): 250mm | Outer Width (A): 296mm | Outer Height (B): 141mm | Inner Height (D): 110mm | Bending Radius (R): 405mm | Weight: 8.76 kg/m | Material: CPS-Amide (PA6+G.F) | Max Speed: 6 m/s | Max Acceleration: 12 m/s² | Temperature: -30 ~ +130℃ | Special Production: ESD, UV (optional) | Bracket: Steel End Bracket (SEB), B1/B2/B3 (made-to-order) | Steel Plate: made-to-order | Length: made-to-order | Divider/Separator: made-to-order | Certificate: CE, ATEX(Ex), RoHS2
ST150E.250.R505Shift Chain Enclosed ST150E, inside width 250mm, bending radius R505mm | Model: ST150E | Type: Enclosed (E) | Pitch: 150mm | Inside Width (C): 250mm | Outer Width (A): 296mm | Outer Height (B): 141mm | Inner Height (D): 110mm | Bending Radius (R): 505mm | Weight: 8.76 kg/m | Material: CPS-Amide (PA6+G.F) | Max Speed: 6 m/s | Max Acceleration: 12 m/s² | Temperature: -30 ~ +130℃ | Special Production: ESD, UV (optional) | Bracket: Steel End Bracket (SEB), B1/B2/B3 (made-to-order) | Steel Plate: made-to-order | Length: made-to-order | Divider/Separator: made-to-order | Certificate: CE, ATEX(Ex), RoHS2
ST150E.250.R605Shift Chain Enclosed ST150E, inside width 250mm, bending radius R605mm | Model: ST150E | Type: Enclosed (E) | Pitch: 150mm | Inside Width (C): 250mm | Outer Width (A): 296mm | Outer Height (B): 141mm | Inner Height (D): 110mm | Bending Radius (R): 605mm | Weight: 8.76 kg/m | Material: CPS-Amide (PA6+G.F) | Max Speed: 6 m/s | Max Acceleration: 12 m/s² | Temperature: -30 ~ +130℃ | Special Production: ESD, UV (optional) | Bracket: Steel End Bracket (SEB), B1/B2/B3 (made-to-order) | Steel Plate: made-to-order | Length: made-to-order | Divider/Separator: made-to-order | Certificate: CE, ATEX(Ex), RoHS2
ST150E.300.R305Shift Chain Enclosed ST150E, inside width 300mm, bending radius R305mm | Model: ST150E | Type: Enclosed (E) | Pitch: 150mm | Inside Width (C): 300mm | Outer Width (A): 346mm | Outer Height (B): 141mm | Inner Height (D): 110mm | Bending Radius (R): 305mm | Weight: 10.50 kg/m | Material: CPS-Amide (PA6+G.F) | Max Speed: 6 m/s | Max Acceleration: 12 m/s² | Temperature: -30 ~ +130℃ | Special Production: ESD, UV (optional) | Bracket: Steel End Bracket (SEB), B1/B2/B3 (made-to-order) | Steel Plate: made-to-order | Length: made-to-order | Divider/Separator: made-to-order | Certificate: CE, ATEX(Ex), RoHS2
ST150E.300.R405Shift Chain Enclosed ST150E, inside width 300mm, bending radius R405mm | Model: ST150E | Type: Enclosed (E) | Pitch: 150mm | Inside Width (C): 300mm | Outer Width (A): 346mm | Outer Height (B): 141mm | Inner Height (D): 110mm | Bending Radius (R): 405mm | Weight: 10.50 kg/m | Material: CPS-Amide (PA6+G.F) | Max Speed: 6 m/s | Max Acceleration: 12 m/s² | Temperature: -30 ~ +130℃ | Special Production: ESD, UV (optional) | Bracket: Steel End Bracket (SEB), B1/B2/B3 (made-to-order) | Steel Plate: made-to-order | Length: made-to-order | Divider/Separator: made-to-order | Certificate: CE, ATEX(Ex), RoHS2
ST150E.300.R505Shift Chain Enclosed ST150E, inside width 300mm, bending radius R505mm | Model: ST150E | Type: Enclosed (E) | Pitch: 150mm | Inside Width (C): 300mm | Outer Width (A): 346mm | Outer Height (B): 141mm | Inner Height (D): 110mm | Bending Radius (R): 505mm | Weight: 10.50 kg/m | Material: CPS-Amide (PA6+G.F) | Max Speed: 6 m/s | Max Acceleration: 12 m/s² | Temperature: -30 ~ +130℃ | Special Production: ESD, UV (optional) | Bracket: Steel End Bracket (SEB), B1/B2/B3 (made-to-order) | Steel Plate: made-to-order | Length: made-to-order | Divider/Separator: made-to-order | Certificate: CE, ATEX(Ex), RoHS2
ST150E.300.R605Shift Chain Enclosed ST150E, inside width 300mm, bending radius R605mm | Model: ST150E | Type: Enclosed (E) | Pitch: 150mm | Inside Width (C): 300mm | Outer Width (A): 346mm | Outer Height (B): 141mm | Inner Height (D): 110mm | Bending Radius (R): 605mm | Weight: 10.50 kg/m | Material: CPS-Amide (PA6+G.F) | Max Speed: 6 m/s | Max Acceleration: 12 m/s² | Temperature: -30 ~ +130℃ | Special Production: ESD, UV (optional) | Bracket: Steel End Bracket (SEB), B1/B2/B3 (made-to-order) | Steel Plate: made-to-order | Length: made-to-order | Divider/Separator: made-to-order | Certificate: CE, ATEX(Ex), RoHS2
ST150E.350.R305Shift Chain Enclosed ST150E, inside width 350mm, bending radius R305mm | Model: ST150E | Type: Enclosed (E) | Pitch: 150mm | Inside Width (C): 350mm | Outer Width (A): 396mm | Outer Height (B): 141mm | Inner Height (D): 110mm | Bending Radius (R): 305mm | Weight: 12.33 kg/m | Material: CPS-Amide (PA6+G.F) | Max Speed: 6 m/s | Max Acceleration: 12 m/s² | Temperature: -30 ~ +130℃ | Special Production: ESD, UV (optional) | Bracket: Steel End Bracket (SEB), B1/B2/B3 (made-to-order) | Steel Plate: made-to-order | Length: made-to-order | Divider/Separator: made-to-order | Certificate: CE, ATEX(Ex), RoHS2
ST150E.350.R405Shift Chain Enclosed ST150E, inside width 350mm, bending radius R405mm | Model: ST150E | Type: Enclosed (E) | Pitch: 150mm | Inside Width (C): 350mm | Outer Width (A): 396mm | Outer Height (B): 141mm | Inner Height (D): 110mm | Bending Radius (R): 405mm | Weight: 12.33 kg/m | Material: CPS-Amide (PA6+G.F) | Max Speed: 6 m/s | Max Acceleration: 12 m/s² | Temperature: -30 ~ +130℃ | Special Production: ESD, UV (optional) | Bracket: Steel End Bracket (SEB), B1/B2/B3 (made-to-order) | Steel Plate: made-to-order | Length: made-to-order | Divider/Separator: made-to-order | Certificate: CE, ATEX(Ex), RoHS2
ST150E.350.R505Shift Chain Enclosed ST150E, inside width 350mm, bending radius R505mm | Model: ST150E | Type: Enclosed (E) | Pitch: 150mm | Inside Width (C): 350mm | Outer Width (A): 396mm | Outer Height (B): 141mm | Inner Height (D): 110mm | Bending Radius (R): 505mm | Weight: 12.33 kg/m | Material: CPS-Amide (PA6+G.F) | Max Speed: 6 m/s | Max Acceleration: 12 m/s² | Temperature: -30 ~ +130℃ | Special Production: ESD, UV (optional) | Bracket: Steel End Bracket (SEB), B1/B2/B3 (made-to-order) | Steel Plate: made-to-order | Length: made-to-order | Divider/Separator: made-to-order | Certificate: CE, ATEX(Ex), RoHS2
ST150E.350.R605Shift Chain Enclosed ST150E, inside width 350mm, bending radius R605mm | Model: ST150E | Type: Enclosed (E) | Pitch: 150mm | Inside Width (C): 350mm | Outer Width (A): 396mm | Outer Height (B): 141mm | Inner Height (D): 110mm | Bending Radius (R): 605mm | Weight: 12.33 kg/m | Material: CPS-Amide (PA6+G.F) | Max Speed: 6 m/s | Max Acceleration: 12 m/s² | Temperature: -30 ~ +130℃ | Special Production: ESD, UV (optional) | Bracket: Steel End Bracket (SEB), B1/B2/B3 (made-to-order) | Steel Plate: made-to-order | Length: made-to-order | Divider/Separator: made-to-order | Certificate: CE, ATEX(Ex), RoHS2
ST150E.400.R305Shift Chain Enclosed ST150E, inside width 400mm, bending radius R305mm | Model: ST150E | Type: Enclosed (E) | Pitch: 150mm | Inside Width (C): 400mm | Outer Width (A): 446mm | Outer Height (B): 141mm | Inner Height (D): 110mm | Bending Radius (R): 305mm | Weight: 14.16 kg/m | Material: CPS-Amide (PA6+G.F) | Max Speed: 6 m/s | Max Acceleration: 12 m/s² | Temperature: -30 ~ +130℃ | Special Production: ESD, UV (optional) | Bracket: Steel End Bracket (SEB), B1/B2/B3 (made-to-order) | Steel Plate: made-to-order | Length: made-to-order | Divider/Separator: made-to-order | Certificate: CE, ATEX(Ex), RoHS2
ST150E.400.R405Shift Chain Enclosed ST150E, inside width 400mm, bending radius R405mm | Model: ST150E | Type: Enclosed (E) | Pitch: 150mm | Inside Width (C): 400mm | Outer Width (A): 446mm | Outer Height (B): 141mm | Inner Height (D): 110mm | Bending Radius (R): 405mm | Weight: 14.16 kg/m | Material: CPS-Amide (PA6+G.F) | Max Speed: 6 m/s | Max Acceleration: 12 m/s² | Temperature: -30 ~ +130℃ | Special Production: ESD, UV (optional) | Bracket: Steel End Bracket (SEB), B1/B2/B3 (made-to-order) | Steel Plate: made-to-order | Length: made-to-order | Divider/Separator: made-to-order | Certificate: CE, ATEX(Ex), RoHS2
ST150E.400.R505Shift Chain Enclosed ST150E, inside width 400mm, bending radius R505mm | Model: ST150E | Type: Enclosed (E) | Pitch: 150mm | Inside Width (C): 400mm | Outer Width (A): 446mm | Outer Height (B): 141mm | Inner Height (D): 110mm | Bending Radius (R): 505mm | Weight: 14.16 kg/m | Material: CPS-Amide (PA6+G.F) | Max Speed: 6 m/s | Max Acceleration: 12 m/s² | Temperature: -30 ~ +130℃ | Special Production: ESD, UV (optional) | Bracket: Steel End Bracket (SEB), B1/B2/B3 (made-to-order) | Steel Plate: made-to-order | Length: made-to-order | Divider/Separator: made-to-order | Certificate: CE, ATEX(Ex), RoHS2
ST150E.400.R605Shift Chain Enclosed ST150E, inside width 400mm, bending radius R605mm | Model: ST150E | Type: Enclosed (E) | Pitch: 150mm | Inside Width (C): 400mm | Outer Width (A): 446mm | Outer Height (B): 141mm | Inner Height (D): 110mm | Bending Radius (R): 605mm | Weight: 14.16 kg/m | Material: CPS-Amide (PA6+G.F) | Max Speed: 6 m/s | Max Acceleration: 12 m/s² | Temperature: -30 ~ +130℃ | Special Production: ESD, UV (optional) | Bracket: Steel End Bracket (SEB), B1/B2/B3 (made-to-order) | Steel Plate: made-to-order | Length: made-to-order | Divider/Separator: made-to-order | Certificate: CE, ATEX(Ex), RoHS2
