• CP System Shift Chain ST150ERS Enclosed Roller Skid Type Cable Carrier (Pitch 150, Inside Width 200-400mm, BR R305-R605)
1 1

CP System Shift Chain ST150ERS Enclosed Roller Skid Type Cable Carrier (Pitch 150, Inside Width 200-400mm, BR R305-R605)

CP System Shift Chain ST150ERS Enclosed Roller Skid Type Cable Carrier (Pitch 150, Inside Width 200-400mm, BR R305-R605)

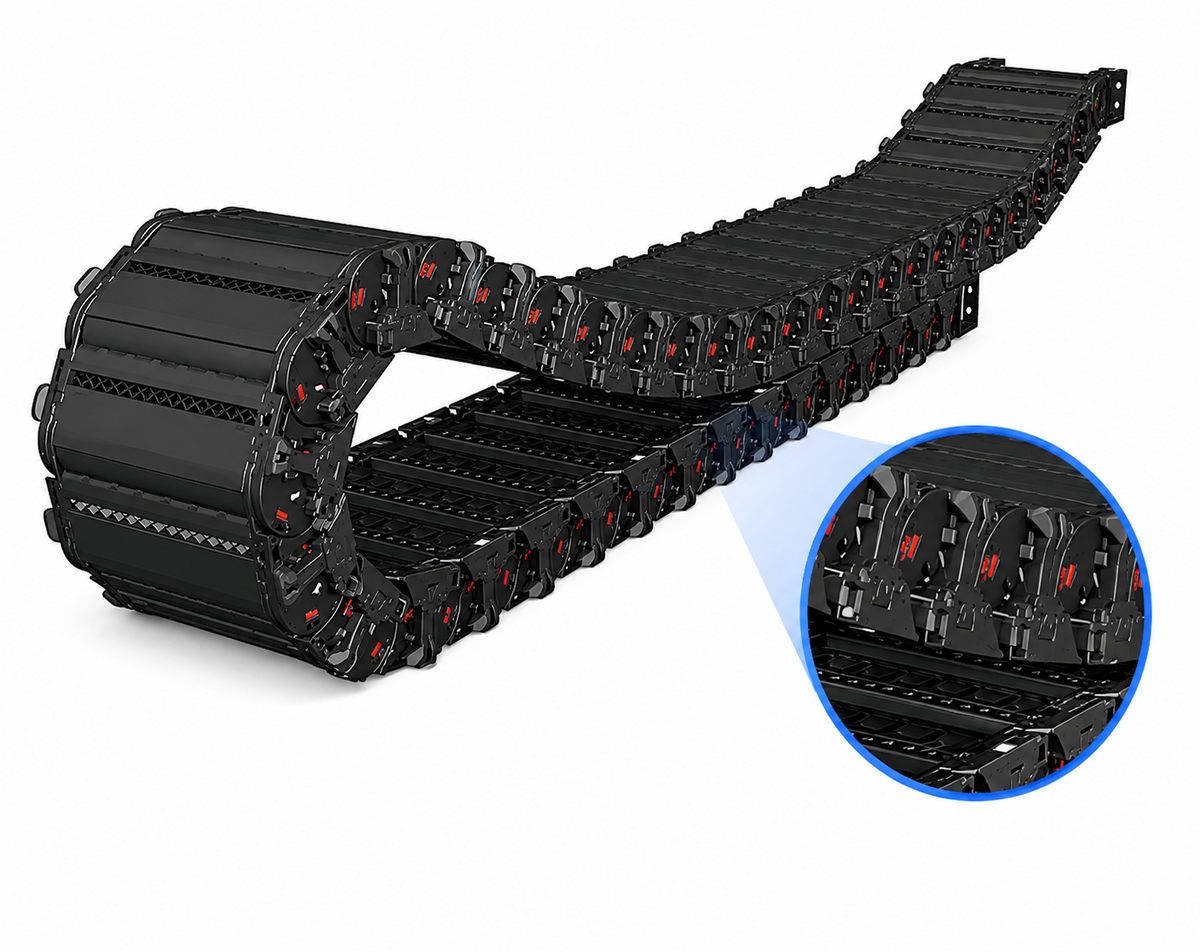

Shift Chain Enclosed Roller Skid Type ST150ERS, combining a Steel Plate enclosure with protruding rollers and a skid side band for fast, low-friction long-distance travel in protected conditions.

Key features

  • Bending Radius is determined by each interchangeable 'BR' unit inserted into the side band
  • Pitch 150mm
  • Inside width 200-400mm; bending radius R305-R605
  • Material CPS-Amide (PA6+G.F)
  • Max speed 6 m/s, acceleration 12 m/s². Temperature -30 to +130℃. ESD/UV available
  • Bracket: Steel End Bracket (SEB), B1/B2

Specifications

Model ST150ERS
Type Enclosed Roller Skid (ERS)
Pitch 150mm
Outer Height (B) 145mm
Inner Height (D) 110mm
Material CPS-Amide (PA6+G.F)
Max Speed 6 m/s
Max Acceleration 12 m/s²
Temperature -30 ~ +130℃
Special Production ESD, UV (optional)
Roller applied every 2 or 4 links (made-to-order)
Bracket Steel End Bracket (SEB), B1/B2 (made-to-order)
ST150ERS.200.R305 Shift Chain Enclosed Roller Skid ST150ERS, inside width 200mm, bending radius R305mm | Model: ST150ERS | Type: Enclosed Roller Skid (ERS) | Pitch: 150mm | Inside Width (C): 200mm | Outer Width (A): 287mm | Outer Height (B): 145mm | Inner Height (D): 110mm | Bending Radius (R): 305mm | Weight: 10.23 kg/m | Material: CPS-Amide (PA6+G.F) | Max Speed: 6 m/s | Max Acceleration: 12 m/s² | Temperature: -30 ~ +130℃ | Special Production: ESD, UV (optional) | Roller: applied every 2 or 4 links (made-to-order) | Bracket: Steel End Bracket (SEB), B1/B2 (made-to-order) | Steel Plate: made-to-order | Length: made-to-order | Divider/Separator: made-to-order | Certificate: CE, ATEX(Ex), RoHS2
ST150ERS.200.R405 Shift Chain Enclosed Roller Skid ST150ERS, inside width 200mm, bending radius R405mm | Model: ST150ERS | Type: Enclosed Roller Skid (ERS) | Pitch: 150mm | Inside Width (C): 200mm | Outer Width (A): 287mm | Outer Height (B): 145mm | Inner Height (D): 110mm | Bending Radius (R): 405mm | Weight: 10.23 kg/m | Material: CPS-Amide (PA6+G.F) | Max Speed: 6 m/s | Max Acceleration: 12 m/s² | Temperature: -30 ~ +130℃ | Special Production: ESD, UV (optional) | Roller: applied every 2 or 4 links (made-to-order) | Bracket: Steel End Bracket (SEB), B1/B2 (made-to-order) | Steel Plate: made-to-order | Length: made-to-order | Divider/Separator: made-to-order | Certificate: CE, ATEX(Ex), RoHS2
ST150ERS.200.R505 Shift Chain Enclosed Roller Skid ST150ERS, inside width 200mm, bending radius R505mm | Model: ST150ERS | Type: Enclosed Roller Skid (ERS) | Pitch: 150mm | Inside Width (C): 200mm | Outer Width (A): 287mm | Outer Height (B): 145mm | Inner Height (D): 110mm | Bending Radius (R): 505mm | Weight: 10.23 kg/m | Material: CPS-Amide (PA6+G.F) | Max Speed: 6 m/s | Max Acceleration: 12 m/s² | Temperature: -30 ~ +130℃ | Special Production: ESD, UV (optional) | Roller: applied every 2 or 4 links (made-to-order) | Bracket: Steel End Bracket (SEB), B1/B2 (made-to-order) | Steel Plate: made-to-order | Length: made-to-order | Divider/Separator: made-to-order | Certificate: CE, ATEX(Ex), RoHS2
ST150ERS.200.R605 Shift Chain Enclosed Roller Skid ST150ERS, inside width 200mm, bending radius R605mm | Model: ST150ERS | Type: Enclosed Roller Skid (ERS) | Pitch: 150mm | Inside Width (C): 200mm | Outer Width (A): 287mm | Outer Height (B): 145mm | Inner Height (D): 110mm | Bending Radius (R): 605mm | Weight: 10.23 kg/m | Material: CPS-Amide (PA6+G.F) | Max Speed: 6 m/s | Max Acceleration: 12 m/s² | Temperature: -30 ~ +130℃ | Special Production: ESD, UV (optional) | Roller: applied every 2 or 4 links (made-to-order) | Bracket: Steel End Bracket (SEB), B1/B2 (made-to-order) | Steel Plate: made-to-order | Length: made-to-order | Divider/Separator: made-to-order | Certificate: CE, ATEX(Ex), RoHS2
ST150ERS.250.R305 Shift Chain Enclosed Roller Skid ST150ERS, inside width 250mm, bending radius R305mm | Model: ST150ERS | Type: Enclosed Roller Skid (ERS) | Pitch: 150mm | Inside Width (C): 250mm | Outer Width (A): 337mm | Outer Height (B): 145mm | Inner Height (D): 110mm | Bending Radius (R): 305mm | Weight: 10.84 kg/m | Material: CPS-Amide (PA6+G.F) | Max Speed: 6 m/s | Max Acceleration: 12 m/s² | Temperature: -30 ~ +130℃ | Special Production: ESD, UV (optional) | Roller: applied every 2 or 4 links (made-to-order) | Bracket: Steel End Bracket (SEB), B1/B2 (made-to-order) | Steel Plate: made-to-order | Length: made-to-order | Divider/Separator: made-to-order | Certificate: CE, ATEX(Ex), RoHS2
ST150ERS.250.R405 Shift Chain Enclosed Roller Skid ST150ERS, inside width 250mm, bending radius R405mm | Model: ST150ERS | Type: Enclosed Roller Skid (ERS) | Pitch: 150mm | Inside Width (C): 250mm | Outer Width (A): 337mm | Outer Height (B): 145mm | Inner Height (D): 110mm | Bending Radius (R): 405mm | Weight: 10.84 kg/m | Material: CPS-Amide (PA6+G.F) | Max Speed: 6 m/s | Max Acceleration: 12 m/s² | Temperature: -30 ~ +130℃ | Special Production: ESD, UV (optional) | Roller: applied every 2 or 4 links (made-to-order) | Bracket: Steel End Bracket (SEB), B1/B2 (made-to-order) | Steel Plate: made-to-order | Length: made-to-order | Divider/Separator: made-to-order | Certificate: CE, ATEX(Ex), RoHS2
ST150ERS.250.R505 Shift Chain Enclosed Roller Skid ST150ERS, inside width 250mm, bending radius R505mm | Model: ST150ERS | Type: Enclosed Roller Skid (ERS) | Pitch: 150mm | Inside Width (C): 250mm | Outer Width (A): 337mm | Outer Height (B): 145mm | Inner Height (D): 110mm | Bending Radius (R): 505mm | Weight: 10.84 kg/m | Material: CPS-Amide (PA6+G.F) | Max Speed: 6 m/s | Max Acceleration: 12 m/s² | Temperature: -30 ~ +130℃ | Special Production: ESD, UV (optional) | Roller: applied every 2 or 4 links (made-to-order) | Bracket: Steel End Bracket (SEB), B1/B2 (made-to-order) | Steel Plate: made-to-order | Length: made-to-order | Divider/Separator: made-to-order | Certificate: CE, ATEX(Ex), RoHS2
ST150ERS.250.R605 Shift Chain Enclosed Roller Skid ST150ERS, inside width 250mm, bending radius R605mm | Model: ST150ERS | Type: Enclosed Roller Skid (ERS) | Pitch: 150mm | Inside Width (C): 250mm | Outer Width (A): 337mm | Outer Height (B): 145mm | Inner Height (D): 110mm | Bending Radius (R): 605mm | Weight: 10.84 kg/m | Material: CPS-Amide (PA6+G.F) | Max Speed: 6 m/s | Max Acceleration: 12 m/s² | Temperature: -30 ~ +130℃ | Special Production: ESD, UV (optional) | Roller: applied every 2 or 4 links (made-to-order) | Bracket: Steel End Bracket (SEB), B1/B2 (made-to-order) | Steel Plate: made-to-order | Length: made-to-order | Divider/Separator: made-to-order | Certificate: CE, ATEX(Ex), RoHS2
ST150ERS.300.R305 Shift Chain Enclosed Roller Skid ST150ERS, inside width 300mm, bending radius R305mm | Model: ST150ERS | Type: Enclosed Roller Skid (ERS) | Pitch: 150mm | Inside Width (C): 300mm | Outer Width (A): 387mm | Outer Height (B): 145mm | Inner Height (D): 110mm | Bending Radius (R): 305mm | Weight: 11.45 kg/m | Material: CPS-Amide (PA6+G.F) | Max Speed: 6 m/s | Max Acceleration: 12 m/s² | Temperature: -30 ~ +130℃ | Special Production: ESD, UV (optional) | Roller: applied every 2 or 4 links (made-to-order) | Bracket: Steel End Bracket (SEB), B1/B2 (made-to-order) | Steel Plate: made-to-order | Length: made-to-order | Divider/Separator: made-to-order | Certificate: CE, ATEX(Ex), RoHS2
ST150ERS.300.R405 Shift Chain Enclosed Roller Skid ST150ERS, inside width 300mm, bending radius R405mm | Model: ST150ERS | Type: Enclosed Roller Skid (ERS) | Pitch: 150mm | Inside Width (C): 300mm | Outer Width (A): 387mm | Outer Height (B): 145mm | Inner Height (D): 110mm | Bending Radius (R): 405mm | Weight: 11.45 kg/m | Material: CPS-Amide (PA6+G.F) | Max Speed: 6 m/s | Max Acceleration: 12 m/s² | Temperature: -30 ~ +130℃ | Special Production: ESD, UV (optional) | Roller: applied every 2 or 4 links (made-to-order) | Bracket: Steel End Bracket (SEB), B1/B2 (made-to-order) | Steel Plate: made-to-order | Length: made-to-order | Divider/Separator: made-to-order | Certificate: CE, ATEX(Ex), RoHS2
ST150ERS.300.R505 Shift Chain Enclosed Roller Skid ST150ERS, inside width 300mm, bending radius R505mm | Model: ST150ERS | Type: Enclosed Roller Skid (ERS) | Pitch: 150mm | Inside Width (C): 300mm | Outer Width (A): 387mm | Outer Height (B): 145mm | Inner Height (D): 110mm | Bending Radius (R): 505mm | Weight: 11.45 kg/m | Material: CPS-Amide (PA6+G.F) | Max Speed: 6 m/s | Max Acceleration: 12 m/s² | Temperature: -30 ~ +130℃ | Special Production: ESD, UV (optional) | Roller: applied every 2 or 4 links (made-to-order) | Bracket: Steel End Bracket (SEB), B1/B2 (made-to-order) | Steel Plate: made-to-order | Length: made-to-order | Divider/Separator: made-to-order | Certificate: CE, ATEX(Ex), RoHS2
ST150ERS.300.R605 Shift Chain Enclosed Roller Skid ST150ERS, inside width 300mm, bending radius R605mm | Model: ST150ERS | Type: Enclosed Roller Skid (ERS) | Pitch: 150mm | Inside Width (C): 300mm | Outer Width (A): 387mm | Outer Height (B): 145mm | Inner Height (D): 110mm | Bending Radius (R): 605mm | Weight: 11.45 kg/m | Material: CPS-Amide (PA6+G.F) | Max Speed: 6 m/s | Max Acceleration: 12 m/s² | Temperature: -30 ~ +130℃ | Special Production: ESD, UV (optional) | Roller: applied every 2 or 4 links (made-to-order) | Bracket: Steel End Bracket (SEB), B1/B2 (made-to-order) | Steel Plate: made-to-order | Length: made-to-order | Divider/Separator: made-to-order | Certificate: CE, ATEX(Ex), RoHS2
ST150ERS.350.R305 Shift Chain Enclosed Roller Skid ST150ERS, inside width 350mm, bending radius R305mm | Model: ST150ERS | Type: Enclosed Roller Skid (ERS) | Pitch: 150mm | Inside Width (C): 350mm | Outer Width (A): 437mm | Outer Height (B): 145mm | Inner Height (D): 110mm | Bending Radius (R): 305mm | Weight: 12.06 kg/m | Material: CPS-Amide (PA6+G.F) | Max Speed: 6 m/s | Max Acceleration: 12 m/s² | Temperature: -30 ~ +130℃ | Special Production: ESD, UV (optional) | Roller: applied every 2 or 4 links (made-to-order) | Bracket: Steel End Bracket (SEB), B1/B2 (made-to-order) | Steel Plate: made-to-order | Length: made-to-order | Divider/Separator: made-to-order | Certificate: CE, ATEX(Ex), RoHS2
ST150ERS.350.R405 Shift Chain Enclosed Roller Skid ST150ERS, inside width 350mm, bending radius R405mm | Model: ST150ERS | Type: Enclosed Roller Skid (ERS) | Pitch: 150mm | Inside Width (C): 350mm | Outer Width (A): 437mm | Outer Height (B): 145mm | Inner Height (D): 110mm | Bending Radius (R): 405mm | Weight: 12.06 kg/m | Material: CPS-Amide (PA6+G.F) | Max Speed: 6 m/s | Max Acceleration: 12 m/s² | Temperature: -30 ~ +130℃ | Special Production: ESD, UV (optional) | Roller: applied every 2 or 4 links (made-to-order) | Bracket: Steel End Bracket (SEB), B1/B2 (made-to-order) | Steel Plate: made-to-order | Length: made-to-order | Divider/Separator: made-to-order | Certificate: CE, ATEX(Ex), RoHS2
ST150ERS.350.R505 Shift Chain Enclosed Roller Skid ST150ERS, inside width 350mm, bending radius R505mm | Model: ST150ERS | Type: Enclosed Roller Skid (ERS) | Pitch: 150mm | Inside Width (C): 350mm | Outer Width (A): 437mm | Outer Height (B): 145mm | Inner Height (D): 110mm | Bending Radius (R): 505mm | Weight: 12.06 kg/m | Material: CPS-Amide (PA6+G.F) | Max Speed: 6 m/s | Max Acceleration: 12 m/s² | Temperature: -30 ~ +130℃ | Special Production: ESD, UV (optional) | Roller: applied every 2 or 4 links (made-to-order) | Bracket: Steel End Bracket (SEB), B1/B2 (made-to-order) | Steel Plate: made-to-order | Length: made-to-order | Divider/Separator: made-to-order | Certificate: CE, ATEX(Ex), RoHS2
ST150ERS.350.R605 Shift Chain Enclosed Roller Skid ST150ERS, inside width 350mm, bending radius R605mm | Model: ST150ERS | Type: Enclosed Roller Skid (ERS) | Pitch: 150mm | Inside Width (C): 350mm | Outer Width (A): 437mm | Outer Height (B): 145mm | Inner Height (D): 110mm | Bending Radius (R): 605mm | Weight: 12.06 kg/m | Material: CPS-Amide (PA6+G.F) | Max Speed: 6 m/s | Max Acceleration: 12 m/s² | Temperature: -30 ~ +130℃ | Special Production: ESD, UV (optional) | Roller: applied every 2 or 4 links (made-to-order) | Bracket: Steel End Bracket (SEB), B1/B2 (made-to-order) | Steel Plate: made-to-order | Length: made-to-order | Divider/Separator: made-to-order | Certificate: CE, ATEX(Ex), RoHS2
ST150ERS.400.R305 Shift Chain Enclosed Roller Skid ST150ERS, inside width 400mm, bending radius R305mm | Model: ST150ERS | Type: Enclosed Roller Skid (ERS) | Pitch: 150mm | Inside Width (C): 400mm | Outer Width (A): 487mm | Outer Height (B): 145mm | Inner Height (D): 110mm | Bending Radius (R): 305mm | Weight: 12.67 kg/m | Material: CPS-Amide (PA6+G.F) | Max Speed: 6 m/s | Max Acceleration: 12 m/s² | Temperature: -30 ~ +130℃ | Special Production: ESD, UV (optional) | Roller: applied every 2 or 4 links (made-to-order) | Bracket: Steel End Bracket (SEB), B1/B2 (made-to-order) | Steel Plate: made-to-order | Length: made-to-order | Divider/Separator: made-to-order | Certificate: CE, ATEX(Ex), RoHS2
ST150ERS.400.R405 Shift Chain Enclosed Roller Skid ST150ERS, inside width 400mm, bending radius R405mm | Model: ST150ERS | Type: Enclosed Roller Skid (ERS) | Pitch: 150mm | Inside Width (C): 400mm | Outer Width (A): 487mm | Outer Height (B): 145mm | Inner Height (D): 110mm | Bending Radius (R): 405mm | Weight: 12.67 kg/m | Material: CPS-Amide (PA6+G.F) | Max Speed: 6 m/s | Max Acceleration: 12 m/s² | Temperature: -30 ~ +130℃ | Special Production: ESD, UV (optional) | Roller: applied every 2 or 4 links (made-to-order) | Bracket: Steel End Bracket (SEB), B1/B2 (made-to-order) | Steel Plate: made-to-order | Length: made-to-order | Divider/Separator: made-to-order | Certificate: CE, ATEX(Ex), RoHS2
ST150ERS.400.R505 Shift Chain Enclosed Roller Skid ST150ERS, inside width 400mm, bending radius R505mm | Model: ST150ERS | Type: Enclosed Roller Skid (ERS) | Pitch: 150mm | Inside Width (C): 400mm | Outer Width (A): 487mm | Outer Height (B): 145mm | Inner Height (D): 110mm | Bending Radius (R): 505mm | Weight: 12.67 kg/m | Material: CPS-Amide (PA6+G.F) | Max Speed: 6 m/s | Max Acceleration: 12 m/s² | Temperature: -30 ~ +130℃ | Special Production: ESD, UV (optional) | Roller: applied every 2 or 4 links (made-to-order) | Bracket: Steel End Bracket (SEB), B1/B2 (made-to-order) | Steel Plate: made-to-order | Length: made-to-order | Divider/Separator: made-to-order | Certificate: CE, ATEX(Ex), RoHS2
ST150ERS.400.R605 Shift Chain Enclosed Roller Skid ST150ERS, inside width 400mm, bending radius R605mm | Model: ST150ERS | Type: Enclosed Roller Skid (ERS) | Pitch: 150mm | Inside Width (C): 400mm | Outer Width (A): 487mm | Outer Height (B): 145mm | Inner Height (D): 110mm | Bending Radius (R): 605mm | Weight: 12.67 kg/m | Material: CPS-Amide (PA6+G.F) | Max Speed: 6 m/s | Max Acceleration: 12 m/s² | Temperature: -30 ~ +130℃ | Special Production: ESD, UV (optional) | Roller: applied every 2 or 4 links (made-to-order) | Bracket: Steel End Bracket (SEB), B1/B2 (made-to-order) | Steel Plate: made-to-order | Length: made-to-order | Divider/Separator: made-to-order | Certificate: CE, ATEX(Ex), RoHS2
Cable CarriersCP System
20 product codes available in this family
Sourced direct from KoreaExport-ready supplyCompetitive pricing
RFQ List 0 Email about this

Need a different model, or a part not listed here? Send us your parts list →

CP System Shift Chain ST150ERS Enclosed Roller Skid Type Cable Carrier (Pitch 150, Inside Width 200-400mm, BR R305-R605)

Brand CP System·Cable Carriers

Available part numbers (20)

ST150ERS.200.R305, ST150ERS.200.R405, ST150ERS.200.R505, ST150ERS.200.R605, ST150ERS.250.R305, ST150ERS.250.R405, ST150ERS.250.R505, ST150ERS.250.R605, ST150ERS.300.R305, ST150ERS.300.R405 + 10 more — see full table ↓

How to order

Send the CP System part numbers and quantities through our RFQ form or to info@prosourcemro.com. We confirm price, availability and lead time within 1 business day — no account needed.

RFQ List 0 →
View full details
Product codes & specifications
0 selected
RFQ List (0)
Product codeSpec
ST150ERS.200.R305Shift Chain Enclosed Roller Skid ST150ERS, inside width 200mm, bending radius R305mm | Model: ST150ERS | Type: Enclosed Roller Skid (ERS) | Pitch: 150mm | Inside Width (C): 200mm | Outer Width (A): 287mm | Outer Height (B): 145mm | Inner Height (D): 110mm | Bending Radius (R): 305mm | Weight: 10.23 kg/m | Material: CPS-Amide (PA6+G.F) | Max Speed: 6 m/s | Max Acceleration: 12 m/s² | Temperature: -30 ~ +130℃ | Special Production: ESD, UV (optional) | Roller: applied every 2 or 4 links (made-to-order) | Bracket: Steel End Bracket (SEB), B1/B2 (made-to-order) | Steel Plate: made-to-order | Length: made-to-order | Divider/Separator: made-to-order | Certificate: CE, ATEX(Ex), RoHS2
ST150ERS.200.R405Shift Chain Enclosed Roller Skid ST150ERS, inside width 200mm, bending radius R405mm | Model: ST150ERS | Type: Enclosed Roller Skid (ERS) | Pitch: 150mm | Inside Width (C): 200mm | Outer Width (A): 287mm | Outer Height (B): 145mm | Inner Height (D): 110mm | Bending Radius (R): 405mm | Weight: 10.23 kg/m | Material: CPS-Amide (PA6+G.F) | Max Speed: 6 m/s | Max Acceleration: 12 m/s² | Temperature: -30 ~ +130℃ | Special Production: ESD, UV (optional) | Roller: applied every 2 or 4 links (made-to-order) | Bracket: Steel End Bracket (SEB), B1/B2 (made-to-order) | Steel Plate: made-to-order | Length: made-to-order | Divider/Separator: made-to-order | Certificate: CE, ATEX(Ex), RoHS2
ST150ERS.200.R505Shift Chain Enclosed Roller Skid ST150ERS, inside width 200mm, bending radius R505mm | Model: ST150ERS | Type: Enclosed Roller Skid (ERS) | Pitch: 150mm | Inside Width (C): 200mm | Outer Width (A): 287mm | Outer Height (B): 145mm | Inner Height (D): 110mm | Bending Radius (R): 505mm | Weight: 10.23 kg/m | Material: CPS-Amide (PA6+G.F) | Max Speed: 6 m/s | Max Acceleration: 12 m/s² | Temperature: -30 ~ +130℃ | Special Production: ESD, UV (optional) | Roller: applied every 2 or 4 links (made-to-order) | Bracket: Steel End Bracket (SEB), B1/B2 (made-to-order) | Steel Plate: made-to-order | Length: made-to-order | Divider/Separator: made-to-order | Certificate: CE, ATEX(Ex), RoHS2
ST150ERS.200.R605Shift Chain Enclosed Roller Skid ST150ERS, inside width 200mm, bending radius R605mm | Model: ST150ERS | Type: Enclosed Roller Skid (ERS) | Pitch: 150mm | Inside Width (C): 200mm | Outer Width (A): 287mm | Outer Height (B): 145mm | Inner Height (D): 110mm | Bending Radius (R): 605mm | Weight: 10.23 kg/m | Material: CPS-Amide (PA6+G.F) | Max Speed: 6 m/s | Max Acceleration: 12 m/s² | Temperature: -30 ~ +130℃ | Special Production: ESD, UV (optional) | Roller: applied every 2 or 4 links (made-to-order) | Bracket: Steel End Bracket (SEB), B1/B2 (made-to-order) | Steel Plate: made-to-order | Length: made-to-order | Divider/Separator: made-to-order | Certificate: CE, ATEX(Ex), RoHS2
ST150ERS.250.R305Shift Chain Enclosed Roller Skid ST150ERS, inside width 250mm, bending radius R305mm | Model: ST150ERS | Type: Enclosed Roller Skid (ERS) | Pitch: 150mm | Inside Width (C): 250mm | Outer Width (A): 337mm | Outer Height (B): 145mm | Inner Height (D): 110mm | Bending Radius (R): 305mm | Weight: 10.84 kg/m | Material: CPS-Amide (PA6+G.F) | Max Speed: 6 m/s | Max Acceleration: 12 m/s² | Temperature: -30 ~ +130℃ | Special Production: ESD, UV (optional) | Roller: applied every 2 or 4 links (made-to-order) | Bracket: Steel End Bracket (SEB), B1/B2 (made-to-order) | Steel Plate: made-to-order | Length: made-to-order | Divider/Separator: made-to-order | Certificate: CE, ATEX(Ex), RoHS2
ST150ERS.250.R405Shift Chain Enclosed Roller Skid ST150ERS, inside width 250mm, bending radius R405mm | Model: ST150ERS | Type: Enclosed Roller Skid (ERS) | Pitch: 150mm | Inside Width (C): 250mm | Outer Width (A): 337mm | Outer Height (B): 145mm | Inner Height (D): 110mm | Bending Radius (R): 405mm | Weight: 10.84 kg/m | Material: CPS-Amide (PA6+G.F) | Max Speed: 6 m/s | Max Acceleration: 12 m/s² | Temperature: -30 ~ +130℃ | Special Production: ESD, UV (optional) | Roller: applied every 2 or 4 links (made-to-order) | Bracket: Steel End Bracket (SEB), B1/B2 (made-to-order) | Steel Plate: made-to-order | Length: made-to-order | Divider/Separator: made-to-order | Certificate: CE, ATEX(Ex), RoHS2
ST150ERS.250.R505Shift Chain Enclosed Roller Skid ST150ERS, inside width 250mm, bending radius R505mm | Model: ST150ERS | Type: Enclosed Roller Skid (ERS) | Pitch: 150mm | Inside Width (C): 250mm | Outer Width (A): 337mm | Outer Height (B): 145mm | Inner Height (D): 110mm | Bending Radius (R): 505mm | Weight: 10.84 kg/m | Material: CPS-Amide (PA6+G.F) | Max Speed: 6 m/s | Max Acceleration: 12 m/s² | Temperature: -30 ~ +130℃ | Special Production: ESD, UV (optional) | Roller: applied every 2 or 4 links (made-to-order) | Bracket: Steel End Bracket (SEB), B1/B2 (made-to-order) | Steel Plate: made-to-order | Length: made-to-order | Divider/Separator: made-to-order | Certificate: CE, ATEX(Ex), RoHS2
ST150ERS.250.R605Shift Chain Enclosed Roller Skid ST150ERS, inside width 250mm, bending radius R605mm | Model: ST150ERS | Type: Enclosed Roller Skid (ERS) | Pitch: 150mm | Inside Width (C): 250mm | Outer Width (A): 337mm | Outer Height (B): 145mm | Inner Height (D): 110mm | Bending Radius (R): 605mm | Weight: 10.84 kg/m | Material: CPS-Amide (PA6+G.F) | Max Speed: 6 m/s | Max Acceleration: 12 m/s² | Temperature: -30 ~ +130℃ | Special Production: ESD, UV (optional) | Roller: applied every 2 or 4 links (made-to-order) | Bracket: Steel End Bracket (SEB), B1/B2 (made-to-order) | Steel Plate: made-to-order | Length: made-to-order | Divider/Separator: made-to-order | Certificate: CE, ATEX(Ex), RoHS2
ST150ERS.300.R305Shift Chain Enclosed Roller Skid ST150ERS, inside width 300mm, bending radius R305mm | Model: ST150ERS | Type: Enclosed Roller Skid (ERS) | Pitch: 150mm | Inside Width (C): 300mm | Outer Width (A): 387mm | Outer Height (B): 145mm | Inner Height (D): 110mm | Bending Radius (R): 305mm | Weight: 11.45 kg/m | Material: CPS-Amide (PA6+G.F) | Max Speed: 6 m/s | Max Acceleration: 12 m/s² | Temperature: -30 ~ +130℃ | Special Production: ESD, UV (optional) | Roller: applied every 2 or 4 links (made-to-order) | Bracket: Steel End Bracket (SEB), B1/B2 (made-to-order) | Steel Plate: made-to-order | Length: made-to-order | Divider/Separator: made-to-order | Certificate: CE, ATEX(Ex), RoHS2
ST150ERS.300.R405Shift Chain Enclosed Roller Skid ST150ERS, inside width 300mm, bending radius R405mm | Model: ST150ERS | Type: Enclosed Roller Skid (ERS) | Pitch: 150mm | Inside Width (C): 300mm | Outer Width (A): 387mm | Outer Height (B): 145mm | Inner Height (D): 110mm | Bending Radius (R): 405mm | Weight: 11.45 kg/m | Material: CPS-Amide (PA6+G.F) | Max Speed: 6 m/s | Max Acceleration: 12 m/s² | Temperature: -30 ~ +130℃ | Special Production: ESD, UV (optional) | Roller: applied every 2 or 4 links (made-to-order) | Bracket: Steel End Bracket (SEB), B1/B2 (made-to-order) | Steel Plate: made-to-order | Length: made-to-order | Divider/Separator: made-to-order | Certificate: CE, ATEX(Ex), RoHS2
ST150ERS.300.R505Shift Chain Enclosed Roller Skid ST150ERS, inside width 300mm, bending radius R505mm | Model: ST150ERS | Type: Enclosed Roller Skid (ERS) | Pitch: 150mm | Inside Width (C): 300mm | Outer Width (A): 387mm | Outer Height (B): 145mm | Inner Height (D): 110mm | Bending Radius (R): 505mm | Weight: 11.45 kg/m | Material: CPS-Amide (PA6+G.F) | Max Speed: 6 m/s | Max Acceleration: 12 m/s² | Temperature: -30 ~ +130℃ | Special Production: ESD, UV (optional) | Roller: applied every 2 or 4 links (made-to-order) | Bracket: Steel End Bracket (SEB), B1/B2 (made-to-order) | Steel Plate: made-to-order | Length: made-to-order | Divider/Separator: made-to-order | Certificate: CE, ATEX(Ex), RoHS2
ST150ERS.300.R605Shift Chain Enclosed Roller Skid ST150ERS, inside width 300mm, bending radius R605mm | Model: ST150ERS | Type: Enclosed Roller Skid (ERS) | Pitch: 150mm | Inside Width (C): 300mm | Outer Width (A): 387mm | Outer Height (B): 145mm | Inner Height (D): 110mm | Bending Radius (R): 605mm | Weight: 11.45 kg/m | Material: CPS-Amide (PA6+G.F) | Max Speed: 6 m/s | Max Acceleration: 12 m/s² | Temperature: -30 ~ +130℃ | Special Production: ESD, UV (optional) | Roller: applied every 2 or 4 links (made-to-order) | Bracket: Steel End Bracket (SEB), B1/B2 (made-to-order) | Steel Plate: made-to-order | Length: made-to-order | Divider/Separator: made-to-order | Certificate: CE, ATEX(Ex), RoHS2
ST150ERS.350.R305Shift Chain Enclosed Roller Skid ST150ERS, inside width 350mm, bending radius R305mm | Model: ST150ERS | Type: Enclosed Roller Skid (ERS) | Pitch: 150mm | Inside Width (C): 350mm | Outer Width (A): 437mm | Outer Height (B): 145mm | Inner Height (D): 110mm | Bending Radius (R): 305mm | Weight: 12.06 kg/m | Material: CPS-Amide (PA6+G.F) | Max Speed: 6 m/s | Max Acceleration: 12 m/s² | Temperature: -30 ~ +130℃ | Special Production: ESD, UV (optional) | Roller: applied every 2 or 4 links (made-to-order) | Bracket: Steel End Bracket (SEB), B1/B2 (made-to-order) | Steel Plate: made-to-order | Length: made-to-order | Divider/Separator: made-to-order | Certificate: CE, ATEX(Ex), RoHS2
ST150ERS.350.R405Shift Chain Enclosed Roller Skid ST150ERS, inside width 350mm, bending radius R405mm | Model: ST150ERS | Type: Enclosed Roller Skid (ERS) | Pitch: 150mm | Inside Width (C): 350mm | Outer Width (A): 437mm | Outer Height (B): 145mm | Inner Height (D): 110mm | Bending Radius (R): 405mm | Weight: 12.06 kg/m | Material: CPS-Amide (PA6+G.F) | Max Speed: 6 m/s | Max Acceleration: 12 m/s² | Temperature: -30 ~ +130℃ | Special Production: ESD, UV (optional) | Roller: applied every 2 or 4 links (made-to-order) | Bracket: Steel End Bracket (SEB), B1/B2 (made-to-order) | Steel Plate: made-to-order | Length: made-to-order | Divider/Separator: made-to-order | Certificate: CE, ATEX(Ex), RoHS2
ST150ERS.350.R505Shift Chain Enclosed Roller Skid ST150ERS, inside width 350mm, bending radius R505mm | Model: ST150ERS | Type: Enclosed Roller Skid (ERS) | Pitch: 150mm | Inside Width (C): 350mm | Outer Width (A): 437mm | Outer Height (B): 145mm | Inner Height (D): 110mm | Bending Radius (R): 505mm | Weight: 12.06 kg/m | Material: CPS-Amide (PA6+G.F) | Max Speed: 6 m/s | Max Acceleration: 12 m/s² | Temperature: -30 ~ +130℃ | Special Production: ESD, UV (optional) | Roller: applied every 2 or 4 links (made-to-order) | Bracket: Steel End Bracket (SEB), B1/B2 (made-to-order) | Steel Plate: made-to-order | Length: made-to-order | Divider/Separator: made-to-order | Certificate: CE, ATEX(Ex), RoHS2
ST150ERS.350.R605Shift Chain Enclosed Roller Skid ST150ERS, inside width 350mm, bending radius R605mm | Model: ST150ERS | Type: Enclosed Roller Skid (ERS) | Pitch: 150mm | Inside Width (C): 350mm | Outer Width (A): 437mm | Outer Height (B): 145mm | Inner Height (D): 110mm | Bending Radius (R): 605mm | Weight: 12.06 kg/m | Material: CPS-Amide (PA6+G.F) | Max Speed: 6 m/s | Max Acceleration: 12 m/s² | Temperature: -30 ~ +130℃ | Special Production: ESD, UV (optional) | Roller: applied every 2 or 4 links (made-to-order) | Bracket: Steel End Bracket (SEB), B1/B2 (made-to-order) | Steel Plate: made-to-order | Length: made-to-order | Divider/Separator: made-to-order | Certificate: CE, ATEX(Ex), RoHS2
ST150ERS.400.R305Shift Chain Enclosed Roller Skid ST150ERS, inside width 400mm, bending radius R305mm | Model: ST150ERS | Type: Enclosed Roller Skid (ERS) | Pitch: 150mm | Inside Width (C): 400mm | Outer Width (A): 487mm | Outer Height (B): 145mm | Inner Height (D): 110mm | Bending Radius (R): 305mm | Weight: 12.67 kg/m | Material: CPS-Amide (PA6+G.F) | Max Speed: 6 m/s | Max Acceleration: 12 m/s² | Temperature: -30 ~ +130℃ | Special Production: ESD, UV (optional) | Roller: applied every 2 or 4 links (made-to-order) | Bracket: Steel End Bracket (SEB), B1/B2 (made-to-order) | Steel Plate: made-to-order | Length: made-to-order | Divider/Separator: made-to-order | Certificate: CE, ATEX(Ex), RoHS2
ST150ERS.400.R405Shift Chain Enclosed Roller Skid ST150ERS, inside width 400mm, bending radius R405mm | Model: ST150ERS | Type: Enclosed Roller Skid (ERS) | Pitch: 150mm | Inside Width (C): 400mm | Outer Width (A): 487mm | Outer Height (B): 145mm | Inner Height (D): 110mm | Bending Radius (R): 405mm | Weight: 12.67 kg/m | Material: CPS-Amide (PA6+G.F) | Max Speed: 6 m/s | Max Acceleration: 12 m/s² | Temperature: -30 ~ +130℃ | Special Production: ESD, UV (optional) | Roller: applied every 2 or 4 links (made-to-order) | Bracket: Steel End Bracket (SEB), B1/B2 (made-to-order) | Steel Plate: made-to-order | Length: made-to-order | Divider/Separator: made-to-order | Certificate: CE, ATEX(Ex), RoHS2
ST150ERS.400.R505Shift Chain Enclosed Roller Skid ST150ERS, inside width 400mm, bending radius R505mm | Model: ST150ERS | Type: Enclosed Roller Skid (ERS) | Pitch: 150mm | Inside Width (C): 400mm | Outer Width (A): 487mm | Outer Height (B): 145mm | Inner Height (D): 110mm | Bending Radius (R): 505mm | Weight: 12.67 kg/m | Material: CPS-Amide (PA6+G.F) | Max Speed: 6 m/s | Max Acceleration: 12 m/s² | Temperature: -30 ~ +130℃ | Special Production: ESD, UV (optional) | Roller: applied every 2 or 4 links (made-to-order) | Bracket: Steel End Bracket (SEB), B1/B2 (made-to-order) | Steel Plate: made-to-order | Length: made-to-order | Divider/Separator: made-to-order | Certificate: CE, ATEX(Ex), RoHS2
ST150ERS.400.R605Shift Chain Enclosed Roller Skid ST150ERS, inside width 400mm, bending radius R605mm | Model: ST150ERS | Type: Enclosed Roller Skid (ERS) | Pitch: 150mm | Inside Width (C): 400mm | Outer Width (A): 487mm | Outer Height (B): 145mm | Inner Height (D): 110mm | Bending Radius (R): 605mm | Weight: 12.67 kg/m | Material: CPS-Amide (PA6+G.F) | Max Speed: 6 m/s | Max Acceleration: 12 m/s² | Temperature: -30 ~ +130℃ | Special Production: ESD, UV (optional) | Roller: applied every 2 or 4 links (made-to-order) | Bracket: Steel End Bracket (SEB), B1/B2 (made-to-order) | Steel Plate: made-to-order | Length: made-to-order | Divider/Separator: made-to-order | Certificate: CE, ATEX(Ex), RoHS2
