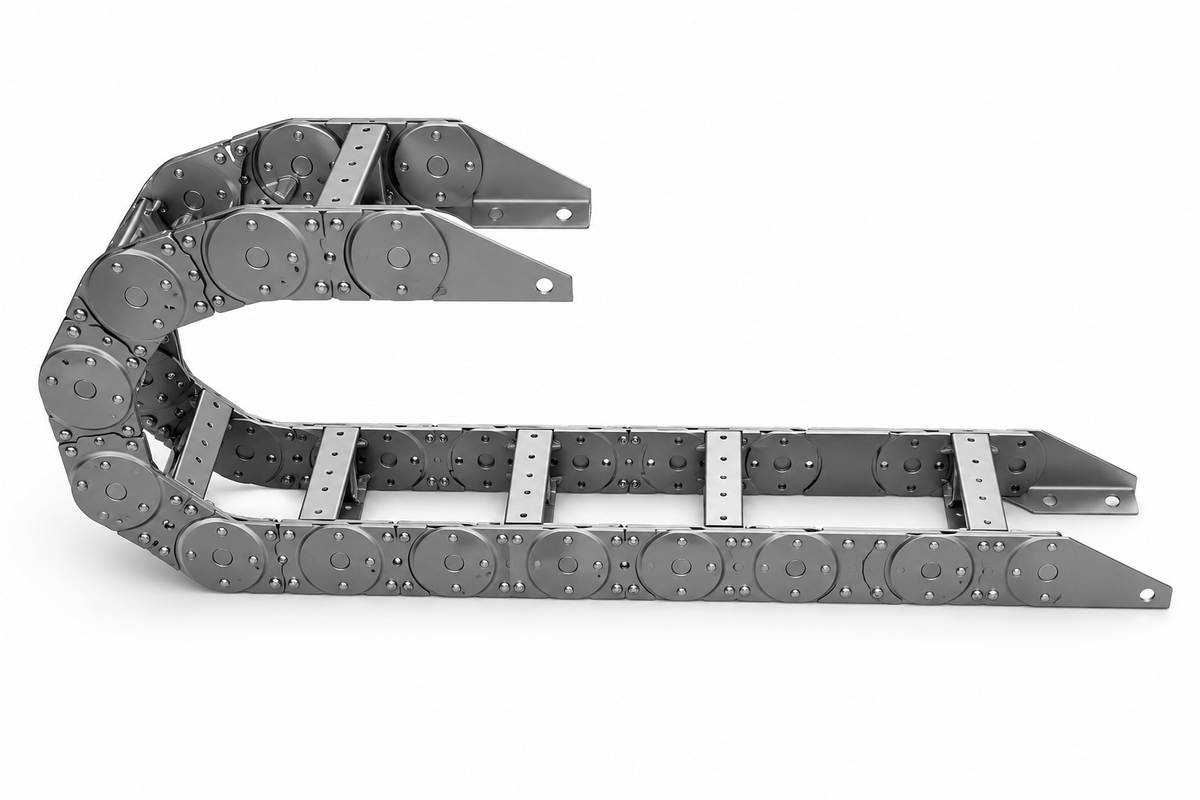

CP System SK180 Steel Cable Chain (KR 500-800 mm)

CP System SK180 Steel Cable Chain (KR 500-800 mm)

CP SYSTEM SK180 heavy-duty steel cable chain (drag chain) for protecting cables and hoses on long-stroke moving applications.

Key features

  • Bending radius KR 500-800 mm with frame widths BST 171-1071 mm
  • Solid-type / hole-type frames, B1 and B2 mounting brackets, and matching steel guide channel available

Specifications

Model SK180
Pitch 180 mm
Frame Type Solid / Hole (select)
Bracket B1 / B2 (select)
Guide Channel available (B1 = BK + 20mm, Angle 90 x 90 x 6T)
Material Steel
SKS180.BST171.KR500 SK180 steel cable chain, BST171 (BK200), KR500 | Model: SK180 | Pitch: 180 mm | Outside Width BK: 200 mm | Frame Width BST: 171 mm | Divider Qty: 2 | Bending Radius KR: 500 mm | Loop Length LB: 2290 mm | Safe Space Ha: 1150 mm | Moving Height H: 1140 mm | Frame Type: Solid / Hole (select) | Bracket: B1 / B2 (select) | Guide Channel: available (B1 = BK + 20mm, Angle 90 x 90 x 6T) | Material: Steel
SKS180.BST221.KR500 SK180 steel cable chain, BST221 (BK250), KR500 | Model: SK180 | Pitch: 180 mm | Outside Width BK: 250 mm | Frame Width BST: 221 mm | Divider Qty: 3 | Bending Radius KR: 500 mm | Loop Length LB: 2290 mm | Safe Space Ha: 1150 mm | Moving Height H: 1140 mm | Frame Type: Solid / Hole (select) | Bracket: B1 / B2 (select) | Guide Channel: available (B1 = BK + 20mm, Angle 90 x 90 x 6T) | Material: Steel
SKS180.BST271.KR500 SK180 steel cable chain, BST271 (BK300), KR500 | Model: SK180 | Pitch: 180 mm | Outside Width BK: 300 mm | Frame Width BST: 271 mm | Divider Qty: 4 | Bending Radius KR: 500 mm | Loop Length LB: 2290 mm | Safe Space Ha: 1150 mm | Moving Height H: 1140 mm | Frame Type: Solid / Hole (select) | Bracket: B1 / B2 (select) | Guide Channel: available (B1 = BK + 20mm, Angle 90 x 90 x 6T) | Material: Steel
SKS180.BST321.KR500 SK180 steel cable chain, BST321 (BK350), KR500 | Model: SK180 | Pitch: 180 mm | Outside Width BK: 350 mm | Frame Width BST: 321 mm | Divider Qty: 5 | Bending Radius KR: 500 mm | Loop Length LB: 2290 mm | Safe Space Ha: 1150 mm | Moving Height H: 1140 mm | Frame Type: Solid / Hole (select) | Bracket: B1 / B2 (select) | Guide Channel: available (B1 = BK + 20mm, Angle 90 x 90 x 6T) | Material: Steel
SKS180.BST371.KR500 SK180 steel cable chain, BST371 (BK400), KR500 | Model: SK180 | Pitch: 180 mm | Outside Width BK: 400 mm | Frame Width BST: 371 mm | Divider Qty: 6 | Bending Radius KR: 500 mm | Loop Length LB: 2290 mm | Safe Space Ha: 1150 mm | Moving Height H: 1140 mm | Frame Type: Solid / Hole (select) | Bracket: B1 / B2 (select) | Guide Channel: available (B1 = BK + 20mm, Angle 90 x 90 x 6T) | Material: Steel
SKS180.BST421.KR500 SK180 steel cable chain, BST421 (BK450), KR500 | Model: SK180 | Pitch: 180 mm | Outside Width BK: 450 mm | Frame Width BST: 421 mm | Divider Qty: 7 | Bending Radius KR: 500 mm | Loop Length LB: 2290 mm | Safe Space Ha: 1150 mm | Moving Height H: 1140 mm | Frame Type: Solid / Hole (select) | Bracket: B1 / B2 (select) | Guide Channel: available (B1 = BK + 20mm, Angle 90 x 90 x 6T) | Material: Steel
SKS180.BST471.KR500 SK180 steel cable chain, BST471 (BK500), KR500 | Model: SK180 | Pitch: 180 mm | Outside Width BK: 500 mm | Frame Width BST: 471 mm | Divider Qty: 8 | Bending Radius KR: 500 mm | Loop Length LB: 2290 mm | Safe Space Ha: 1150 mm | Moving Height H: 1140 mm | Frame Type: Solid / Hole (select) | Bracket: B1 / B2 (select) | Guide Channel: available (B1 = BK + 20mm, Angle 90 x 90 x 6T) | Material: Steel
SKS180.BST571.KR500 SK180 steel cable chain, BST571 (BK600), KR500 | Model: SK180 | Pitch: 180 mm | Outside Width BK: 600 mm | Frame Width BST: 571 mm | Divider Qty: 9 | Bending Radius KR: 500 mm | Loop Length LB: 2290 mm | Safe Space Ha: 1150 mm | Moving Height H: 1140 mm | Frame Type: Solid / Hole (select) | Bracket: B1 / B2 (select) | Guide Channel: available (B1 = BK + 20mm, Angle 90 x 90 x 6T) | Material: Steel
SKS180.BST671.KR500 SK180 steel cable chain, BST671 (BK700), KR500 | Model: SK180 | Pitch: 180 mm | Outside Width BK: 700 mm | Frame Width BST: 671 mm | Divider Qty: 10 | Bending Radius KR: 500 mm | Loop Length LB: 2290 mm | Safe Space Ha: 1150 mm | Moving Height H: 1140 mm | Frame Type: Solid / Hole (select) | Bracket: B1 / B2 (select) | Guide Channel: available (B1 = BK + 20mm, Angle 90 x 90 x 6T) | Material: Steel
SKS180.BST771.KR500 SK180 steel cable chain, BST771 (BK800), KR500 | Model: SK180 | Pitch: 180 mm | Outside Width BK: 800 mm | Frame Width BST: 771 mm | Divider Qty: 11 | Bending Radius KR: 500 mm | Loop Length LB: 2290 mm | Safe Space Ha: 1150 mm | Moving Height H: 1140 mm | Frame Type: Solid / Hole (select) | Bracket: B1 / B2 (select) | Guide Channel: available (B1 = BK + 20mm, Angle 90 x 90 x 6T) | Material: Steel
SKS180.BST871.KR500 SK180 steel cable chain, BST871 (BK900), KR500 | Model: SK180 | Pitch: 180 mm | Outside Width BK: 900 mm | Frame Width BST: 871 mm | Divider Qty: 12 | Bending Radius KR: 500 mm | Loop Length LB: 2290 mm | Safe Space Ha: 1150 mm | Moving Height H: 1140 mm | Frame Type: Solid / Hole (select) | Bracket: B1 / B2 (select) | Guide Channel: available (B1 = BK + 20mm, Angle 90 x 90 x 6T) | Material: Steel
SKS180.BST971.KR500 SK180 steel cable chain, BST971 (BK1000), KR500 | Model: SK180 | Pitch: 180 mm | Outside Width BK: 1000 mm | Frame Width BST: 971 mm | Divider Qty: 13 | Bending Radius KR: 500 mm | Loop Length LB: 2290 mm | Safe Space Ha: 1150 mm | Moving Height H: 1140 mm | Frame Type: Solid / Hole (select) | Bracket: B1 / B2 (select) | Guide Channel: available (B1 = BK + 20mm, Angle 90 x 90 x 6T) | Material: Steel
SKS180.BST1071.KR500 SK180 steel cable chain, BST1071 (BK1100), KR500 | Model: SK180 | Pitch: 180 mm | Outside Width BK: 1100 mm | Frame Width BST: 1071 mm | Divider Qty: 14 | Bending Radius KR: 500 mm | Loop Length LB: 2290 mm | Safe Space Ha: 1150 mm | Moving Height H: 1140 mm | Frame Type: Solid / Hole (select) | Bracket: B1 / B2 (select) | Guide Channel: available (B1 = BK + 20mm, Angle 90 x 90 x 6T) | Material: Steel
SKS180.BST171.KR600 SK180 steel cable chain, BST171 (BK200), KR600 | Model: SK180 | Pitch: 180 mm | Outside Width BK: 200 mm | Frame Width BST: 171 mm | Divider Qty: 2 | Bending Radius KR: 600 mm | Loop Length LB: 2600 mm | Safe Space Ha: 1350 mm | Moving Height H: 1340 mm | Frame Type: Solid / Hole (select) | Bracket: B1 / B2 (select) | Guide Channel: available (B1 = BK + 20mm, Angle 90 x 90 x 6T) | Material: Steel
SKS180.BST221.KR600 SK180 steel cable chain, BST221 (BK250), KR600 | Model: SK180 | Pitch: 180 mm | Outside Width BK: 250 mm | Frame Width BST: 221 mm | Divider Qty: 3 | Bending Radius KR: 600 mm | Loop Length LB: 2600 mm | Safe Space Ha: 1350 mm | Moving Height H: 1340 mm | Frame Type: Solid / Hole (select) | Bracket: B1 / B2 (select) | Guide Channel: available (B1 = BK + 20mm, Angle 90 x 90 x 6T) | Material: Steel
SKS180.BST271.KR600 SK180 steel cable chain, BST271 (BK300), KR600 | Model: SK180 | Pitch: 180 mm | Outside Width BK: 300 mm | Frame Width BST: 271 mm | Divider Qty: 4 | Bending Radius KR: 600 mm | Loop Length LB: 2600 mm | Safe Space Ha: 1350 mm | Moving Height H: 1340 mm | Frame Type: Solid / Hole (select) | Bracket: B1 / B2 (select) | Guide Channel: available (B1 = BK + 20mm, Angle 90 x 90 x 6T) | Material: Steel
SKS180.BST321.KR600 SK180 steel cable chain, BST321 (BK350), KR600 | Model: SK180 | Pitch: 180 mm | Outside Width BK: 350 mm | Frame Width BST: 321 mm | Divider Qty: 5 | Bending Radius KR: 600 mm | Loop Length LB: 2600 mm | Safe Space Ha: 1350 mm | Moving Height H: 1340 mm | Frame Type: Solid / Hole (select) | Bracket: B1 / B2 (select) | Guide Channel: available (B1 = BK + 20mm, Angle 90 x 90 x 6T) | Material: Steel
SKS180.BST371.KR600 SK180 steel cable chain, BST371 (BK400), KR600 | Model: SK180 | Pitch: 180 mm | Outside Width BK: 400 mm | Frame Width BST: 371 mm | Divider Qty: 6 | Bending Radius KR: 600 mm | Loop Length LB: 2600 mm | Safe Space Ha: 1350 mm | Moving Height H: 1340 mm | Frame Type: Solid / Hole (select) | Bracket: B1 / B2 (select) | Guide Channel: available (B1 = BK + 20mm, Angle 90 x 90 x 6T) | Material: Steel
SKS180.BST421.KR600 SK180 steel cable chain, BST421 (BK450), KR600 | Model: SK180 | Pitch: 180 mm | Outside Width BK: 450 mm | Frame Width BST: 421 mm | Divider Qty: 7 | Bending Radius KR: 600 mm | Loop Length LB: 2600 mm | Safe Space Ha: 1350 mm | Moving Height H: 1340 mm | Frame Type: Solid / Hole (select) | Bracket: B1 / B2 (select) | Guide Channel: available (B1 = BK + 20mm, Angle 90 x 90 x 6T) | Material: Steel
SKS180.BST471.KR600 SK180 steel cable chain, BST471 (BK500), KR600 | Model: SK180 | Pitch: 180 mm | Outside Width BK: 500 mm | Frame Width BST: 471 mm | Divider Qty: 8 | Bending Radius KR: 600 mm | Loop Length LB: 2600 mm | Safe Space Ha: 1350 mm | Moving Height H: 1340 mm | Frame Type: Solid / Hole (select) | Bracket: B1 / B2 (select) | Guide Channel: available (B1 = BK + 20mm, Angle 90 x 90 x 6T) | Material: Steel
SKS180.BST571.KR600 SK180 steel cable chain, BST571 (BK600), KR600 | Model: SK180 | Pitch: 180 mm | Outside Width BK: 600 mm | Frame Width BST: 571 mm | Divider Qty: 9 | Bending Radius KR: 600 mm | Loop Length LB: 2600 mm | Safe Space Ha: 1350 mm | Moving Height H: 1340 mm | Frame Type: Solid / Hole (select) | Bracket: B1 / B2 (select) | Guide Channel: available (B1 = BK + 20mm, Angle 90 x 90 x 6T) | Material: Steel
SKS180.BST671.KR600 SK180 steel cable chain, BST671 (BK700), KR600 | Model: SK180 | Pitch: 180 mm | Outside Width BK: 700 mm | Frame Width BST: 671 mm | Divider Qty: 10 | Bending Radius KR: 600 mm | Loop Length LB: 2600 mm | Safe Space Ha: 1350 mm | Moving Height H: 1340 mm | Frame Type: Solid / Hole (select) | Bracket: B1 / B2 (select) | Guide Channel: available (B1 = BK + 20mm, Angle 90 x 90 x 6T) | Material: Steel
SKS180.BST771.KR600 SK180 steel cable chain, BST771 (BK800), KR600 | Model: SK180 | Pitch: 180 mm | Outside Width BK: 800 mm | Frame Width BST: 771 mm | Divider Qty: 11 | Bending Radius KR: 600 mm | Loop Length LB: 2600 mm | Safe Space Ha: 1350 mm | Moving Height H: 1340 mm | Frame Type: Solid / Hole (select) | Bracket: B1 / B2 (select) | Guide Channel: available (B1 = BK + 20mm, Angle 90 x 90 x 6T) | Material: Steel
SKS180.BST871.KR600 SK180 steel cable chain, BST871 (BK900), KR600 | Model: SK180 | Pitch: 180 mm | Outside Width BK: 900 mm | Frame Width BST: 871 mm | Divider Qty: 12 | Bending Radius KR: 600 mm | Loop Length LB: 2600 mm | Safe Space Ha: 1350 mm | Moving Height H: 1340 mm | Frame Type: Solid / Hole (select) | Bracket: B1 / B2 (select) | Guide Channel: available (B1 = BK + 20mm, Angle 90 x 90 x 6T) | Material: Steel
SKS180.BST971.KR600 SK180 steel cable chain, BST971 (BK1000), KR600 | Model: SK180 | Pitch: 180 mm | Outside Width BK: 1000 mm | Frame Width BST: 971 mm | Divider Qty: 13 | Bending Radius KR: 600 mm | Loop Length LB: 2600 mm | Safe Space Ha: 1350 mm | Moving Height H: 1340 mm | Frame Type: Solid / Hole (select) | Bracket: B1 / B2 (select) | Guide Channel: available (B1 = BK + 20mm, Angle 90 x 90 x 6T) | Material: Steel
SKS180.BST1071.KR600 SK180 steel cable chain, BST1071 (BK1100), KR600 | Model: SK180 | Pitch: 180 mm | Outside Width BK: 1100 mm | Frame Width BST: 1071 mm | Divider Qty: 14 | Bending Radius KR: 600 mm | Loop Length LB: 2600 mm | Safe Space Ha: 1350 mm | Moving Height H: 1340 mm | Frame Type: Solid / Hole (select) | Bracket: B1 / B2 (select) | Guide Channel: available (B1 = BK + 20mm, Angle 90 x 90 x 6T) | Material: Steel
SKS180.BST171.KR700 SK180 steel cable chain, BST171 (BK200), KR700 | Model: SK180 | Pitch: 180 mm | Outside Width BK: 200 mm | Frame Width BST: 171 mm | Divider Qty: 2 | Bending Radius KR: 700 mm | Loop Length LB: 2920 mm | Safe Space Ha: 1550 mm | Moving Height H: 1540 mm | Frame Type: Solid / Hole (select) | Bracket: B1 / B2 (select) | Guide Channel: available (B1 = BK + 20mm, Angle 90 x 90 x 6T) | Material: Steel
SKS180.BST221.KR700 SK180 steel cable chain, BST221 (BK250), KR700 | Model: SK180 | Pitch: 180 mm | Outside Width BK: 250 mm | Frame Width BST: 221 mm | Divider Qty: 3 | Bending Radius KR: 700 mm | Loop Length LB: 2920 mm | Safe Space Ha: 1550 mm | Moving Height H: 1540 mm | Frame Type: Solid / Hole (select) | Bracket: B1 / B2 (select) | Guide Channel: available (B1 = BK + 20mm, Angle 90 x 90 x 6T) | Material: Steel
SKS180.BST271.KR700 SK180 steel cable chain, BST271 (BK300), KR700 | Model: SK180 | Pitch: 180 mm | Outside Width BK: 300 mm | Frame Width BST: 271 mm | Divider Qty: 4 | Bending Radius KR: 700 mm | Loop Length LB: 2920 mm | Safe Space Ha: 1550 mm | Moving Height H: 1540 mm | Frame Type: Solid / Hole (select) | Bracket: B1 / B2 (select) | Guide Channel: available (B1 = BK + 20mm, Angle 90 x 90 x 6T) | Material: Steel
SKS180.BST321.KR700 SK180 steel cable chain, BST321 (BK350), KR700 | Model: SK180 | Pitch: 180 mm | Outside Width BK: 350 mm | Frame Width BST: 321 mm | Divider Qty: 5 | Bending Radius KR: 700 mm | Loop Length LB: 2920 mm | Safe Space Ha: 1550 mm | Moving Height H: 1540 mm | Frame Type: Solid / Hole (select) | Bracket: B1 / B2 (select) | Guide Channel: available (B1 = BK + 20mm, Angle 90 x 90 x 6T) | Material: Steel
SKS180.BST371.KR700 SK180 steel cable chain, BST371 (BK400), KR700 | Model: SK180 | Pitch: 180 mm | Outside Width BK: 400 mm | Frame Width BST: 371 mm | Divider Qty: 6 | Bending Radius KR: 700 mm | Loop Length LB: 2920 mm | Safe Space Ha: 1550 mm | Moving Height H: 1540 mm | Frame Type: Solid / Hole (select) | Bracket: B1 / B2 (select) | Guide Channel: available (B1 = BK + 20mm, Angle 90 x 90 x 6T) | Material: Steel
SKS180.BST421.KR700 SK180 steel cable chain, BST421 (BK450), KR700 | Model: SK180 | Pitch: 180 mm | Outside Width BK: 450 mm | Frame Width BST: 421 mm | Divider Qty: 7 | Bending Radius KR: 700 mm | Loop Length LB: 2920 mm | Safe Space Ha: 1550 mm | Moving Height H: 1540 mm | Frame Type: Solid / Hole (select) | Bracket: B1 / B2 (select) | Guide Channel: available (B1 = BK + 20mm, Angle 90 x 90 x 6T) | Material: Steel
SKS180.BST471.KR700 SK180 steel cable chain, BST471 (BK500), KR700 | Model: SK180 | Pitch: 180 mm | Outside Width BK: 500 mm | Frame Width BST: 471 mm | Divider Qty: 8 | Bending Radius KR: 700 mm | Loop Length LB: 2920 mm | Safe Space Ha: 1550 mm | Moving Height H: 1540 mm | Frame Type: Solid / Hole (select) | Bracket: B1 / B2 (select) | Guide Channel: available (B1 = BK + 20mm, Angle 90 x 90 x 6T) | Material: Steel
SKS180.BST571.KR700 SK180 steel cable chain, BST571 (BK600), KR700 | Model: SK180 | Pitch: 180 mm | Outside Width BK: 600 mm | Frame Width BST: 571 mm | Divider Qty: 9 | Bending Radius KR: 700 mm | Loop Length LB: 2920 mm | Safe Space Ha: 1550 mm | Moving Height H: 1540 mm | Frame Type: Solid / Hole (select) | Bracket: B1 / B2 (select) | Guide Channel: available (B1 = BK + 20mm, Angle 90 x 90 x 6T) | Material: Steel
SKS180.BST671.KR700 SK180 steel cable chain, BST671 (BK700), KR700 | Model: SK180 | Pitch: 180 mm | Outside Width BK: 700 mm | Frame Width BST: 671 mm | Divider Qty: 10 | Bending Radius KR: 700 mm | Loop Length LB: 2920 mm | Safe Space Ha: 1550 mm | Moving Height H: 1540 mm | Frame Type: Solid / Hole (select) | Bracket: B1 / B2 (select) | Guide Channel: available (B1 = BK + 20mm, Angle 90 x 90 x 6T) | Material: Steel
SKS180.BST771.KR700 SK180 steel cable chain, BST771 (BK800), KR700 | Model: SK180 | Pitch: 180 mm | Outside Width BK: 800 mm | Frame Width BST: 771 mm | Divider Qty: 11 | Bending Radius KR: 700 mm | Loop Length LB: 2920 mm | Safe Space Ha: 1550 mm | Moving Height H: 1540 mm | Frame Type: Solid / Hole (select) | Bracket: B1 / B2 (select) | Guide Channel: available (B1 = BK + 20mm, Angle 90 x 90 x 6T) | Material: Steel
SKS180.BST871.KR700 SK180 steel cable chain, BST871 (BK900), KR700 | Model: SK180 | Pitch: 180 mm | Outside Width BK: 900 mm | Frame Width BST: 871 mm | Divider Qty: 12 | Bending Radius KR: 700 mm | Loop Length LB: 2920 mm | Safe Space Ha: 1550 mm | Moving Height H: 1540 mm | Frame Type: Solid / Hole (select) | Bracket: B1 / B2 (select) | Guide Channel: available (B1 = BK + 20mm, Angle 90 x 90 x 6T) | Material: Steel
SKS180.BST971.KR700 SK180 steel cable chain, BST971 (BK1000), KR700 | Model: SK180 | Pitch: 180 mm | Outside Width BK: 1000 mm | Frame Width BST: 971 mm | Divider Qty: 13 | Bending Radius KR: 700 mm | Loop Length LB: 2920 mm | Safe Space Ha: 1550 mm | Moving Height H: 1540 mm | Frame Type: Solid / Hole (select) | Bracket: B1 / B2 (select) | Guide Channel: available (B1 = BK + 20mm, Angle 90 x 90 x 6T) | Material: Steel
SKS180.BST1071.KR700 SK180 steel cable chain, BST1071 (BK1100), KR700 | Model: SK180 | Pitch: 180 mm | Outside Width BK: 1100 mm | Frame Width BST: 1071 mm | Divider Qty: 14 | Bending Radius KR: 700 mm | Loop Length LB: 2920 mm | Safe Space Ha: 1550 mm | Moving Height H: 1540 mm | Frame Type: Solid / Hole (select) | Bracket: B1 / B2 (select) | Guide Channel: available (B1 = BK + 20mm, Angle 90 x 90 x 6T) | Material: Steel
SKS180.BST171.KR800 SK180 steel cable chain, BST171 (BK200), KR800 | Model: SK180 | Pitch: 180 mm | Outside Width BK: 200 mm | Frame Width BST: 171 mm | Divider Qty: 2 | Bending Radius KR: 800 mm | Loop Length LB: 3230 mm | Safe Space Ha: 1750 mm | Moving Height H: 1740 mm | Frame Type: Solid / Hole (select) | Bracket: B1 / B2 (select) | Guide Channel: available (B1 = BK + 20mm, Angle 90 x 90 x 6T) | Material: Steel
SKS180.BST221.KR800 SK180 steel cable chain, BST221 (BK250), KR800 | Model: SK180 | Pitch: 180 mm | Outside Width BK: 250 mm | Frame Width BST: 221 mm | Divider Qty: 3 | Bending Radius KR: 800 mm | Loop Length LB: 3230 mm | Safe Space Ha: 1750 mm | Moving Height H: 1740 mm | Frame Type: Solid / Hole (select) | Bracket: B1 / B2 (select) | Guide Channel: available (B1 = BK + 20mm, Angle 90 x 90 x 6T) | Material: Steel
SKS180.BST271.KR800 SK180 steel cable chain, BST271 (BK300), KR800 | Model: SK180 | Pitch: 180 mm | Outside Width BK: 300 mm | Frame Width BST: 271 mm | Divider Qty: 4 | Bending Radius KR: 800 mm | Loop Length LB: 3230 mm | Safe Space Ha: 1750 mm | Moving Height H: 1740 mm | Frame Type: Solid / Hole (select) | Bracket: B1 / B2 (select) | Guide Channel: available (B1 = BK + 20mm, Angle 90 x 90 x 6T) | Material: Steel
SKS180.BST321.KR800 SK180 steel cable chain, BST321 (BK350), KR800 | Model: SK180 | Pitch: 180 mm | Outside Width BK: 350 mm | Frame Width BST: 321 mm | Divider Qty: 5 | Bending Radius KR: 800 mm | Loop Length LB: 3230 mm | Safe Space Ha: 1750 mm | Moving Height H: 1740 mm | Frame Type: Solid / Hole (select) | Bracket: B1 / B2 (select) | Guide Channel: available (B1 = BK + 20mm, Angle 90 x 90 x 6T) | Material: Steel
SKS180.BST371.KR800 SK180 steel cable chain, BST371 (BK400), KR800 | Model: SK180 | Pitch: 180 mm | Outside Width BK: 400 mm | Frame Width BST: 371 mm | Divider Qty: 6 | Bending Radius KR: 800 mm | Loop Length LB: 3230 mm | Safe Space Ha: 1750 mm | Moving Height H: 1740 mm | Frame Type: Solid / Hole (select) | Bracket: B1 / B2 (select) | Guide Channel: available (B1 = BK + 20mm, Angle 90 x 90 x 6T) | Material: Steel
SKS180.BST421.KR800 SK180 steel cable chain, BST421 (BK450), KR800 | Model: SK180 | Pitch: 180 mm | Outside Width BK: 450 mm | Frame Width BST: 421 mm | Divider Qty: 7 | Bending Radius KR: 800 mm | Loop Length LB: 3230 mm | Safe Space Ha: 1750 mm | Moving Height H: 1740 mm | Frame Type: Solid / Hole (select) | Bracket: B1 / B2 (select) | Guide Channel: available (B1 = BK + 20mm, Angle 90 x 90 x 6T) | Material: Steel
SKS180.BST471.KR800 SK180 steel cable chain, BST471 (BK500), KR800 | Model: SK180 | Pitch: 180 mm | Outside Width BK: 500 mm | Frame Width BST: 471 mm | Divider Qty: 8 | Bending Radius KR: 800 mm | Loop Length LB: 3230 mm | Safe Space Ha: 1750 mm | Moving Height H: 1740 mm | Frame Type: Solid / Hole (select) | Bracket: B1 / B2 (select) | Guide Channel: available (B1 = BK + 20mm, Angle 90 x 90 x 6T) | Material: Steel
SKS180.BST571.KR800 SK180 steel cable chain, BST571 (BK600), KR800 | Model: SK180 | Pitch: 180 mm | Outside Width BK: 600 mm | Frame Width BST: 571 mm | Divider Qty: 9 | Bending Radius KR: 800 mm | Loop Length LB: 3230 mm | Safe Space Ha: 1750 mm | Moving Height H: 1740 mm | Frame Type: Solid / Hole (select) | Bracket: B1 / B2 (select) | Guide Channel: available (B1 = BK + 20mm, Angle 90 x 90 x 6T) | Material: Steel
SKS180.BST671.KR800 SK180 steel cable chain, BST671 (BK700), KR800 | Model: SK180 | Pitch: 180 mm | Outside Width BK: 700 mm | Frame Width BST: 671 mm | Divider Qty: 10 | Bending Radius KR: 800 mm | Loop Length LB: 3230 mm | Safe Space Ha: 1750 mm | Moving Height H: 1740 mm | Frame Type: Solid / Hole (select) | Bracket: B1 / B2 (select) | Guide Channel: available (B1 = BK + 20mm, Angle 90 x 90 x 6T) | Material: Steel
SKS180.BST771.KR800 SK180 steel cable chain, BST771 (BK800), KR800 | Model: SK180 | Pitch: 180 mm | Outside Width BK: 800 mm | Frame Width BST: 771 mm | Divider Qty: 11 | Bending Radius KR: 800 mm | Loop Length LB: 3230 mm | Safe Space Ha: 1750 mm | Moving Height H: 1740 mm | Frame Type: Solid / Hole (select) | Bracket: B1 / B2 (select) | Guide Channel: available (B1 = BK + 20mm, Angle 90 x 90 x 6T) | Material: Steel
SKS180.BST871.KR800 SK180 steel cable chain, BST871 (BK900), KR800 | Model: SK180 | Pitch: 180 mm | Outside Width BK: 900 mm | Frame Width BST: 871 mm | Divider Qty: 12 | Bending Radius KR: 800 mm | Loop Length LB: 3230 mm | Safe Space Ha: 1750 mm | Moving Height H: 1740 mm | Frame Type: Solid / Hole (select) | Bracket: B1 / B2 (select) | Guide Channel: available (B1 = BK + 20mm, Angle 90 x 90 x 6T) | Material: Steel
SKS180.BST971.KR800 SK180 steel cable chain, BST971 (BK1000), KR800 | Model: SK180 | Pitch: 180 mm | Outside Width BK: 1000 mm | Frame Width BST: 971 mm | Divider Qty: 13 | Bending Radius KR: 800 mm | Loop Length LB: 3230 mm | Safe Space Ha: 1750 mm | Moving Height H: 1740 mm | Frame Type: Solid / Hole (select) | Bracket: B1 / B2 (select) | Guide Channel: available (B1 = BK + 20mm, Angle 90 x 90 x 6T) | Material: Steel
SKS180.BST1071.KR800 SK180 steel cable chain, BST1071 (BK1100), KR800 | Model: SK180 | Pitch: 180 mm | Outside Width BK: 1100 mm | Frame Width BST: 1071 mm | Divider Qty: 14 | Bending Radius KR: 800 mm | Loop Length LB: 3230 mm | Safe Space Ha: 1750 mm | Moving Height H: 1740 mm | Frame Type: Solid / Hole (select) | Bracket: B1 / B2 (select) | Guide Channel: available (B1 = BK + 20mm, Angle 90 x 90 x 6T) | Material: Steel
Cable CarriersCP System
52 product codes available in this family
Sourced direct from KoreaExport-ready supplyCompetitive pricing
RFQ List 0 Email about this

Need a different model, or a part not listed here? Send us your parts list →

CP System SK180 Steel Cable Chain (KR 500-800 mm)

Brand CP System·Cable Carriers

Available part numbers (52)

SKS180.BST171.KR500, SKS180.BST221.KR500, SKS180.BST271.KR500, SKS180.BST321.KR500, SKS180.BST371.KR500, SKS180.BST421.KR500, SKS180.BST471.KR500, SKS180.BST571.KR500, SKS180.BST671.KR500, SKS180.BST771.KR500 + 42 more — see full table ↓

How to order

Send the CP System part numbers and quantities through our RFQ form or to info@prosourcemro.com. We confirm price, availability and lead time within 1 business day — no account needed.
