CP System SK95 Steel Cable Chain (KR 250-300 mm)

CP System SK95 Steel Cable Chain (KR 250-300 mm)

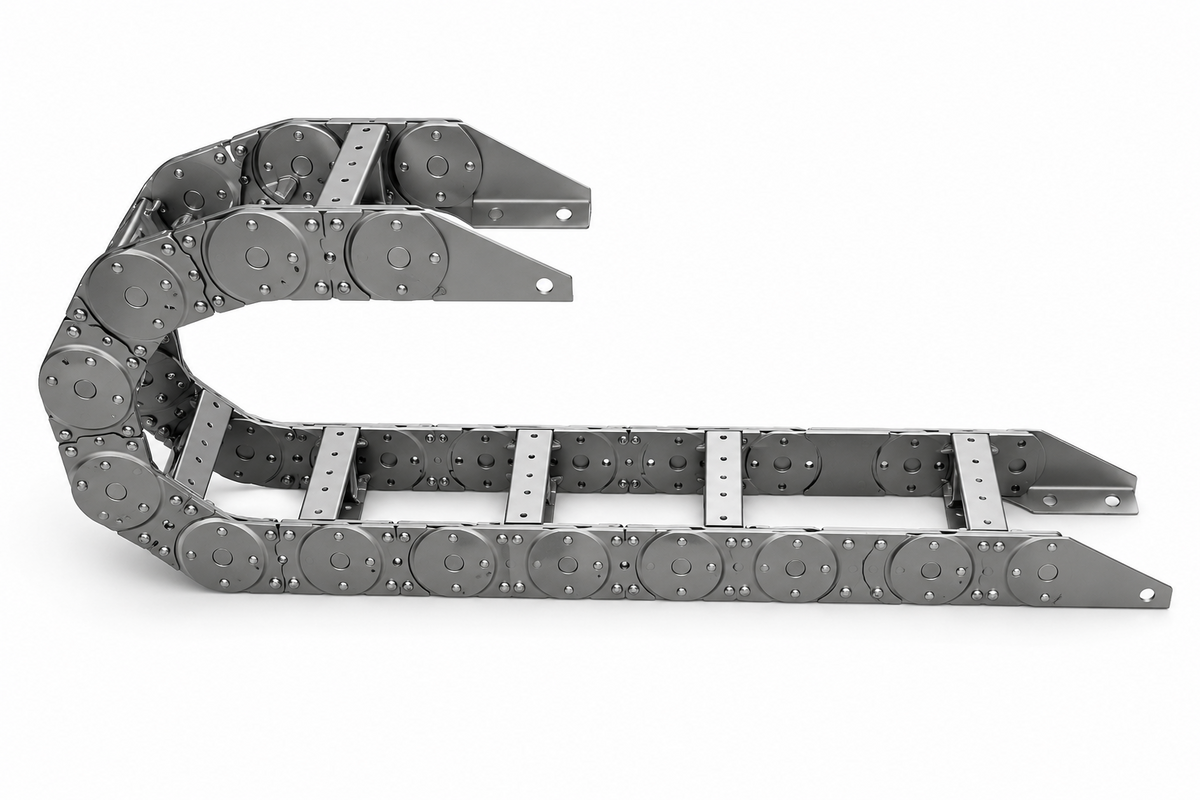

CP SYSTEM SK95 heavy-duty steel cable chain (drag chain) for protecting cables and hoses on long-stroke moving applications.

Key features

  • Bending radius KR 250-300 mm with frame widths BST 82-582 mm
  • Solid-type / hole-type frames, B1 and B2 mounting brackets, and matching steel guide channel available

Specifications

Model SK95
Pitch 95 mm
Frame Type Solid / Hole (select)
Bracket B1 / B2 (select)
Guide Channel available (B1 = BK + 15mm, Angle 50 x 50 x 4T)
Material Steel
SKS95.BST82.KR250 SK95 steel cable chain, BST82 (BK100), KR250 | Model: SK95 | Pitch: 95 mm | Outside Width BK: 100 mm | Frame Width BST: 82 mm | Divider Qty: 1 | Bending Radius KR: 250 mm | Loop Length LB: 1165 mm | Safe Space Ha: 580 mm | Moving Height H: 568 mm | Frame Type: Solid / Hole (select) | Bracket: B1 / B2 (select) | Guide Channel: available (B1 = BK + 15mm, Angle 50 x 50 x 4T) | Material: Steel
SKS95.BST107.KR250 SK95 steel cable chain, BST107 (BK125), KR250 | Model: SK95 | Pitch: 95 mm | Outside Width BK: 125 mm | Frame Width BST: 107 mm | Divider Qty: 1 | Bending Radius KR: 250 mm | Loop Length LB: 1165 mm | Safe Space Ha: 580 mm | Moving Height H: 568 mm | Frame Type: Solid / Hole (select) | Bracket: B1 / B2 (select) | Guide Channel: available (B1 = BK + 15mm, Angle 50 x 50 x 4T) | Material: Steel
SKS95.BST132.KR250 SK95 steel cable chain, BST132 (BK150), KR250 | Model: SK95 | Pitch: 95 mm | Outside Width BK: 150 mm | Frame Width BST: 132 mm | Divider Qty: 2 | Bending Radius KR: 250 mm | Loop Length LB: 1165 mm | Safe Space Ha: 580 mm | Moving Height H: 568 mm | Frame Type: Solid / Hole (select) | Bracket: B1 / B2 (select) | Guide Channel: available (B1 = BK + 15mm, Angle 50 x 50 x 4T) | Material: Steel
SKS95.BST157.KR250 SK95 steel cable chain, BST157 (BK175), KR250 | Model: SK95 | Pitch: 95 mm | Outside Width BK: 175 mm | Frame Width BST: 157 mm | Divider Qty: 3 | Bending Radius KR: 250 mm | Loop Length LB: 1165 mm | Safe Space Ha: 580 mm | Moving Height H: 568 mm | Frame Type: Solid / Hole (select) | Bracket: B1 / B2 (select) | Guide Channel: available (B1 = BK + 15mm, Angle 50 x 50 x 4T) | Material: Steel
SKS95.BST182.KR250 SK95 steel cable chain, BST182 (BK200), KR250 | Model: SK95 | Pitch: 95 mm | Outside Width BK: 200 mm | Frame Width BST: 182 mm | Divider Qty: 4 | Bending Radius KR: 250 mm | Loop Length LB: 1165 mm | Safe Space Ha: 580 mm | Moving Height H: 568 mm | Frame Type: Solid / Hole (select) | Bracket: B1 / B2 (select) | Guide Channel: available (B1 = BK + 15mm, Angle 50 x 50 x 4T) | Material: Steel
SKS95.BST232.KR250 SK95 steel cable chain, BST232 (BK250), KR250 | Model: SK95 | Pitch: 95 mm | Outside Width BK: 250 mm | Frame Width BST: 232 mm | Divider Qty: 5 | Bending Radius KR: 250 mm | Loop Length LB: 1165 mm | Safe Space Ha: 580 mm | Moving Height H: 568 mm | Frame Type: Solid / Hole (select) | Bracket: B1 / B2 (select) | Guide Channel: available (B1 = BK + 15mm, Angle 50 x 50 x 4T) | Material: Steel
SKS95.BST282.KR250 SK95 steel cable chain, BST282 (BK300), KR250 | Model: SK95 | Pitch: 95 mm | Outside Width BK: 300 mm | Frame Width BST: 282 mm | Divider Qty: 6 | Bending Radius KR: 250 mm | Loop Length LB: 1165 mm | Safe Space Ha: 580 mm | Moving Height H: 568 mm | Frame Type: Solid / Hole (select) | Bracket: B1 / B2 (select) | Guide Channel: available (B1 = BK + 15mm, Angle 50 x 50 x 4T) | Material: Steel
SKS95.BST332.KR250 SK95 steel cable chain, BST332 (BK350), KR250 | Model: SK95 | Pitch: 95 mm | Outside Width BK: 350 mm | Frame Width BST: 332 mm | Divider Qty: 7 | Bending Radius KR: 250 mm | Loop Length LB: 1165 mm | Safe Space Ha: 580 mm | Moving Height H: 568 mm | Frame Type: Solid / Hole (select) | Bracket: B1 / B2 (select) | Guide Channel: available (B1 = BK + 15mm, Angle 50 x 50 x 4T) | Material: Steel
SKS95.BST382.KR250 SK95 steel cable chain, BST382 (BK400), KR250 | Model: SK95 | Pitch: 95 mm | Outside Width BK: 400 mm | Frame Width BST: 382 mm | Divider Qty: 8 | Bending Radius KR: 250 mm | Loop Length LB: 1165 mm | Safe Space Ha: 580 mm | Moving Height H: 568 mm | Frame Type: Solid / Hole (select) | Bracket: B1 / B2 (select) | Guide Channel: available (B1 = BK + 15mm, Angle 50 x 50 x 4T) | Material: Steel
SKS95.BST432.KR250 SK95 steel cable chain, BST432 (BK450), KR250 | Model: SK95 | Pitch: 95 mm | Outside Width BK: 450 mm | Frame Width BST: 432 mm | Divider Qty: 9 | Bending Radius KR: 250 mm | Loop Length LB: 1165 mm | Safe Space Ha: 580 mm | Moving Height H: 568 mm | Frame Type: Solid / Hole (select) | Bracket: B1 / B2 (select) | Guide Channel: available (B1 = BK + 15mm, Angle 50 x 50 x 4T) | Material: Steel
SKS95.BST482.KR250 SK95 steel cable chain, BST482 (BK500), KR250 | Model: SK95 | Pitch: 95 mm | Outside Width BK: 500 mm | Frame Width BST: 482 mm | Divider Qty: 10 | Bending Radius KR: 250 mm | Loop Length LB: 1165 mm | Safe Space Ha: 580 mm | Moving Height H: 568 mm | Frame Type: Solid / Hole (select) | Bracket: B1 / B2 (select) | Guide Channel: available (B1 = BK + 15mm, Angle 50 x 50 x 4T) | Material: Steel
SKS95.BST532.KR250 SK95 steel cable chain, BST532 (BK550), KR250 | Model: SK95 | Pitch: 95 mm | Outside Width BK: 550 mm | Frame Width BST: 532 mm | Divider Qty: 11 | Bending Radius KR: 250 mm | Loop Length LB: 1165 mm | Safe Space Ha: 580 mm | Moving Height H: 568 mm | Frame Type: Solid / Hole (select) | Bracket: B1 / B2 (select) | Guide Channel: available (B1 = BK + 15mm, Angle 50 x 50 x 4T) | Material: Steel
SKS95.BST582.KR250 SK95 steel cable chain, BST582 (BK600), KR250 | Model: SK95 | Pitch: 95 mm | Outside Width BK: 600 mm | Frame Width BST: 582 mm | Divider Qty: 12 | Bending Radius KR: 250 mm | Loop Length LB: 1165 mm | Safe Space Ha: 580 mm | Moving Height H: 568 mm | Frame Type: Solid / Hole (select) | Bracket: B1 / B2 (select) | Guide Channel: available (B1 = BK + 15mm, Angle 50 x 50 x 4T) | Material: Steel
SKS95.BST82.KR300 SK95 steel cable chain, BST82 (BK100), KR300 | Model: SK95 | Pitch: 95 mm | Outside Width BK: 100 mm | Frame Width BST: 82 mm | Divider Qty: 1 | Bending Radius KR: 300 mm | Loop Length LB: 1320 mm | Safe Space Ha: 680 mm | Moving Height H: 668 mm | Frame Type: Solid / Hole (select) | Bracket: B1 / B2 (select) | Guide Channel: available (B1 = BK + 15mm, Angle 50 x 50 x 4T) | Material: Steel
SKS95.BST107.KR300 SK95 steel cable chain, BST107 (BK125), KR300 | Model: SK95 | Pitch: 95 mm | Outside Width BK: 125 mm | Frame Width BST: 107 mm | Divider Qty: 1 | Bending Radius KR: 300 mm | Loop Length LB: 1320 mm | Safe Space Ha: 680 mm | Moving Height H: 668 mm | Frame Type: Solid / Hole (select) | Bracket: B1 / B2 (select) | Guide Channel: available (B1 = BK + 15mm, Angle 50 x 50 x 4T) | Material: Steel
SKS95.BST132.KR300 SK95 steel cable chain, BST132 (BK150), KR300 | Model: SK95 | Pitch: 95 mm | Outside Width BK: 150 mm | Frame Width BST: 132 mm | Divider Qty: 2 | Bending Radius KR: 300 mm | Loop Length LB: 1320 mm | Safe Space Ha: 680 mm | Moving Height H: 668 mm | Frame Type: Solid / Hole (select) | Bracket: B1 / B2 (select) | Guide Channel: available (B1 = BK + 15mm, Angle 50 x 50 x 4T) | Material: Steel
SKS95.BST157.KR300 SK95 steel cable chain, BST157 (BK175), KR300 | Model: SK95 | Pitch: 95 mm | Outside Width BK: 175 mm | Frame Width BST: 157 mm | Divider Qty: 3 | Bending Radius KR: 300 mm | Loop Length LB: 1320 mm | Safe Space Ha: 680 mm | Moving Height H: 668 mm | Frame Type: Solid / Hole (select) | Bracket: B1 / B2 (select) | Guide Channel: available (B1 = BK + 15mm, Angle 50 x 50 x 4T) | Material: Steel
SKS95.BST182.KR300 SK95 steel cable chain, BST182 (BK200), KR300 | Model: SK95 | Pitch: 95 mm | Outside Width BK: 200 mm | Frame Width BST: 182 mm | Divider Qty: 4 | Bending Radius KR: 300 mm | Loop Length LB: 1320 mm | Safe Space Ha: 680 mm | Moving Height H: 668 mm | Frame Type: Solid / Hole (select) | Bracket: B1 / B2 (select) | Guide Channel: available (B1 = BK + 15mm, Angle 50 x 50 x 4T) | Material: Steel
SKS95.BST232.KR300 SK95 steel cable chain, BST232 (BK250), KR300 | Model: SK95 | Pitch: 95 mm | Outside Width BK: 250 mm | Frame Width BST: 232 mm | Divider Qty: 5 | Bending Radius KR: 300 mm | Loop Length LB: 1320 mm | Safe Space Ha: 680 mm | Moving Height H: 668 mm | Frame Type: Solid / Hole (select) | Bracket: B1 / B2 (select) | Guide Channel: available (B1 = BK + 15mm, Angle 50 x 50 x 4T) | Material: Steel
SKS95.BST282.KR300 SK95 steel cable chain, BST282 (BK300), KR300 | Model: SK95 | Pitch: 95 mm | Outside Width BK: 300 mm | Frame Width BST: 282 mm | Divider Qty: 6 | Bending Radius KR: 300 mm | Loop Length LB: 1320 mm | Safe Space Ha: 680 mm | Moving Height H: 668 mm | Frame Type: Solid / Hole (select) | Bracket: B1 / B2 (select) | Guide Channel: available (B1 = BK + 15mm, Angle 50 x 50 x 4T) | Material: Steel
SKS95.BST332.KR300 SK95 steel cable chain, BST332 (BK350), KR300 | Model: SK95 | Pitch: 95 mm | Outside Width BK: 350 mm | Frame Width BST: 332 mm | Divider Qty: 7 | Bending Radius KR: 300 mm | Loop Length LB: 1320 mm | Safe Space Ha: 680 mm | Moving Height H: 668 mm | Frame Type: Solid / Hole (select) | Bracket: B1 / B2 (select) | Guide Channel: available (B1 = BK + 15mm, Angle 50 x 50 x 4T) | Material: Steel
SKS95.BST382.KR300 SK95 steel cable chain, BST382 (BK400), KR300 | Model: SK95 | Pitch: 95 mm | Outside Width BK: 400 mm | Frame Width BST: 382 mm | Divider Qty: 8 | Bending Radius KR: 300 mm | Loop Length LB: 1320 mm | Safe Space Ha: 680 mm | Moving Height H: 668 mm | Frame Type: Solid / Hole (select) | Bracket: B1 / B2 (select) | Guide Channel: available (B1 = BK + 15mm, Angle 50 x 50 x 4T) | Material: Steel
SKS95.BST432.KR300 SK95 steel cable chain, BST432 (BK450), KR300 | Model: SK95 | Pitch: 95 mm | Outside Width BK: 450 mm | Frame Width BST: 432 mm | Divider Qty: 9 | Bending Radius KR: 300 mm | Loop Length LB: 1320 mm | Safe Space Ha: 680 mm | Moving Height H: 668 mm | Frame Type: Solid / Hole (select) | Bracket: B1 / B2 (select) | Guide Channel: available (B1 = BK + 15mm, Angle 50 x 50 x 4T) | Material: Steel
SKS95.BST482.KR300 SK95 steel cable chain, BST482 (BK500), KR300 | Model: SK95 | Pitch: 95 mm | Outside Width BK: 500 mm | Frame Width BST: 482 mm | Divider Qty: 10 | Bending Radius KR: 300 mm | Loop Length LB: 1320 mm | Safe Space Ha: 680 mm | Moving Height H: 668 mm | Frame Type: Solid / Hole (select) | Bracket: B1 / B2 (select) | Guide Channel: available (B1 = BK + 15mm, Angle 50 x 50 x 4T) | Material: Steel
SKS95.BST532.KR300 SK95 steel cable chain, BST532 (BK550), KR300 | Model: SK95 | Pitch: 95 mm | Outside Width BK: 550 mm | Frame Width BST: 532 mm | Divider Qty: 11 | Bending Radius KR: 300 mm | Loop Length LB: 1320 mm | Safe Space Ha: 680 mm | Moving Height H: 668 mm | Frame Type: Solid / Hole (select) | Bracket: B1 / B2 (select) | Guide Channel: available (B1 = BK + 15mm, Angle 50 x 50 x 4T) | Material: Steel
SKS95.BST582.KR300 SK95 steel cable chain, BST582 (BK600), KR300 | Model: SK95 | Pitch: 95 mm | Outside Width BK: 600 mm | Frame Width BST: 582 mm | Divider Qty: 12 | Bending Radius KR: 300 mm | Loop Length LB: 1320 mm | Safe Space Ha: 680 mm | Moving Height H: 668 mm | Frame Type: Solid / Hole (select) | Bracket: B1 / B2 (select) | Guide Channel: available (B1 = BK + 15mm, Angle 50 x 50 x 4T) | Material: Steel
Cable CarriersCP System
26 product codes available in this family
Sourced direct from KoreaExport-ready supplyCompetitive pricing
RFQ List 0 Email about this

Need a different model, or a part not listed here? Send us your parts list →

CP System SK95 Steel Cable Chain (KR 250-300 mm)

Brand CP System·Cable Carriers

Available part numbers (26)

SKS95.BST82.KR250, SKS95.BST107.KR250, SKS95.BST132.KR250, SKS95.BST157.KR250, SKS95.BST182.KR250, SKS95.BST232.KR250, SKS95.BST282.KR250, SKS95.BST332.KR250, SKS95.BST382.KR250, SKS95.BST432.KR250 + 16 more — see full table ↓

How to order

Send the CP System part numbers and quantities through our RFQ form or to info@prosourcemro.com. We confirm price, availability and lead time within 1 business day — no account needed.

RFQ List 0 →
View full details
Product codes & specifications
0 selected
RFQ List (0)
Product codeSpec
SKS95.BST82.KR250SK95 steel cable chain, BST82 (BK100), KR250 | Model: SK95 | Pitch: 95 mm | Outside Width BK: 100 mm | Frame Width BST: 82 mm | Divider Qty: 1 | Bending Radius KR: 250 mm | Loop Length LB: 1165 mm | Safe Space Ha: 580 mm | Moving Height H: 568 mm | Frame Type: Solid / Hole (select) | Bracket: B1 / B2 (select) | Guide Channel: available (B1 = BK + 15mm, Angle 50 x 50 x 4T) | Material: Steel
SKS95.BST107.KR250SK95 steel cable chain, BST107 (BK125), KR250 | Model: SK95 | Pitch: 95 mm | Outside Width BK: 125 mm | Frame Width BST: 107 mm | Divider Qty: 1 | Bending Radius KR: 250 mm | Loop Length LB: 1165 mm | Safe Space Ha: 580 mm | Moving Height H: 568 mm | Frame Type: Solid / Hole (select) | Bracket: B1 / B2 (select) | Guide Channel: available (B1 = BK + 15mm, Angle 50 x 50 x 4T) | Material: Steel
SKS95.BST132.KR250SK95 steel cable chain, BST132 (BK150), KR250 | Model: SK95 | Pitch: 95 mm | Outside Width BK: 150 mm | Frame Width BST: 132 mm | Divider Qty: 2 | Bending Radius KR: 250 mm | Loop Length LB: 1165 mm | Safe Space Ha: 580 mm | Moving Height H: 568 mm | Frame Type: Solid / Hole (select) | Bracket: B1 / B2 (select) | Guide Channel: available (B1 = BK + 15mm, Angle 50 x 50 x 4T) | Material: Steel
SKS95.BST157.KR250SK95 steel cable chain, BST157 (BK175), KR250 | Model: SK95 | Pitch: 95 mm | Outside Width BK: 175 mm | Frame Width BST: 157 mm | Divider Qty: 3 | Bending Radius KR: 250 mm | Loop Length LB: 1165 mm | Safe Space Ha: 580 mm | Moving Height H: 568 mm | Frame Type: Solid / Hole (select) | Bracket: B1 / B2 (select) | Guide Channel: available (B1 = BK + 15mm, Angle 50 x 50 x 4T) | Material: Steel
SKS95.BST182.KR250SK95 steel cable chain, BST182 (BK200), KR250 | Model: SK95 | Pitch: 95 mm | Outside Width BK: 200 mm | Frame Width BST: 182 mm | Divider Qty: 4 | Bending Radius KR: 250 mm | Loop Length LB: 1165 mm | Safe Space Ha: 580 mm | Moving Height H: 568 mm | Frame Type: Solid / Hole (select) | Bracket: B1 / B2 (select) | Guide Channel: available (B1 = BK + 15mm, Angle 50 x 50 x 4T) | Material: Steel
SKS95.BST232.KR250SK95 steel cable chain, BST232 (BK250), KR250 | Model: SK95 | Pitch: 95 mm | Outside Width BK: 250 mm | Frame Width BST: 232 mm | Divider Qty: 5 | Bending Radius KR: 250 mm | Loop Length LB: 1165 mm | Safe Space Ha: 580 mm | Moving Height H: 568 mm | Frame Type: Solid / Hole (select) | Bracket: B1 / B2 (select) | Guide Channel: available (B1 = BK + 15mm, Angle 50 x 50 x 4T) | Material: Steel
SKS95.BST282.KR250SK95 steel cable chain, BST282 (BK300), KR250 | Model: SK95 | Pitch: 95 mm | Outside Width BK: 300 mm | Frame Width BST: 282 mm | Divider Qty: 6 | Bending Radius KR: 250 mm | Loop Length LB: 1165 mm | Safe Space Ha: 580 mm | Moving Height H: 568 mm | Frame Type: Solid / Hole (select) | Bracket: B1 / B2 (select) | Guide Channel: available (B1 = BK + 15mm, Angle 50 x 50 x 4T) | Material: Steel
SKS95.BST332.KR250SK95 steel cable chain, BST332 (BK350), KR250 | Model: SK95 | Pitch: 95 mm | Outside Width BK: 350 mm | Frame Width BST: 332 mm | Divider Qty: 7 | Bending Radius KR: 250 mm | Loop Length LB: 1165 mm | Safe Space Ha: 580 mm | Moving Height H: 568 mm | Frame Type: Solid / Hole (select) | Bracket: B1 / B2 (select) | Guide Channel: available (B1 = BK + 15mm, Angle 50 x 50 x 4T) | Material: Steel
SKS95.BST382.KR250SK95 steel cable chain, BST382 (BK400), KR250 | Model: SK95 | Pitch: 95 mm | Outside Width BK: 400 mm | Frame Width BST: 382 mm | Divider Qty: 8 | Bending Radius KR: 250 mm | Loop Length LB: 1165 mm | Safe Space Ha: 580 mm | Moving Height H: 568 mm | Frame Type: Solid / Hole (select) | Bracket: B1 / B2 (select) | Guide Channel: available (B1 = BK + 15mm, Angle 50 x 50 x 4T) | Material: Steel
SKS95.BST432.KR250SK95 steel cable chain, BST432 (BK450), KR250 | Model: SK95 | Pitch: 95 mm | Outside Width BK: 450 mm | Frame Width BST: 432 mm | Divider Qty: 9 | Bending Radius KR: 250 mm | Loop Length LB: 1165 mm | Safe Space Ha: 580 mm | Moving Height H: 568 mm | Frame Type: Solid / Hole (select) | Bracket: B1 / B2 (select) | Guide Channel: available (B1 = BK + 15mm, Angle 50 x 50 x 4T) | Material: Steel
SKS95.BST482.KR250SK95 steel cable chain, BST482 (BK500), KR250 | Model: SK95 | Pitch: 95 mm | Outside Width BK: 500 mm | Frame Width BST: 482 mm | Divider Qty: 10 | Bending Radius KR: 250 mm | Loop Length LB: 1165 mm | Safe Space Ha: 580 mm | Moving Height H: 568 mm | Frame Type: Solid / Hole (select) | Bracket: B1 / B2 (select) | Guide Channel: available (B1 = BK + 15mm, Angle 50 x 50 x 4T) | Material: Steel
SKS95.BST532.KR250SK95 steel cable chain, BST532 (BK550), KR250 | Model: SK95 | Pitch: 95 mm | Outside Width BK: 550 mm | Frame Width BST: 532 mm | Divider Qty: 11 | Bending Radius KR: 250 mm | Loop Length LB: 1165 mm | Safe Space Ha: 580 mm | Moving Height H: 568 mm | Frame Type: Solid / Hole (select) | Bracket: B1 / B2 (select) | Guide Channel: available (B1 = BK + 15mm, Angle 50 x 50 x 4T) | Material: Steel
SKS95.BST582.KR250SK95 steel cable chain, BST582 (BK600), KR250 | Model: SK95 | Pitch: 95 mm | Outside Width BK: 600 mm | Frame Width BST: 582 mm | Divider Qty: 12 | Bending Radius KR: 250 mm | Loop Length LB: 1165 mm | Safe Space Ha: 580 mm | Moving Height H: 568 mm | Frame Type: Solid / Hole (select) | Bracket: B1 / B2 (select) | Guide Channel: available (B1 = BK + 15mm, Angle 50 x 50 x 4T) | Material: Steel
SKS95.BST82.KR300SK95 steel cable chain, BST82 (BK100), KR300 | Model: SK95 | Pitch: 95 mm | Outside Width BK: 100 mm | Frame Width BST: 82 mm | Divider Qty: 1 | Bending Radius KR: 300 mm | Loop Length LB: 1320 mm | Safe Space Ha: 680 mm | Moving Height H: 668 mm | Frame Type: Solid / Hole (select) | Bracket: B1 / B2 (select) | Guide Channel: available (B1 = BK + 15mm, Angle 50 x 50 x 4T) | Material: Steel
SKS95.BST107.KR300SK95 steel cable chain, BST107 (BK125), KR300 | Model: SK95 | Pitch: 95 mm | Outside Width BK: 125 mm | Frame Width BST: 107 mm | Divider Qty: 1 | Bending Radius KR: 300 mm | Loop Length LB: 1320 mm | Safe Space Ha: 680 mm | Moving Height H: 668 mm | Frame Type: Solid / Hole (select) | Bracket: B1 / B2 (select) | Guide Channel: available (B1 = BK + 15mm, Angle 50 x 50 x 4T) | Material: Steel
SKS95.BST132.KR300SK95 steel cable chain, BST132 (BK150), KR300 | Model: SK95 | Pitch: 95 mm | Outside Width BK: 150 mm | Frame Width BST: 132 mm | Divider Qty: 2 | Bending Radius KR: 300 mm | Loop Length LB: 1320 mm | Safe Space Ha: 680 mm | Moving Height H: 668 mm | Frame Type: Solid / Hole (select) | Bracket: B1 / B2 (select) | Guide Channel: available (B1 = BK + 15mm, Angle 50 x 50 x 4T) | Material: Steel
SKS95.BST157.KR300SK95 steel cable chain, BST157 (BK175), KR300 | Model: SK95 | Pitch: 95 mm | Outside Width BK: 175 mm | Frame Width BST: 157 mm | Divider Qty: 3 | Bending Radius KR: 300 mm | Loop Length LB: 1320 mm | Safe Space Ha: 680 mm | Moving Height H: 668 mm | Frame Type: Solid / Hole (select) | Bracket: B1 / B2 (select) | Guide Channel: available (B1 = BK + 15mm, Angle 50 x 50 x 4T) | Material: Steel
SKS95.BST182.KR300SK95 steel cable chain, BST182 (BK200), KR300 | Model: SK95 | Pitch: 95 mm | Outside Width BK: 200 mm | Frame Width BST: 182 mm | Divider Qty: 4 | Bending Radius KR: 300 mm | Loop Length LB: 1320 mm | Safe Space Ha: 680 mm | Moving Height H: 668 mm | Frame Type: Solid / Hole (select) | Bracket: B1 / B2 (select) | Guide Channel: available (B1 = BK + 15mm, Angle 50 x 50 x 4T) | Material: Steel
SKS95.BST232.KR300SK95 steel cable chain, BST232 (BK250), KR300 | Model: SK95 | Pitch: 95 mm | Outside Width BK: 250 mm | Frame Width BST: 232 mm | Divider Qty: 5 | Bending Radius KR: 300 mm | Loop Length LB: 1320 mm | Safe Space Ha: 680 mm | Moving Height H: 668 mm | Frame Type: Solid / Hole (select) | Bracket: B1 / B2 (select) | Guide Channel: available (B1 = BK + 15mm, Angle 50 x 50 x 4T) | Material: Steel
SKS95.BST282.KR300SK95 steel cable chain, BST282 (BK300), KR300 | Model: SK95 | Pitch: 95 mm | Outside Width BK: 300 mm | Frame Width BST: 282 mm | Divider Qty: 6 | Bending Radius KR: 300 mm | Loop Length LB: 1320 mm | Safe Space Ha: 680 mm | Moving Height H: 668 mm | Frame Type: Solid / Hole (select) | Bracket: B1 / B2 (select) | Guide Channel: available (B1 = BK + 15mm, Angle 50 x 50 x 4T) | Material: Steel
SKS95.BST332.KR300SK95 steel cable chain, BST332 (BK350), KR300 | Model: SK95 | Pitch: 95 mm | Outside Width BK: 350 mm | Frame Width BST: 332 mm | Divider Qty: 7 | Bending Radius KR: 300 mm | Loop Length LB: 1320 mm | Safe Space Ha: 680 mm | Moving Height H: 668 mm | Frame Type: Solid / Hole (select) | Bracket: B1 / B2 (select) | Guide Channel: available (B1 = BK + 15mm, Angle 50 x 50 x 4T) | Material: Steel
SKS95.BST382.KR300SK95 steel cable chain, BST382 (BK400), KR300 | Model: SK95 | Pitch: 95 mm | Outside Width BK: 400 mm | Frame Width BST: 382 mm | Divider Qty: 8 | Bending Radius KR: 300 mm | Loop Length LB: 1320 mm | Safe Space Ha: 680 mm | Moving Height H: 668 mm | Frame Type: Solid / Hole (select) | Bracket: B1 / B2 (select) | Guide Channel: available (B1 = BK + 15mm, Angle 50 x 50 x 4T) | Material: Steel
SKS95.BST432.KR300SK95 steel cable chain, BST432 (BK450), KR300 | Model: SK95 | Pitch: 95 mm | Outside Width BK: 450 mm | Frame Width BST: 432 mm | Divider Qty: 9 | Bending Radius KR: 300 mm | Loop Length LB: 1320 mm | Safe Space Ha: 680 mm | Moving Height H: 668 mm | Frame Type: Solid / Hole (select) | Bracket: B1 / B2 (select) | Guide Channel: available (B1 = BK + 15mm, Angle 50 x 50 x 4T) | Material: Steel
SKS95.BST482.KR300SK95 steel cable chain, BST482 (BK500), KR300 | Model: SK95 | Pitch: 95 mm | Outside Width BK: 500 mm | Frame Width BST: 482 mm | Divider Qty: 10 | Bending Radius KR: 300 mm | Loop Length LB: 1320 mm | Safe Space Ha: 680 mm | Moving Height H: 668 mm | Frame Type: Solid / Hole (select) | Bracket: B1 / B2 (select) | Guide Channel: available (B1 = BK + 15mm, Angle 50 x 50 x 4T) | Material: Steel
SKS95.BST532.KR300SK95 steel cable chain, BST532 (BK550), KR300 | Model: SK95 | Pitch: 95 mm | Outside Width BK: 550 mm | Frame Width BST: 532 mm | Divider Qty: 11 | Bending Radius KR: 300 mm | Loop Length LB: 1320 mm | Safe Space Ha: 680 mm | Moving Height H: 668 mm | Frame Type: Solid / Hole (select) | Bracket: B1 / B2 (select) | Guide Channel: available (B1 = BK + 15mm, Angle 50 x 50 x 4T) | Material: Steel
SKS95.BST582.KR300SK95 steel cable chain, BST582 (BK600), KR300 | Model: SK95 | Pitch: 95 mm | Outside Width BK: 600 mm | Frame Width BST: 582 mm | Divider Qty: 12 | Bending Radius KR: 300 mm | Loop Length LB: 1320 mm | Safe Space Ha: 680 mm | Moving Height H: 668 mm | Frame Type: Solid / Hole (select) | Bracket: B1 / B2 (select) | Guide Channel: available (B1 = BK + 15mm, Angle 50 x 50 x 4T) | Material: Steel
