• CP System Steel Guide Channel ST044RS (Shift Chain S-Type, Skid RS, C 35-200mm)
1 1

CP System Steel Guide Channel ST044RS (Shift Chain S-Type, Skid RS, C 35-200mm)

CP System Steel Guide Channel ST044RS (Shift Chain S-Type, Skid RS, C 35-200mm)

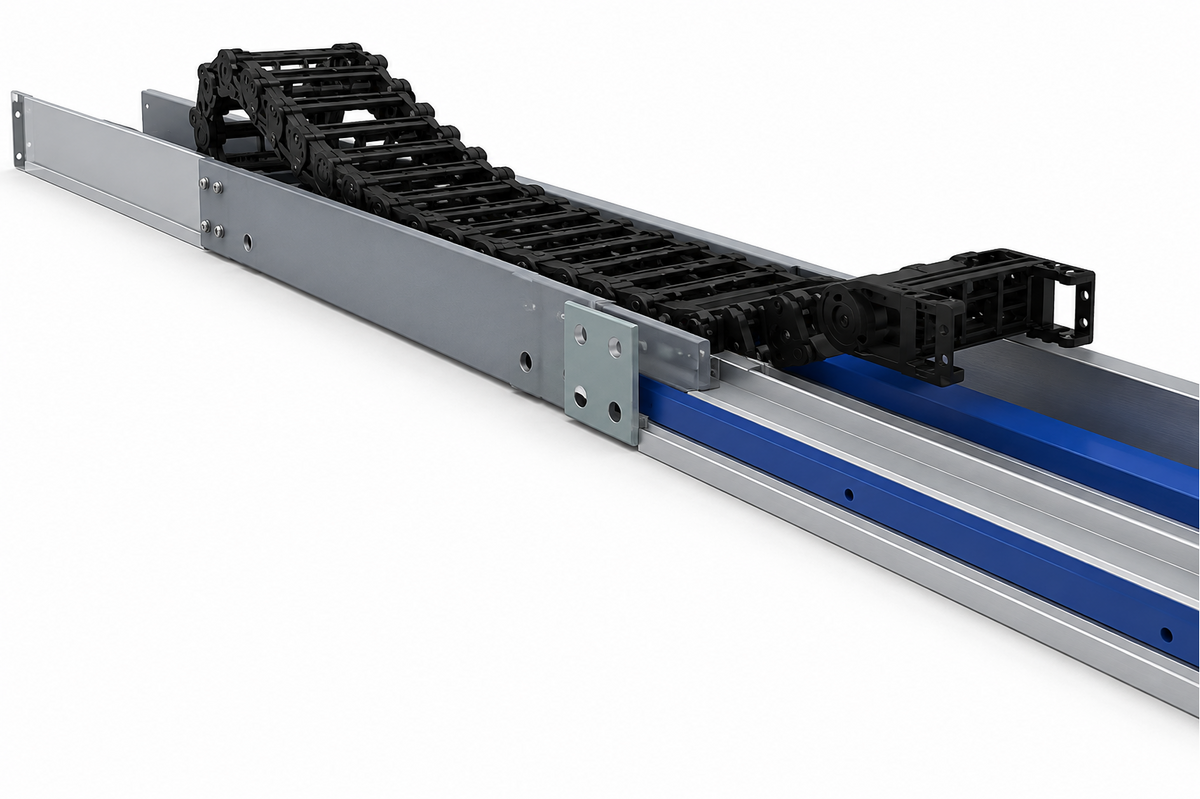

Steel guide channel for long-stroke cable chain applications, ensuring the S-Type chain stays on track safely during operation.

Key features

  • For ST044RS (Shift Chain, Skid Type RS)
  • Material Steel + Zn plating (Standard-2: Steel + Powder coating); colors Silver / Black / Ivory

Specifications

Chain Shift Chain
Model ST044RS
Skid Type RS
Material Steel + Zn plating
Finish Option Steel + Powder coating (Standard-2)
Color Silver / Black / Ivory
Length Made-to-order
System Components U-Channel + Housing (A/A1/B) + Nylon Bar + Side Panel
ST-GCS044RS.35 Guide channel ST044RS, inside width C=35mm (chain outer A=73mm) | Chain: Shift Chain | Model: ST044RS | Skid Type: RS | Inside Width (C): 35mm | Outer Width of Chain (A): 73mm | Material: Steel + Zn plating | Finish Option: Steel + Powder coating (Standard-2) | Color: Silver / Black / Ivory | Length: Made-to-order | System Components: U-Channel + Housing (A/A1/B) + Nylon Bar + Side Panel
ST-GCS044RS.50 Guide channel ST044RS, inside width C=50mm (chain outer A=88mm) | Chain: Shift Chain | Model: ST044RS | Skid Type: RS | Inside Width (C): 50mm | Outer Width of Chain (A): 88mm | Material: Steel + Zn plating | Finish Option: Steel + Powder coating (Standard-2) | Color: Silver / Black / Ivory | Length: Made-to-order | System Components: U-Channel + Housing (A/A1/B) + Nylon Bar + Side Panel
ST-GCS044RS.55 Guide channel ST044RS, inside width C=55mm (chain outer A=93mm) | Chain: Shift Chain | Model: ST044RS | Skid Type: RS | Inside Width (C): 55mm | Outer Width of Chain (A): 93mm | Material: Steel + Zn plating | Finish Option: Steel + Powder coating (Standard-2) | Color: Silver / Black / Ivory | Length: Made-to-order | System Components: U-Channel + Housing (A/A1/B) + Nylon Bar + Side Panel
ST-GCS044RS.75 Guide channel ST044RS, inside width C=75mm (chain outer A=113mm) | Chain: Shift Chain | Model: ST044RS | Skid Type: RS | Inside Width (C): 75mm | Outer Width of Chain (A): 113mm | Material: Steel + Zn plating | Finish Option: Steel + Powder coating (Standard-2) | Color: Silver / Black / Ivory | Length: Made-to-order | System Components: U-Channel + Housing (A/A1/B) + Nylon Bar + Side Panel
ST-GCS044RS.100 Guide channel ST044RS, inside width C=100mm (chain outer A=138mm) | Chain: Shift Chain | Model: ST044RS | Skid Type: RS | Inside Width (C): 100mm | Outer Width of Chain (A): 138mm | Material: Steel + Zn plating | Finish Option: Steel + Powder coating (Standard-2) | Color: Silver / Black / Ivory | Length: Made-to-order | System Components: U-Channel + Housing (A/A1/B) + Nylon Bar + Side Panel
ST-GCS044RS.125 Guide channel ST044RS, inside width C=125mm (chain outer A=163mm) | Chain: Shift Chain | Model: ST044RS | Skid Type: RS | Inside Width (C): 125mm | Outer Width of Chain (A): 163mm | Material: Steel + Zn plating | Finish Option: Steel + Powder coating (Standard-2) | Color: Silver / Black / Ivory | Length: Made-to-order | System Components: U-Channel + Housing (A/A1/B) + Nylon Bar + Side Panel
ST-GCS044RS.150 Guide channel ST044RS, inside width C=150mm (chain outer A=188mm) | Chain: Shift Chain | Model: ST044RS | Skid Type: RS | Inside Width (C): 150mm | Outer Width of Chain (A): 188mm | Material: Steel + Zn plating | Finish Option: Steel + Powder coating (Standard-2) | Color: Silver / Black / Ivory | Length: Made-to-order | System Components: U-Channel + Housing (A/A1/B) + Nylon Bar + Side Panel
ST-GCS044RS.175 Guide channel ST044RS, inside width C=175mm (chain outer A=213mm) | Chain: Shift Chain | Model: ST044RS | Skid Type: RS | Inside Width (C): 175mm | Outer Width of Chain (A): 213mm | Material: Steel + Zn plating | Finish Option: Steel + Powder coating (Standard-2) | Color: Silver / Black / Ivory | Length: Made-to-order | System Components: U-Channel + Housing (A/A1/B) + Nylon Bar + Side Panel
ST-GCS044RS.200 Guide channel ST044RS, inside width C=200mm (chain outer A=238mm) | Chain: Shift Chain | Model: ST044RS | Skid Type: RS | Inside Width (C): 200mm | Outer Width of Chain (A): 238mm | Material: Steel + Zn plating | Finish Option: Steel + Powder coating (Standard-2) | Color: Silver / Black / Ivory | Length: Made-to-order | System Components: U-Channel + Housing (A/A1/B) + Nylon Bar + Side Panel
Cable CarriersCP System
9 product codes available in this family
Sourced direct from KoreaExport-ready supplyCompetitive pricing
RFQ List 0 Email about this

Need a different model, or a part not listed here? Send us your parts list →

CP System Steel Guide Channel ST044RS (Shift Chain S-Type, Skid RS, C 35-200mm)

Brand CP System·Cable Carriers

Available part numbers (9)

ST-GCS044RS.35, ST-GCS044RS.50, ST-GCS044RS.55, ST-GCS044RS.75, ST-GCS044RS.100, ST-GCS044RS.125, ST-GCS044RS.150, ST-GCS044RS.175, ST-GCS044RS.200

How to order

Send the CP System part numbers and quantities through our RFQ form or to info@prosourcemro.com. We confirm price, availability and lead time within 1 business day — no account needed.

RFQ List 0 →
View full details
Product codes & specifications
0 selected
RFQ List (0)
Product codeSpec
ST-GCS044RS.35Guide channel ST044RS, inside width C=35mm (chain outer A=73mm) | Chain: Shift Chain | Model: ST044RS | Skid Type: RS | Inside Width (C): 35mm | Outer Width of Chain (A): 73mm | Material: Steel + Zn plating | Finish Option: Steel + Powder coating (Standard-2) | Color: Silver / Black / Ivory | Length: Made-to-order | System Components: U-Channel + Housing (A/A1/B) + Nylon Bar + Side Panel
ST-GCS044RS.50Guide channel ST044RS, inside width C=50mm (chain outer A=88mm) | Chain: Shift Chain | Model: ST044RS | Skid Type: RS | Inside Width (C): 50mm | Outer Width of Chain (A): 88mm | Material: Steel + Zn plating | Finish Option: Steel + Powder coating (Standard-2) | Color: Silver / Black / Ivory | Length: Made-to-order | System Components: U-Channel + Housing (A/A1/B) + Nylon Bar + Side Panel
ST-GCS044RS.55Guide channel ST044RS, inside width C=55mm (chain outer A=93mm) | Chain: Shift Chain | Model: ST044RS | Skid Type: RS | Inside Width (C): 55mm | Outer Width of Chain (A): 93mm | Material: Steel + Zn plating | Finish Option: Steel + Powder coating (Standard-2) | Color: Silver / Black / Ivory | Length: Made-to-order | System Components: U-Channel + Housing (A/A1/B) + Nylon Bar + Side Panel
ST-GCS044RS.75Guide channel ST044RS, inside width C=75mm (chain outer A=113mm) | Chain: Shift Chain | Model: ST044RS | Skid Type: RS | Inside Width (C): 75mm | Outer Width of Chain (A): 113mm | Material: Steel + Zn plating | Finish Option: Steel + Powder coating (Standard-2) | Color: Silver / Black / Ivory | Length: Made-to-order | System Components: U-Channel + Housing (A/A1/B) + Nylon Bar + Side Panel
ST-GCS044RS.100Guide channel ST044RS, inside width C=100mm (chain outer A=138mm) | Chain: Shift Chain | Model: ST044RS | Skid Type: RS | Inside Width (C): 100mm | Outer Width of Chain (A): 138mm | Material: Steel + Zn plating | Finish Option: Steel + Powder coating (Standard-2) | Color: Silver / Black / Ivory | Length: Made-to-order | System Components: U-Channel + Housing (A/A1/B) + Nylon Bar + Side Panel
ST-GCS044RS.125Guide channel ST044RS, inside width C=125mm (chain outer A=163mm) | Chain: Shift Chain | Model: ST044RS | Skid Type: RS | Inside Width (C): 125mm | Outer Width of Chain (A): 163mm | Material: Steel + Zn plating | Finish Option: Steel + Powder coating (Standard-2) | Color: Silver / Black / Ivory | Length: Made-to-order | System Components: U-Channel + Housing (A/A1/B) + Nylon Bar + Side Panel
ST-GCS044RS.150Guide channel ST044RS, inside width C=150mm (chain outer A=188mm) | Chain: Shift Chain | Model: ST044RS | Skid Type: RS | Inside Width (C): 150mm | Outer Width of Chain (A): 188mm | Material: Steel + Zn plating | Finish Option: Steel + Powder coating (Standard-2) | Color: Silver / Black / Ivory | Length: Made-to-order | System Components: U-Channel + Housing (A/A1/B) + Nylon Bar + Side Panel
ST-GCS044RS.175Guide channel ST044RS, inside width C=175mm (chain outer A=213mm) | Chain: Shift Chain | Model: ST044RS | Skid Type: RS | Inside Width (C): 175mm | Outer Width of Chain (A): 213mm | Material: Steel + Zn plating | Finish Option: Steel + Powder coating (Standard-2) | Color: Silver / Black / Ivory | Length: Made-to-order | System Components: U-Channel + Housing (A/A1/B) + Nylon Bar + Side Panel
ST-GCS044RS.200Guide channel ST044RS, inside width C=200mm (chain outer A=238mm) | Chain: Shift Chain | Model: ST044RS | Skid Type: RS | Inside Width (C): 200mm | Outer Width of Chain (A): 238mm | Material: Steel + Zn plating | Finish Option: Steel + Powder coating (Standard-2) | Color: Silver / Black / Ivory | Length: Made-to-order | System Components: U-Channel + Housing (A/A1/B) + Nylon Bar + Side Panel
