• CP System Steel Guide Channel ST072ERS (Shift Chain S-Type, Skid ERS, C 50-150mm)
1 1

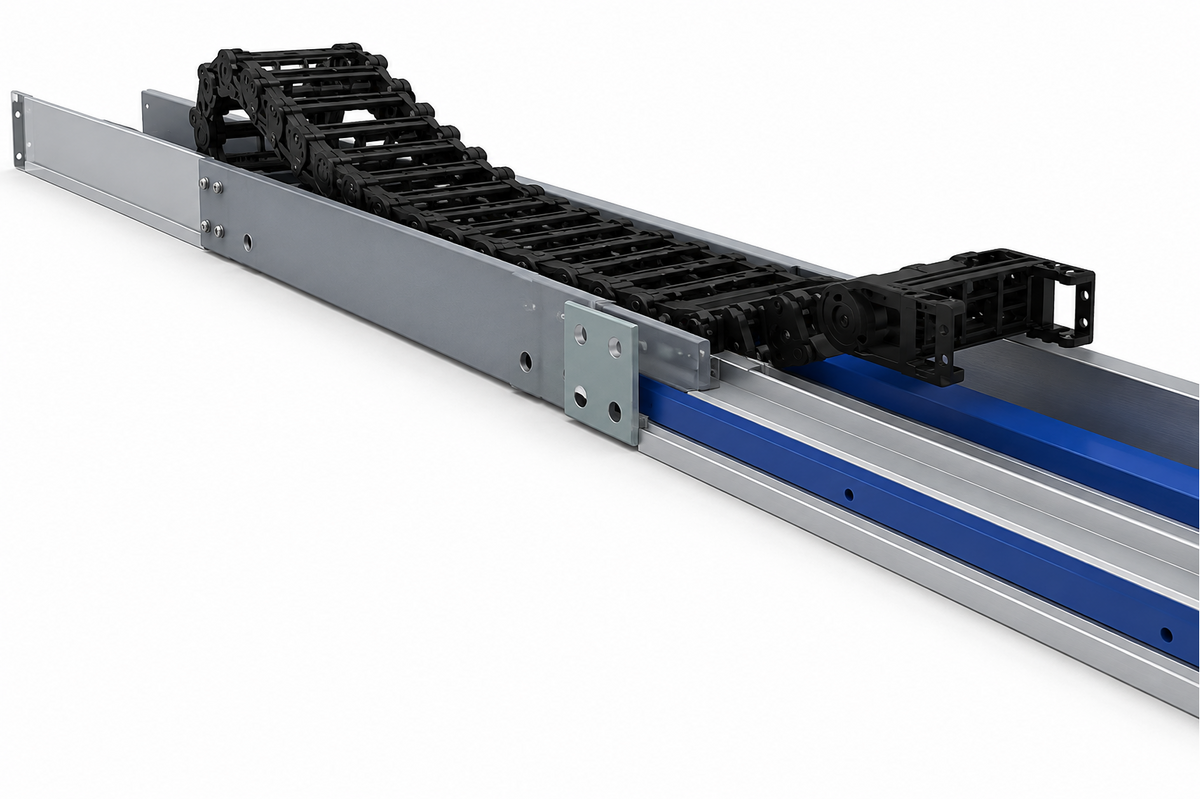

CP System Steel Guide Channel ST072ERS (Shift Chain S-Type, Skid ERS, C 50-150mm)

CP System Steel Guide Channel ST072ERS (Shift Chain S-Type, Skid ERS, C 50-150mm)

Steel guide channel for long-stroke cable chain applications, ensuring the S-Type chain stays on track safely during operation.

Key features

  • For ST072ERS (Shift Chain, Skid Type ERS)
  • Material Steel + Zn plating (Standard-2: Steel + Powder coating); colors Silver / Black / Ivory

Specifications

Chain Shift Chain
Model ST072ERS
Skid Type ERS
Material Steel + Zn plating
Finish Option Steel + Powder coating (Standard-2)
Color Silver / Black / Ivory
Length Made-to-order
System Components U-Channel + Housing (A/A1/B) + Nylon Bar + Side Panel
ST-GCS072ERS.50 Guide channel ST072ERS, inside width C=50mm (chain outer A=104mm) | Chain: Shift Chain | Model: ST072ERS | Skid Type: ERS | Inside Width (C): 50mm | Outer Width of Chain (A): 104mm | Material: Steel + Zn plating | Finish Option: Steel + Powder coating (Standard-2) | Color: Silver / Black / Ivory | Length: Made-to-order | System Components: U-Channel + Housing (A/A1/B) + Nylon Bar + Side Panel
ST-GCS072ERS.75 Guide channel ST072ERS, inside width C=75mm (chain outer A=129mm) | Chain: Shift Chain | Model: ST072ERS | Skid Type: ERS | Inside Width (C): 75mm | Outer Width of Chain (A): 129mm | Material: Steel + Zn plating | Finish Option: Steel + Powder coating (Standard-2) | Color: Silver / Black / Ivory | Length: Made-to-order | System Components: U-Channel + Housing (A/A1/B) + Nylon Bar + Side Panel
ST-GCS072ERS.100 Guide channel ST072ERS, inside width C=100mm (chain outer A=154mm) | Chain: Shift Chain | Model: ST072ERS | Skid Type: ERS | Inside Width (C): 100mm | Outer Width of Chain (A): 154mm | Material: Steel + Zn plating | Finish Option: Steel + Powder coating (Standard-2) | Color: Silver / Black / Ivory | Length: Made-to-order | System Components: U-Channel + Housing (A/A1/B) + Nylon Bar + Side Panel
ST-GCS072ERS.125 Guide channel ST072ERS, inside width C=125mm (chain outer A=179mm) | Chain: Shift Chain | Model: ST072ERS | Skid Type: ERS | Inside Width (C): 125mm | Outer Width of Chain (A): 179mm | Material: Steel + Zn plating | Finish Option: Steel + Powder coating (Standard-2) | Color: Silver / Black / Ivory | Length: Made-to-order | System Components: U-Channel + Housing (A/A1/B) + Nylon Bar + Side Panel
ST-GCS072ERS.150 Guide channel ST072ERS, inside width C=150mm (chain outer A=204mm) | Chain: Shift Chain | Model: ST072ERS | Skid Type: ERS | Inside Width (C): 150mm | Outer Width of Chain (A): 204mm | Material: Steel + Zn plating | Finish Option: Steel + Powder coating (Standard-2) | Color: Silver / Black / Ivory | Length: Made-to-order | System Components: U-Channel + Housing (A/A1/B) + Nylon Bar + Side Panel
Cable CarriersCP System
5 product codes available in this family
Sourced direct from KoreaExport-ready supplyCompetitive pricing
RFQ List 0 Email about this

Need a different model, or a part not listed here? Send us your parts list →

CP System Steel Guide Channel ST072ERS (Shift Chain S-Type, Skid ERS, C 50-150mm)

Brand CP System·Cable Carriers

Available part numbers (5)

ST-GCS072ERS.50, ST-GCS072ERS.75, ST-GCS072ERS.100, ST-GCS072ERS.125, ST-GCS072ERS.150

How to order

Send the CP System part numbers and quantities through our RFQ form or to info@prosourcemro.com. We confirm price, availability and lead time within 1 business day — no account needed.

RFQ List 0 →
View full details
Product codes & specifications
0 selected
RFQ List (0)
Product codeSpec
ST-GCS072ERS.50Guide channel ST072ERS, inside width C=50mm (chain outer A=104mm) | Chain: Shift Chain | Model: ST072ERS | Skid Type: ERS | Inside Width (C): 50mm | Outer Width of Chain (A): 104mm | Material: Steel + Zn plating | Finish Option: Steel + Powder coating (Standard-2) | Color: Silver / Black / Ivory | Length: Made-to-order | System Components: U-Channel + Housing (A/A1/B) + Nylon Bar + Side Panel
ST-GCS072ERS.75Guide channel ST072ERS, inside width C=75mm (chain outer A=129mm) | Chain: Shift Chain | Model: ST072ERS | Skid Type: ERS | Inside Width (C): 75mm | Outer Width of Chain (A): 129mm | Material: Steel + Zn plating | Finish Option: Steel + Powder coating (Standard-2) | Color: Silver / Black / Ivory | Length: Made-to-order | System Components: U-Channel + Housing (A/A1/B) + Nylon Bar + Side Panel
ST-GCS072ERS.100Guide channel ST072ERS, inside width C=100mm (chain outer A=154mm) | Chain: Shift Chain | Model: ST072ERS | Skid Type: ERS | Inside Width (C): 100mm | Outer Width of Chain (A): 154mm | Material: Steel + Zn plating | Finish Option: Steel + Powder coating (Standard-2) | Color: Silver / Black / Ivory | Length: Made-to-order | System Components: U-Channel + Housing (A/A1/B) + Nylon Bar + Side Panel
ST-GCS072ERS.125Guide channel ST072ERS, inside width C=125mm (chain outer A=179mm) | Chain: Shift Chain | Model: ST072ERS | Skid Type: ERS | Inside Width (C): 125mm | Outer Width of Chain (A): 179mm | Material: Steel + Zn plating | Finish Option: Steel + Powder coating (Standard-2) | Color: Silver / Black / Ivory | Length: Made-to-order | System Components: U-Channel + Housing (A/A1/B) + Nylon Bar + Side Panel
ST-GCS072ERS.150Guide channel ST072ERS, inside width C=150mm (chain outer A=204mm) | Chain: Shift Chain | Model: ST072ERS | Skid Type: ERS | Inside Width (C): 150mm | Outer Width of Chain (A): 204mm | Material: Steel + Zn plating | Finish Option: Steel + Powder coating (Standard-2) | Color: Silver / Black / Ivory | Length: Made-to-order | System Components: U-Channel + Housing (A/A1/B) + Nylon Bar + Side Panel
