CP System Steel Guide Channel ST095ERS (Shift Chain S-Type, Skid ERS, C 100-200mm)

CP System Steel Guide Channel ST095ERS (Shift Chain S-Type, Skid ERS, C 100-200mm)

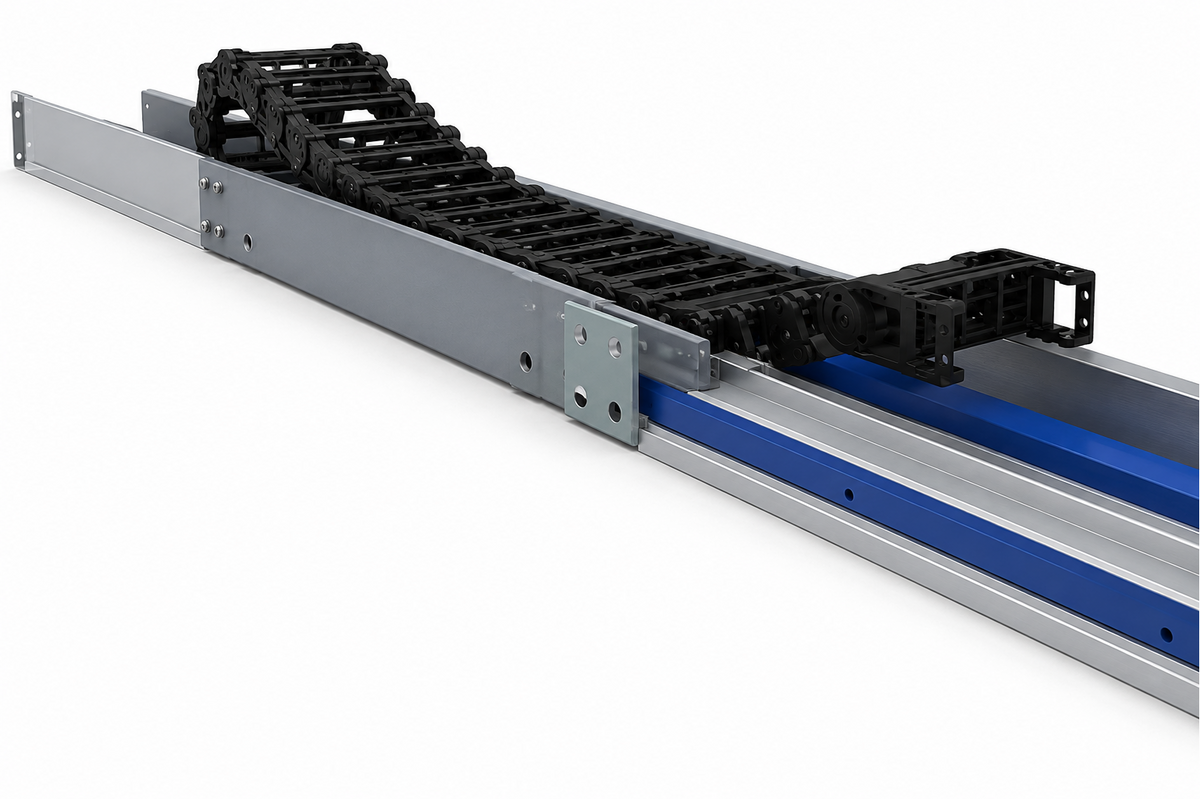

Steel guide channel for long-stroke cable chain applications, ensuring the S-Type chain stays on track safely during operation.

Key features

  • For ST095ERS (Shift Chain, Skid Type ERS)
  • Material Steel + Zn plating (Standard-2: Steel + Powder coating); colors Silver / Black / Ivory

Specifications

Chain Shift Chain
Model ST095ERS
Skid Type ERS
Material Steel + Zn plating
Finish Option Steel + Powder coating (Standard-2)
Color Silver / Black / Ivory
Length Made-to-order
System Components U-Channel + Housing (A/A1/B) + Nylon Bar + Side Panel
ST-GCS095ERS.100 Guide channel ST095ERS, inside width C=100mm (chain outer A=168mm) | Chain: Shift Chain | Model: ST095ERS | Skid Type: ERS | Inside Width (C): 100mm | Outer Width of Chain (A): 168mm | Material: Steel + Zn plating | Finish Option: Steel + Powder coating (Standard-2) | Color: Silver / Black / Ivory | Length: Made-to-order | System Components: U-Channel + Housing (A/A1/B) + Nylon Bar + Side Panel
ST-GCS095ERS.125 Guide channel ST095ERS, inside width C=125mm (chain outer A=193mm) | Chain: Shift Chain | Model: ST095ERS | Skid Type: ERS | Inside Width (C): 125mm | Outer Width of Chain (A): 193mm | Material: Steel + Zn plating | Finish Option: Steel + Powder coating (Standard-2) | Color: Silver / Black / Ivory | Length: Made-to-order | System Components: U-Channel + Housing (A/A1/B) + Nylon Bar + Side Panel
ST-GCS095ERS.150 Guide channel ST095ERS, inside width C=150mm (chain outer A=218mm) | Chain: Shift Chain | Model: ST095ERS | Skid Type: ERS | Inside Width (C): 150mm | Outer Width of Chain (A): 218mm | Material: Steel + Zn plating | Finish Option: Steel + Powder coating (Standard-2) | Color: Silver / Black / Ivory | Length: Made-to-order | System Components: U-Channel + Housing (A/A1/B) + Nylon Bar + Side Panel
ST-GCS095ERS.175 Guide channel ST095ERS, inside width C=175mm (chain outer A=243mm) | Chain: Shift Chain | Model: ST095ERS | Skid Type: ERS | Inside Width (C): 175mm | Outer Width of Chain (A): 243mm | Material: Steel + Zn plating | Finish Option: Steel + Powder coating (Standard-2) | Color: Silver / Black / Ivory | Length: Made-to-order | System Components: U-Channel + Housing (A/A1/B) + Nylon Bar + Side Panel
ST-GCS095ERS.200 Guide channel ST095ERS, inside width C=200mm (chain outer A=268mm) | Chain: Shift Chain | Model: ST095ERS | Skid Type: ERS | Inside Width (C): 200mm | Outer Width of Chain (A): 268mm | Material: Steel + Zn plating | Finish Option: Steel + Powder coating (Standard-2) | Color: Silver / Black / Ivory | Length: Made-to-order | System Components: U-Channel + Housing (A/A1/B) + Nylon Bar + Side Panel
Cable CarriersCP System
5 product codes available in this family
Sourced direct from KoreaExport-ready supplyCompetitive pricing
RFQ List 0 Email about this

Need a different model, or a part not listed here? Send us your parts list →

CP System Steel Guide Channel ST095ERS (Shift Chain S-Type, Skid ERS, C 100-200mm)

Brand CP System·Cable Carriers

Available part numbers (5)

ST-GCS095ERS.100, ST-GCS095ERS.125, ST-GCS095ERS.150, ST-GCS095ERS.175, ST-GCS095ERS.200

How to order

Send the CP System part numbers and quantities through our RFQ form or to info@prosourcemro.com. We confirm price, availability and lead time within 1 business day — no account needed.
