• CP System Steel Guide Channel ST120RS (Shift Chain S-Type, Skid RS, C 75-600mm)
1 1

CP System Steel Guide Channel ST120RS (Shift Chain S-Type, Skid RS, C 75-600mm)

CP System Steel Guide Channel ST120RS (Shift Chain S-Type, Skid RS, C 75-600mm)

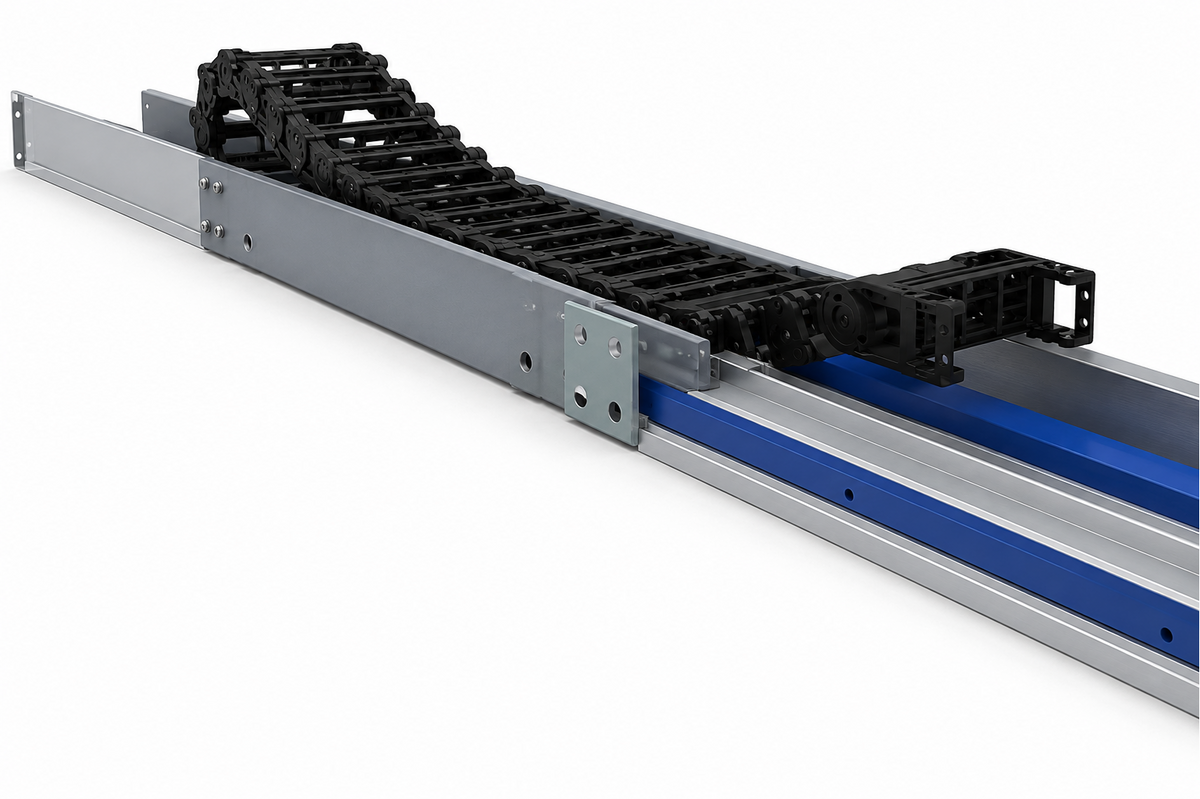

Steel guide channel for long-stroke cable chain applications, ensuring the S-Type chain stays on track safely during operation.

Key features

  • For ST120RS (Shift Chain, Skid Type RS)
  • Material Steel + Zn plating (Standard-2: Steel + Powder coating); colors Silver / Black / Ivory

Specifications

Chain Shift Chain
Model ST120RS
Skid Type RS
Material Steel + Zn plating
Finish Option Steel + Powder coating (Standard-2)
Color Silver / Black / Ivory
Length Made-to-order
System Components U-Channel + Housing (A/A1/B) + Nylon Bar + Side Panel
ST-GCS120RS.75 Guide channel ST120RS, inside width C=75mm (chain outer A=143mm) | Chain: Shift Chain | Model: ST120RS | Skid Type: RS | Inside Width (C): 75mm | Outer Width of Chain (A): 143mm | Material: Steel + Zn plating | Finish Option: Steel + Powder coating (Standard-2) | Color: Silver / Black / Ivory | Length: Made-to-order | System Components: U-Channel + Housing (A/A1/B) + Nylon Bar + Side Panel
ST-GCS120RS.100 Guide channel ST120RS, inside width C=100mm (chain outer A=168mm) | Chain: Shift Chain | Model: ST120RS | Skid Type: RS | Inside Width (C): 100mm | Outer Width of Chain (A): 168mm | Material: Steel + Zn plating | Finish Option: Steel + Powder coating (Standard-2) | Color: Silver / Black / Ivory | Length: Made-to-order | System Components: U-Channel + Housing (A/A1/B) + Nylon Bar + Side Panel
ST-GCS120RS.115 Guide channel ST120RS, inside width C=115mm (chain outer A=183mm) | Chain: Shift Chain | Model: ST120RS | Skid Type: RS | Inside Width (C): 115mm | Outer Width of Chain (A): 183mm | Material: Steel + Zn plating | Finish Option: Steel + Powder coating (Standard-2) | Color: Silver / Black / Ivory | Length: Made-to-order | System Components: U-Channel + Housing (A/A1/B) + Nylon Bar + Side Panel
ST-GCS120RS.125 Guide channel ST120RS, inside width C=125mm (chain outer A=193mm) | Chain: Shift Chain | Model: ST120RS | Skid Type: RS | Inside Width (C): 125mm | Outer Width of Chain (A): 193mm | Material: Steel + Zn plating | Finish Option: Steel + Powder coating (Standard-2) | Color: Silver / Black / Ivory | Length: Made-to-order | System Components: U-Channel + Housing (A/A1/B) + Nylon Bar + Side Panel
ST-GCS120RS.150 Guide channel ST120RS, inside width C=150mm (chain outer A=218mm) | Chain: Shift Chain | Model: ST120RS | Skid Type: RS | Inside Width (C): 150mm | Outer Width of Chain (A): 218mm | Material: Steel + Zn plating | Finish Option: Steel + Powder coating (Standard-2) | Color: Silver / Black / Ivory | Length: Made-to-order | System Components: U-Channel + Housing (A/A1/B) + Nylon Bar + Side Panel
ST-GCS120RS.175 Guide channel ST120RS, inside width C=175mm (chain outer A=243mm) | Chain: Shift Chain | Model: ST120RS | Skid Type: RS | Inside Width (C): 175mm | Outer Width of Chain (A): 243mm | Material: Steel + Zn plating | Finish Option: Steel + Powder coating (Standard-2) | Color: Silver / Black / Ivory | Length: Made-to-order | System Components: U-Channel + Housing (A/A1/B) + Nylon Bar + Side Panel
ST-GCS120RS.200 Guide channel ST120RS, inside width C=200mm (chain outer A=268mm) | Chain: Shift Chain | Model: ST120RS | Skid Type: RS | Inside Width (C): 200mm | Outer Width of Chain (A): 268mm | Material: Steel + Zn plating | Finish Option: Steel + Powder coating (Standard-2) | Color: Silver / Black / Ivory | Length: Made-to-order | System Components: U-Channel + Housing (A/A1/B) + Nylon Bar + Side Panel
ST-GCS120RS.240 Guide channel ST120RS, inside width C=240mm (chain outer A=308mm) | Chain: Shift Chain | Model: ST120RS | Skid Type: RS | Inside Width (C): 240mm | Outer Width of Chain (A): 308mm | Material: Steel + Zn plating | Finish Option: Steel + Powder coating (Standard-2) | Color: Silver / Black / Ivory | Length: Made-to-order | System Components: U-Channel + Housing (A/A1/B) + Nylon Bar + Side Panel
ST-GCS120RS.250 Guide channel ST120RS, inside width C=250mm (chain outer A=318mm) | Chain: Shift Chain | Model: ST120RS | Skid Type: RS | Inside Width (C): 250mm | Outer Width of Chain (A): 318mm | Material: Steel + Zn plating | Finish Option: Steel + Powder coating (Standard-2) | Color: Silver / Black / Ivory | Length: Made-to-order | System Components: U-Channel + Housing (A/A1/B) + Nylon Bar + Side Panel
ST-GCS120RS.290 Guide channel ST120RS, inside width C=290mm (chain outer A=358mm) | Chain: Shift Chain | Model: ST120RS | Skid Type: RS | Inside Width (C): 290mm | Outer Width of Chain (A): 358mm | Material: Steel + Zn plating | Finish Option: Steel + Powder coating (Standard-2) | Color: Silver / Black / Ivory | Length: Made-to-order | System Components: U-Channel + Housing (A/A1/B) + Nylon Bar + Side Panel
ST-GCS120RS.300 Guide channel ST120RS, inside width C=300mm (chain outer A=368mm) | Chain: Shift Chain | Model: ST120RS | Skid Type: RS | Inside Width (C): 300mm | Outer Width of Chain (A): 368mm | Material: Steel + Zn plating | Finish Option: Steel + Powder coating (Standard-2) | Color: Silver / Black / Ivory | Length: Made-to-order | System Components: U-Channel + Housing (A/A1/B) + Nylon Bar + Side Panel
ST-GCS120RS.350 Guide channel ST120RS, inside width C=350mm (chain outer A=418mm) | Chain: Shift Chain | Model: ST120RS | Skid Type: RS | Inside Width (C): 350mm | Outer Width of Chain (A): 418mm | Material: Steel + Zn plating | Finish Option: Steel + Powder coating (Standard-2) | Color: Silver / Black / Ivory | Length: Made-to-order | System Components: U-Channel + Housing (A/A1/B) + Nylon Bar + Side Panel
ST-GCS120RS.400 Guide channel ST120RS, inside width C=400mm (chain outer A=468mm) | Chain: Shift Chain | Model: ST120RS | Skid Type: RS | Inside Width (C): 400mm | Outer Width of Chain (A): 468mm | Material: Steel + Zn plating | Finish Option: Steel + Powder coating (Standard-2) | Color: Silver / Black / Ivory | Length: Made-to-order | System Components: U-Channel + Housing (A/A1/B) + Nylon Bar + Side Panel
ST-GCS120RS.450 Guide channel ST120RS, inside width C=450mm (chain outer A=518mm) | Chain: Shift Chain | Model: ST120RS | Skid Type: RS | Inside Width (C): 450mm | Outer Width of Chain (A): 518mm | Material: Steel + Zn plating | Finish Option: Steel + Powder coating (Standard-2) | Color: Silver / Black / Ivory | Length: Made-to-order | System Components: U-Channel + Housing (A/A1/B) + Nylon Bar + Side Panel
ST-GCS120RS.500 Guide channel ST120RS, inside width C=500mm (chain outer A=568mm) | Chain: Shift Chain | Model: ST120RS | Skid Type: RS | Inside Width (C): 500mm | Outer Width of Chain (A): 568mm | Material: Steel + Zn plating | Finish Option: Steel + Powder coating (Standard-2) | Color: Silver / Black / Ivory | Length: Made-to-order | System Components: U-Channel + Housing (A/A1/B) + Nylon Bar + Side Panel
ST-GCS120RS.550 Guide channel ST120RS, inside width C=550mm (chain outer A=618mm) | Chain: Shift Chain | Model: ST120RS | Skid Type: RS | Inside Width (C): 550mm | Outer Width of Chain (A): 618mm | Material: Steel + Zn plating | Finish Option: Steel + Powder coating (Standard-2) | Color: Silver / Black / Ivory | Length: Made-to-order | System Components: U-Channel + Housing (A/A1/B) + Nylon Bar + Side Panel
ST-GCS120RS.600 Guide channel ST120RS, inside width C=600mm (chain outer A=668mm) | Chain: Shift Chain | Model: ST120RS | Skid Type: RS | Inside Width (C): 600mm | Outer Width of Chain (A): 668mm | Material: Steel + Zn plating | Finish Option: Steel + Powder coating (Standard-2) | Color: Silver / Black / Ivory | Length: Made-to-order | System Components: U-Channel + Housing (A/A1/B) + Nylon Bar + Side Panel
Cable CarriersCP System
17 product codes available in this family
Sourced direct from KoreaExport-ready supplyCompetitive pricing
RFQ List 0 Email about this

Need a different model, or a part not listed here? Send us your parts list →

CP System Steel Guide Channel ST120RS (Shift Chain S-Type, Skid RS, C 75-600mm)

Brand CP System·Cable Carriers

Available part numbers (17)

ST-GCS120RS.75, ST-GCS120RS.100, ST-GCS120RS.115, ST-GCS120RS.125, ST-GCS120RS.150, ST-GCS120RS.175, ST-GCS120RS.200, ST-GCS120RS.240, ST-GCS120RS.250, ST-GCS120RS.290 + 7 more — see full table ↓

How to order

Send the CP System part numbers and quantities through our RFQ form or to info@prosourcemro.com. We confirm price, availability and lead time within 1 business day — no account needed.

RFQ List 0 →
View full details
Product codes & specifications
0 selected
RFQ List (0)
Product codeSpec
ST-GCS120RS.75Guide channel ST120RS, inside width C=75mm (chain outer A=143mm) | Chain: Shift Chain | Model: ST120RS | Skid Type: RS | Inside Width (C): 75mm | Outer Width of Chain (A): 143mm | Material: Steel + Zn plating | Finish Option: Steel + Powder coating (Standard-2) | Color: Silver / Black / Ivory | Length: Made-to-order | System Components: U-Channel + Housing (A/A1/B) + Nylon Bar + Side Panel
ST-GCS120RS.100Guide channel ST120RS, inside width C=100mm (chain outer A=168mm) | Chain: Shift Chain | Model: ST120RS | Skid Type: RS | Inside Width (C): 100mm | Outer Width of Chain (A): 168mm | Material: Steel + Zn plating | Finish Option: Steel + Powder coating (Standard-2) | Color: Silver / Black / Ivory | Length: Made-to-order | System Components: U-Channel + Housing (A/A1/B) + Nylon Bar + Side Panel
ST-GCS120RS.115Guide channel ST120RS, inside width C=115mm (chain outer A=183mm) | Chain: Shift Chain | Model: ST120RS | Skid Type: RS | Inside Width (C): 115mm | Outer Width of Chain (A): 183mm | Material: Steel + Zn plating | Finish Option: Steel + Powder coating (Standard-2) | Color: Silver / Black / Ivory | Length: Made-to-order | System Components: U-Channel + Housing (A/A1/B) + Nylon Bar + Side Panel
ST-GCS120RS.125Guide channel ST120RS, inside width C=125mm (chain outer A=193mm) | Chain: Shift Chain | Model: ST120RS | Skid Type: RS | Inside Width (C): 125mm | Outer Width of Chain (A): 193mm | Material: Steel + Zn plating | Finish Option: Steel + Powder coating (Standard-2) | Color: Silver / Black / Ivory | Length: Made-to-order | System Components: U-Channel + Housing (A/A1/B) + Nylon Bar + Side Panel
ST-GCS120RS.150Guide channel ST120RS, inside width C=150mm (chain outer A=218mm) | Chain: Shift Chain | Model: ST120RS | Skid Type: RS | Inside Width (C): 150mm | Outer Width of Chain (A): 218mm | Material: Steel + Zn plating | Finish Option: Steel + Powder coating (Standard-2) | Color: Silver / Black / Ivory | Length: Made-to-order | System Components: U-Channel + Housing (A/A1/B) + Nylon Bar + Side Panel
ST-GCS120RS.175Guide channel ST120RS, inside width C=175mm (chain outer A=243mm) | Chain: Shift Chain | Model: ST120RS | Skid Type: RS | Inside Width (C): 175mm | Outer Width of Chain (A): 243mm | Material: Steel + Zn plating | Finish Option: Steel + Powder coating (Standard-2) | Color: Silver / Black / Ivory | Length: Made-to-order | System Components: U-Channel + Housing (A/A1/B) + Nylon Bar + Side Panel
ST-GCS120RS.200Guide channel ST120RS, inside width C=200mm (chain outer A=268mm) | Chain: Shift Chain | Model: ST120RS | Skid Type: RS | Inside Width (C): 200mm | Outer Width of Chain (A): 268mm | Material: Steel + Zn plating | Finish Option: Steel + Powder coating (Standard-2) | Color: Silver / Black / Ivory | Length: Made-to-order | System Components: U-Channel + Housing (A/A1/B) + Nylon Bar + Side Panel
ST-GCS120RS.240Guide channel ST120RS, inside width C=240mm (chain outer A=308mm) | Chain: Shift Chain | Model: ST120RS | Skid Type: RS | Inside Width (C): 240mm | Outer Width of Chain (A): 308mm | Material: Steel + Zn plating | Finish Option: Steel + Powder coating (Standard-2) | Color: Silver / Black / Ivory | Length: Made-to-order | System Components: U-Channel + Housing (A/A1/B) + Nylon Bar + Side Panel
ST-GCS120RS.250Guide channel ST120RS, inside width C=250mm (chain outer A=318mm) | Chain: Shift Chain | Model: ST120RS | Skid Type: RS | Inside Width (C): 250mm | Outer Width of Chain (A): 318mm | Material: Steel + Zn plating | Finish Option: Steel + Powder coating (Standard-2) | Color: Silver / Black / Ivory | Length: Made-to-order | System Components: U-Channel + Housing (A/A1/B) + Nylon Bar + Side Panel
ST-GCS120RS.290Guide channel ST120RS, inside width C=290mm (chain outer A=358mm) | Chain: Shift Chain | Model: ST120RS | Skid Type: RS | Inside Width (C): 290mm | Outer Width of Chain (A): 358mm | Material: Steel + Zn plating | Finish Option: Steel + Powder coating (Standard-2) | Color: Silver / Black / Ivory | Length: Made-to-order | System Components: U-Channel + Housing (A/A1/B) + Nylon Bar + Side Panel
ST-GCS120RS.300Guide channel ST120RS, inside width C=300mm (chain outer A=368mm) | Chain: Shift Chain | Model: ST120RS | Skid Type: RS | Inside Width (C): 300mm | Outer Width of Chain (A): 368mm | Material: Steel + Zn plating | Finish Option: Steel + Powder coating (Standard-2) | Color: Silver / Black / Ivory | Length: Made-to-order | System Components: U-Channel + Housing (A/A1/B) + Nylon Bar + Side Panel
ST-GCS120RS.350Guide channel ST120RS, inside width C=350mm (chain outer A=418mm) | Chain: Shift Chain | Model: ST120RS | Skid Type: RS | Inside Width (C): 350mm | Outer Width of Chain (A): 418mm | Material: Steel + Zn plating | Finish Option: Steel + Powder coating (Standard-2) | Color: Silver / Black / Ivory | Length: Made-to-order | System Components: U-Channel + Housing (A/A1/B) + Nylon Bar + Side Panel
ST-GCS120RS.400Guide channel ST120RS, inside width C=400mm (chain outer A=468mm) | Chain: Shift Chain | Model: ST120RS | Skid Type: RS | Inside Width (C): 400mm | Outer Width of Chain (A): 468mm | Material: Steel + Zn plating | Finish Option: Steel + Powder coating (Standard-2) | Color: Silver / Black / Ivory | Length: Made-to-order | System Components: U-Channel + Housing (A/A1/B) + Nylon Bar + Side Panel
ST-GCS120RS.450Guide channel ST120RS, inside width C=450mm (chain outer A=518mm) | Chain: Shift Chain | Model: ST120RS | Skid Type: RS | Inside Width (C): 450mm | Outer Width of Chain (A): 518mm | Material: Steel + Zn plating | Finish Option: Steel + Powder coating (Standard-2) | Color: Silver / Black / Ivory | Length: Made-to-order | System Components: U-Channel + Housing (A/A1/B) + Nylon Bar + Side Panel
ST-GCS120RS.500Guide channel ST120RS, inside width C=500mm (chain outer A=568mm) | Chain: Shift Chain | Model: ST120RS | Skid Type: RS | Inside Width (C): 500mm | Outer Width of Chain (A): 568mm | Material: Steel + Zn plating | Finish Option: Steel + Powder coating (Standard-2) | Color: Silver / Black / Ivory | Length: Made-to-order | System Components: U-Channel + Housing (A/A1/B) + Nylon Bar + Side Panel
ST-GCS120RS.550Guide channel ST120RS, inside width C=550mm (chain outer A=618mm) | Chain: Shift Chain | Model: ST120RS | Skid Type: RS | Inside Width (C): 550mm | Outer Width of Chain (A): 618mm | Material: Steel + Zn plating | Finish Option: Steel + Powder coating (Standard-2) | Color: Silver / Black / Ivory | Length: Made-to-order | System Components: U-Channel + Housing (A/A1/B) + Nylon Bar + Side Panel
ST-GCS120RS.600Guide channel ST120RS, inside width C=600mm (chain outer A=668mm) | Chain: Shift Chain | Model: ST120RS | Skid Type: RS | Inside Width (C): 600mm | Outer Width of Chain (A): 668mm | Material: Steel + Zn plating | Finish Option: Steel + Powder coating (Standard-2) | Color: Silver / Black / Ivory | Length: Made-to-order | System Components: U-Channel + Housing (A/A1/B) + Nylon Bar + Side Panel
