CP System Unity System nsb035E (Sabin Chain Enclosed (E), Guide Channel Supported)

CP System Unity System nsb035E (Sabin Chain Enclosed (E), Guide Channel Supported)

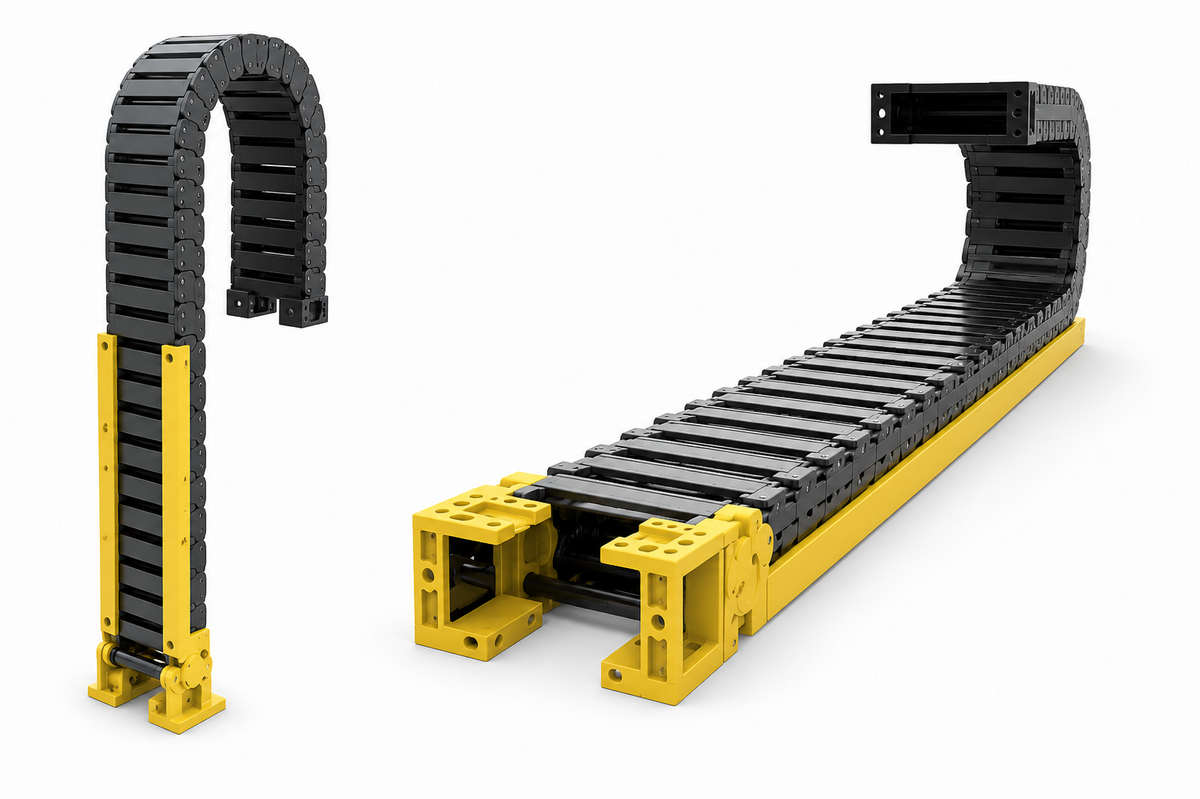

Unity System - long-travel cable carrier where the nsb035E Sabin Chain is supported inside a Guide Channel (GC) for stable horizontal runs.

Key features

  • CPS-Amide chain, speed 6-10 m/s, CE / ATEX(Ex) / RoHs2 certified

Specifications

Type Sabin Chain Enclosed (E), Guide Channel supported
Guide Channel GC250 (L250, hole A186) / GC400 (L400, hole A336)
Bracket G (Horizontal GC End Bracket) / GT (Tie Wrap)
Length & Divider made-to-order
Material CPS-Amide (PA6+G.F)
Speed 6-10 m/s
Acceleration 15-20 m/s2
Temperature -30 to +130C
Certificate CE, ATEX(Ex), RoHs2
nsb035E.36/G Unity System nsb035E (Sabin Chain Enclosed (E)), inside width 36mm, Guide Channel supported | Type: Sabin Chain Enclosed (E), Guide Channel supported | Inside Width (C): 36 mm | Frame (D): 50 mm | FEB Hole Width (E): 67 mm | FEB Width (F): 86 mm | GC Hole Width (G): 57 mm | Chain Outer Width (I): 70 mm | Guide Channel: GC250 (L250, hole A186) / GC400 (L400, hole A336) | Bracket: G (Horizontal GC End Bracket) / GT (Tie Wrap) | Length & Divider: made-to-order | Material: CPS-Amide (PA6+G.F) | Speed: 6-10 m/s | Acceleration: 15-20 m/s2 | Temperature: -30 to +130C | Certificate: CE, ATEX(Ex), RoHs2
nsb035E.61/G Unity System nsb035E (Sabin Chain Enclosed (E)), inside width 61mm, Guide Channel supported | Type: Sabin Chain Enclosed (E), Guide Channel supported | Inside Width (C): 61 mm | Frame (D): 75 mm | FEB Hole Width (E): 92 mm | FEB Width (F): 111 mm | GC Hole Width (G): 82 mm | Chain Outer Width (I): 95 mm | Guide Channel: GC250 (L250, hole A186) / GC400 (L400, hole A336) | Bracket: G (Horizontal GC End Bracket) / GT (Tie Wrap) | Length & Divider: made-to-order | Material: CPS-Amide (PA6+G.F) | Speed: 6-10 m/s | Acceleration: 15-20 m/s2 | Temperature: -30 to +130C | Certificate: CE, ATEX(Ex), RoHs2
nsb035E.86/G Unity System nsb035E (Sabin Chain Enclosed (E)), inside width 86mm, Guide Channel supported | Type: Sabin Chain Enclosed (E), Guide Channel supported | Inside Width (C): 86 mm | Frame (D): 100 mm | FEB Hole Width (E): 117 mm | FEB Width (F): 136 mm | GC Hole Width (G): 107 mm | Chain Outer Width (I): 120 mm | Guide Channel: GC250 (L250, hole A186) / GC400 (L400, hole A336) | Bracket: G (Horizontal GC End Bracket) / GT (Tie Wrap) | Length & Divider: made-to-order | Material: CPS-Amide (PA6+G.F) | Speed: 6-10 m/s | Acceleration: 15-20 m/s2 | Temperature: -30 to +130C | Certificate: CE, ATEX(Ex), RoHs2
nsb035E.111/G Unity System nsb035E (Sabin Chain Enclosed (E)), inside width 111mm, Guide Channel supported | Type: Sabin Chain Enclosed (E), Guide Channel supported | Inside Width (C): 111 mm | Frame (D): 125 mm | FEB Hole Width (E): 142 mm | FEB Width (F): 161 mm | GC Hole Width (G): 132 mm | Chain Outer Width (I): 145 mm | Guide Channel: GC250 (L250, hole A186) / GC400 (L400, hole A336) | Bracket: G (Horizontal GC End Bracket) / GT (Tie Wrap) | Length & Divider: made-to-order | Material: CPS-Amide (PA6+G.F) | Speed: 6-10 m/s | Acceleration: 15-20 m/s2 | Temperature: -30 to +130C | Certificate: CE, ATEX(Ex), RoHs2
nsb035E.136/G Unity System nsb035E (Sabin Chain Enclosed (E)), inside width 136mm, Guide Channel supported | Type: Sabin Chain Enclosed (E), Guide Channel supported | Inside Width (C): 136 mm | Frame (D): 150 mm | FEB Hole Width (E): 167 mm | FEB Width (F): 186 mm | GC Hole Width (G): 157 mm | Chain Outer Width (I): 170 mm | Guide Channel: GC250 (L250, hole A186) / GC400 (L400, hole A336) | Bracket: G (Horizontal GC End Bracket) / GT (Tie Wrap) | Length & Divider: made-to-order | Material: CPS-Amide (PA6+G.F) | Speed: 6-10 m/s | Acceleration: 15-20 m/s2 | Temperature: -30 to +130C | Certificate: CE, ATEX(Ex), RoHs2
Cable CarriersCP System
5 product codes available in this family
Sourced direct from KoreaExport-ready supplyCompetitive pricing
RFQ List 0 Email about this

Need a different model, or a part not listed here? Send us your parts list →

CP System Unity System nsb035E (Sabin Chain Enclosed (E), Guide Channel Supported)

Brand CP System·Cable Carriers

Available part numbers (5)

nsb035E.36/G, nsb035E.61/G, nsb035E.86/G, nsb035E.111/G, nsb035E.136/G

How to order

Send the CP System part numbers and quantities through our RFQ form or to info@prosourcemro.com. We confirm price, availability and lead time within 1 business day — no account needed.

RFQ List 0 →
View full details
Product codes & specifications
0 selected
RFQ List (0)
Product codeSpec
nsb035E.36/GUnity System nsb035E (Sabin Chain Enclosed (E)), inside width 36mm, Guide Channel supported | Type: Sabin Chain Enclosed (E), Guide Channel supported | Inside Width (C): 36 mm | Frame (D): 50 mm | FEB Hole Width (E): 67 mm | FEB Width (F): 86 mm | GC Hole Width (G): 57 mm | Chain Outer Width (I): 70 mm | Guide Channel: GC250 (L250, hole A186) / GC400 (L400, hole A336) | Bracket: G (Horizontal GC End Bracket) / GT (Tie Wrap) | Length & Divider: made-to-order | Material: CPS-Amide (PA6+G.F) | Speed: 6-10 m/s | Acceleration: 15-20 m/s2 | Temperature: -30 to +130C | Certificate: CE, ATEX(Ex), RoHs2
nsb035E.61/GUnity System nsb035E (Sabin Chain Enclosed (E)), inside width 61mm, Guide Channel supported | Type: Sabin Chain Enclosed (E), Guide Channel supported | Inside Width (C): 61 mm | Frame (D): 75 mm | FEB Hole Width (E): 92 mm | FEB Width (F): 111 mm | GC Hole Width (G): 82 mm | Chain Outer Width (I): 95 mm | Guide Channel: GC250 (L250, hole A186) / GC400 (L400, hole A336) | Bracket: G (Horizontal GC End Bracket) / GT (Tie Wrap) | Length & Divider: made-to-order | Material: CPS-Amide (PA6+G.F) | Speed: 6-10 m/s | Acceleration: 15-20 m/s2 | Temperature: -30 to +130C | Certificate: CE, ATEX(Ex), RoHs2
nsb035E.86/GUnity System nsb035E (Sabin Chain Enclosed (E)), inside width 86mm, Guide Channel supported | Type: Sabin Chain Enclosed (E), Guide Channel supported | Inside Width (C): 86 mm | Frame (D): 100 mm | FEB Hole Width (E): 117 mm | FEB Width (F): 136 mm | GC Hole Width (G): 107 mm | Chain Outer Width (I): 120 mm | Guide Channel: GC250 (L250, hole A186) / GC400 (L400, hole A336) | Bracket: G (Horizontal GC End Bracket) / GT (Tie Wrap) | Length & Divider: made-to-order | Material: CPS-Amide (PA6+G.F) | Speed: 6-10 m/s | Acceleration: 15-20 m/s2 | Temperature: -30 to +130C | Certificate: CE, ATEX(Ex), RoHs2
nsb035E.111/GUnity System nsb035E (Sabin Chain Enclosed (E)), inside width 111mm, Guide Channel supported | Type: Sabin Chain Enclosed (E), Guide Channel supported | Inside Width (C): 111 mm | Frame (D): 125 mm | FEB Hole Width (E): 142 mm | FEB Width (F): 161 mm | GC Hole Width (G): 132 mm | Chain Outer Width (I): 145 mm | Guide Channel: GC250 (L250, hole A186) / GC400 (L400, hole A336) | Bracket: G (Horizontal GC End Bracket) / GT (Tie Wrap) | Length & Divider: made-to-order | Material: CPS-Amide (PA6+G.F) | Speed: 6-10 m/s | Acceleration: 15-20 m/s2 | Temperature: -30 to +130C | Certificate: CE, ATEX(Ex), RoHs2
nsb035E.136/GUnity System nsb035E (Sabin Chain Enclosed (E)), inside width 136mm, Guide Channel supported | Type: Sabin Chain Enclosed (E), Guide Channel supported | Inside Width (C): 136 mm | Frame (D): 150 mm | FEB Hole Width (E): 167 mm | FEB Width (F): 186 mm | GC Hole Width (G): 157 mm | Chain Outer Width (I): 170 mm | Guide Channel: GC250 (L250, hole A186) / GC400 (L400, hole A336) | Bracket: G (Horizontal GC End Bracket) / GT (Tie Wrap) | Length & Divider: made-to-order | Material: CPS-Amide (PA6+G.F) | Speed: 6-10 m/s | Acceleration: 15-20 m/s2 | Temperature: -30 to +130C | Certificate: CE, ATEX(Ex), RoHs2

Need a different model, or a part not listed here? Send us your parts list →
