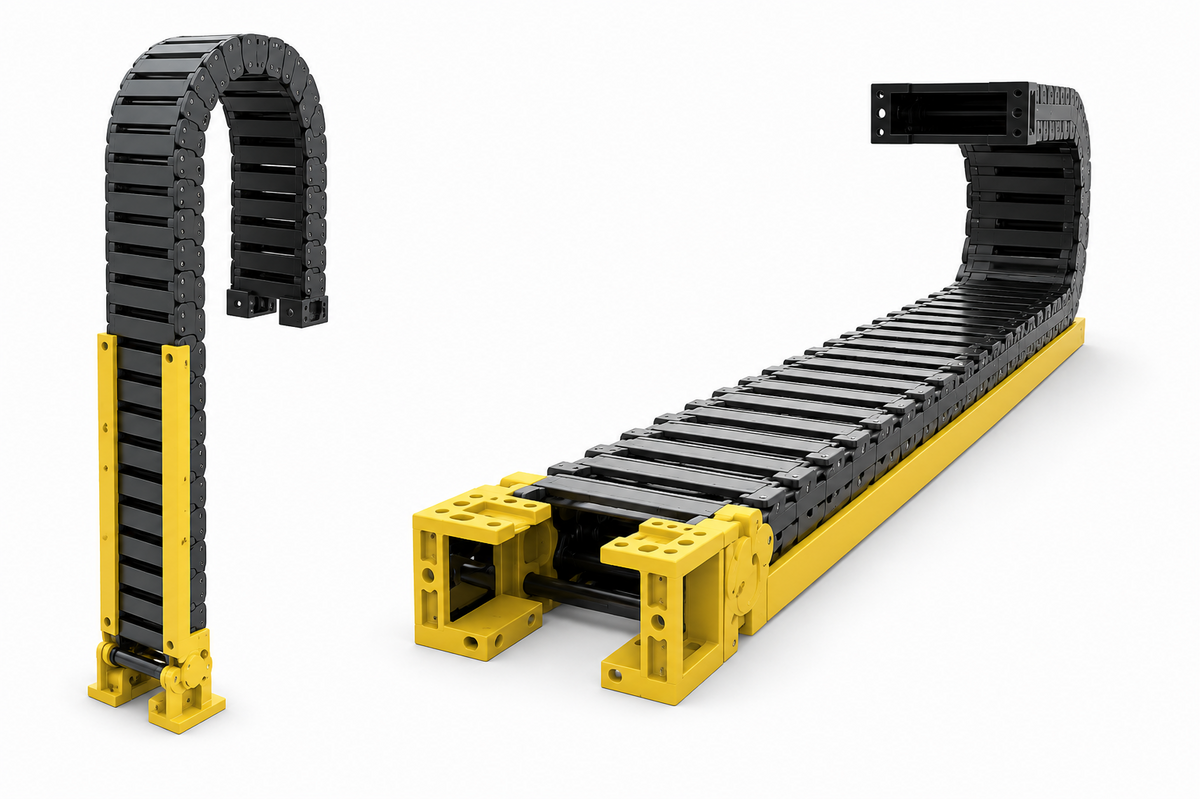

CP System Unity System nsb060E (Sabin Chain Enclosed (E), Guide Channel Supported)

CP System Unity System nsb060E (Sabin Chain Enclosed (E), Guide Channel Supported)

Unity System - long-travel cable carrier where the nsb060E Sabin Chain is supported inside a Guide Channel (GC) for stable horizontal runs.

Key features

  • CPS-Amide chain, speed 6-10 m/s, CE / ATEX(Ex) / RoHs2 certified

Specifications

Type Sabin Chain Enclosed (E), Guide Channel supported
Guide Channel GC600 (L600, hole A505) / GC800 (L800, hole A705)
Bracket G (Horizontal GC End Bracket) / GT (Tie Wrap)
Length & Divider made-to-order
Material CPS-Amide (PA6+G.F)
Speed 6-10 m/s
Acceleration 15-20 m/s2
Temperature -30 to +130C
Certificate CE, ATEX(Ex), RoHs2
nsb060E.75/G Unity System nsb060E (Sabin Chain Enclosed (E)), inside width 75mm, Guide Channel supported | Type: Sabin Chain Enclosed (E), Guide Channel supported | Inside Width (C): 75 mm | Frame (D): 100 mm | FEB Hole Width (E): 115 mm | FEB Width (F): 164 mm | GC Hole Width (G): 119 mm | Chain Outer Width (I): 140 mm | Guide Channel: GC600 (L600, hole A505) / GC800 (L800, hole A705) | Bracket: G (Horizontal GC End Bracket) / GT (Tie Wrap) | Length & Divider: made-to-order | Material: CPS-Amide (PA6+G.F) | Speed: 6-10 m/s | Acceleration: 15-20 m/s2 | Temperature: -30 to +130C | Certificate: CE, ATEX(Ex), RoHs2
nsb060E.125/G Unity System nsb060E (Sabin Chain Enclosed (E)), inside width 125mm, Guide Channel supported | Type: Sabin Chain Enclosed (E), Guide Channel supported | Inside Width (C): 125 mm | Frame (D): 150 mm | FEB Hole Width (E): 165 mm | FEB Width (F): 214 mm | GC Hole Width (G): 169 mm | Chain Outer Width (I): 190 mm | Guide Channel: GC600 (L600, hole A505) / GC800 (L800, hole A705) | Bracket: G (Horizontal GC End Bracket) / GT (Tie Wrap) | Length & Divider: made-to-order | Material: CPS-Amide (PA6+G.F) | Speed: 6-10 m/s | Acceleration: 15-20 m/s2 | Temperature: -30 to +130C | Certificate: CE, ATEX(Ex), RoHs2
nsb060E.175/G Unity System nsb060E (Sabin Chain Enclosed (E)), inside width 175mm, Guide Channel supported | Type: Sabin Chain Enclosed (E), Guide Channel supported | Inside Width (C): 175 mm | Frame (D): 200 mm | FEB Hole Width (E): 215 mm | FEB Width (F): 264 mm | GC Hole Width (G): 219 mm | Chain Outer Width (I): 240 mm | Guide Channel: GC600 (L600, hole A505) / GC800 (L800, hole A705) | Bracket: G (Horizontal GC End Bracket) / GT (Tie Wrap) | Length & Divider: made-to-order | Material: CPS-Amide (PA6+G.F) | Speed: 6-10 m/s | Acceleration: 15-20 m/s2 | Temperature: -30 to +130C | Certificate: CE, ATEX(Ex), RoHs2
Cable CarriersCP System
3 product codes available in this family
Sourced direct from KoreaExport-ready supplyCompetitive pricing
RFQ List 0 Email about this

Need a different model, or a part not listed here? Send us your parts list →

CP System Unity System nsb060E (Sabin Chain Enclosed (E), Guide Channel Supported)

Brand CP System·Cable Carriers

Available part numbers (3)

nsb060E.75/G, nsb060E.125/G, nsb060E.175/G

How to order

Send the CP System part numbers and quantities through our RFQ form or to info@prosourcemro.com. We confirm price, availability and lead time within 1 business day — no account needed.

RFQ List 0 →
View full details
Product codes & specifications
0 selected
RFQ List (0)
Product codeSpec
nsb060E.75/GUnity System nsb060E (Sabin Chain Enclosed (E)), inside width 75mm, Guide Channel supported | Type: Sabin Chain Enclosed (E), Guide Channel supported | Inside Width (C): 75 mm | Frame (D): 100 mm | FEB Hole Width (E): 115 mm | FEB Width (F): 164 mm | GC Hole Width (G): 119 mm | Chain Outer Width (I): 140 mm | Guide Channel: GC600 (L600, hole A505) / GC800 (L800, hole A705) | Bracket: G (Horizontal GC End Bracket) / GT (Tie Wrap) | Length & Divider: made-to-order | Material: CPS-Amide (PA6+G.F) | Speed: 6-10 m/s | Acceleration: 15-20 m/s2 | Temperature: -30 to +130C | Certificate: CE, ATEX(Ex), RoHs2
nsb060E.125/GUnity System nsb060E (Sabin Chain Enclosed (E)), inside width 125mm, Guide Channel supported | Type: Sabin Chain Enclosed (E), Guide Channel supported | Inside Width (C): 125 mm | Frame (D): 150 mm | FEB Hole Width (E): 165 mm | FEB Width (F): 214 mm | GC Hole Width (G): 169 mm | Chain Outer Width (I): 190 mm | Guide Channel: GC600 (L600, hole A505) / GC800 (L800, hole A705) | Bracket: G (Horizontal GC End Bracket) / GT (Tie Wrap) | Length & Divider: made-to-order | Material: CPS-Amide (PA6+G.F) | Speed: 6-10 m/s | Acceleration: 15-20 m/s2 | Temperature: -30 to +130C | Certificate: CE, ATEX(Ex), RoHs2
nsb060E.175/GUnity System nsb060E (Sabin Chain Enclosed (E)), inside width 175mm, Guide Channel supported | Type: Sabin Chain Enclosed (E), Guide Channel supported | Inside Width (C): 175 mm | Frame (D): 200 mm | FEB Hole Width (E): 215 mm | FEB Width (F): 264 mm | GC Hole Width (G): 219 mm | Chain Outer Width (I): 240 mm | Guide Channel: GC600 (L600, hole A505) / GC800 (L800, hole A705) | Bracket: G (Horizontal GC End Bracket) / GT (Tie Wrap) | Length & Divider: made-to-order | Material: CPS-Amide (PA6+G.F) | Speed: 6-10 m/s | Acceleration: 15-20 m/s2 | Temperature: -30 to +130C | Certificate: CE, ATEX(Ex), RoHs2
