• CP System Unity System ST044N (Shift Chain Normal, Guide Channel Supported)
1 1

CP System Unity System ST044N (Shift Chain Normal, Guide Channel Supported)

CP System Unity System ST044N (Shift Chain Normal, Guide Channel Supported)

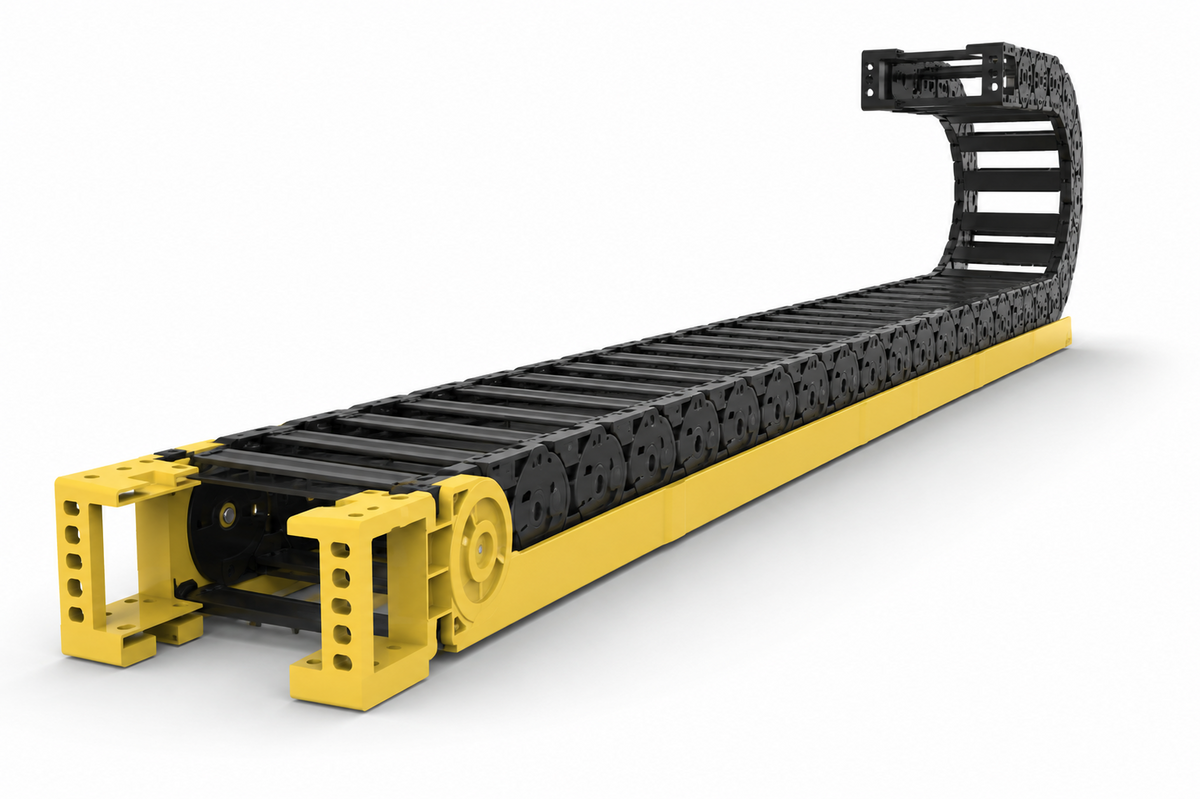

Unity System - long-travel cable carrier where the ST044N Shift Chain (Normal type) is supported inside a Guide Channel (GC) for stable horizontal runs.

Key features

  • CPS-Amide chain, speed 6-10 m/s, CE / ATEX(Ex) / RoHs2 certified

Specifications

Type Shift Chain Normal (N), Guide Channel supported
Guide Channel GC150 (L150, hole A114) / GC250 (L250, hole A214)
Bracket G (Horizontal GC End Bracket) / GT (Tie Wrap)
Length & Divider made-to-order
Material CPS-Amide (PA6+G.F)
Speed 6-10 m/s
Acceleration 15-20 m/s2
Temperature -30 to +130C
Certificate CE, ATEX(Ex), RoHs2
ST044N.15/G Unity System ST044N (Shift Chain Normal), inside width 15mm, Guide Channel supported | Type: Shift Chain Normal (N), Guide Channel supported | Inside Width (C): 15 mm | Frame (D): 35 mm | FEB Hole Width (E): 49 mm | FEB Width (F): 68 mm | GC Hole Width (G): 41.8 mm | Chain Outer Width (I): 56 mm | Guide Channel: GC150 (L150, hole A114) / GC250 (L250, hole A214) | Bracket: G (Horizontal GC End Bracket) / GT (Tie Wrap) | Length & Divider: made-to-order | Material: CPS-Amide (PA6+G.F) | Speed: 6-10 m/s | Acceleration: 15-20 m/s2 | Temperature: -30 to +130C | Certificate: CE, ATEX(Ex), RoHs2
ST044N.30/G Unity System ST044N (Shift Chain Normal), inside width 30mm, Guide Channel supported | Type: Shift Chain Normal (N), Guide Channel supported | Inside Width (C): 30 mm | Frame (D): 50 mm | FEB Hole Width (E): 64 mm | FEB Width (F): 83 mm | GC Hole Width (G): 56.8 mm | Chain Outer Width (I): 71 mm | Guide Channel: GC150 (L150, hole A114) / GC250 (L250, hole A214) | Bracket: G (Horizontal GC End Bracket) / GT (Tie Wrap) | Length & Divider: made-to-order | Material: CPS-Amide (PA6+G.F) | Speed: 6-10 m/s | Acceleration: 15-20 m/s2 | Temperature: -30 to +130C | Certificate: CE, ATEX(Ex), RoHs2
ST044N.35/G Unity System ST044N (Shift Chain Normal), inside width 35mm, Guide Channel supported | Type: Shift Chain Normal (N), Guide Channel supported | Inside Width (C): 35 mm | Frame (D): 55 mm | FEB Hole Width (E): 69 mm | FEB Width (F): 88 mm | GC Hole Width (G): 61.8 mm | Chain Outer Width (I): 76 mm | Guide Channel: GC150 (L150, hole A114) / GC250 (L250, hole A214) | Bracket: G (Horizontal GC End Bracket) / GT (Tie Wrap) | Length & Divider: made-to-order | Material: CPS-Amide (PA6+G.F) | Speed: 6-10 m/s | Acceleration: 15-20 m/s2 | Temperature: -30 to +130C | Certificate: CE, ATEX(Ex), RoHs2
ST044N.55/G Unity System ST044N (Shift Chain Normal), inside width 55mm, Guide Channel supported | Type: Shift Chain Normal (N), Guide Channel supported | Inside Width (C): 55 mm | Frame (D): 75 mm | FEB Hole Width (E): 89 mm | FEB Width (F): 108 mm | GC Hole Width (G): 81.8 mm | Chain Outer Width (I): 96 mm | Guide Channel: GC150 (L150, hole A114) / GC250 (L250, hole A214) | Bracket: G (Horizontal GC End Bracket) / GT (Tie Wrap) | Length & Divider: made-to-order | Material: CPS-Amide (PA6+G.F) | Speed: 6-10 m/s | Acceleration: 15-20 m/s2 | Temperature: -30 to +130C | Certificate: CE, ATEX(Ex), RoHs2
ST044N.80/G Unity System ST044N (Shift Chain Normal), inside width 80mm, Guide Channel supported | Type: Shift Chain Normal (N), Guide Channel supported | Inside Width (C): 80 mm | Frame (D): 100 mm | FEB Hole Width (E): 114 mm | FEB Width (F): 133 mm | GC Hole Width (G): 106.8 mm | Chain Outer Width (I): 121 mm | Guide Channel: GC150 (L150, hole A114) / GC250 (L250, hole A214) | Bracket: G (Horizontal GC End Bracket) / GT (Tie Wrap) | Length & Divider: made-to-order | Material: CPS-Amide (PA6+G.F) | Speed: 6-10 m/s | Acceleration: 15-20 m/s2 | Temperature: -30 to +130C | Certificate: CE, ATEX(Ex), RoHs2
ST044N.105/G Unity System ST044N (Shift Chain Normal), inside width 105mm, Guide Channel supported | Type: Shift Chain Normal (N), Guide Channel supported | Inside Width (C): 105 mm | Frame (D): 125 mm | FEB Hole Width (E): 139 mm | FEB Width (F): 158 mm | GC Hole Width (G): 131.8 mm | Chain Outer Width (I): 146 mm | Guide Channel: GC150 (L150, hole A114) / GC250 (L250, hole A214) | Bracket: G (Horizontal GC End Bracket) / GT (Tie Wrap) | Length & Divider: made-to-order | Material: CPS-Amide (PA6+G.F) | Speed: 6-10 m/s | Acceleration: 15-20 m/s2 | Temperature: -30 to +130C | Certificate: CE, ATEX(Ex), RoHs2
ST044N.130/G Unity System ST044N (Shift Chain Normal), inside width 130mm, Guide Channel supported | Type: Shift Chain Normal (N), Guide Channel supported | Inside Width (C): 130 mm | Frame (D): 150 mm | FEB Hole Width (E): 164 mm | FEB Width (F): 183 mm | GC Hole Width (G): 156.8 mm | Chain Outer Width (I): 171 mm | Guide Channel: GC150 (L150, hole A114) / GC250 (L250, hole A214) | Bracket: G (Horizontal GC End Bracket) / GT (Tie Wrap) | Length & Divider: made-to-order | Material: CPS-Amide (PA6+G.F) | Speed: 6-10 m/s | Acceleration: 15-20 m/s2 | Temperature: -30 to +130C | Certificate: CE, ATEX(Ex), RoHs2
ST044N.155/G Unity System ST044N (Shift Chain Normal), inside width 155mm, Guide Channel supported | Type: Shift Chain Normal (N), Guide Channel supported | Inside Width (C): 155 mm | Frame (D): 175 mm | FEB Hole Width (E): 189 mm | FEB Width (F): 208 mm | GC Hole Width (G): 181.8 mm | Chain Outer Width (I): 196 mm | Guide Channel: GC150 (L150, hole A114) / GC250 (L250, hole A214) | Bracket: G (Horizontal GC End Bracket) / GT (Tie Wrap) | Length & Divider: made-to-order | Material: CPS-Amide (PA6+G.F) | Speed: 6-10 m/s | Acceleration: 15-20 m/s2 | Temperature: -30 to +130C | Certificate: CE, ATEX(Ex), RoHs2
ST044N.180/G Unity System ST044N (Shift Chain Normal), inside width 180mm, Guide Channel supported | Type: Shift Chain Normal (N), Guide Channel supported | Inside Width (C): 180 mm | Frame (D): 200 mm | FEB Hole Width (E): 214 mm | FEB Width (F): 233 mm | GC Hole Width (G): 206.8 mm | Chain Outer Width (I): 221 mm | Guide Channel: GC150 (L150, hole A114) / GC250 (L250, hole A214) | Bracket: G (Horizontal GC End Bracket) / GT (Tie Wrap) | Length & Divider: made-to-order | Material: CPS-Amide (PA6+G.F) | Speed: 6-10 m/s | Acceleration: 15-20 m/s2 | Temperature: -30 to +130C | Certificate: CE, ATEX(Ex), RoHs2
Cable CarriersCP System
9 product codes available in this family
Sourced direct from KoreaExport-ready supplyCompetitive pricing
RFQ List 0 Email about this

Need a different model, or a part not listed here? Send us your parts list →

CP System Unity System ST044N (Shift Chain Normal, Guide Channel Supported)

Brand CP System·Cable Carriers

Available part numbers (9)

ST044N.15/G, ST044N.30/G, ST044N.35/G, ST044N.55/G, ST044N.80/G, ST044N.105/G, ST044N.130/G, ST044N.155/G, ST044N.180/G

How to order

Send the CP System part numbers and quantities through our RFQ form or to info@prosourcemro.com. We confirm price, availability and lead time within 1 business day — no account needed.

RFQ List 0 →
View full details
Product codes & specifications
0 selected
RFQ List (0)
Product codeSpec
ST044N.15/GUnity System ST044N (Shift Chain Normal), inside width 15mm, Guide Channel supported | Type: Shift Chain Normal (N), Guide Channel supported | Inside Width (C): 15 mm | Frame (D): 35 mm | FEB Hole Width (E): 49 mm | FEB Width (F): 68 mm | GC Hole Width (G): 41.8 mm | Chain Outer Width (I): 56 mm | Guide Channel: GC150 (L150, hole A114) / GC250 (L250, hole A214) | Bracket: G (Horizontal GC End Bracket) / GT (Tie Wrap) | Length & Divider: made-to-order | Material: CPS-Amide (PA6+G.F) | Speed: 6-10 m/s | Acceleration: 15-20 m/s2 | Temperature: -30 to +130C | Certificate: CE, ATEX(Ex), RoHs2
ST044N.30/GUnity System ST044N (Shift Chain Normal), inside width 30mm, Guide Channel supported | Type: Shift Chain Normal (N), Guide Channel supported | Inside Width (C): 30 mm | Frame (D): 50 mm | FEB Hole Width (E): 64 mm | FEB Width (F): 83 mm | GC Hole Width (G): 56.8 mm | Chain Outer Width (I): 71 mm | Guide Channel: GC150 (L150, hole A114) / GC250 (L250, hole A214) | Bracket: G (Horizontal GC End Bracket) / GT (Tie Wrap) | Length & Divider: made-to-order | Material: CPS-Amide (PA6+G.F) | Speed: 6-10 m/s | Acceleration: 15-20 m/s2 | Temperature: -30 to +130C | Certificate: CE, ATEX(Ex), RoHs2
ST044N.35/GUnity System ST044N (Shift Chain Normal), inside width 35mm, Guide Channel supported | Type: Shift Chain Normal (N), Guide Channel supported | Inside Width (C): 35 mm | Frame (D): 55 mm | FEB Hole Width (E): 69 mm | FEB Width (F): 88 mm | GC Hole Width (G): 61.8 mm | Chain Outer Width (I): 76 mm | Guide Channel: GC150 (L150, hole A114) / GC250 (L250, hole A214) | Bracket: G (Horizontal GC End Bracket) / GT (Tie Wrap) | Length & Divider: made-to-order | Material: CPS-Amide (PA6+G.F) | Speed: 6-10 m/s | Acceleration: 15-20 m/s2 | Temperature: -30 to +130C | Certificate: CE, ATEX(Ex), RoHs2
ST044N.55/GUnity System ST044N (Shift Chain Normal), inside width 55mm, Guide Channel supported | Type: Shift Chain Normal (N), Guide Channel supported | Inside Width (C): 55 mm | Frame (D): 75 mm | FEB Hole Width (E): 89 mm | FEB Width (F): 108 mm | GC Hole Width (G): 81.8 mm | Chain Outer Width (I): 96 mm | Guide Channel: GC150 (L150, hole A114) / GC250 (L250, hole A214) | Bracket: G (Horizontal GC End Bracket) / GT (Tie Wrap) | Length & Divider: made-to-order | Material: CPS-Amide (PA6+G.F) | Speed: 6-10 m/s | Acceleration: 15-20 m/s2 | Temperature: -30 to +130C | Certificate: CE, ATEX(Ex), RoHs2
ST044N.80/GUnity System ST044N (Shift Chain Normal), inside width 80mm, Guide Channel supported | Type: Shift Chain Normal (N), Guide Channel supported | Inside Width (C): 80 mm | Frame (D): 100 mm | FEB Hole Width (E): 114 mm | FEB Width (F): 133 mm | GC Hole Width (G): 106.8 mm | Chain Outer Width (I): 121 mm | Guide Channel: GC150 (L150, hole A114) / GC250 (L250, hole A214) | Bracket: G (Horizontal GC End Bracket) / GT (Tie Wrap) | Length & Divider: made-to-order | Material: CPS-Amide (PA6+G.F) | Speed: 6-10 m/s | Acceleration: 15-20 m/s2 | Temperature: -30 to +130C | Certificate: CE, ATEX(Ex), RoHs2
ST044N.105/GUnity System ST044N (Shift Chain Normal), inside width 105mm, Guide Channel supported | Type: Shift Chain Normal (N), Guide Channel supported | Inside Width (C): 105 mm | Frame (D): 125 mm | FEB Hole Width (E): 139 mm | FEB Width (F): 158 mm | GC Hole Width (G): 131.8 mm | Chain Outer Width (I): 146 mm | Guide Channel: GC150 (L150, hole A114) / GC250 (L250, hole A214) | Bracket: G (Horizontal GC End Bracket) / GT (Tie Wrap) | Length & Divider: made-to-order | Material: CPS-Amide (PA6+G.F) | Speed: 6-10 m/s | Acceleration: 15-20 m/s2 | Temperature: -30 to +130C | Certificate: CE, ATEX(Ex), RoHs2
ST044N.130/GUnity System ST044N (Shift Chain Normal), inside width 130mm, Guide Channel supported | Type: Shift Chain Normal (N), Guide Channel supported | Inside Width (C): 130 mm | Frame (D): 150 mm | FEB Hole Width (E): 164 mm | FEB Width (F): 183 mm | GC Hole Width (G): 156.8 mm | Chain Outer Width (I): 171 mm | Guide Channel: GC150 (L150, hole A114) / GC250 (L250, hole A214) | Bracket: G (Horizontal GC End Bracket) / GT (Tie Wrap) | Length & Divider: made-to-order | Material: CPS-Amide (PA6+G.F) | Speed: 6-10 m/s | Acceleration: 15-20 m/s2 | Temperature: -30 to +130C | Certificate: CE, ATEX(Ex), RoHs2
ST044N.155/GUnity System ST044N (Shift Chain Normal), inside width 155mm, Guide Channel supported | Type: Shift Chain Normal (N), Guide Channel supported | Inside Width (C): 155 mm | Frame (D): 175 mm | FEB Hole Width (E): 189 mm | FEB Width (F): 208 mm | GC Hole Width (G): 181.8 mm | Chain Outer Width (I): 196 mm | Guide Channel: GC150 (L150, hole A114) / GC250 (L250, hole A214) | Bracket: G (Horizontal GC End Bracket) / GT (Tie Wrap) | Length & Divider: made-to-order | Material: CPS-Amide (PA6+G.F) | Speed: 6-10 m/s | Acceleration: 15-20 m/s2 | Temperature: -30 to +130C | Certificate: CE, ATEX(Ex), RoHs2
ST044N.180/GUnity System ST044N (Shift Chain Normal), inside width 180mm, Guide Channel supported | Type: Shift Chain Normal (N), Guide Channel supported | Inside Width (C): 180 mm | Frame (D): 200 mm | FEB Hole Width (E): 214 mm | FEB Width (F): 233 mm | GC Hole Width (G): 206.8 mm | Chain Outer Width (I): 221 mm | Guide Channel: GC150 (L150, hole A114) / GC250 (L250, hole A214) | Bracket: G (Horizontal GC End Bracket) / GT (Tie Wrap) | Length & Divider: made-to-order | Material: CPS-Amide (PA6+G.F) | Speed: 6-10 m/s | Acceleration: 15-20 m/s2 | Temperature: -30 to +130C | Certificate: CE, ATEX(Ex), RoHs2
