• CP System Unity System ST095N (Shift Chain Normal (N), Guide Channel Supported)
1 1

CP System Unity System ST095N (Shift Chain Normal (N), Guide Channel Supported)

CP System Unity System ST095N (Shift Chain Normal (N), Guide Channel Supported)

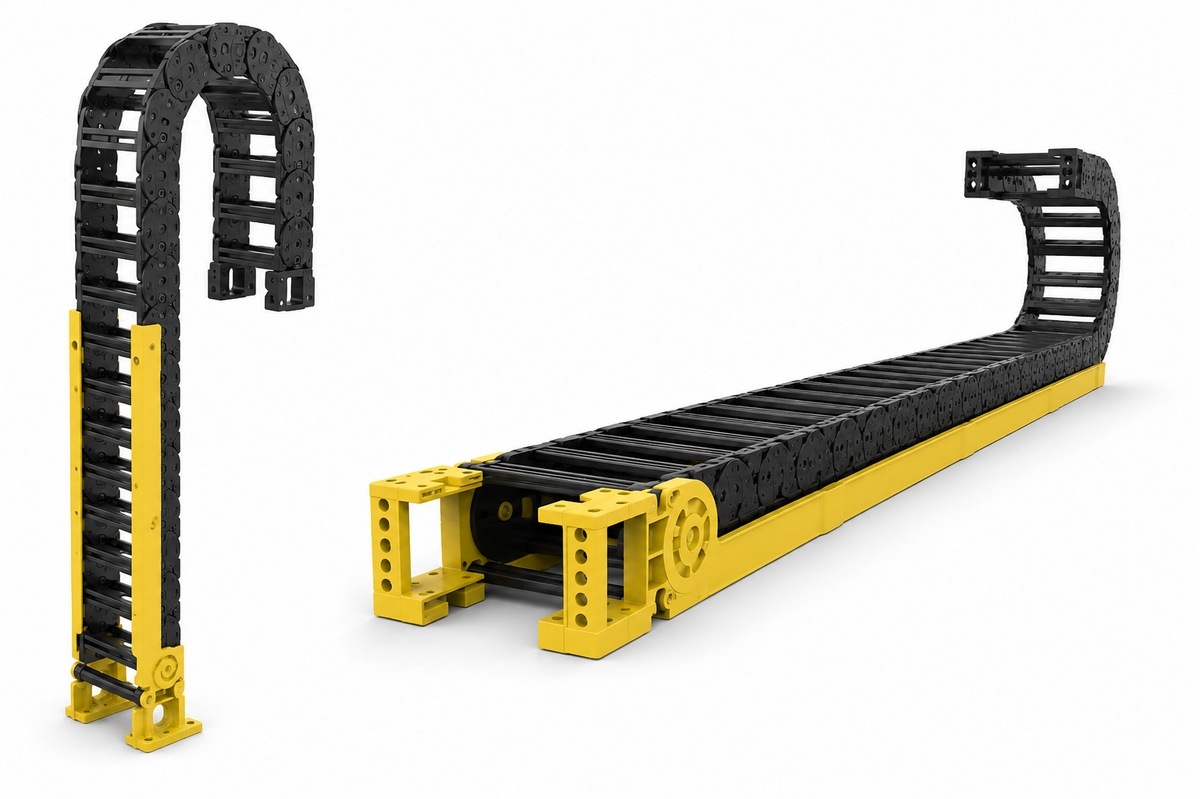

Unity System - long-travel cable carrier where the ST095N Shift Chain is supported inside a Guide Channel (GC) for stable horizontal runs.

Key features

  • CPS-Amide chain, speed 6-10 m/s, CE / ATEX(Ex) / RoHs2 certified

Specifications

Type Shift Chain Normal (N), Guide Channel supported
Guide Channel GC600 (L600, hole A505) / GC800 (L800, hole A705)
Bracket G (Horizontal GC End Bracket) / GT (Tie Wrap)
Length & Divider made-to-order
Material CPS-Amide (PA6+G.F)
Speed 6-10 m/s
Acceleration 15-20 m/s2
Temperature -30 to +130C
Certificate CE, ATEX(Ex), RoHs2
ST095N.50/G Unity System ST095N (Shift Chain Normal (N)), inside width 50mm, Guide Channel supported | Type: Shift Chain Normal (N), Guide Channel supported | Inside Width (C): 50 mm | Frame (D): 75 mm | FEB Hole Width (E): 90 mm | FEB Width (F): 135 mm | GC Hole Width (G): 90 mm | Chain Outer Width (I): 113 mm | Guide Channel: GC600 (L600, hole A505) / GC800 (L800, hole A705) | Bracket: G (Horizontal GC End Bracket) / GT (Tie Wrap) | Length & Divider: made-to-order | Material: CPS-Amide (PA6+G.F) | Speed: 6-10 m/s | Acceleration: 15-20 m/s2 | Temperature: -30 to +130C | Certificate: CE, ATEX(Ex), RoHs2
ST095N.75/G Unity System ST095N (Shift Chain Normal (N)), inside width 75mm, Guide Channel supported | Type: Shift Chain Normal (N), Guide Channel supported | Inside Width (C): 75 mm | Frame (D): 100 mm | FEB Hole Width (E): 115 mm | FEB Width (F): 160 mm | GC Hole Width (G): 115 mm | Chain Outer Width (I): 138 mm | Guide Channel: GC600 (L600, hole A505) / GC800 (L800, hole A705) | Bracket: G (Horizontal GC End Bracket) / GT (Tie Wrap) | Length & Divider: made-to-order | Material: CPS-Amide (PA6+G.F) | Speed: 6-10 m/s | Acceleration: 15-20 m/s2 | Temperature: -30 to +130C | Certificate: CE, ATEX(Ex), RoHs2
ST095N.100/G Unity System ST095N (Shift Chain Normal (N)), inside width 100mm, Guide Channel supported | Type: Shift Chain Normal (N), Guide Channel supported | Inside Width (C): 100 mm | Frame (D): 125 mm | FEB Hole Width (E): 140 mm | FEB Width (F): 185 mm | GC Hole Width (G): 140 mm | Chain Outer Width (I): 163 mm | Guide Channel: GC600 (L600, hole A505) / GC800 (L800, hole A705) | Bracket: G (Horizontal GC End Bracket) / GT (Tie Wrap) | Length & Divider: made-to-order | Material: CPS-Amide (PA6+G.F) | Speed: 6-10 m/s | Acceleration: 15-20 m/s2 | Temperature: -30 to +130C | Certificate: CE, ATEX(Ex), RoHs2
ST095N.125/G Unity System ST095N (Shift Chain Normal (N)), inside width 125mm, Guide Channel supported | Type: Shift Chain Normal (N), Guide Channel supported | Inside Width (C): 125 mm | Frame (D): 150 mm | FEB Hole Width (E): 165 mm | FEB Width (F): 210 mm | GC Hole Width (G): 165 mm | Chain Outer Width (I): 188 mm | Guide Channel: GC600 (L600, hole A505) / GC800 (L800, hole A705) | Bracket: G (Horizontal GC End Bracket) / GT (Tie Wrap) | Length & Divider: made-to-order | Material: CPS-Amide (PA6+G.F) | Speed: 6-10 m/s | Acceleration: 15-20 m/s2 | Temperature: -30 to +130C | Certificate: CE, ATEX(Ex), RoHs2
ST095N.150/G Unity System ST095N (Shift Chain Normal (N)), inside width 150mm, Guide Channel supported | Type: Shift Chain Normal (N), Guide Channel supported | Inside Width (C): 150 mm | Frame (D): 175 mm | FEB Hole Width (E): 190 mm | FEB Width (F): 235 mm | GC Hole Width (G): 190 mm | Chain Outer Width (I): 213 mm | Guide Channel: GC600 (L600, hole A505) / GC800 (L800, hole A705) | Bracket: G (Horizontal GC End Bracket) / GT (Tie Wrap) | Length & Divider: made-to-order | Material: CPS-Amide (PA6+G.F) | Speed: 6-10 m/s | Acceleration: 15-20 m/s2 | Temperature: -30 to +130C | Certificate: CE, ATEX(Ex), RoHs2
ST095N.165/G Unity System ST095N (Shift Chain Normal (N)), inside width 165mm, Guide Channel supported | Type: Shift Chain Normal (N), Guide Channel supported | Inside Width (C): 165 mm | Frame (D): 190 mm | FEB Hole Width (E): 205 mm | FEB Width (F): 250 mm | GC Hole Width (G): 205 mm | Chain Outer Width (I): 228 mm | Guide Channel: GC600 (L600, hole A505) / GC800 (L800, hole A705) | Bracket: G (Horizontal GC End Bracket) / GT (Tie Wrap) | Length & Divider: made-to-order | Material: CPS-Amide (PA6+G.F) | Speed: 6-10 m/s | Acceleration: 15-20 m/s2 | Temperature: -30 to +130C | Certificate: CE, ATEX(Ex), RoHs2
ST095N.175/G Unity System ST095N (Shift Chain Normal (N)), inside width 175mm, Guide Channel supported | Type: Shift Chain Normal (N), Guide Channel supported | Inside Width (C): 175 mm | Frame (D): 200 mm | FEB Hole Width (E): 215 mm | FEB Width (F): 260 mm | GC Hole Width (G): 215 mm | Chain Outer Width (I): 238 mm | Guide Channel: GC600 (L600, hole A505) / GC800 (L800, hole A705) | Bracket: G (Horizontal GC End Bracket) / GT (Tie Wrap) | Length & Divider: made-to-order | Material: CPS-Amide (PA6+G.F) | Speed: 6-10 m/s | Acceleration: 15-20 m/s2 | Temperature: -30 to +130C | Certificate: CE, ATEX(Ex), RoHs2
ST095N.200/G Unity System ST095N (Shift Chain Normal (N)), inside width 200mm, Guide Channel supported | Type: Shift Chain Normal (N), Guide Channel supported | Inside Width (C): 200 mm | Frame (D): 230 mm | FEB Hole Width (E): 245 mm | FEB Width (F): 280 mm | GC Hole Width (G): 245 mm | Chain Outer Width (I): 268 mm | Guide Channel: GC600 (L600, hole A505) / GC800 (L800, hole A705) | Bracket: G (Horizontal GC End Bracket) / GT (Tie Wrap) | Length & Divider: made-to-order | Material: CPS-Amide (PA6+G.F) | Speed: 6-10 m/s | Acceleration: 15-20 m/s2 | Temperature: -30 to +130C | Certificate: CE, ATEX(Ex), RoHs2
ST095N.215/G Unity System ST095N (Shift Chain Normal (N)), inside width 215mm, Guide Channel supported | Type: Shift Chain Normal (N), Guide Channel supported | Inside Width (C): 215 mm | Frame (D): 240 mm | FEB Hole Width (E): 255 mm | FEB Width (F): 290 mm | GC Hole Width (G): 255 mm | Chain Outer Width (I): 278 mm | Guide Channel: GC600 (L600, hole A505) / GC800 (L800, hole A705) | Bracket: G (Horizontal GC End Bracket) / GT (Tie Wrap) | Length & Divider: made-to-order | Material: CPS-Amide (PA6+G.F) | Speed: 6-10 m/s | Acceleration: 15-20 m/s2 | Temperature: -30 to +130C | Certificate: CE, ATEX(Ex), RoHs2
ST095N.225/G Unity System ST095N (Shift Chain Normal (N)), inside width 225mm, Guide Channel supported | Type: Shift Chain Normal (N), Guide Channel supported | Inside Width (C): 225 mm | Frame (D): 250 mm | FEB Hole Width (E): 265 mm | FEB Width (F): 310 mm | GC Hole Width (G): 265 mm | Chain Outer Width (I): 288 mm | Guide Channel: GC600 (L600, hole A505) / GC800 (L800, hole A705) | Bracket: G (Horizontal GC End Bracket) / GT (Tie Wrap) | Length & Divider: made-to-order | Material: CPS-Amide (PA6+G.F) | Speed: 6-10 m/s | Acceleration: 15-20 m/s2 | Temperature: -30 to +130C | Certificate: CE, ATEX(Ex), RoHs2
ST095N.275/G Unity System ST095N (Shift Chain Normal (N)), inside width 275mm, Guide Channel supported | Type: Shift Chain Normal (N), Guide Channel supported | Inside Width (C): 275 mm | Frame (D): 300 mm | FEB Hole Width (E): 315 mm | FEB Width (F): 360 mm | GC Hole Width (G): 315 mm | Chain Outer Width (I): 338 mm | Guide Channel: GC600 (L600, hole A505) / GC800 (L800, hole A705) | Bracket: G (Horizontal GC End Bracket) / GT (Tie Wrap) | Length & Divider: made-to-order | Material: CPS-Amide (PA6+G.F) | Speed: 6-10 m/s | Acceleration: 15-20 m/s2 | Temperature: -30 to +130C | Certificate: CE, ATEX(Ex), RoHs2
ST095N.325/G Unity System ST095N (Shift Chain Normal (N)), inside width 325mm, Guide Channel supported | Type: Shift Chain Normal (N), Guide Channel supported | Inside Width (C): 325 mm | Frame (D): 350 mm | FEB Hole Width (E): 365 mm | FEB Width (F): 410 mm | GC Hole Width (G): 365 mm | Chain Outer Width (I): 388 mm | Guide Channel: GC600 (L600, hole A505) / GC800 (L800, hole A705) | Bracket: G (Horizontal GC End Bracket) / GT (Tie Wrap) | Length & Divider: made-to-order | Material: CPS-Amide (PA6+G.F) | Speed: 6-10 m/s | Acceleration: 15-20 m/s2 | Temperature: -30 to +130C | Certificate: CE, ATEX(Ex), RoHs2
ST095N.375/G Unity System ST095N (Shift Chain Normal (N)), inside width 375mm, Guide Channel supported | Type: Shift Chain Normal (N), Guide Channel supported | Inside Width (C): 375 mm | Frame (D): 400 mm | FEB Hole Width (E): 415 mm | FEB Width (F): 460 mm | GC Hole Width (G): 415 mm | Chain Outer Width (I): 438 mm | Guide Channel: GC600 (L600, hole A505) / GC800 (L800, hole A705) | Bracket: G (Horizontal GC End Bracket) / GT (Tie Wrap) | Length & Divider: made-to-order | Material: CPS-Amide (PA6+G.F) | Speed: 6-10 m/s | Acceleration: 15-20 m/s2 | Temperature: -30 to +130C | Certificate: CE, ATEX(Ex), RoHs2
Cable CarriersCP System
13 product codes available in this family
Sourced direct from KoreaExport-ready supplyCompetitive pricing
RFQ List 0 Email about this

Need a different model, or a part not listed here? Send us your parts list →

CP System Unity System ST095N (Shift Chain Normal (N), Guide Channel Supported)

Brand CP System·Cable Carriers

Available part numbers (13)

ST095N.50/G, ST095N.75/G, ST095N.100/G, ST095N.125/G, ST095N.150/G, ST095N.165/G, ST095N.175/G, ST095N.200/G, ST095N.215/G, ST095N.225/G + 3 more — see full table ↓

How to order

Send the CP System part numbers and quantities through our RFQ form or to info@prosourcemro.com. We confirm price, availability and lead time within 1 business day — no account needed.

RFQ List 0 →
View full details
Product codes & specifications
0 selected
RFQ List (0)
Product codeSpec
ST095N.50/GUnity System ST095N (Shift Chain Normal (N)), inside width 50mm, Guide Channel supported | Type: Shift Chain Normal (N), Guide Channel supported | Inside Width (C): 50 mm | Frame (D): 75 mm | FEB Hole Width (E): 90 mm | FEB Width (F): 135 mm | GC Hole Width (G): 90 mm | Chain Outer Width (I): 113 mm | Guide Channel: GC600 (L600, hole A505) / GC800 (L800, hole A705) | Bracket: G (Horizontal GC End Bracket) / GT (Tie Wrap) | Length & Divider: made-to-order | Material: CPS-Amide (PA6+G.F) | Speed: 6-10 m/s | Acceleration: 15-20 m/s2 | Temperature: -30 to +130C | Certificate: CE, ATEX(Ex), RoHs2
ST095N.75/GUnity System ST095N (Shift Chain Normal (N)), inside width 75mm, Guide Channel supported | Type: Shift Chain Normal (N), Guide Channel supported | Inside Width (C): 75 mm | Frame (D): 100 mm | FEB Hole Width (E): 115 mm | FEB Width (F): 160 mm | GC Hole Width (G): 115 mm | Chain Outer Width (I): 138 mm | Guide Channel: GC600 (L600, hole A505) / GC800 (L800, hole A705) | Bracket: G (Horizontal GC End Bracket) / GT (Tie Wrap) | Length & Divider: made-to-order | Material: CPS-Amide (PA6+G.F) | Speed: 6-10 m/s | Acceleration: 15-20 m/s2 | Temperature: -30 to +130C | Certificate: CE, ATEX(Ex), RoHs2
ST095N.100/GUnity System ST095N (Shift Chain Normal (N)), inside width 100mm, Guide Channel supported | Type: Shift Chain Normal (N), Guide Channel supported | Inside Width (C): 100 mm | Frame (D): 125 mm | FEB Hole Width (E): 140 mm | FEB Width (F): 185 mm | GC Hole Width (G): 140 mm | Chain Outer Width (I): 163 mm | Guide Channel: GC600 (L600, hole A505) / GC800 (L800, hole A705) | Bracket: G (Horizontal GC End Bracket) / GT (Tie Wrap) | Length & Divider: made-to-order | Material: CPS-Amide (PA6+G.F) | Speed: 6-10 m/s | Acceleration: 15-20 m/s2 | Temperature: -30 to +130C | Certificate: CE, ATEX(Ex), RoHs2
ST095N.125/GUnity System ST095N (Shift Chain Normal (N)), inside width 125mm, Guide Channel supported | Type: Shift Chain Normal (N), Guide Channel supported | Inside Width (C): 125 mm | Frame (D): 150 mm | FEB Hole Width (E): 165 mm | FEB Width (F): 210 mm | GC Hole Width (G): 165 mm | Chain Outer Width (I): 188 mm | Guide Channel: GC600 (L600, hole A505) / GC800 (L800, hole A705) | Bracket: G (Horizontal GC End Bracket) / GT (Tie Wrap) | Length & Divider: made-to-order | Material: CPS-Amide (PA6+G.F) | Speed: 6-10 m/s | Acceleration: 15-20 m/s2 | Temperature: -30 to +130C | Certificate: CE, ATEX(Ex), RoHs2
ST095N.150/GUnity System ST095N (Shift Chain Normal (N)), inside width 150mm, Guide Channel supported | Type: Shift Chain Normal (N), Guide Channel supported | Inside Width (C): 150 mm | Frame (D): 175 mm | FEB Hole Width (E): 190 mm | FEB Width (F): 235 mm | GC Hole Width (G): 190 mm | Chain Outer Width (I): 213 mm | Guide Channel: GC600 (L600, hole A505) / GC800 (L800, hole A705) | Bracket: G (Horizontal GC End Bracket) / GT (Tie Wrap) | Length & Divider: made-to-order | Material: CPS-Amide (PA6+G.F) | Speed: 6-10 m/s | Acceleration: 15-20 m/s2 | Temperature: -30 to +130C | Certificate: CE, ATEX(Ex), RoHs2
ST095N.165/GUnity System ST095N (Shift Chain Normal (N)), inside width 165mm, Guide Channel supported | Type: Shift Chain Normal (N), Guide Channel supported | Inside Width (C): 165 mm | Frame (D): 190 mm | FEB Hole Width (E): 205 mm | FEB Width (F): 250 mm | GC Hole Width (G): 205 mm | Chain Outer Width (I): 228 mm | Guide Channel: GC600 (L600, hole A505) / GC800 (L800, hole A705) | Bracket: G (Horizontal GC End Bracket) / GT (Tie Wrap) | Length & Divider: made-to-order | Material: CPS-Amide (PA6+G.F) | Speed: 6-10 m/s | Acceleration: 15-20 m/s2 | Temperature: -30 to +130C | Certificate: CE, ATEX(Ex), RoHs2
ST095N.175/GUnity System ST095N (Shift Chain Normal (N)), inside width 175mm, Guide Channel supported | Type: Shift Chain Normal (N), Guide Channel supported | Inside Width (C): 175 mm | Frame (D): 200 mm | FEB Hole Width (E): 215 mm | FEB Width (F): 260 mm | GC Hole Width (G): 215 mm | Chain Outer Width (I): 238 mm | Guide Channel: GC600 (L600, hole A505) / GC800 (L800, hole A705) | Bracket: G (Horizontal GC End Bracket) / GT (Tie Wrap) | Length & Divider: made-to-order | Material: CPS-Amide (PA6+G.F) | Speed: 6-10 m/s | Acceleration: 15-20 m/s2 | Temperature: -30 to +130C | Certificate: CE, ATEX(Ex), RoHs2
ST095N.200/GUnity System ST095N (Shift Chain Normal (N)), inside width 200mm, Guide Channel supported | Type: Shift Chain Normal (N), Guide Channel supported | Inside Width (C): 200 mm | Frame (D): 230 mm | FEB Hole Width (E): 245 mm | FEB Width (F): 280 mm | GC Hole Width (G): 245 mm | Chain Outer Width (I): 268 mm | Guide Channel: GC600 (L600, hole A505) / GC800 (L800, hole A705) | Bracket: G (Horizontal GC End Bracket) / GT (Tie Wrap) | Length & Divider: made-to-order | Material: CPS-Amide (PA6+G.F) | Speed: 6-10 m/s | Acceleration: 15-20 m/s2 | Temperature: -30 to +130C | Certificate: CE, ATEX(Ex), RoHs2
ST095N.215/GUnity System ST095N (Shift Chain Normal (N)), inside width 215mm, Guide Channel supported | Type: Shift Chain Normal (N), Guide Channel supported | Inside Width (C): 215 mm | Frame (D): 240 mm | FEB Hole Width (E): 255 mm | FEB Width (F): 290 mm | GC Hole Width (G): 255 mm | Chain Outer Width (I): 278 mm | Guide Channel: GC600 (L600, hole A505) / GC800 (L800, hole A705) | Bracket: G (Horizontal GC End Bracket) / GT (Tie Wrap) | Length & Divider: made-to-order | Material: CPS-Amide (PA6+G.F) | Speed: 6-10 m/s | Acceleration: 15-20 m/s2 | Temperature: -30 to +130C | Certificate: CE, ATEX(Ex), RoHs2
ST095N.225/GUnity System ST095N (Shift Chain Normal (N)), inside width 225mm, Guide Channel supported | Type: Shift Chain Normal (N), Guide Channel supported | Inside Width (C): 225 mm | Frame (D): 250 mm | FEB Hole Width (E): 265 mm | FEB Width (F): 310 mm | GC Hole Width (G): 265 mm | Chain Outer Width (I): 288 mm | Guide Channel: GC600 (L600, hole A505) / GC800 (L800, hole A705) | Bracket: G (Horizontal GC End Bracket) / GT (Tie Wrap) | Length & Divider: made-to-order | Material: CPS-Amide (PA6+G.F) | Speed: 6-10 m/s | Acceleration: 15-20 m/s2 | Temperature: -30 to +130C | Certificate: CE, ATEX(Ex), RoHs2
ST095N.275/GUnity System ST095N (Shift Chain Normal (N)), inside width 275mm, Guide Channel supported | Type: Shift Chain Normal (N), Guide Channel supported | Inside Width (C): 275 mm | Frame (D): 300 mm | FEB Hole Width (E): 315 mm | FEB Width (F): 360 mm | GC Hole Width (G): 315 mm | Chain Outer Width (I): 338 mm | Guide Channel: GC600 (L600, hole A505) / GC800 (L800, hole A705) | Bracket: G (Horizontal GC End Bracket) / GT (Tie Wrap) | Length & Divider: made-to-order | Material: CPS-Amide (PA6+G.F) | Speed: 6-10 m/s | Acceleration: 15-20 m/s2 | Temperature: -30 to +130C | Certificate: CE, ATEX(Ex), RoHs2
ST095N.325/GUnity System ST095N (Shift Chain Normal (N)), inside width 325mm, Guide Channel supported | Type: Shift Chain Normal (N), Guide Channel supported | Inside Width (C): 325 mm | Frame (D): 350 mm | FEB Hole Width (E): 365 mm | FEB Width (F): 410 mm | GC Hole Width (G): 365 mm | Chain Outer Width (I): 388 mm | Guide Channel: GC600 (L600, hole A505) / GC800 (L800, hole A705) | Bracket: G (Horizontal GC End Bracket) / GT (Tie Wrap) | Length & Divider: made-to-order | Material: CPS-Amide (PA6+G.F) | Speed: 6-10 m/s | Acceleration: 15-20 m/s2 | Temperature: -30 to +130C | Certificate: CE, ATEX(Ex), RoHs2
ST095N.375/GUnity System ST095N (Shift Chain Normal (N)), inside width 375mm, Guide Channel supported | Type: Shift Chain Normal (N), Guide Channel supported | Inside Width (C): 375 mm | Frame (D): 400 mm | FEB Hole Width (E): 415 mm | FEB Width (F): 460 mm | GC Hole Width (G): 415 mm | Chain Outer Width (I): 438 mm | Guide Channel: GC600 (L600, hole A505) / GC800 (L800, hole A705) | Bracket: G (Horizontal GC End Bracket) / GT (Tie Wrap) | Length & Divider: made-to-order | Material: CPS-Amide (PA6+G.F) | Speed: 6-10 m/s | Acceleration: 15-20 m/s2 | Temperature: -30 to +130C | Certificate: CE, ATEX(Ex), RoHs2
