Daehan Heater DCT infrared ceramic tube heater (100-2500 W)

Daehan Heater DCT infrared ceramic tube heater (100-2500 W)

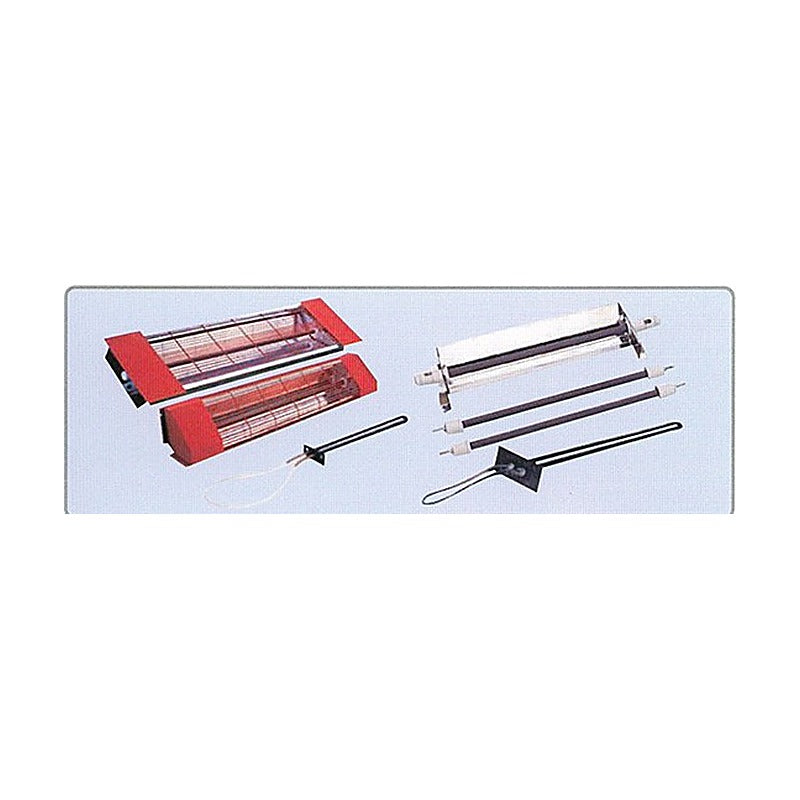

Tube type far-infrared ceramic heaters in Ø14 mm (DCT4) and Ø17 mm (DCT7) series, 340-2140 mm long. Used in drying and heating furnaces, far-infrared saunas, farm and livestock product drying, animal and plant heating and incubators.

Key features

  • Ø14 mm DCT4 and Ø17 mm DCT7 ceramic tube series
  • Full lengths 340-2140 mm
  • Several wattage options per length, up to 2500 W
  • 110, 220 and 380 V versions
  • Available bare or in reflector housings

Specifications

Product Infrared ceramic tube heater
Tube diameter Ø14 mm (DCT4), Ø17 mm (DCT7)
Full length 340-2140 mm
Voltage 110 / 220 / 380 V
Wattage 100-2500 W
Applications Drying ovens, heating furnaces, saunas, agricultural drying, incubators
Source Daehan Heater infrared heater page
DCT4-20 Tube: Ø14 mm | Full length: 340 mm | Voltage: 110 V | Wattage: 100, 200 W
DCT4-30 Tube: Ø14 mm | Full length: 440 mm | Voltage: 110 V | Wattage: 200, 300, 350 W
DCT4-40 Tube: Ø14 mm | Full length: 540 mm | Voltage: 110/220 V | Wattage: 350, 450, 500 W
DCT4-50 Tube: Ø14 mm | Full length: 640 mm | Voltage: 110/220 V | Wattage: 350, 500 W
DCT4-60 Tube: Ø14 mm | Full length: 740 mm | Voltage: 110/220 V | Wattage: 350, 500, 600 W
DCT4-70 Tube: Ø14 mm | Full length: 840 mm | Voltage: 110/220 V | Wattage: 500, 600, 700 W
DCT4-80 Tube: Ø14 mm | Full length: 940 mm | Voltage: 110/220 V | Wattage: 600, 700, 800 W
DCT4-90 Tube: Ø14 mm | Full length: 1040 mm | Voltage: 110/220 V | Wattage: 800, 900 W
DCT4-100 Tube: Ø14 mm | Full length: 1140 mm | Voltage: 110/220 V | Wattage: 900, 1000, 1200 W
DCT7-30 Tube: Ø17 mm | Heated length: 300 mm | Full length: 440 mm | Voltage: 110 V | Wattage: 350 W
DCT7-40 Tube: Ø17 mm | Heated length: 400 mm | Full length: 540 mm | Voltage: 110/220 V | Wattage: 350, 500 W
DCT7-50 Tube: Ø17 mm | Heated length: 500 mm | Full length: 640 mm | Voltage: 110/220 V | Wattage: 500, 600 W
DCT7-60 Tube: Ø17 mm | Heated length: 600 mm | Full length: 740 mm | Voltage: 110/220 V | Wattage: 500, 600, 750 W
DCT7-70 Tube: Ø17 mm | Heated length: 700 mm | Full length: 840 mm | Voltage: 110/220 V | Wattage: 700, 800, 1000 W
DCT7-80 Tube: Ø17 mm | Heated length: 800 mm | Full length: 940 mm | Voltage: 110/220 V | Wattage: 800, 1000, 1100 W
DCT7-90 Tube: Ø17 mm | Heated length: 900 mm | Full length: 1040 mm | Voltage: 110/220 V | Wattage: 900, 1000, 1200 W
DCT7-100 Tube: Ø17 mm | Heated length: 1000 mm | Full length: 1140 mm | Voltage: 110/220 V | Wattage: 1000, 1300 W
DCT7-120 Tube: Ø17 mm | Heated length: 1200 mm | Full length: 1340 mm | Voltage: 110/220/380 V | Wattage: 1200, 1500 W
DCT7-150 Tube: Ø17 mm | Heated length: 1500 mm | Full length: 1640 mm | Voltage: 110/220/380 V | Wattage: 1500, 1750, 2000 W
DCT7-170 Tube: Ø17 mm | Heated length: 1700 mm | Full length: 1840 mm | Voltage: 110/220/380 V | Wattage: 1700, 2000, 2200 W
DCT7-200 Tube: Ø17 mm | Heated length: 2000 mm | Full length: 2140 mm | Voltage: 110/220/380 V | Wattage: 2000, 2250, 2500 W
Infrared ceramic heaterDaehan Heater
21 product codes available in this family
Sourced direct from KoreaExport-ready supplyCompetitive pricing
RFQ List 0 Email about this

Need a different model, or a part not listed here? Send us your parts list →

Daehan Heater DCT infrared ceramic tube heater (100-2500 W)

Brand Daehan Heater·Infrared ceramic heater

Available part numbers (21)

DCT4-20, DCT4-30, DCT4-40, DCT4-50, DCT4-60, DCT4-70, DCT4-80, DCT4-90, DCT4-100, DCT7-30 + 11 more — see full table ↓

How to order

Send the Daehan Heater part numbers and quantities through our RFQ form or to info@prosourcemro.com. We confirm price, availability and lead time within 1 business day — no account needed.

RFQ List 0 →
View full details
Product codes & specifications
0 selected
RFQ List (0)
Product codeSpec
DCT4-20Tube: Ø14 mm | Full length: 340 mm | Voltage: 110 V | Wattage: 100, 200 W
DCT4-30Tube: Ø14 mm | Full length: 440 mm | Voltage: 110 V | Wattage: 200, 300, 350 W
DCT4-40Tube: Ø14 mm | Full length: 540 mm | Voltage: 110/220 V | Wattage: 350, 450, 500 W
DCT4-50Tube: Ø14 mm | Full length: 640 mm | Voltage: 110/220 V | Wattage: 350, 500 W
DCT4-60Tube: Ø14 mm | Full length: 740 mm | Voltage: 110/220 V | Wattage: 350, 500, 600 W
DCT4-70Tube: Ø14 mm | Full length: 840 mm | Voltage: 110/220 V | Wattage: 500, 600, 700 W
DCT4-80Tube: Ø14 mm | Full length: 940 mm | Voltage: 110/220 V | Wattage: 600, 700, 800 W
DCT4-90Tube: Ø14 mm | Full length: 1040 mm | Voltage: 110/220 V | Wattage: 800, 900 W
DCT4-100Tube: Ø14 mm | Full length: 1140 mm | Voltage: 110/220 V | Wattage: 900, 1000, 1200 W
DCT7-30Tube: Ø17 mm | Heated length: 300 mm | Full length: 440 mm | Voltage: 110 V | Wattage: 350 W
DCT7-40Tube: Ø17 mm | Heated length: 400 mm | Full length: 540 mm | Voltage: 110/220 V | Wattage: 350, 500 W
DCT7-50Tube: Ø17 mm | Heated length: 500 mm | Full length: 640 mm | Voltage: 110/220 V | Wattage: 500, 600 W
DCT7-60Tube: Ø17 mm | Heated length: 600 mm | Full length: 740 mm | Voltage: 110/220 V | Wattage: 500, 600, 750 W
DCT7-70Tube: Ø17 mm | Heated length: 700 mm | Full length: 840 mm | Voltage: 110/220 V | Wattage: 700, 800, 1000 W
DCT7-80Tube: Ø17 mm | Heated length: 800 mm | Full length: 940 mm | Voltage: 110/220 V | Wattage: 800, 1000, 1100 W
DCT7-90Tube: Ø17 mm | Heated length: 900 mm | Full length: 1040 mm | Voltage: 110/220 V | Wattage: 900, 1000, 1200 W
DCT7-100Tube: Ø17 mm | Heated length: 1000 mm | Full length: 1140 mm | Voltage: 110/220 V | Wattage: 1000, 1300 W
DCT7-120Tube: Ø17 mm | Heated length: 1200 mm | Full length: 1340 mm | Voltage: 110/220/380 V | Wattage: 1200, 1500 W
DCT7-150Tube: Ø17 mm | Heated length: 1500 mm | Full length: 1640 mm | Voltage: 110/220/380 V | Wattage: 1500, 1750, 2000 W
DCT7-170Tube: Ø17 mm | Heated length: 1700 mm | Full length: 1840 mm | Voltage: 110/220/380 V | Wattage: 1700, 2000, 2200 W
DCT7-200Tube: Ø17 mm | Heated length: 2000 mm | Full length: 2140 mm | Voltage: 110/220/380 V | Wattage: 2000, 2250, 2500 W
