• Daesan DSA-1S Hoist Chain Hoist (2-Point)
1 1

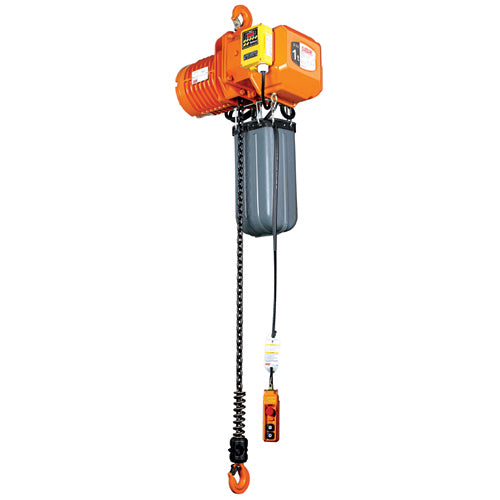

Daesan DSA-1S Hoist Chain Hoist (2-Point)

Daesan DSA-1S Hoist Chain Hoist (2-Point)

The Daesan DSA-1S is a 2-point hoist chain hoist designed for controlled vertical lifting and load suspension, sourced direct from Korea.

Key features

  • Two-point chain hoists are commonly used in manufacturing facilities, shipyards, and construction sites where balanced overhead lifting of heavy loads across two anchor points is required

Specifications

Power Source 3-Phase 380V
555-1217 MPN: DSA-1S | DSA-1S (1.0T) Three-phase 380V | Spec: 1.0 | Weight: 73.0 | Motor: 1.8 | Power Source: 3-Phase 380V | Number of Strings: 1 | Hoisting Speed: 8.2 | Chain Thickness: 7.1 | Lift Height: 4
555-1280 MPN: DSA-2S | DSA-2S (2.0T) Three Phase 380V | Spec: 2.0 | Weight: 122.0 | Motor: 3.5 | Power Source: 3-Phase 380V | Number of Strings: 1 | Hoisting Speed: 8.1 | Chain Thickness: 11.2 | Lift Height: 4
555-1341 MPN: DSA-1.5S | DSA-1.5S (1.5T) Three-phase 380V | Spec: 1.5 | Weight: 118.0 | Motor: 3.5 | Power Source: 3-Phase 380V | Number of Strings: 1 | Hoisting Speed: 10.3 | Chain Thickness: 9.5 | Lift Height: 4
555-1350 MPN: DSA-2.5S | DSA-2.5S (2.5T) Three-phase 380V | Spec: 2.5 | Weight: 126.0 | Motor: 3.5 | Power Source: 3-Phase 380V | Number of Strings: 1 | Hoisting Speed: 6.5 | Chain Thickness: 11.2 | Lift Height: 5
555-1369 MPN: DSA-3W | DSA-3W (3.0T) 3-Phase 380V | Spec: 3.0 | Weight: 149.0 | Motor: 3.5 | Power Source: 3-Phase 380V | Number of Strings: 2 | Hoisting Speed: 5.15 | Chain Thickness: 9.5 | Lift Height: 5
555-1420 MPN: DSA-2W | DSA-2W (2.0T) Three-Phase 380V | Spec: 2.0 | Weight: 86.0 | Motor: 1.8 | Power Source: 3-Phase 380V | Number of Strings: 2 | Hoisting Speed: 4.1 | Chain Thickness: 7.1 | Lift Height: 4
555-1439 MPN: DSA-5W | DSA-5W (5.0T) Three Phase 380V | Spec: 5.0 | Weight: 169.0 | Motor: 3.5 | Power Source: 3-Phase 380V | Number of Strings: 2 | Hoisting Speed: 3.25 | Chain Thickness: 11.2 | Lift Height: 5
Hoists & WinchesDaesan
7 product codes available in this family
Sourced direct from KoreaExport-ready supplyCompetitive pricing
RFQ List 0 Email about this

Need a different model, or a part not listed here? Send us your parts list →

Daesan DSA-1S Hoist Chain Hoist (2-Point)

Brand Daesan·Hoists & Winches

Available part numbers (7)

555-1217, 555-1280, 555-1341, 555-1350, 555-1369, 555-1420, 555-1439

How to order

Send the Daesan part numbers and quantities through our RFQ form or to info@prosourcemro.com. We confirm price, availability and lead time within 1 business day — no account needed.

RFQ List 0 →
View full details
Product codes & specifications
0 selected
RFQ List (0)
Product codeSpec
555-1217MPN: DSA-1S | DSA-1S (1.0T) Three-phase 380V | Spec: 1.0 | Weight: 73.0 | Motor: 1.8 | Power Source: 3-Phase 380V | Number of Strings: 1 | Hoisting Speed: 8.2 | Chain Thickness: 7.1 | Lift Height: 4
555-1280MPN: DSA-2S | DSA-2S (2.0T) Three Phase 380V | Spec: 2.0 | Weight: 122.0 | Motor: 3.5 | Power Source: 3-Phase 380V | Number of Strings: 1 | Hoisting Speed: 8.1 | Chain Thickness: 11.2 | Lift Height: 4
555-1341MPN: DSA-1.5S | DSA-1.5S (1.5T) Three-phase 380V | Spec: 1.5 | Weight: 118.0 | Motor: 3.5 | Power Source: 3-Phase 380V | Number of Strings: 1 | Hoisting Speed: 10.3 | Chain Thickness: 9.5 | Lift Height: 4
555-1350MPN: DSA-2.5S | DSA-2.5S (2.5T) Three-phase 380V | Spec: 2.5 | Weight: 126.0 | Motor: 3.5 | Power Source: 3-Phase 380V | Number of Strings: 1 | Hoisting Speed: 6.5 | Chain Thickness: 11.2 | Lift Height: 5
555-1369MPN: DSA-3W | DSA-3W (3.0T) 3-Phase 380V | Spec: 3.0 | Weight: 149.0 | Motor: 3.5 | Power Source: 3-Phase 380V | Number of Strings: 2 | Hoisting Speed: 5.15 | Chain Thickness: 9.5 | Lift Height: 5
555-1420MPN: DSA-2W | DSA-2W (2.0T) Three-Phase 380V | Spec: 2.0 | Weight: 86.0 | Motor: 1.8 | Power Source: 3-Phase 380V | Number of Strings: 2 | Hoisting Speed: 4.1 | Chain Thickness: 7.1 | Lift Height: 4
555-1439MPN: DSA-5W | DSA-5W (5.0T) Three Phase 380V | Spec: 5.0 | Weight: 169.0 | Motor: 3.5 | Power Source: 3-Phase 380V | Number of Strings: 2 | Hoisting Speed: 3.25 | Chain Thickness: 11.2 | Lift Height: 5
