• Daesan DSHM-3W Hoist Chain Hoist (4-Point)
1 1

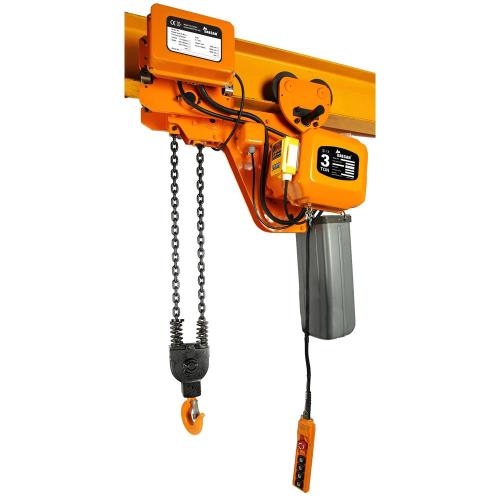

Daesan DSHM-3W Hoist Chain Hoist (4-Point)

Daesan DSHM-3W Hoist Chain Hoist (4-Point)

The Daesan DSHM-3W is a 4-point hoist chain hoist designed for controlled vertical lifting and load suspension, sourced direct from Korea.

Key features

  • Four-point chain hoists are commonly used in industrial facilities, construction sites, and manufacturing plants where balanced, stable lifting of heavy equipment or structural components is required

Specifications

Motor 3.5
Power Source 3-Phase 380V
Trolley 0.75
Number of Strings 2
Traversing Speed 15
Lift Height 5
555-4913 MPN: DSHM-3W | DSHM-3W (3.0T) Three-Phase 380V - Low Head | Spec: 3.0 | Weight: 275.0 | Motor: 3.5 | Power Source: 3-Phase 380V | Trolley: 0.75 | Number of Strings: 2 | Hoisting Speed: 5.15 | Traversing Speed: 15 | Chain Thickness: 9.5 | Lift Height: 5 | Min Beam Spec: 100 | Max Beam Spec: 150
555-4931 MPN: DSHM-5W | [Made to Order] DSHM-5W (5.0T) Three-Phase 380V - Low Head | Spec: 5.0 | Weight: 326.0 | Motor: 3.5 | Power Source: 3-Phase 380V | Trolley: 0.75 | Number of Strings: 2 | Hoisting Speed: 3.25 | Traversing Speed: 15 | Chain Thickness: 11.2 | Lift Height: 5 | Min Beam Spec: 125 | Max Beam Spec: 175
Hoists & WinchesDaesan
2 product codes available in this family
Sourced direct from KoreaExport-ready supplyCompetitive pricing
RFQ List 0 Email about this

Need a different model, or a part not listed here? Send us your parts list →

Daesan DSHM-3W Hoist Chain Hoist (4-Point)

Brand Daesan·Hoists & Winches

Available part numbers (2)

555-4913, 555-4931

How to order

Send the Daesan part numbers and quantities through our RFQ form or to info@prosourcemro.com. We confirm price, availability and lead time within 1 business day — no account needed.

RFQ List 0 →
View full details
Product codes & specifications
0 selected
RFQ List (0)
Product codeSpec
555-4913MPN: DSHM-3W | DSHM-3W (3.0T) Three-Phase 380V - Low Head | Spec: 3.0 | Weight: 275.0 | Motor: 3.5 | Power Source: 3-Phase 380V | Trolley: 0.75 | Number of Strings: 2 | Hoisting Speed: 5.15 | Traversing Speed: 15 | Chain Thickness: 9.5 | Lift Height: 5 | Min Beam Spec: 100 | Max Beam Spec: 150
555-4931MPN: DSHM-5W | [Made to Order] DSHM-5W (5.0T) Three-Phase 380V - Low Head | Spec: 5.0 | Weight: 326.0 | Motor: 3.5 | Power Source: 3-Phase 380V | Trolley: 0.75 | Number of Strings: 2 | Hoisting Speed: 3.25 | Traversing Speed: 15 | Chain Thickness: 11.2 | Lift Height: 5 | Min Beam Spec: 125 | Max Beam Spec: 175

Need a different model, or a part not listed here? Send us your parts list →
