Daesan NDF-08 Lever Block

Daesan NDF-08 Lever Block

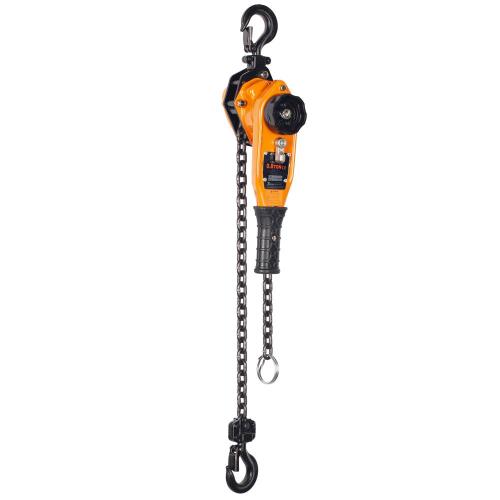

Daesan NDF-08 Lever Block is a manual lifting and pulling device designed for controlled load handling, sourced direct from Korea.

Key features

  • Lever blocks are widely used in construction, shipbuilding, and heavy manufacturing environments where precise load positioning or tensioning is needed in tight or remote locations without access to power

Specifications

Lift Height 1.5
556-4956 MPN: NDF-08 | 0.8T (NDF Type) | Spec: 0.8 | Weight: 6.7 | Load Chain Spec: 6.3x19.1 | Number of Strings: 1 | Lift Height: 1.5
556-4965 MPN: NDF-15 | 1.5T (NDF Type) | Spec: 1.5 | Weight: 10.0 | Load Chain Spec: 7.1x21.0 | Number of Strings: 1 | Lift Height: 1.5
556-4974 MPN: NDF-20 | 2.0T (NDF Type) | Spec: 2.0 | Weight: 10.5 | Load Chain Spec: 7.1x21.0 | Number of Strings: 1 | Lift Height: 1.5
556-4983 MPN: NDF-30 | 3.0T (NDF Type) | Spec: 3.0 | Weight: 17.0 | Load Chain Spec: 9.0x27.0 | Number of Strings: 1 | Lift Height: 1.5
556-4992 MPN: NDF-60 | 6.0T (NDF Type) | Spec: 6.0 | Weight: 28.5 | Load Chain Spec: 9.0x27.0 | Number of Strings: 2 | Lift Height: 1.5
Hoists & WinchesDaesan
5 product codes available in this family
Sourced direct from KoreaExport-ready supplyCompetitive pricing
RFQ List 0 Email about this

Need a different model, or a part not listed here? Send us your parts list →

Daesan NDF-08 Lever Block

Brand Daesan·Hoists & Winches

Available part numbers (5)

556-4956, 556-4965, 556-4974, 556-4983, 556-4992

How to order

Send the Daesan part numbers and quantities through our RFQ form or to info@prosourcemro.com. We confirm price, availability and lead time within 1 business day — no account needed.

RFQ List 0 →
View full details
Product codes & specifications
0 selected
RFQ List (0)
Product codeSpec
556-4956MPN: NDF-08 | 0.8T (NDF Type) | Spec: 0.8 | Weight: 6.7 | Load Chain Spec: 6.3x19.1 | Number of Strings: 1 | Lift Height: 1.5
556-4965MPN: NDF-15 | 1.5T (NDF Type) | Spec: 1.5 | Weight: 10.0 | Load Chain Spec: 7.1x21.0 | Number of Strings: 1 | Lift Height: 1.5
556-4974MPN: NDF-20 | 2.0T (NDF Type) | Spec: 2.0 | Weight: 10.5 | Load Chain Spec: 7.1x21.0 | Number of Strings: 1 | Lift Height: 1.5
556-4983MPN: NDF-30 | 3.0T (NDF Type) | Spec: 3.0 | Weight: 17.0 | Load Chain Spec: 9.0x27.0 | Number of Strings: 1 | Lift Height: 1.5
556-4992MPN: NDF-60 | 6.0T (NDF Type) | Spec: 6.0 | Weight: 28.5 | Load Chain Spec: 9.0x27.0 | Number of Strings: 2 | Lift Height: 1.5
