• Diatop Volcano Xpress XG Silent Bridge Saw Blade for Granite and Quartz
1 1

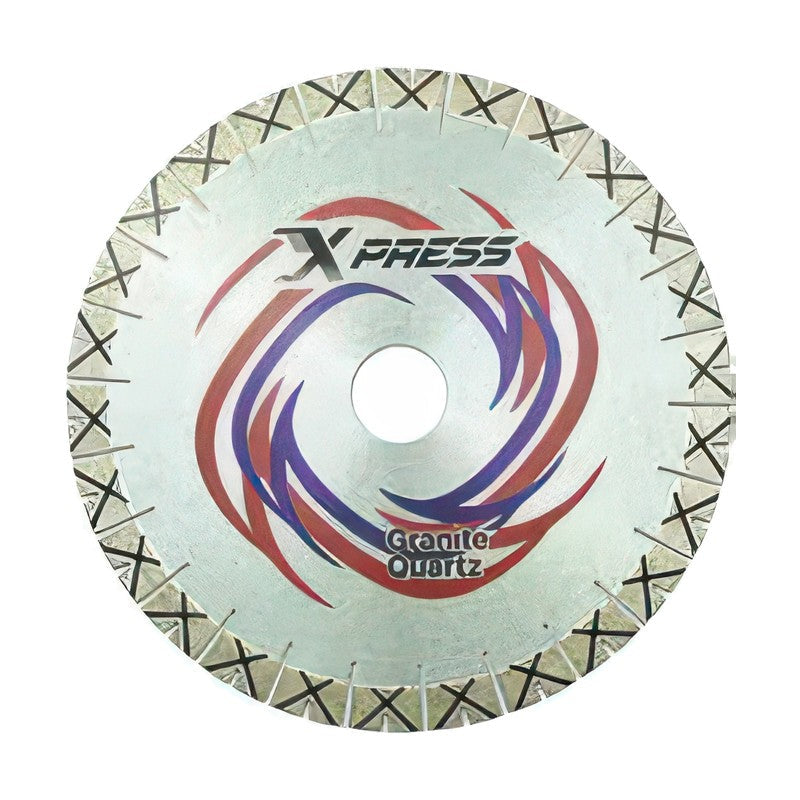

Diatop Volcano Xpress XG Silent Bridge Saw Blade for Granite and Quartz

Diatop Volcano Xpress XG Silent Bridge Saw Blade for Granite and Quartz

Silent, silver-brazed wet bridge saw blade for very hard granite and quartz.

Key features

  • High technology of patterned diamonds provides very fast cutting and a very long life from the 25 mm segments
  • A unique X groove on the segments speeds cutting, and sandwich segments wear evenly
  • Smooth, chip-free cutting with strict weld inspection for safe operation

Specifications

Segment Height (inch) 1 in
Segment Height (mm) 25 mm
Bore 60/50 mm
NSXG 353225 D x T (inch): 14 x .125 in | D x T (mm): 350 x 3.2 mm | Segment Height (inch): 1 in | Segment Height (mm): 25 mm | Bore: 60/50 mm
NSXG 403225 D x T (inch): 16 x .125 in | D x T (mm): 400 x 3.2 mm | Segment Height (inch): 1 in | Segment Height (mm): 25 mm | Bore: 60/50 mm
NSXG 453625 D x T (inch): 18 x .141 in | D x T (mm): 450 x 3.6 mm | Segment Height (inch): 1 in | Segment Height (mm): 25 mm | Bore: 60/50 mm
Bridge Saw BladesDiatop
3 product codes available in this family
Sourced direct from KoreaExport-ready supplyCompetitive pricing
RFQ List 0 Email about this

Need a different model, or a part not listed here? Send us your parts list →

Diatop Volcano Xpress XG Silent Bridge Saw Blade for Granite and Quartz

Brand Diatop·Bridge Saw Blades

Available part numbers (3)

NSXG 353225, NSXG 403225, NSXG 453625

How to order

Send the Diatop part numbers and quantities through our RFQ form or to info@prosourcemro.com. We confirm price, availability and lead time within 1 business day — no account needed.

RFQ List 0 →
View full details
Product codes & specifications
0 selected
RFQ List (0)
Product codeSpec
NSXG 353225D x T (inch): 14 x .125 in | D x T (mm): 350 x 3.2 mm | Segment Height (inch): 1 in | Segment Height (mm): 25 mm | Bore: 60/50 mm
NSXG 403225D x T (inch): 16 x .125 in | D x T (mm): 400 x 3.2 mm | Segment Height (inch): 1 in | Segment Height (mm): 25 mm | Bore: 60/50 mm
NSXG 453625D x T (inch): 18 x .141 in | D x T (mm): 450 x 3.6 mm | Segment Height (inch): 1 in | Segment Height (mm): 25 mm | Bore: 60/50 mm
