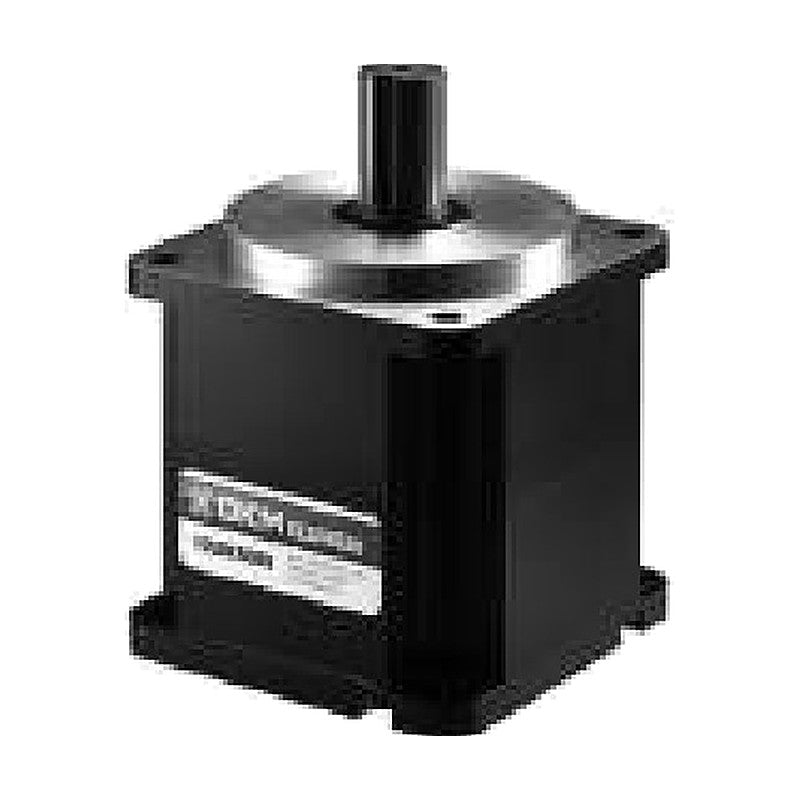

DKM 10UBK U-Type Ultra Powerful Parallel Gearbox, □104 mm

DKM 10UBK U-Type Ultra Powerful Parallel Gearbox, □104 mm

Ultra powerful box type parallel gearbox for □104 mm DKM motors (250-400 W).

Key features

  • Parallel-shaft gearbox attached to DKM motors with gear-type pinion shaft of the same frame size
  • Wide range of gear ratios; output speed = motor synchronous speed / gear ratio (actual speed 2-20% lower depending on load)
  • Output shaft rotation direction depends on gear ratio (same or opposite to motor shaft)

Specifications

Gearbox type U type, ultra powerful box
Frame size 104 mm square
Gear ratio range 3:1 - 180:1
Max. permissible torque 400 kgfcm (39.2 N·m)
Typical motor output 250-400 W
Output shaft Key type
10UBK3BH Gear ratio: 3:1 | Output speed: 600 r/min (60 Hz) / 500 r/min (50 Hz)
10UBK5BH Gear ratio: 5:1 | Output speed: 360 r/min (60 Hz) / 300 r/min (50 Hz)
10UBK9BH Gear ratio: 9:1 | Output speed: 200 r/min (60 Hz) / 167 r/min (50 Hz)
10UBK10BH Gear ratio: 10:1 | Output speed: 180 r/min (60 Hz) / 150 r/min (50 Hz)
10UBK15BH Gear ratio: 15:1 | Output speed: 120 r/min (60 Hz) / 100 r/min (50 Hz)
10UBK20BH Gear ratio: 20:1 | Output speed: 90 r/min (60 Hz) / 75 r/min (50 Hz)
10UBK25BH Gear ratio: 25:1 | Output speed: 72 r/min (60 Hz) / 60 r/min (50 Hz)
10UBK30BH Gear ratio: 30:1 | Output speed: 60 r/min (60 Hz) / 50 r/min (50 Hz)
10UBK40BH Gear ratio: 40:1 | Output speed: 45 r/min (60 Hz) / 37.5 r/min (50 Hz)
10UBK50BH Gear ratio: 50:1 | Output speed: 36 r/min (60 Hz) / 30 r/min (50 Hz)
10UBK60BH Gear ratio: 60:1 | Output speed: 30 r/min (60 Hz) / 25 r/min (50 Hz)
10UBK90BH Gear ratio: 90:1 | Output speed: 20 r/min (60 Hz) / 16.7 r/min (50 Hz)
10UBK100BH Gear ratio: 100:1 | Output speed: 18 r/min (60 Hz) / 15 r/min (50 Hz)
10UBK120BH Gear ratio: 120:1 | Output speed: 15 r/min (60 Hz) / 12.5 r/min (50 Hz)
10UBK150BH Gear ratio: 150:1 | Output speed: 12 r/min (60 Hz) / 10 r/min (50 Hz)
10UBK180BH Gear ratio: 180:1 | Output speed: 10 r/min (60 Hz) / 8.3 r/min (50 Hz)
GearboxesDKM
16 product codes available in this family
Sourced direct from KoreaExport-ready supplyCompetitive pricing
RFQ List 0 Email about this

Need a different model, or a part not listed here? Send us your parts list →

DKM 10UBK U-Type Ultra Powerful Parallel Gearbox, □104 mm

Brand DKM·Gearboxes

Available part numbers (16)

10UBK3BH, 10UBK5BH, 10UBK9BH, 10UBK10BH, 10UBK15BH, 10UBK20BH, 10UBK25BH, 10UBK30BH, 10UBK40BH, 10UBK50BH + 6 more — see full table ↓

How to order

Send the DKM part numbers and quantities through our RFQ form or to info@prosourcemro.com. We confirm price, availability and lead time within 1 business day — no account needed.

RFQ List 0 →
View full details
Product codes & specifications
0 selected
RFQ List (0)
Product codeSpec
10UBK3BHGear ratio: 3:1 | Output speed: 600 r/min (60 Hz) / 500 r/min (50 Hz)
10UBK5BHGear ratio: 5:1 | Output speed: 360 r/min (60 Hz) / 300 r/min (50 Hz)
10UBK9BHGear ratio: 9:1 | Output speed: 200 r/min (60 Hz) / 167 r/min (50 Hz)
10UBK10BHGear ratio: 10:1 | Output speed: 180 r/min (60 Hz) / 150 r/min (50 Hz)
10UBK15BHGear ratio: 15:1 | Output speed: 120 r/min (60 Hz) / 100 r/min (50 Hz)
10UBK20BHGear ratio: 20:1 | Output speed: 90 r/min (60 Hz) / 75 r/min (50 Hz)
10UBK25BHGear ratio: 25:1 | Output speed: 72 r/min (60 Hz) / 60 r/min (50 Hz)
10UBK30BHGear ratio: 30:1 | Output speed: 60 r/min (60 Hz) / 50 r/min (50 Hz)
10UBK40BHGear ratio: 40:1 | Output speed: 45 r/min (60 Hz) / 37.5 r/min (50 Hz)
10UBK50BHGear ratio: 50:1 | Output speed: 36 r/min (60 Hz) / 30 r/min (50 Hz)
10UBK60BHGear ratio: 60:1 | Output speed: 30 r/min (60 Hz) / 25 r/min (50 Hz)
10UBK90BHGear ratio: 90:1 | Output speed: 20 r/min (60 Hz) / 16.7 r/min (50 Hz)
10UBK100BHGear ratio: 100:1 | Output speed: 18 r/min (60 Hz) / 15 r/min (50 Hz)
10UBK120BHGear ratio: 120:1 | Output speed: 15 r/min (60 Hz) / 12.5 r/min (50 Hz)
10UBK150BHGear ratio: 150:1 | Output speed: 12 r/min (60 Hz) / 10 r/min (50 Hz)
10UBK180BHGear ratio: 180:1 | Output speed: 10 r/min (60 Hz) / 8.3 r/min (50 Hz)
