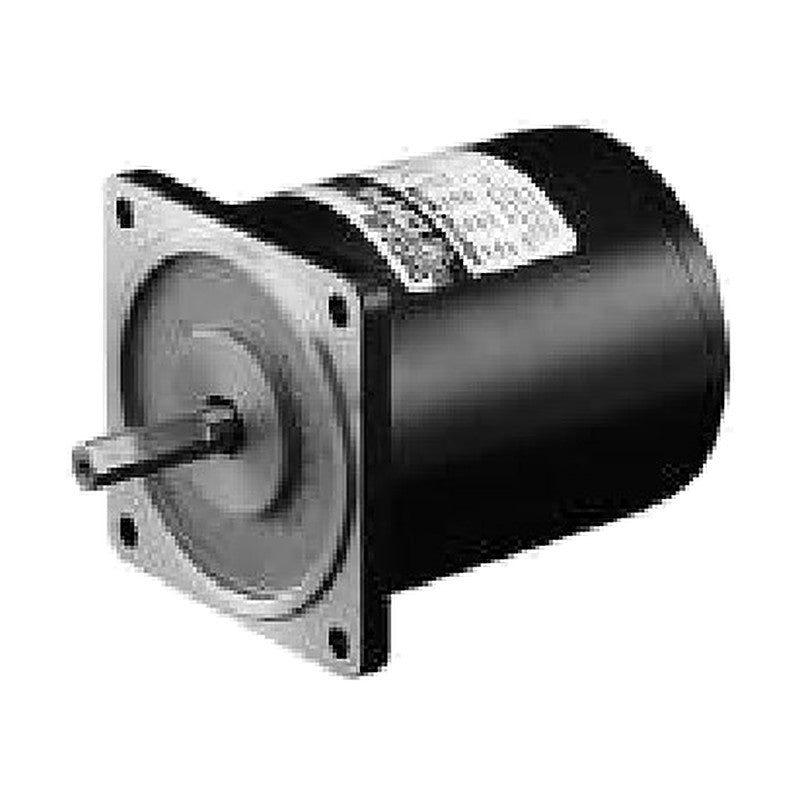

DKM 6ID-6 Induction Motor 6W, 60 mm Frame

DKM 6ID-6 Induction Motor 6W, 60 mm Frame

6 W single- and three-phase AC induction motor with 60 mm square frame for unidirectional continuous operation such as conveyors; D-cut or gear-type (pinion) output shaft for DKM gearboxes.

Key features

  • Suitable for unidirectional continuous operation such as conveyor systems
  • Single-phase capacitor-run and three-phase versions
  • Three-phase versions offer higher starting torque and can run directly from a three-phase supply
  • Gear-type shaft models combine with DKM gearboxes; D-cut and key shaft models are for use as a motor only

Specifications

Output 6 W
Frame size 60 mm square
Poles 4
Duty Continuous
Rated speed 1200 / 1250 / 1550 r/min (depends on voltage/frequency)
Rated torque 0.038-0.049 N·m
Starting torque 0.054-0.13 N·m
Shaft options D-cut, gear type (G)
Connection Lead wire or terminal box (-T)
Matching gearboxes 6GBD□MH (□ = gear ratio)
Insulation class Class B (130 °C)
Insulation resistance 100 MΩ min. at 500 VDC megger (windings to frame)
DKM 6ID-6 Induction Motor 6W, 60 mm Frame
6IDD1-6 Power supply: 1ø AC 110 V, 60 Hz | Rated speed: 1550 r/min | Rated torque: 0.038 N·m | Rated current: 0.21 A | Starting torque: 0.054 N·m | Capacitor: 2.5 µF / 250 VAC | Output shaft: D-cut (motor only) | Variants: alternative printed code 6IDDA-6; terminal-box version 6IDD1-6-T
6IDG1-6G Power supply: 1ø AC 110 V, 60 Hz | Rated speed: 1550 r/min | Rated torque: 0.038 N·m | Rated current: 0.21 A | Starting torque: 0.054 N·m | Capacitor: 2.5 µF / 250 VAC | Output shaft: Gear type (G) for general box-type gearbox | Variants: alternative printed code 6IDGA-6G; terminal-box version 6IDG1-6G-T
6IDDB-6 Power supply: 1ø AC 100 V, 50/60 Hz | Rated speed: 1250 / 1550 r/min | Rated torque: 0.038-0.047 N·m | Rated current: 0.21-0.22 A | Starting torque: 0.054-0.057 N·m | Capacitor: 3.0 µF / 250 VAC | Output shaft: D-cut (motor only) | Variants: terminal-box version 6IDDB-6-T
6IDGB-6G Power supply: 1ø AC 100 V, 50/60 Hz | Rated speed: 1250 / 1550 r/min | Rated torque: 0.038-0.047 N·m | Rated current: 0.21-0.22 A | Starting torque: 0.054-0.057 N·m | Capacitor: 3.0 µF / 250 VAC | Output shaft: Gear type (G) for general box-type gearbox | Variants: terminal-box version 6IDGB-6G-T
6IDDC-6 Power supply: 1ø AC 200 V, 50/60 Hz | Rated speed: 1250 / 1550 r/min | Rated torque: 0.038-0.047 N·m | Rated current: 0.11 A | Starting torque: 0.058-0.06 N·m | Capacitor: 0.8 µF / 450 VAC | Output shaft: D-cut (motor only) | Variants: terminal-box version 6IDDC-6-T
6IDGC-6G Power supply: 1ø AC 200 V, 50/60 Hz | Rated speed: 1250 / 1550 r/min | Rated torque: 0.038-0.047 N·m | Rated current: 0.11 A | Starting torque: 0.058-0.06 N·m | Capacitor: 0.8 µF / 450 VAC | Output shaft: Gear type (G) for general box-type gearbox | Variants: terminal-box version 6IDGC-6G-T
6IDD2-6 Power supply: 1ø AC 220 V, 60 Hz | Rated speed: 1550 r/min | Rated torque: 0.038 N·m | Rated current: 0.11 A | Starting torque: 0.06 N·m | Capacitor: 0.7 µF / 450 VAC | Output shaft: D-cut (motor only) | Variants: alternative printed code 6IDDD-6; terminal-box version 6IDD2-6-T
6IDG2-6G Power supply: 1ø AC 220 V, 60 Hz | Rated speed: 1550 r/min | Rated torque: 0.038 N·m | Rated current: 0.11 A | Starting torque: 0.06 N·m | Capacitor: 0.7 µF / 450 VAC | Output shaft: Gear type (G) for general box-type gearbox | Variants: alternative printed code 6IDGD-6G; terminal-box version 6IDG2-6G-T
6IDDE-6 Power supply: 1ø AC 220 / 240 V, 50 Hz | Rated speed: 1200 r/min | Rated torque: 0.049 N·m | Rated current: 0.09-0.1 A | Starting torque: 0.055-0.066 N·m | Capacitor: 0.6 µF / 450 VAC | Output shaft: D-cut (motor only) | Variants: terminal-box version 6IDDE-6-T
6IDGE-6G Power supply: 1ø AC 220 / 240 V, 50 Hz | Rated speed: 1200 r/min | Rated torque: 0.049 N·m | Rated current: 0.09-0.1 A | Starting torque: 0.055-0.066 N·m | Capacitor: 0.6 µF / 450 VAC | Output shaft: Gear type (G) for general box-type gearbox | Variants: terminal-box version 6IDGE-6G-T
6IDD3-6 Power supply: 3ø AC 220 / 230 V, 50/60 Hz | Rated speed: 1250 / 1550 r/min | Rated torque: 0.038-0.047 N·m | Rated current: 0.11-0.14 A | Starting torque: 0.09-0.13 N·m | Output shaft: D-cut (motor only) | Variants: alternative printed code 6IDDG-6; terminal-box version 6IDD3-6-T
6IDG3-6G Power supply: 3ø AC 220 / 230 V, 50/60 Hz | Rated speed: 1250 / 1550 r/min | Rated torque: 0.038-0.047 N·m | Rated current: 0.11-0.14 A | Starting torque: 0.09-0.13 N·m | Output shaft: Gear type (G) for general box-type gearbox | Variants: alternative printed code 6IDGG-6G; terminal-box version 6IDG3-6G-T
AC Induction MotorsDKM
12 product codes available in this family
Sourced direct from KoreaExport-ready supplyCompetitive pricing
RFQ List 0 Email about this

Need a different model, or a part not listed here? Send us your parts list →

DKM 6ID-6 Induction Motor 6W, 60 mm Frame

Brand DKM·AC Induction Motors

Available part numbers (12)

6IDD1-6, 6IDG1-6G, 6IDDB-6, 6IDGB-6G, 6IDDC-6, 6IDGC-6G, 6IDD2-6, 6IDG2-6G, 6IDDE-6, 6IDGE-6G + 2 more — see full table ↓

How to order

Send the DKM part numbers and quantities through our RFQ form or to info@prosourcemro.com. We confirm price, availability and lead time within 1 business day — no account needed.

RFQ List 0 →
View full details
Product codes & specifications
DKM 6ID-6 Induction Motor 6W, 60 mm Frame
0 selected
RFQ List (0)
Product codeSpec
6IDD1-6Power supply: 1ø AC 110 V, 60 Hz | Rated speed: 1550 r/min | Rated torque: 0.038 N·m | Rated current: 0.21 A | Starting torque: 0.054 N·m | Capacitor: 2.5 µF / 250 VAC | Output shaft: D-cut (motor only) | Variants: alternative printed code 6IDDA-6; terminal-box version 6IDD1-6-T
6IDG1-6GPower supply: 1ø AC 110 V, 60 Hz | Rated speed: 1550 r/min | Rated torque: 0.038 N·m | Rated current: 0.21 A | Starting torque: 0.054 N·m | Capacitor: 2.5 µF / 250 VAC | Output shaft: Gear type (G) for general box-type gearbox | Variants: alternative printed code 6IDGA-6G; terminal-box version 6IDG1-6G-T
6IDDB-6Power supply: 1ø AC 100 V, 50/60 Hz | Rated speed: 1250 / 1550 r/min | Rated torque: 0.038-0.047 N·m | Rated current: 0.21-0.22 A | Starting torque: 0.054-0.057 N·m | Capacitor: 3.0 µF / 250 VAC | Output shaft: D-cut (motor only) | Variants: terminal-box version 6IDDB-6-T
6IDGB-6GPower supply: 1ø AC 100 V, 50/60 Hz | Rated speed: 1250 / 1550 r/min | Rated torque: 0.038-0.047 N·m | Rated current: 0.21-0.22 A | Starting torque: 0.054-0.057 N·m | Capacitor: 3.0 µF / 250 VAC | Output shaft: Gear type (G) for general box-type gearbox | Variants: terminal-box version 6IDGB-6G-T
6IDDC-6Power supply: 1ø AC 200 V, 50/60 Hz | Rated speed: 1250 / 1550 r/min | Rated torque: 0.038-0.047 N·m | Rated current: 0.11 A | Starting torque: 0.058-0.06 N·m | Capacitor: 0.8 µF / 450 VAC | Output shaft: D-cut (motor only) | Variants: terminal-box version 6IDDC-6-T
6IDGC-6GPower supply: 1ø AC 200 V, 50/60 Hz | Rated speed: 1250 / 1550 r/min | Rated torque: 0.038-0.047 N·m | Rated current: 0.11 A | Starting torque: 0.058-0.06 N·m | Capacitor: 0.8 µF / 450 VAC | Output shaft: Gear type (G) for general box-type gearbox | Variants: terminal-box version 6IDGC-6G-T
6IDD2-6Power supply: 1ø AC 220 V, 60 Hz | Rated speed: 1550 r/min | Rated torque: 0.038 N·m | Rated current: 0.11 A | Starting torque: 0.06 N·m | Capacitor: 0.7 µF / 450 VAC | Output shaft: D-cut (motor only) | Variants: alternative printed code 6IDDD-6; terminal-box version 6IDD2-6-T
6IDG2-6GPower supply: 1ø AC 220 V, 60 Hz | Rated speed: 1550 r/min | Rated torque: 0.038 N·m | Rated current: 0.11 A | Starting torque: 0.06 N·m | Capacitor: 0.7 µF / 450 VAC | Output shaft: Gear type (G) for general box-type gearbox | Variants: alternative printed code 6IDGD-6G; terminal-box version 6IDG2-6G-T
6IDDE-6Power supply: 1ø AC 220 / 240 V, 50 Hz | Rated speed: 1200 r/min | Rated torque: 0.049 N·m | Rated current: 0.09-0.1 A | Starting torque: 0.055-0.066 N·m | Capacitor: 0.6 µF / 450 VAC | Output shaft: D-cut (motor only) | Variants: terminal-box version 6IDDE-6-T
6IDGE-6GPower supply: 1ø AC 220 / 240 V, 50 Hz | Rated speed: 1200 r/min | Rated torque: 0.049 N·m | Rated current: 0.09-0.1 A | Starting torque: 0.055-0.066 N·m | Capacitor: 0.6 µF / 450 VAC | Output shaft: Gear type (G) for general box-type gearbox | Variants: terminal-box version 6IDGE-6G-T
6IDD3-6Power supply: 3ø AC 220 / 230 V, 50/60 Hz | Rated speed: 1250 / 1550 r/min | Rated torque: 0.038-0.047 N·m | Rated current: 0.11-0.14 A | Starting torque: 0.09-0.13 N·m | Output shaft: D-cut (motor only) | Variants: alternative printed code 6IDDG-6; terminal-box version 6IDD3-6-T
6IDG3-6GPower supply: 3ø AC 220 / 230 V, 50/60 Hz | Rated speed: 1250 / 1550 r/min | Rated torque: 0.038-0.047 N·m | Rated current: 0.11-0.14 A | Starting torque: 0.09-0.13 N·m | Output shaft: Gear type (G) for general box-type gearbox | Variants: alternative printed code 6IDGG-6G; terminal-box version 6IDG3-6G-T
