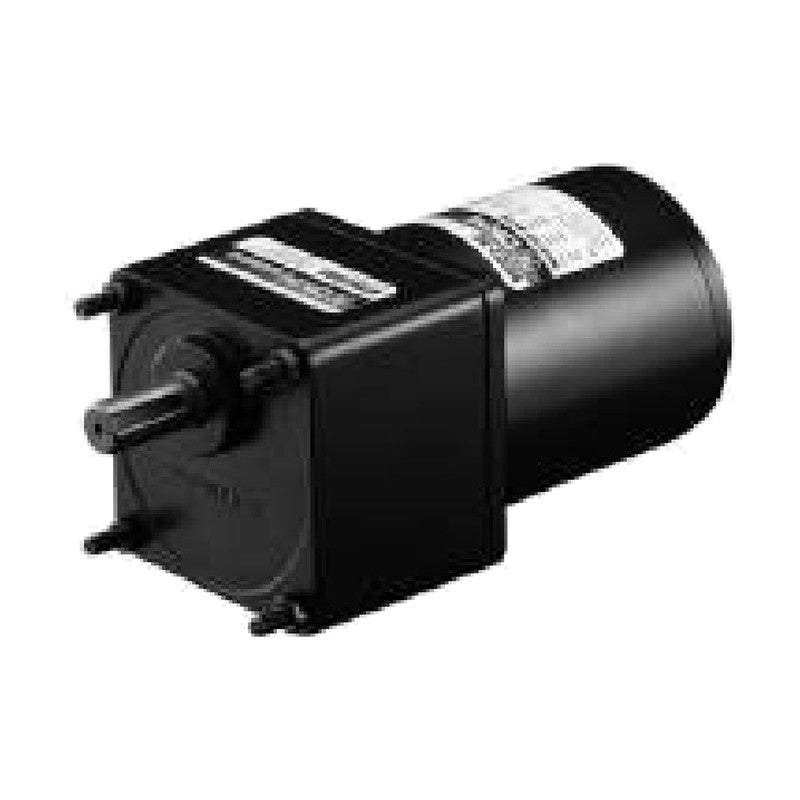

DKM 6SRD Speed Control Reversible Motor, 6 W, □60 mm Frame

DKM 6SRD Speed Control Reversible Motor, 6 W, □60 mm Frame

Single-phase AC speed control reversible motor with built-in tachogenerator and simple brake mechanism, for variable-speed operation with frequent direction changes.

Key features

  • Built-in simple brake mechanism keeps overrun small; suited to frequent direction changes
  • Built-in tachogenerator (T.G) for speed feedback with DKM speed controllers
  • Speed range 90-1400 r/min (50 Hz) / 90-1700 r/min (60 Hz)
  • Available in connector type (-C) and lead wire type (-L)

Specifications

Output 6 W
Frame size 60 mm square
Poles 4
Phase Single-phase AC
Voltage codes 1 = 1-phase 110 V 60 Hz; A = 1-phase 110 V 60 Hz, thermal protector; B = 1-phase 100 V 50/60 Hz, thermal protector; C = 1-phase 200 V 50/60 Hz, thermal protector; 2 = 1-phase 220 V 60 Hz; D = 1-phase 220 V 60 Hz, thermal protector; E = 1-phase 220-240 V 50 Hz, thermal protector
Rating Continuous
Speed range 90-1400 r/min (50 Hz) / 90-1700 r/min (60 Hz)
Starting torque 0.032-0.04 N·m
Permissible torque at 1200 r/min 0.047-0.056 N·m
Permissible torque at 90 r/min 0.031-0.039 N·m
Capacitor 1/A: 3.0 µF/250 VAC; B: 3.5 µF/250 VAC; C: 1.0 µF/450 VAC; 2/D: 1.0 µF/450 VAC; E: 1.0 µF/450 VAC
Overheat protection Impedance protected
6SRDG-6G Shaft: gear type pinion | For gearbox: 6GBD□MH (general box) | Voltage codes: 1/A/B/C/2/D/E | Order as: 6SRDG[voltage code]-6G + -C (connector) or -L (lead wire)
6SRDD-6 Shaft: D-cut shaft (motor only) | Voltage codes: 1/A/B/C/2/D/E | Order as: 6SRDD[voltage code]-6 + -C (connector) or -L (lead wire)
Speed Control MotorsDKM
2 product codes available in this family
Sourced direct from KoreaExport-ready supplyCompetitive pricing
RFQ List 0 Email about this

Need a different model, or a part not listed here? Send us your parts list →

DKM 6SRD Speed Control Reversible Motor, 6 W, □60 mm Frame

Brand DKM·Speed Control Motors

Available part numbers (2)

6SRDG-6G, 6SRDD-6

How to order

Send the DKM part numbers and quantities through our RFQ form or to info@prosourcemro.com. We confirm price, availability and lead time within 1 business day — no account needed.

RFQ List 0 →
View full details
Product codes & specifications
0 selected
RFQ List (0)
Product codeSpec
6SRDG-6GShaft: gear type pinion | For gearbox: 6GBD□MH (general box) | Voltage codes: 1/A/B/C/2/D/E | Order as: 6SRDG[voltage code]-6G + -C (connector) or -L (lead wire)
6SRDD-6Shaft: D-cut shaft (motor only) | Voltage codes: 1/A/B/C/2/D/E | Order as: 6SRDD[voltage code]-6 + -C (connector) or -L (lead wire)
