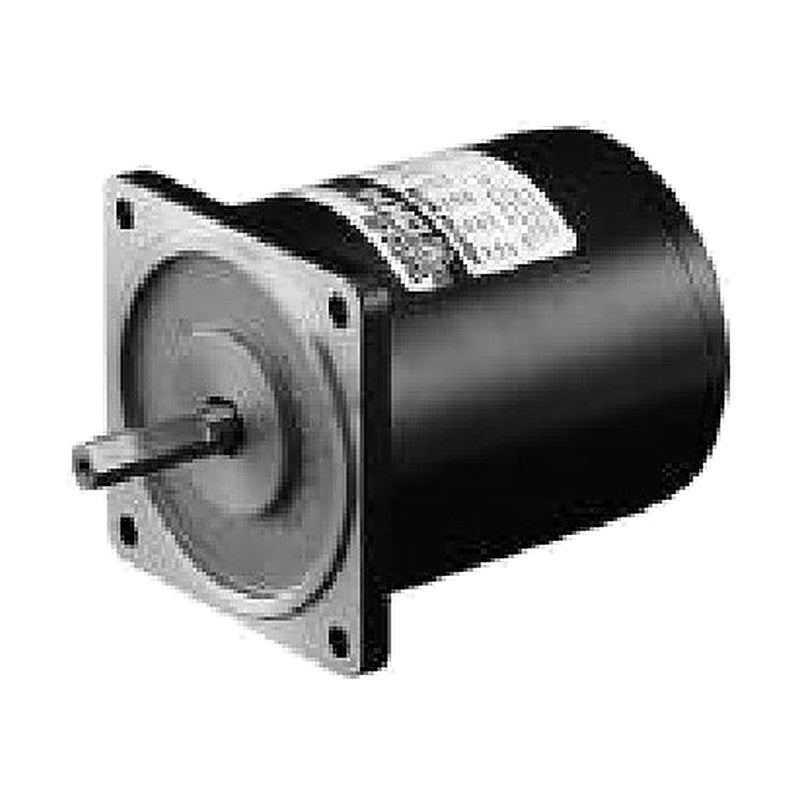

DKM 7ID-10 Induction Motor 10W, 70 mm Frame

DKM 7ID-10 Induction Motor 10W, 70 mm Frame

10 W single-phase AC induction motor with 70 mm square frame for unidirectional continuous operation such as conveyors; D-cut or gear-type (pinion) output shaft for DKM gearboxes.

Key features

  • Suitable for unidirectional continuous operation such as conveyor systems
  • Single-phase capacitor-run and three-phase versions
  • Three-phase versions offer higher starting torque and can run directly from a three-phase supply
  • Gear-type shaft models combine with DKM gearboxes; D-cut and key shaft models are for use as a motor only

Specifications

Output 10 W
Frame size 70 mm square
Poles 4
Duty Continuous
Rated speed 1200 / 1250 / 1550 r/min (depends on voltage/frequency)
Rated torque 0.063-0.081 N·m
Starting torque 0.058-0.078 N·m
Shaft options D-cut, gear type (G)
Connection Lead wire or terminal box (-T)
Matching gearboxes 7GBK□BMH (□ = gear ratio)
Insulation class Class B (130 °C)
Insulation resistance 100 MΩ min. at 500 VDC megger (windings to frame)
DKM 7ID-10 Induction Motor 10W, 70 mm Frame
7IDD1-10 Power supply: 1ø AC 110 V, 60 Hz | Rated speed: 1550 r/min | Rated torque: 0.063 N·m | Rated current: 0.29 A | Starting torque: 0.058 N·m | Capacitor: 3.0 µF / 250 VAC | Output shaft: D-cut (motor only) | Variants: thermal-protector version 7IDDA-10; terminal-box version 7IDD1-10-T
7IDG1-10G Power supply: 1ø AC 110 V, 60 Hz | Rated speed: 1550 r/min | Rated torque: 0.063 N·m | Rated current: 0.29 A | Starting torque: 0.058 N·m | Capacitor: 3.0 µF / 250 VAC | Output shaft: Gear type (G) for general box-type gearbox | Variants: thermal-protector version 7IDGA-10G; terminal-box version 7IDG1-10G-T
7IDDB-10 Power supply: 1ø AC 100 V, 50/60 Hz | Rated speed: 1200 / 1550 r/min | Rated torque: 0.063-0.081 N·m | Rated current: 0.27-0.31 A | Starting torque: 0.065-0.068 N·m | Capacitor: 3.5 µF / 250 VAC | Output shaft: D-cut (motor only) | Variants: terminal-box version 7IDDB-10-T
7IDGB-10G Power supply: 1ø AC 100 V, 50/60 Hz | Rated speed: 1200 / 1550 r/min | Rated torque: 0.063-0.081 N·m | Rated current: 0.27-0.31 A | Starting torque: 0.065-0.068 N·m | Capacitor: 3.5 µF / 250 VAC | Output shaft: Gear type (G) for general box-type gearbox | Variants: terminal-box version 7IDGB-10G-T
7IDDC-10 Power supply: 1ø AC 200 V, 50/60 Hz | Rated speed: 1250 / 1550 r/min | Rated torque: 0.063-0.078 N·m | Rated current: 0.16-0.18 A | Starting torque: 0.066-0.069 N·m | Capacitor: 1.0 µF / 450 VAC | Output shaft: D-cut (motor only) | Variants: terminal-box version 7IDDC-10-T
7IDGC-10G Power supply: 1ø AC 200 V, 50/60 Hz | Rated speed: 1250 / 1550 r/min | Rated torque: 0.063-0.078 N·m | Rated current: 0.16-0.18 A | Starting torque: 0.066-0.069 N·m | Capacitor: 1.0 µF / 450 VAC | Output shaft: Gear type (G) for general box-type gearbox | Variants: terminal-box version 7IDGC-10G-T
7IDD2-10 Power supply: 1ø AC 220 V, 60 Hz | Rated speed: 1550 r/min | Rated torque: 0.063 N·m | Rated current: 0.18 A | Starting torque: 0.078 N·m | Capacitor: 1.0 µF / 450 VAC | Output shaft: D-cut (motor only) | Variants: thermal-protector version 7IDDD-10; terminal-box version 7IDD2-10-T
7IDG2-10G Power supply: 1ø AC 220 V, 60 Hz | Rated speed: 1550 r/min | Rated torque: 0.063 N·m | Rated current: 0.18 A | Starting torque: 0.078 N·m | Capacitor: 1.0 µF / 450 VAC | Output shaft: Gear type (G) for general box-type gearbox | Variants: thermal-protector version 7IDGD-10G; terminal-box version 7IDG2-10G-T
7IDDE-10 Power supply: 1ø AC 220 / 240 V, 50 Hz | Rated speed: 1200 r/min | Rated torque: 0.081 N·m | Rated current: 0.16-0.18 A | Starting torque: 0.063-0.076 N·m | Capacitor: 0.8 µF / 450 VAC | Output shaft: D-cut (motor only) | Variants: terminal-box version 7IDDE-10-T
7IDGE-10G Power supply: 1ø AC 220 / 240 V, 50 Hz | Rated speed: 1200 r/min | Rated torque: 0.081 N·m | Rated current: 0.16-0.18 A | Starting torque: 0.063-0.076 N·m | Capacitor: 0.8 µF / 450 VAC | Output shaft: Gear type (G) for general box-type gearbox | Variants: terminal-box version 7IDGE-10G-T
AC Induction MotorsDKM
10 product codes available in this family
Sourced direct from KoreaExport-ready supplyCompetitive pricing
RFQ List 0 Email about this

Need a different model, or a part not listed here? Send us your parts list →

DKM 7ID-10 Induction Motor 10W, 70 mm Frame

Brand DKM·AC Induction Motors

Available part numbers (10)

7IDD1-10, 7IDG1-10G, 7IDDB-10, 7IDGB-10G, 7IDDC-10, 7IDGC-10G, 7IDD2-10, 7IDG2-10G, 7IDDE-10, 7IDGE-10G

How to order

Send the DKM part numbers and quantities through our RFQ form or to info@prosourcemro.com. We confirm price, availability and lead time within 1 business day — no account needed.

RFQ List 0 →
View full details
Product codes & specifications
DKM 7ID-10 Induction Motor 10W, 70 mm Frame
0 selected
RFQ List (0)
Product codeSpec
7IDD1-10Power supply: 1ø AC 110 V, 60 Hz | Rated speed: 1550 r/min | Rated torque: 0.063 N·m | Rated current: 0.29 A | Starting torque: 0.058 N·m | Capacitor: 3.0 µF / 250 VAC | Output shaft: D-cut (motor only) | Variants: thermal-protector version 7IDDA-10; terminal-box version 7IDD1-10-T
7IDG1-10GPower supply: 1ø AC 110 V, 60 Hz | Rated speed: 1550 r/min | Rated torque: 0.063 N·m | Rated current: 0.29 A | Starting torque: 0.058 N·m | Capacitor: 3.0 µF / 250 VAC | Output shaft: Gear type (G) for general box-type gearbox | Variants: thermal-protector version 7IDGA-10G; terminal-box version 7IDG1-10G-T
7IDDB-10Power supply: 1ø AC 100 V, 50/60 Hz | Rated speed: 1200 / 1550 r/min | Rated torque: 0.063-0.081 N·m | Rated current: 0.27-0.31 A | Starting torque: 0.065-0.068 N·m | Capacitor: 3.5 µF / 250 VAC | Output shaft: D-cut (motor only) | Variants: terminal-box version 7IDDB-10-T
7IDGB-10GPower supply: 1ø AC 100 V, 50/60 Hz | Rated speed: 1200 / 1550 r/min | Rated torque: 0.063-0.081 N·m | Rated current: 0.27-0.31 A | Starting torque: 0.065-0.068 N·m | Capacitor: 3.5 µF / 250 VAC | Output shaft: Gear type (G) for general box-type gearbox | Variants: terminal-box version 7IDGB-10G-T
7IDDC-10Power supply: 1ø AC 200 V, 50/60 Hz | Rated speed: 1250 / 1550 r/min | Rated torque: 0.063-0.078 N·m | Rated current: 0.16-0.18 A | Starting torque: 0.066-0.069 N·m | Capacitor: 1.0 µF / 450 VAC | Output shaft: D-cut (motor only) | Variants: terminal-box version 7IDDC-10-T
7IDGC-10GPower supply: 1ø AC 200 V, 50/60 Hz | Rated speed: 1250 / 1550 r/min | Rated torque: 0.063-0.078 N·m | Rated current: 0.16-0.18 A | Starting torque: 0.066-0.069 N·m | Capacitor: 1.0 µF / 450 VAC | Output shaft: Gear type (G) for general box-type gearbox | Variants: terminal-box version 7IDGC-10G-T
7IDD2-10Power supply: 1ø AC 220 V, 60 Hz | Rated speed: 1550 r/min | Rated torque: 0.063 N·m | Rated current: 0.18 A | Starting torque: 0.078 N·m | Capacitor: 1.0 µF / 450 VAC | Output shaft: D-cut (motor only) | Variants: thermal-protector version 7IDDD-10; terminal-box version 7IDD2-10-T
7IDG2-10GPower supply: 1ø AC 220 V, 60 Hz | Rated speed: 1550 r/min | Rated torque: 0.063 N·m | Rated current: 0.18 A | Starting torque: 0.078 N·m | Capacitor: 1.0 µF / 450 VAC | Output shaft: Gear type (G) for general box-type gearbox | Variants: thermal-protector version 7IDGD-10G; terminal-box version 7IDG2-10G-T
7IDDE-10Power supply: 1ø AC 220 / 240 V, 50 Hz | Rated speed: 1200 r/min | Rated torque: 0.081 N·m | Rated current: 0.16-0.18 A | Starting torque: 0.063-0.076 N·m | Capacitor: 0.8 µF / 450 VAC | Output shaft: D-cut (motor only) | Variants: terminal-box version 7IDDE-10-T
7IDGE-10GPower supply: 1ø AC 220 / 240 V, 50 Hz | Rated speed: 1200 r/min | Rated torque: 0.081 N·m | Rated current: 0.16-0.18 A | Starting torque: 0.063-0.076 N·m | Capacitor: 0.8 µF / 450 VAC | Output shaft: Gear type (G) for general box-type gearbox | Variants: terminal-box version 7IDGE-10G-T
