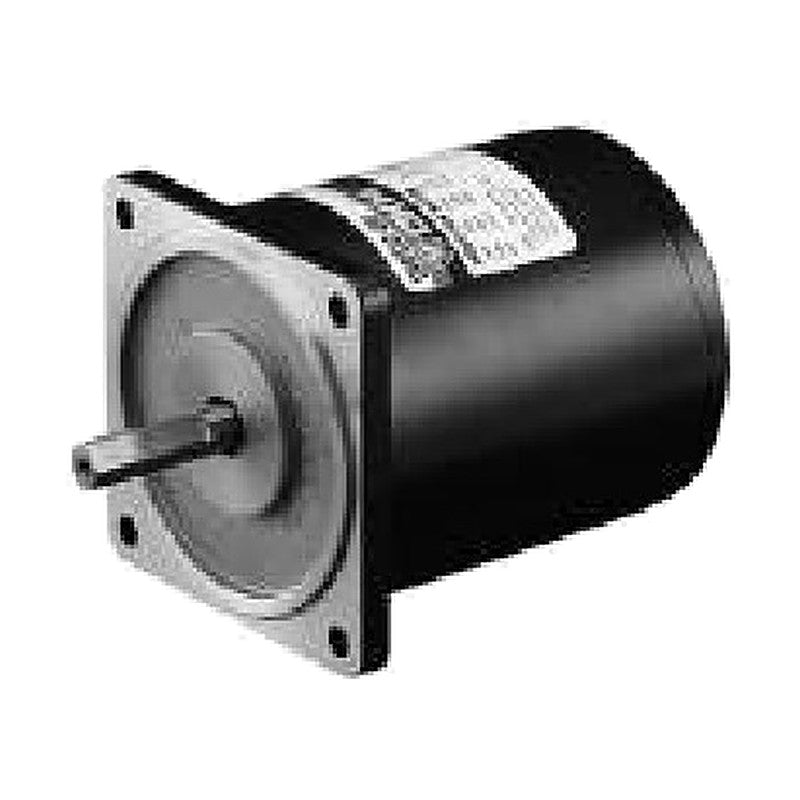

DKM 7ID-6 Induction Motor 6W, 70 mm Frame

DKM 7ID-6 Induction Motor 6W, 70 mm Frame

6 W single-phase AC induction motor with 70 mm square frame for unidirectional continuous operation such as conveyors; D-cut or gear-type (pinion) output shaft for DKM gearboxes.

Key features

  • Suitable for unidirectional continuous operation such as conveyor systems
  • Single-phase capacitor-run and three-phase versions
  • Three-phase versions offer higher starting torque and can run directly from a three-phase supply
  • Gear-type shaft models combine with DKM gearboxes; D-cut and key shaft models are for use as a motor only

Specifications

Output 6 W
Frame size 70 mm square
Poles 4
Duty Continuous
Rated speed 1300 / 1600 r/min (depends on voltage/frequency)
Rated torque 0.037-0.045 N·m
Starting torque 0.049-0.067 N·m
Shaft options D-cut, gear type (G)
Connection Lead wire or terminal box (-T)
Matching gearboxes 7GBK□BMH (□ = gear ratio)
Insulation class Class B (130 °C)
Insulation resistance 100 MΩ min. at 500 VDC megger (windings to frame)
DKM 7ID-6 Induction Motor 6W, 70 mm Frame
7IDD1-6 Power supply: 1ø AC 110 V, 60 Hz | Rated speed: 1600 r/min | Rated torque: 0.037 N·m | Rated current: 0.26 A | Starting torque: 0.05 N·m | Capacitor: 2.5 µF / 250 VAC | Output shaft: D-cut (motor only) | Variants: thermal-protector version 7IDDA-6; terminal-box version 7IDD1-6-T
7IDG1-6G Power supply: 1ø AC 110 V, 60 Hz | Rated speed: 1600 r/min | Rated torque: 0.037 N·m | Rated current: 0.26 A | Starting torque: 0.05 N·m | Capacitor: 2.5 µF / 250 VAC | Output shaft: Gear type (G) for general box-type gearbox | Variants: thermal-protector version 7IDGA-6G; terminal-box version 7IDG1-6G-T
7IDDB-6 Power supply: 1ø AC 100 V, 50/60 Hz | Rated speed: 1300 / 1600 r/min | Rated torque: 0.037-0.045 N·m | Rated current: 0.24-0.28 A | Starting torque: 0.052-0.055 N·m | Capacitor: 3.0 µF / 250 VAC | Output shaft: D-cut (motor only) | Variants: terminal-box version 7IDDB-6-T
7IDGB-6G Power supply: 1ø AC 100 V, 50/60 Hz | Rated speed: 1300 / 1600 r/min | Rated torque: 0.037-0.045 N·m | Rated current: 0.24-0.28 A | Starting torque: 0.052-0.055 N·m | Capacitor: 3.0 µF / 250 VAC | Output shaft: Gear type (G) for general box-type gearbox | Variants: terminal-box version 7IDGB-6G-T
7IDDC-6 Power supply: 1ø AC 200 V, 50/60 Hz | Rated speed: 1300 / 1600 r/min | Rated torque: 0.037-0.045 N·m | Rated current: 0.14-0.17 A | Starting torque: 0.049-0.053 N·m | Capacitor: 0.8 µF / 450 VAC | Output shaft: D-cut (motor only) | Variants: terminal-box version 7IDDC-6-T
7IDGC-6G Power supply: 1ø AC 200 V, 50/60 Hz | Rated speed: 1300 / 1600 r/min | Rated torque: 0.037-0.045 N·m | Rated current: 0.14-0.17 A | Starting torque: 0.049-0.053 N·m | Capacitor: 0.8 µF / 450 VAC | Output shaft: Gear type (G) for general box-type gearbox | Variants: terminal-box version 7IDGC-6G-T
7IDD2-6 Power supply: 1ø AC 220 V, 60 Hz | Rated speed: 1600 r/min | Rated torque: 0.037 N·m | Rated current: 0.15 A | Starting torque: 0.052 N·m | Capacitor: 0.7 µF / 450 VAC | Output shaft: D-cut (motor only) | Variants: thermal-protector version 7IDDD-6; terminal-box version 7IDD2-6-T
7IDG2-6G Power supply: 1ø AC 220 V, 60 Hz | Rated speed: 1600 r/min | Rated torque: 0.037 N·m | Rated current: 0.15 A | Starting torque: 0.052 N·m | Capacitor: 0.7 µF / 450 VAC | Output shaft: Gear type (G) for general box-type gearbox | Variants: thermal-protector version 7IDGD-6G; terminal-box version 7IDG2-6G-T
7IDDE-6 Power supply: 1ø AC 220 / 240 V, 50 Hz | Rated speed: 1300 r/min | Rated torque: 0.045 N·m | Rated current: 0.14-0.16 A | Starting torque: 0.056-0.067 N·m | Capacitor: 0.7 µF / 450 VAC | Output shaft: D-cut (motor only) | Variants: terminal-box version 7IDDE-6-T
7IDGE-6G Power supply: 1ø AC 220 / 240 V, 50 Hz | Rated speed: 1300 r/min | Rated torque: 0.045 N·m | Rated current: 0.14-0.16 A | Starting torque: 0.056-0.067 N·m | Capacitor: 0.7 µF / 450 VAC | Output shaft: Gear type (G) for general box-type gearbox | Variants: terminal-box version 7IDGE-6G-T
AC Induction MotorsDKM
10 product codes available in this family
Sourced direct from KoreaExport-ready supplyCompetitive pricing
RFQ List 0 Email about this

Need a different model, or a part not listed here? Send us your parts list →

DKM 7ID-6 Induction Motor 6W, 70 mm Frame

Brand DKM·AC Induction Motors

Available part numbers (10)

7IDD1-6, 7IDG1-6G, 7IDDB-6, 7IDGB-6G, 7IDDC-6, 7IDGC-6G, 7IDD2-6, 7IDG2-6G, 7IDDE-6, 7IDGE-6G

How to order

Send the DKM part numbers and quantities through our RFQ form or to info@prosourcemro.com. We confirm price, availability and lead time within 1 business day — no account needed.
