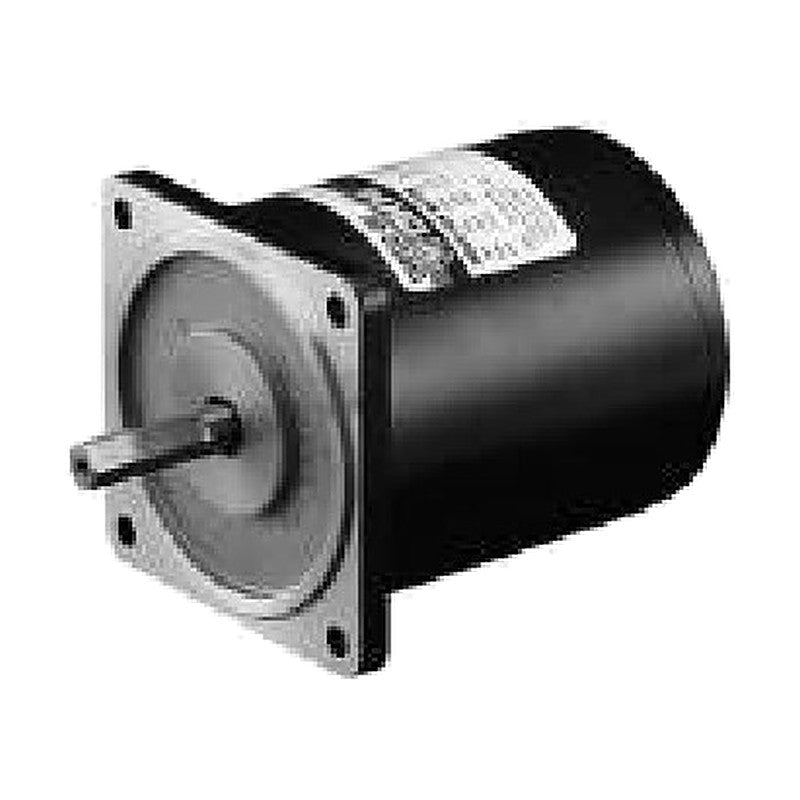

DKM 7RD-10 Reversible Motor 10W, 70 mm Frame

DKM 7RD-10 Reversible Motor 10W, 70 mm Frame

10 W single-phase reversible motor with 70 mm square frame, designed for frequent forward/reverse switching, with built-in friction brake; D-cut or gear-type (pinion) output shaft for DKM gearboxes.

Key features

  • Designed for applications that require frequent changes of direction
  • Capacitor-run single-phase motor with higher starting torque than an induction motor
  • Built-in simple friction brake (approx. 10% of motor output) reduces overrun and improves instant reversing
  • Rated time 30 minutes; longer operation possible with intermittent duty
  • Gear-type shaft models combine with DKM gearboxes

Specifications

Output 10 W
Frame size 70 mm square
Poles 4
Duty 30 minutes (short-time rating)
Rated speed 1200 / 1250 / 1550 r/min (depends on voltage/frequency)
Rated torque 0.063-0.081 N·m
Starting torque 0.07-0.094 N·m
Shaft options D-cut, gear type (G)
Connection Lead wire or terminal box (-T)
Matching gearboxes 7GBK□BMH (□ = gear ratio)
Built-in brake Friction brake, approx. 10% of motor output
Insulation class Class B (130 °C)
DKM 7RD-10 Reversible Motor 10W, 70 mm Frame
7RDD1-10 Power supply: 1ø AC 110 V, 60 Hz | Rated speed: 1550 r/min | Rated torque: 0.063 N·m | Rated current: 0.31 A | Starting torque: 0.07 N·m | Capacitor: 3.5 µF / 250 VAC | Output shaft: D-cut (motor only) | Variants: thermal-protector version 7RDDA-10; terminal-box version 7RDD1-10-T
7RDG1-10G Power supply: 1ø AC 110 V, 60 Hz | Rated speed: 1550 r/min | Rated torque: 0.063 N·m | Rated current: 0.31 A | Starting torque: 0.07 N·m | Capacitor: 3.5 µF / 250 VAC | Output shaft: Gear type (G) for general box-type gearbox | Variants: thermal-protector version 7RDGA-10G; terminal-box version 7RDG1-10G-T
7RDDB-10 Power supply: 1ø AC 100 V, 50/60 Hz | Rated speed: 1200 / 1550 r/min | Rated torque: 0.063-0.081 N·m | Rated current: 0.34 A | Starting torque: 0.091-0.092 N·m | Capacitor: 5.0 µF / 250 VAC | Output shaft: D-cut (motor only) | Variants: terminal-box version 7RDDB-10-T
7RDGB-10G Power supply: 1ø AC 100 V, 50/60 Hz | Rated speed: 1200 / 1550 r/min | Rated torque: 0.063-0.081 N·m | Rated current: 0.34 A | Starting torque: 0.091-0.092 N·m | Capacitor: 5.0 µF / 250 VAC | Output shaft: Gear type (G) for general box-type gearbox | Variants: terminal-box version 7RDGB-10G-T
7RDDC-10 Power supply: 1ø AC 200 V, 50/60 Hz | Rated speed: 1250 / 1550 r/min | Rated torque: 0.063-0.078 N·m | Rated current: 0.18 A | Starting torque: 0.078-0.08 N·m | Capacitor: 1.2 µF / 450 VAC | Output shaft: D-cut (motor only) | Variants: terminal-box version 7RDDC-10-T
7RDGC-10G Power supply: 1ø AC 200 V, 50/60 Hz | Rated speed: 1250 / 1550 r/min | Rated torque: 0.063-0.078 N·m | Rated current: 0.18 A | Starting torque: 0.078-0.08 N·m | Capacitor: 1.2 µF / 450 VAC | Output shaft: Gear type (G) for general box-type gearbox | Variants: terminal-box version 7RDGC-10G-T
7RDD2-10 Power supply: 1ø AC 220 V, 60 Hz | Rated speed: 1550 r/min | Rated torque: 0.063 N·m | Rated current: 0.2 A | Starting torque: 0.092 N·m | Capacitor: 1.2 µF / 450 VAC | Output shaft: D-cut (motor only) | Variants: thermal-protector version 7RDDD-10; terminal-box version 7RDD2-10-T
7RDG2-10G Power supply: 1ø AC 220 V, 60 Hz | Rated speed: 1550 r/min | Rated torque: 0.063 N·m | Rated current: 0.2 A | Starting torque: 0.092 N·m | Capacitor: 1.2 µF / 450 VAC | Output shaft: Gear type (G) for general box-type gearbox | Variants: thermal-protector version 7RDGD-10G; terminal-box version 7RDG2-10G-T
7RDDE-10 Power supply: 1ø AC 220 / 240 V, 50 Hz | Rated speed: 1200 r/min | Rated torque: 0.081 N·m | Rated current: 0.17-0.18 A | Starting torque: 0.078-0.094 N·m | Capacitor: 1.0 µF / 450 VAC | Output shaft: D-cut (motor only) | Variants: terminal-box version 7RDDE-10-T
7RDGE-10G Power supply: 1ø AC 220 / 240 V, 50 Hz | Rated speed: 1200 r/min | Rated torque: 0.081 N·m | Rated current: 0.17-0.18 A | Starting torque: 0.078-0.094 N·m | Capacitor: 1.0 µF / 450 VAC | Output shaft: Gear type (G) for general box-type gearbox | Variants: terminal-box version 7RDGE-10G-T
AC Reversible MotorsDKM
10 product codes available in this family
Sourced direct from KoreaExport-ready supplyCompetitive pricing
RFQ List 0 Email about this

Need a different model, or a part not listed here? Send us your parts list →

DKM 7RD-10 Reversible Motor 10W, 70 mm Frame

Brand DKM·AC Reversible Motors

Available part numbers (10)

7RDD1-10, 7RDG1-10G, 7RDDB-10, 7RDGB-10G, 7RDDC-10, 7RDGC-10G, 7RDD2-10, 7RDG2-10G, 7RDDE-10, 7RDGE-10G

How to order

Send the DKM part numbers and quantities through our RFQ form or to info@prosourcemro.com. We confirm price, availability and lead time within 1 business day — no account needed.

RFQ List 0 →
View full details
Product codes & specifications
DKM 7RD-10 Reversible Motor 10W, 70 mm Frame
0 selected
RFQ List (0)
Product codeSpec
7RDD1-10Power supply: 1ø AC 110 V, 60 Hz | Rated speed: 1550 r/min | Rated torque: 0.063 N·m | Rated current: 0.31 A | Starting torque: 0.07 N·m | Capacitor: 3.5 µF / 250 VAC | Output shaft: D-cut (motor only) | Variants: thermal-protector version 7RDDA-10; terminal-box version 7RDD1-10-T
7RDG1-10GPower supply: 1ø AC 110 V, 60 Hz | Rated speed: 1550 r/min | Rated torque: 0.063 N·m | Rated current: 0.31 A | Starting torque: 0.07 N·m | Capacitor: 3.5 µF / 250 VAC | Output shaft: Gear type (G) for general box-type gearbox | Variants: thermal-protector version 7RDGA-10G; terminal-box version 7RDG1-10G-T
7RDDB-10Power supply: 1ø AC 100 V, 50/60 Hz | Rated speed: 1200 / 1550 r/min | Rated torque: 0.063-0.081 N·m | Rated current: 0.34 A | Starting torque: 0.091-0.092 N·m | Capacitor: 5.0 µF / 250 VAC | Output shaft: D-cut (motor only) | Variants: terminal-box version 7RDDB-10-T
7RDGB-10GPower supply: 1ø AC 100 V, 50/60 Hz | Rated speed: 1200 / 1550 r/min | Rated torque: 0.063-0.081 N·m | Rated current: 0.34 A | Starting torque: 0.091-0.092 N·m | Capacitor: 5.0 µF / 250 VAC | Output shaft: Gear type (G) for general box-type gearbox | Variants: terminal-box version 7RDGB-10G-T
7RDDC-10Power supply: 1ø AC 200 V, 50/60 Hz | Rated speed: 1250 / 1550 r/min | Rated torque: 0.063-0.078 N·m | Rated current: 0.18 A | Starting torque: 0.078-0.08 N·m | Capacitor: 1.2 µF / 450 VAC | Output shaft: D-cut (motor only) | Variants: terminal-box version 7RDDC-10-T
7RDGC-10GPower supply: 1ø AC 200 V, 50/60 Hz | Rated speed: 1250 / 1550 r/min | Rated torque: 0.063-0.078 N·m | Rated current: 0.18 A | Starting torque: 0.078-0.08 N·m | Capacitor: 1.2 µF / 450 VAC | Output shaft: Gear type (G) for general box-type gearbox | Variants: terminal-box version 7RDGC-10G-T
7RDD2-10Power supply: 1ø AC 220 V, 60 Hz | Rated speed: 1550 r/min | Rated torque: 0.063 N·m | Rated current: 0.2 A | Starting torque: 0.092 N·m | Capacitor: 1.2 µF / 450 VAC | Output shaft: D-cut (motor only) | Variants: thermal-protector version 7RDDD-10; terminal-box version 7RDD2-10-T
7RDG2-10GPower supply: 1ø AC 220 V, 60 Hz | Rated speed: 1550 r/min | Rated torque: 0.063 N·m | Rated current: 0.2 A | Starting torque: 0.092 N·m | Capacitor: 1.2 µF / 450 VAC | Output shaft: Gear type (G) for general box-type gearbox | Variants: thermal-protector version 7RDGD-10G; terminal-box version 7RDG2-10G-T
7RDDE-10Power supply: 1ø AC 220 / 240 V, 50 Hz | Rated speed: 1200 r/min | Rated torque: 0.081 N·m | Rated current: 0.17-0.18 A | Starting torque: 0.078-0.094 N·m | Capacitor: 1.0 µF / 450 VAC | Output shaft: D-cut (motor only) | Variants: terminal-box version 7RDDE-10-T
7RDGE-10GPower supply: 1ø AC 220 / 240 V, 50 Hz | Rated speed: 1200 r/min | Rated torque: 0.081 N·m | Rated current: 0.17-0.18 A | Starting torque: 0.078-0.094 N·m | Capacitor: 1.0 µF / 450 VAC | Output shaft: Gear type (G) for general box-type gearbox | Variants: terminal-box version 7RDGE-10G-T
