DKM 7TD-6 Torque Motor 6W, 70 mm Frame

DKM 7TD-6 Torque Motor 6W, 70 mm Frame

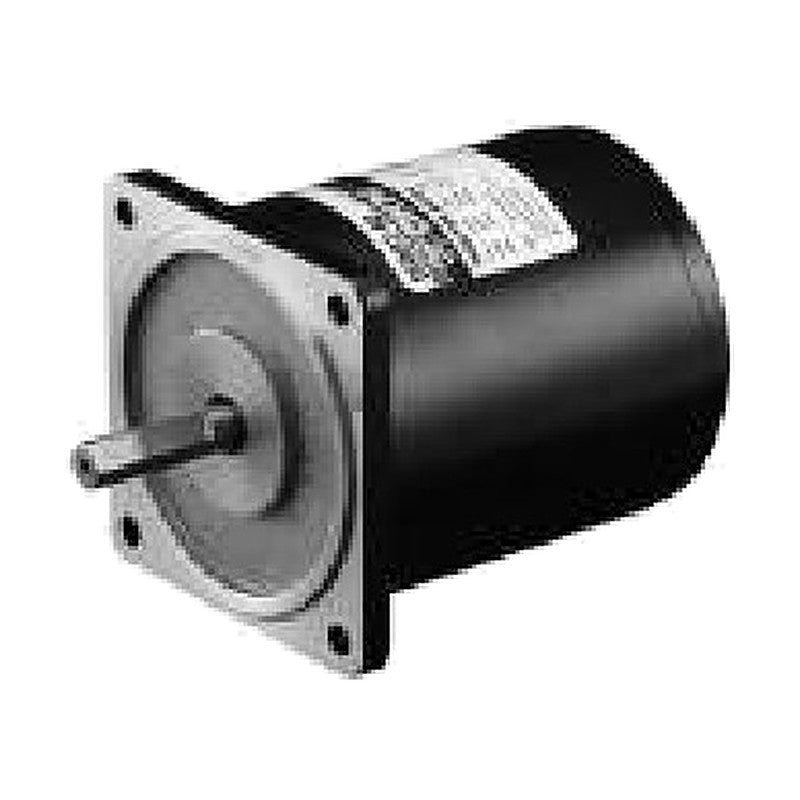

6 W single-phase AC torque motor with 70 mm square frame and sloping speed-torque characteristic, for winding/tension, pushing and locked-rotor applications; D-cut or gear-type (pinion) output shaft for DKM gearboxes.

Key features

  • Torque is highest at zero speed and decreases steadily as speed increases
  • Speed and torque can be varied easily by changing the supply voltage (e.g. with a torque controller)
  • Stable torque even under stall (locked-rotor) or very low-speed conditions
  • Suitable for constant-tension winding applications and as a brake
  • Gear-type shaft models combine with DKM gearboxes

Specifications

Output 6 W
Frame size 70 mm square
Poles 4
Duty 5 minutes at locked rotor (rated voltage); continuous at reduced voltage
Speed at max. output 750 / 900 r/min (depends on voltage/frequency)
Starting torque 0.033-0.105 N·m
Shaft options D-cut, gear type (G)
Connection Connector type (-C) or lead wire (-L)
Matching gearboxes 7GBK□BMH (□ = gear ratio)
Insulation class Class B (130 °C)
Insulation resistance 100 MΩ min. at 500 VDC megger (windings to frame)
Dielectric strength 1.5 kV at 50/60 Hz for 1 minute
DKM 7TD-6 Torque Motor 6W, 70 mm Frame
7TDD1-6-C Power supply: 1ø AC 110 V 60 Hz (continuous rating at 60 V) | Speed at max. output: 900 r/min | Torque at max. output: 0.022-0.065 N·m | Current at max. output: 0.38-0.51 A | Starting torque: 0.033-0.096 N·m | Capacitor: 6.0 µF / 250 VAC | Output shaft: D-cut (motor only) | Variants: thermal-protector version 7TDDA-6-C; lead-wire version 7TDD1-6-L
7TDG1-6G-C Power supply: 1ø AC 110 V 60 Hz (continuous rating at 60 V) | Speed at max. output: 900 r/min | Torque at max. output: 0.022-0.065 N·m | Current at max. output: 0.38-0.51 A | Starting torque: 0.033-0.096 N·m | Capacitor: 6.0 µF / 250 VAC | Output shaft: Gear type (G) for general box-type gearbox | Variants: thermal-protector version 7TDGA-6G-C; lead-wire version 7TDG1-6G-L
7TDD2-6-C Power supply: 1ø AC 220 V 60 Hz (continuous rating at 140 V) | Speed at max. output: 900 r/min | Torque at max. output: 0.022-0.065 N·m | Current at max. output: 0.18-0.24 A | Starting torque: 0.037-0.105 N·m | Capacitor: 1.5 µF / 450 VAC | Output shaft: D-cut (motor only) | Variants: thermal-protector version 7TDDD-6-C; lead-wire version 7TDD2-6-L
7TDG2-6G-C Power supply: 1ø AC 220 V 60 Hz (continuous rating at 140 V) | Speed at max. output: 900 r/min | Torque at max. output: 0.022-0.065 N·m | Current at max. output: 0.18-0.24 A | Starting torque: 0.037-0.105 N·m | Capacitor: 1.5 µF / 450 VAC | Output shaft: Gear type (G) for general box-type gearbox | Variants: thermal-protector version 7TDGD-6G-C; lead-wire version 7TDG2-6G-L
7TDDE-6-C Power supply: 1ø AC 220-240 V 50 Hz (continuous rating at 140 V) | Speed at max. output: 750 r/min | Torque at max. output: 0.026-0.078 N·m | Current at max. output: 0.15-0.22 A | Starting torque: 0.036-0.091 N·m | Capacitor: 1.5 µF / 450 VAC | Output shaft: D-cut (motor only) | Variants: lead-wire version 7TDDE-6-L
7TDGE-6G-C Power supply: 1ø AC 220-240 V 50 Hz (continuous rating at 140 V) | Speed at max. output: 750 r/min | Torque at max. output: 0.026-0.078 N·m | Current at max. output: 0.15-0.22 A | Starting torque: 0.036-0.091 N·m | Capacitor: 1.5 µF / 450 VAC | Output shaft: Gear type (G) for general box-type gearbox | Variants: lead-wire version 7TDGE-6G-L
