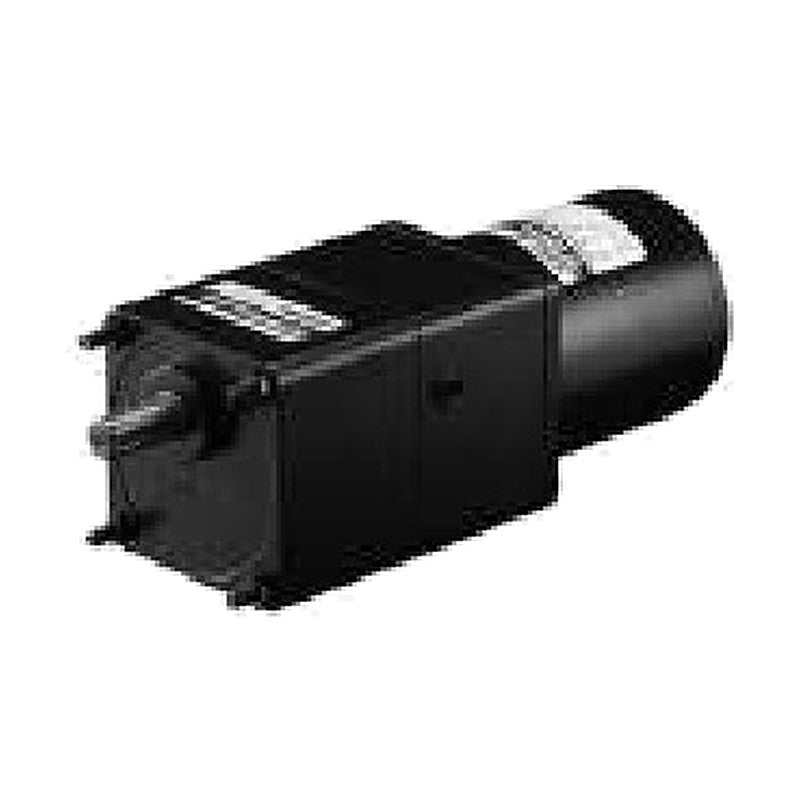

DKM 8CID-15 Clutch & Brake Motor 15W, 80 mm Frame

DKM 8CID-15 Clutch & Brake Motor 15W, 80 mm Frame

15 W single- and three-phase AC induction motor with built-in 24 VDC clutch & brake unit and 80 mm square frame, for frequent start/stop, positioning, indexing and incremental feeding; gear-type output shaft for direct mounting of a DKM gearbox.

Key features

  • Internal clutch & brake mechanism between a continuously running induction motor and the gearbox
  • Run/stop operation up to 100 times per minute
  • Output shaft stops without influence of motor inertia; motor keeps rotating
  • For unidirectional motion (not for frequent bi-directional start/stop)
  • Clutch and brake coils: 24 VDC

Specifications

Output 15 W
Frame size 80 mm square
Poles 4
Duty Continuous
Rated speed 1300 / 1350 / 1600 r/min (depends on voltage/frequency)
Rated torque 0.091-0.112 N·m
Starting torque 0.095-0.825 N·m
Shaft options Gear type (G) only
Connection Lead wire
Matching gearboxes 8GBK□BMH (□ = gear ratio)
Clutch/brake coil 24 VDC (clutch 0.354 A, brake 0.253 A)
Insulation class Class B (130 °C)
8CIDG1-15G Power supply: 1ø AC 110 V, 60 Hz | Rated speed: 1600 r/min | Rated torque: 0.091 N·m | Rated current: 0.54 A | Starting torque: 0.095 N·m | Capacitor: 3.5 µF / 250 VAC | Output shaft: Gear type (G) for general box-type gearbox | Variants: thermal-protector version 8CIDGA-15G
8CIDGB-15G Power supply: 1ø AC 100 V, 50/60 Hz | Rated speed: 1350 / 1600 r/min | Rated torque: 0.091-0.108 N·m | Rated current: 0.47-0.52 A | Starting torque: 0.11-0.115 N·m | Capacitor: 5.0 µF / 250 VAC | Output shaft: Gear type (G) for general box-type gearbox
8CIDGC-15G Power supply: 1ø AC 200 V, 50/60 Hz | Rated speed: 1350 / 1600 r/min | Rated torque: 0.091-0.108 N·m | Rated current: 0.22-0.23 A | Starting torque: 0.115-0.12 N·m | Capacitor: 1.2 µF / 450 VAC | Output shaft: Gear type (G) for general box-type gearbox
8CIDG2-15G Power supply: 1ø AC 220 V, 60 Hz | Rated speed: 1600 r/min | Rated torque: 0.091 N·m | Rated current: 0.23 A | Starting torque: 0.125 N·m | Capacitor: 1.2 µF / 450 VAC | Output shaft: Gear type (G) for general box-type gearbox | Variants: thermal-protector version 8CIDGD-15G
8CIDGE-15G Power supply: 1ø AC 220 / 240 V, 50 Hz | Rated speed: 1300 r/min | Rated torque: 0.112 N·m | Rated current: 0.23-0.25 A | Starting torque: 0.105-0.127 N·m | Capacitor: 1.0 µF / 450 VAC | Output shaft: Gear type (G) for general box-type gearbox
8CIDG3-15G Power supply: 3ø AC 220 / 230 V, 50/60 Hz | Rated speed: 1350 / 1600 r/min | Rated torque: 0.091-0.108 N·m | Rated current: 0.26-0.32 A | Starting torque: 0.615-0.825 N·m | Output shaft: Gear type (G) for general box-type gearbox | Variants: thermal-protector version 8CIDGG-15G
8CIDGJ-15G Power supply: 3ø AC 200 / 220 V, 50/60 Hz | Rated speed: 1350 / 1600 r/min | Rated torque: 0.091-0.108 N·m | Rated current: 0.25-0.29 A | Starting torque: 0.595-0.761 N·m | Output shaft: Gear type (G) for general box-type gearbox
8CIDG4-15G Power supply: 3ø AC 380 / 400 V, 50/60 Hz | Rated speed: 1350 / 1600 r/min | Rated torque: 0.091-0.108 N·m | Rated current: 0.11-0.13 A | Starting torque: 0.453-0.626 N·m | Output shaft: Gear type (G) for general box-type gearbox | Variants: thermal-protector version 8CIDGK-15G
8CIDG5-15G Power supply: 3ø AC 415 / 440 V, 50/60 Hz | Rated speed: 1350 / 1600 r/min | Rated torque: 0.091-0.108 N·m | Rated current: 0.12-0.15 A | Starting torque: 0.54-0.739 N·m | Output shaft: Gear type (G) for general box-type gearbox | Variants: thermal-protector version 8CIDGL-15G
AC Clutch & Brake MotorsDKM
9 product codes available in this family
Sourced direct from KoreaExport-ready supplyCompetitive pricing
RFQ List 0 Email about this

Need a different model, or a part not listed here? Send us your parts list →

DKM 8CID-15 Clutch & Brake Motor 15W, 80 mm Frame

Brand DKM·AC Clutch & Brake Motors

Available part numbers (9)

8CIDG1-15G, 8CIDGB-15G, 8CIDGC-15G, 8CIDG2-15G, 8CIDGE-15G, 8CIDG3-15G, 8CIDGJ-15G, 8CIDG4-15G, 8CIDG5-15G

How to order

Send the DKM part numbers and quantities through our RFQ form or to info@prosourcemro.com. We confirm price, availability and lead time within 1 business day — no account needed.

RFQ List 0 →
View full details
Product codes & specifications
0 selected
RFQ List (0)
Product codeSpec
8CIDG1-15GPower supply: 1ø AC 110 V, 60 Hz | Rated speed: 1600 r/min | Rated torque: 0.091 N·m | Rated current: 0.54 A | Starting torque: 0.095 N·m | Capacitor: 3.5 µF / 250 VAC | Output shaft: Gear type (G) for general box-type gearbox | Variants: thermal-protector version 8CIDGA-15G
8CIDGB-15GPower supply: 1ø AC 100 V, 50/60 Hz | Rated speed: 1350 / 1600 r/min | Rated torque: 0.091-0.108 N·m | Rated current: 0.47-0.52 A | Starting torque: 0.11-0.115 N·m | Capacitor: 5.0 µF / 250 VAC | Output shaft: Gear type (G) for general box-type gearbox
8CIDGC-15GPower supply: 1ø AC 200 V, 50/60 Hz | Rated speed: 1350 / 1600 r/min | Rated torque: 0.091-0.108 N·m | Rated current: 0.22-0.23 A | Starting torque: 0.115-0.12 N·m | Capacitor: 1.2 µF / 450 VAC | Output shaft: Gear type (G) for general box-type gearbox
8CIDG2-15GPower supply: 1ø AC 220 V, 60 Hz | Rated speed: 1600 r/min | Rated torque: 0.091 N·m | Rated current: 0.23 A | Starting torque: 0.125 N·m | Capacitor: 1.2 µF / 450 VAC | Output shaft: Gear type (G) for general box-type gearbox | Variants: thermal-protector version 8CIDGD-15G
8CIDGE-15GPower supply: 1ø AC 220 / 240 V, 50 Hz | Rated speed: 1300 r/min | Rated torque: 0.112 N·m | Rated current: 0.23-0.25 A | Starting torque: 0.105-0.127 N·m | Capacitor: 1.0 µF / 450 VAC | Output shaft: Gear type (G) for general box-type gearbox
8CIDG3-15GPower supply: 3ø AC 220 / 230 V, 50/60 Hz | Rated speed: 1350 / 1600 r/min | Rated torque: 0.091-0.108 N·m | Rated current: 0.26-0.32 A | Starting torque: 0.615-0.825 N·m | Output shaft: Gear type (G) for general box-type gearbox | Variants: thermal-protector version 8CIDGG-15G
8CIDGJ-15GPower supply: 3ø AC 200 / 220 V, 50/60 Hz | Rated speed: 1350 / 1600 r/min | Rated torque: 0.091-0.108 N·m | Rated current: 0.25-0.29 A | Starting torque: 0.595-0.761 N·m | Output shaft: Gear type (G) for general box-type gearbox
8CIDG4-15GPower supply: 3ø AC 380 / 400 V, 50/60 Hz | Rated speed: 1350 / 1600 r/min | Rated torque: 0.091-0.108 N·m | Rated current: 0.11-0.13 A | Starting torque: 0.453-0.626 N·m | Output shaft: Gear type (G) for general box-type gearbox | Variants: thermal-protector version 8CIDGK-15G
8CIDG5-15GPower supply: 3ø AC 415 / 440 V, 50/60 Hz | Rated speed: 1350 / 1600 r/min | Rated torque: 0.091-0.108 N·m | Rated current: 0.12-0.15 A | Starting torque: 0.54-0.739 N·m | Output shaft: Gear type (G) for general box-type gearbox | Variants: thermal-protector version 8CIDGL-15G
