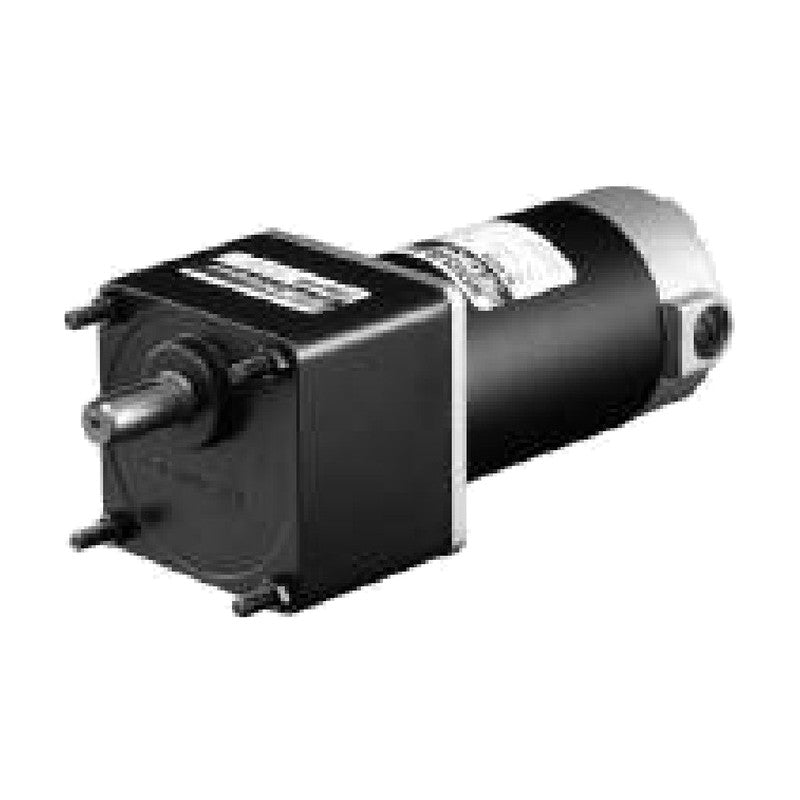

DKM 8DC DC Motor, 40 W, □80 mm Frame

DKM 8DC DC Motor, 40 W, □80 mm Frame

Permanent-magnet DC motor for 12 V, 24 V or 90 V supply, available with gear-type pinion for DKM gearboxes or with plain D-cut/key shaft.

Key features

  • Large starting torque and high efficiency
  • Easy speed control and direction reversal
  • Fast response to start and stop
  • Parallel and worm gearboxes can be attached (gear-type shaft)
  • 90 V models can be speed-controlled with the DKM DSD-90 controller

Specifications

Output 40 W
Frame size 80 mm square
Motor type Permanent-magnet DC motor
Voltage DC 12 V / 24 V / 90 V
Rated speed approx. 3000 r/min (2700-3000 r/min depending on voltage)
8DCG12-40-30 Voltage: DC 12 V | Shaft: Gear type pinion for general box gearbox | No-load speed: 3300 r/min | Rated speed: 3000 r/min | Rated current: 4.80 A | Rated torque: 0.130 N·m | Starting torque: 1.550 N·m
8DCG24-40-30 Voltage: DC 24 V | Shaft: Gear type pinion for general box gearbox | No-load speed: 3150 r/min | Rated speed: 3000 r/min | Rated current: 2.50 A | Rated torque: 0.130 N·m | Starting torque: 2.500 N·m
8DCG90-40-30 Voltage: DC 90 V | Shaft: Gear type pinion for general box gearbox | No-load speed: 3100 r/min | Rated speed: 3000 r/min | Rated current: 0.55 A | Rated torque: 0.130 N·m | Starting torque: 2.500 N·m
8DCW12-40-30 Voltage: DC 12 V | Shaft: Gear type pinion for worm solid gearbox WD□BL/BR/BRL | No-load speed: 3300 r/min | Rated speed: 3000 r/min | Rated current: 4.80 A | Rated torque: 0.130 N·m | Starting torque: 1.550 N·m
8DCW24-40-30 Voltage: DC 24 V | Shaft: Gear type pinion for worm solid gearbox WD□BL/BR/BRL | No-load speed: 3150 r/min | Rated speed: 3000 r/min | Rated current: 2.50 A | Rated torque: 0.130 N·m | Starting torque: 2.500 N·m
8DCW90-40-30 Voltage: DC 90 V | Shaft: Gear type pinion for worm solid gearbox WD□BL/BR/BRL | No-load speed: 3100 r/min | Rated speed: 3000 r/min | Rated current: 0.55 A | Rated torque: 0.130 N·m | Starting torque: 2.500 N·m
8DCD12-40-30 Voltage: DC 12 V | Shaft: D-cut shaft (motor only) | No-load speed: 3300 r/min | Rated speed: 3000 r/min | Rated current: 4.80 A | Rated torque: 0.130 N·m | Starting torque: 1.550 N·m
8DCD24-40-30 Voltage: DC 24 V | Shaft: D-cut shaft (motor only) | No-load speed: 3150 r/min | Rated speed: 3000 r/min | Rated current: 2.50 A | Rated torque: 0.130 N·m | Starting torque: 2.500 N·m
8DCD90-40-30 Voltage: DC 90 V | Shaft: D-cut shaft (motor only) | No-load speed: 3100 r/min | Rated speed: 3000 r/min | Rated current: 0.55 A | Rated torque: 0.130 N·m | Starting torque: 2.500 N·m
DC MotorsDKM
9 product codes available in this family
Sourced direct from KoreaExport-ready supplyCompetitive pricing
RFQ List 0 Email about this

Need a different model, or a part not listed here? Send us your parts list →

DKM 8DC DC Motor, 40 W, □80 mm Frame

Brand DKM·DC Motors

Available part numbers (9)

8DCG12-40-30, 8DCG24-40-30, 8DCG90-40-30, 8DCW12-40-30, 8DCW24-40-30, 8DCW90-40-30, 8DCD12-40-30, 8DCD24-40-30, 8DCD90-40-30

How to order

Send the DKM part numbers and quantities through our RFQ form or to info@prosourcemro.com. We confirm price, availability and lead time within 1 business day — no account needed.

RFQ List 0 →
View full details
Product codes & specifications
0 selected
RFQ List (0)
Product codeSpec
8DCG12-40-30Voltage: DC 12 V | Shaft: Gear type pinion for general box gearbox | No-load speed: 3300 r/min | Rated speed: 3000 r/min | Rated current: 4.80 A | Rated torque: 0.130 N·m | Starting torque: 1.550 N·m
8DCG24-40-30Voltage: DC 24 V | Shaft: Gear type pinion for general box gearbox | No-load speed: 3150 r/min | Rated speed: 3000 r/min | Rated current: 2.50 A | Rated torque: 0.130 N·m | Starting torque: 2.500 N·m
8DCG90-40-30Voltage: DC 90 V | Shaft: Gear type pinion for general box gearbox | No-load speed: 3100 r/min | Rated speed: 3000 r/min | Rated current: 0.55 A | Rated torque: 0.130 N·m | Starting torque: 2.500 N·m
8DCW12-40-30Voltage: DC 12 V | Shaft: Gear type pinion for worm solid gearbox WD□BL/BR/BRL | No-load speed: 3300 r/min | Rated speed: 3000 r/min | Rated current: 4.80 A | Rated torque: 0.130 N·m | Starting torque: 1.550 N·m
8DCW24-40-30Voltage: DC 24 V | Shaft: Gear type pinion for worm solid gearbox WD□BL/BR/BRL | No-load speed: 3150 r/min | Rated speed: 3000 r/min | Rated current: 2.50 A | Rated torque: 0.130 N·m | Starting torque: 2.500 N·m
8DCW90-40-30Voltage: DC 90 V | Shaft: Gear type pinion for worm solid gearbox WD□BL/BR/BRL | No-load speed: 3100 r/min | Rated speed: 3000 r/min | Rated current: 0.55 A | Rated torque: 0.130 N·m | Starting torque: 2.500 N·m
8DCD12-40-30Voltage: DC 12 V | Shaft: D-cut shaft (motor only) | No-load speed: 3300 r/min | Rated speed: 3000 r/min | Rated current: 4.80 A | Rated torque: 0.130 N·m | Starting torque: 1.550 N·m
8DCD24-40-30Voltage: DC 24 V | Shaft: D-cut shaft (motor only) | No-load speed: 3150 r/min | Rated speed: 3000 r/min | Rated current: 2.50 A | Rated torque: 0.130 N·m | Starting torque: 2.500 N·m
8DCD90-40-30Voltage: DC 90 V | Shaft: D-cut shaft (motor only) | No-load speed: 3100 r/min | Rated speed: 3000 r/min | Rated current: 0.55 A | Rated torque: 0.130 N·m | Starting torque: 2.500 N·m
