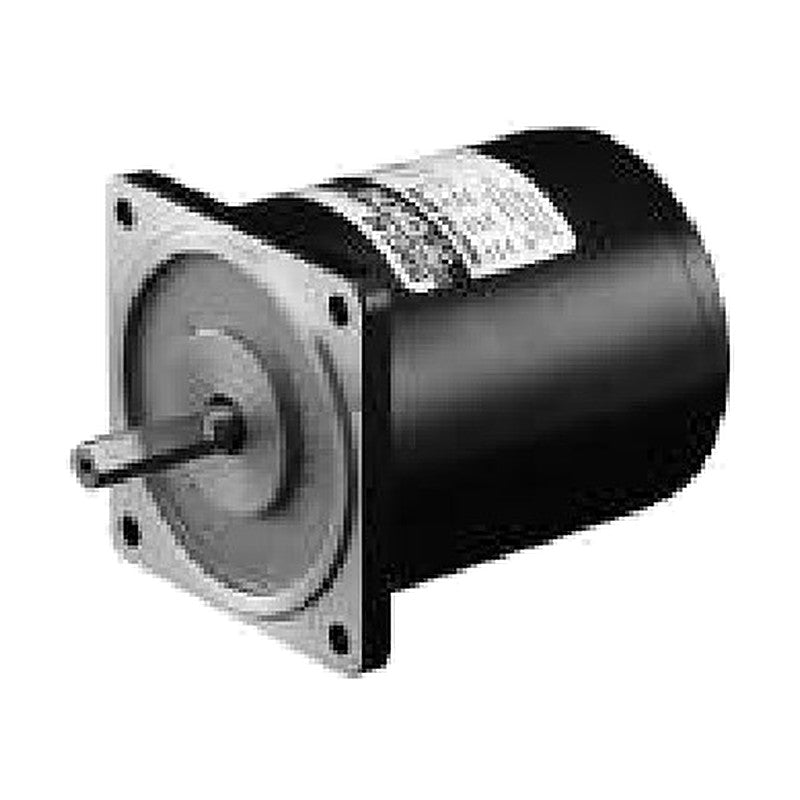

DKM 8ID-15-A 2-Pole Induction Motor 15W, 80 mm Frame

DKM 8ID-15-A 2-Pole Induction Motor 15W, 80 mm Frame

15 W single- and three-phase 2-pole AC induction motor with 80 mm square frame for high-speed (approx. 2,700-3,300 r/min) unidirectional continuous operation; D-cut output shaft.

Key features

  • 2-pole design for high-speed continuous operation
  • Single-phase capacitor-run and three-phase versions
  • D-cut or key output shaft for direct drive (no gearbox)
  • Lead-wire or terminal-box connection

Specifications

Output 15 W
Frame size 80 mm square
Poles 2
Duty Continuous
Rated speed 2700 / 2800 / 3200 / 3300 r/min (depends on voltage/frequency)
Rated torque 0.044-0.054 N·m
Starting torque 0.058-0.224 N·m
Shaft options D-cut
Connection Lead wire or terminal box (-T)
Insulation class Class B (130 °C)
Insulation resistance 100 MΩ min. at 500 VDC megger (windings to frame)
Dielectric strength 1.5 kV at 50/60 Hz for 1 minute
DKM 8ID-15-A 2-Pole Induction Motor 15W, 80 mm Frame
8IDD1-15-A Power supply: 1ø AC 110 V, 60 Hz | Rated speed: 3200 r/min | Rated torque: 0.046 N·m | Rated current: 0.51 A | Starting torque: 0.075 N·m | Capacitor: 6.0 µF / 250 VAC | Output shaft: D-cut (motor only) | Variants: thermal-protector version 8IDDA-15-A; terminal-box version 8IDD1-15-AT
8IDDB-15-A Power supply: 1ø AC 100 V, 50/60 Hz | Rated speed: 2700 / 3300 r/min | Rated torque: 0.044-0.054 N·m | Rated current: 0.39-0.41 A | Starting torque: 0.062 N·m | Capacitor: 6.0 µF / 250 VAC | Output shaft: D-cut (motor only) | Variants: terminal-box version 8IDDB-15-AT
8IDDC-15-A Power supply: 1ø AC 200 V, 50/60 Hz | Rated speed: 2700 / 3300 r/min | Rated torque: 0.044-0.054 N·m | Rated current: 0.2 A | Starting torque: 0.062-0.064 N·m | Capacitor: 1.5 µF / 450 VAC | Output shaft: D-cut (motor only) | Variants: terminal-box version 8IDDC-15-AT
8IDD2-15-A Power supply: 1ø AC 220 V, 60 Hz | Rated speed: 3200 r/min | Rated torque: 0.046 N·m | Rated current: 0.23 A | Starting torque: 0.058 N·m | Capacitor: 1.2 µF / 450 VAC | Output shaft: D-cut (motor only) | Variants: thermal-protector version 8IDDD-15-A; terminal-box version 8IDD2-15-AT
8IDDE-15-A Power supply: 1ø AC 220 / 240 V, 50 Hz | Rated speed: 2700 r/min | Rated torque: 0.054 N·m | Rated current: 0.19-0.22 A | Starting torque: 0.058-0.073 N·m | Capacitor: 1.2 µF / 450 VAC | Output shaft: D-cut (motor only) | Variants: terminal-box version 8IDDE-15-AT
8IDD3-15-A Power supply: 3ø AC 220 / 230 V, 50/60 Hz | Rated speed: 2800 / 3300 r/min | Rated torque: 0.044-0.052 N·m | Rated current: 0.13-0.14 A | Starting torque: 0.166-0.224 N·m | Output shaft: D-cut (motor only) | Variants: thermal-protector version 8IDDG-15-A; terminal-box version 8IDD3-15-AT
8IDDJ-15-A Power supply: 3ø AC 200 / 220 V, 50/60 Hz | Rated speed: 2700 / 3300 / 2800 r/min | Rated torque: 0.044-0.054 N·m | Rated current: 0.12-0.14 A | Starting torque: 0.145-0.208 N·m | Output shaft: D-cut (motor only) | Variants: terminal-box version 8IDDJ-15-AT
AC Induction MotorsDKM
7 product codes available in this family
Sourced direct from KoreaExport-ready supplyCompetitive pricing
RFQ List 0 Email about this

Need a different model, or a part not listed here? Send us your parts list →

DKM 8ID-15-A 2-Pole Induction Motor 15W, 80 mm Frame

Brand DKM·AC Induction Motors

Available part numbers (7)

8IDD1-15-A, 8IDDB-15-A, 8IDDC-15-A, 8IDD2-15-A, 8IDDE-15-A, 8IDD3-15-A, 8IDDJ-15-A

How to order

Send the DKM part numbers and quantities through our RFQ form or to info@prosourcemro.com. We confirm price, availability and lead time within 1 business day — no account needed.

RFQ List 0 →
View full details
Product codes & specifications
DKM 8ID-15-A 2-Pole Induction Motor 15W, 80 mm Frame
0 selected
RFQ List (0)
Product codeSpec
8IDD1-15-APower supply: 1ø AC 110 V, 60 Hz | Rated speed: 3200 r/min | Rated torque: 0.046 N·m | Rated current: 0.51 A | Starting torque: 0.075 N·m | Capacitor: 6.0 µF / 250 VAC | Output shaft: D-cut (motor only) | Variants: thermal-protector version 8IDDA-15-A; terminal-box version 8IDD1-15-AT
8IDDB-15-APower supply: 1ø AC 100 V, 50/60 Hz | Rated speed: 2700 / 3300 r/min | Rated torque: 0.044-0.054 N·m | Rated current: 0.39-0.41 A | Starting torque: 0.062 N·m | Capacitor: 6.0 µF / 250 VAC | Output shaft: D-cut (motor only) | Variants: terminal-box version 8IDDB-15-AT
8IDDC-15-APower supply: 1ø AC 200 V, 50/60 Hz | Rated speed: 2700 / 3300 r/min | Rated torque: 0.044-0.054 N·m | Rated current: 0.2 A | Starting torque: 0.062-0.064 N·m | Capacitor: 1.5 µF / 450 VAC | Output shaft: D-cut (motor only) | Variants: terminal-box version 8IDDC-15-AT
8IDD2-15-APower supply: 1ø AC 220 V, 60 Hz | Rated speed: 3200 r/min | Rated torque: 0.046 N·m | Rated current: 0.23 A | Starting torque: 0.058 N·m | Capacitor: 1.2 µF / 450 VAC | Output shaft: D-cut (motor only) | Variants: thermal-protector version 8IDDD-15-A; terminal-box version 8IDD2-15-AT
8IDDE-15-APower supply: 1ø AC 220 / 240 V, 50 Hz | Rated speed: 2700 r/min | Rated torque: 0.054 N·m | Rated current: 0.19-0.22 A | Starting torque: 0.058-0.073 N·m | Capacitor: 1.2 µF / 450 VAC | Output shaft: D-cut (motor only) | Variants: terminal-box version 8IDDE-15-AT
8IDD3-15-APower supply: 3ø AC 220 / 230 V, 50/60 Hz | Rated speed: 2800 / 3300 r/min | Rated torque: 0.044-0.052 N·m | Rated current: 0.13-0.14 A | Starting torque: 0.166-0.224 N·m | Output shaft: D-cut (motor only) | Variants: thermal-protector version 8IDDG-15-A; terminal-box version 8IDD3-15-AT
8IDDJ-15-APower supply: 3ø AC 200 / 220 V, 50/60 Hz | Rated speed: 2700 / 3300 / 2800 r/min | Rated torque: 0.044-0.054 N·m | Rated current: 0.12-0.14 A | Starting torque: 0.145-0.208 N·m | Output shaft: D-cut (motor only) | Variants: terminal-box version 8IDDJ-15-AT
