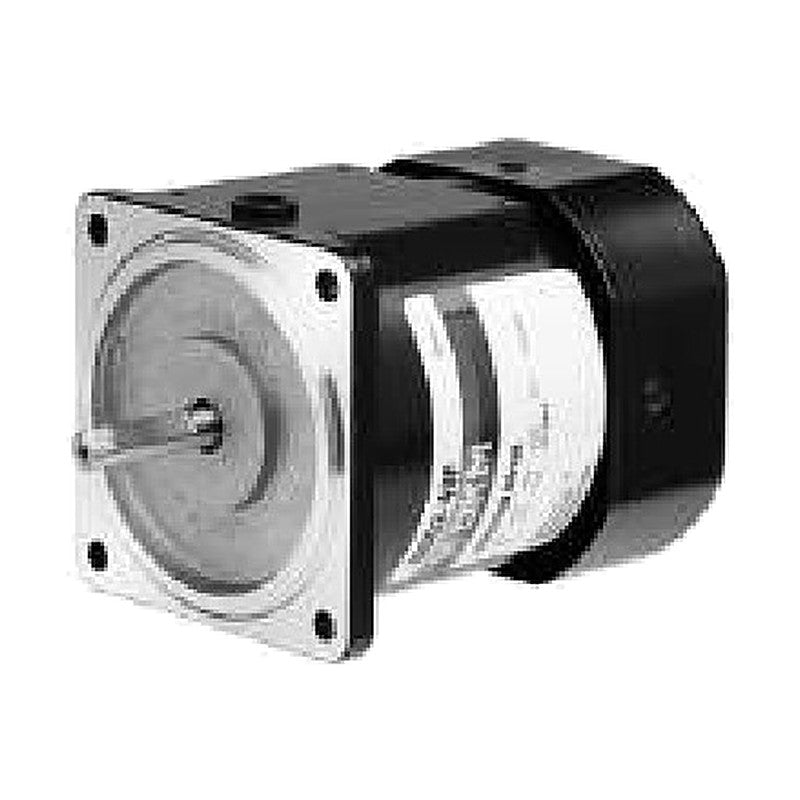

DKM 8ID-40F Induction Motor 40W, 80 mm Frame

DKM 8ID-40F Induction Motor 40W, 80 mm Frame

40 W single-phase AC induction motor with 80 mm square frame for unidirectional continuous operation such as conveyors; D-cut or gear-type (pinion) output shaft for DKM gearboxes.

Key features

  • Suitable for unidirectional continuous operation such as conveyor systems
  • Single-phase capacitor-run and three-phase versions
  • Three-phase versions offer higher starting torque and can run directly from a three-phase supply
  • Gear-type shaft models combine with DKM gearboxes; D-cut and key shaft models are for use as a motor only

Specifications

Output 40 W
Frame size 80 mm square
Poles 4
Duty Continuous
Rated speed 1200 / 1500 / 1550 r/min (depends on voltage/frequency)
Rated torque 0.252-0.325 N·m
Starting torque 0.215-0.26 N·m
Shaft options D-cut, gear type (G, W)
Connection Lead wire or terminal box (-T)
Matching gearboxes 8GBK□BMH, 8WD□BL/BR/BRL (□ = gear ratio)
Insulation class Class B (130 °C)
Insulation resistance 100 MΩ min. at 500 VDC megger (windings to frame)
DKM 8ID-40F Induction Motor 40W, 80 mm Frame
8IDD1-40F Power supply: 1ø AC 110 V, 60 Hz | Rated speed: 1550 r/min | Rated torque: 0.252 N·m | Rated current: 0.65 A | Starting torque: 0.215 N·m | Capacitor: 8.0 µF / 250 VAC | Output shaft: D-cut (motor only) | Variants: thermal-protector version 8IDDA-40F; terminal-box version 8IDD1-40F-T
8IDG1-40FG Power supply: 1ø AC 110 V, 60 Hz | Rated speed: 1550 r/min | Rated torque: 0.252 N·m | Rated current: 0.65 A | Starting torque: 0.215 N·m | Capacitor: 8.0 µF / 250 VAC | Output shaft: Gear type (G) for general box-type gearbox | Variants: thermal-protector version 8IDGA-40FG; terminal-box version 8IDG1-40FG-T
8IDG1-40FW Power supply: 1ø AC 110 V, 60 Hz | Rated speed: 1550 r/min | Rated torque: 0.252 N·m | Rated current: 0.65 A | Starting torque: 0.215 N·m | Capacitor: 8.0 µF / 250 VAC | Output shaft: Gear type (W) for worm solid-shaft gearbox | Variants: thermal-protector version 8IDGA-40FW; terminal-box version 8IDG1-40FW-T
8IDDB-40F Power supply: 1ø AC 100 V, 50/60 Hz | Rated speed: 1200 / 1500 r/min | Rated torque: 0.26-0.325 N·m | Rated current: 0.73-0.76 A | Starting torque: 0.23-0.235 N·m | Capacitor: 10.0 µF / 250 VAC | Output shaft: D-cut (motor only) | Variants: terminal-box version 8IDDB-40F-T
8IDGB-40FG Power supply: 1ø AC 100 V, 50/60 Hz | Rated speed: 1200 / 1500 r/min | Rated torque: 0.26-0.325 N·m | Rated current: 0.73-0.76 A | Starting torque: 0.23-0.235 N·m | Capacitor: 10.0 µF / 250 VAC | Output shaft: Gear type (G) for general box-type gearbox | Variants: terminal-box version 8IDGB-40FG-T
8IDGB-40FW Power supply: 1ø AC 100 V, 50/60 Hz | Rated speed: 1200 / 1500 r/min | Rated torque: 0.26-0.325 N·m | Rated current: 0.73-0.76 A | Starting torque: 0.23-0.235 N·m | Capacitor: 10.0 µF / 250 VAC | Output shaft: Gear type (W) for worm solid-shaft gearbox | Variants: terminal-box version 8IDGB-40FW-T
8IDDC-40F Power supply: 1ø AC 200 V, 50/60 Hz | Rated speed: 1200 / 1500 r/min | Rated torque: 0.26-0.325 N·m | Rated current: 0.33-0.36 A | Starting torque: 0.23-0.235 N·m | Capacitor: 2.5 µF / 450 VAC | Output shaft: D-cut (motor only) | Variants: terminal-box version 8IDDC-40F-T
8IDGC-40FG Power supply: 1ø AC 200 V, 50/60 Hz | Rated speed: 1200 / 1500 r/min | Rated torque: 0.26-0.325 N·m | Rated current: 0.33-0.36 A | Starting torque: 0.23-0.235 N·m | Capacitor: 2.5 µF / 450 VAC | Output shaft: Gear type (G) for general box-type gearbox | Variants: terminal-box version 8IDGC-40FG-T
8IDGC-40FW Power supply: 1ø AC 200 V, 50/60 Hz | Rated speed: 1200 / 1500 r/min | Rated torque: 0.26-0.325 N·m | Rated current: 0.33-0.36 A | Starting torque: 0.23-0.235 N·m | Capacitor: 2.5 µF / 450 VAC | Output shaft: Gear type (W) for worm solid-shaft gearbox | Variants: terminal-box version 8IDGC-40FW-T
8IDD2-40F Power supply: 1ø AC 220 V, 60 Hz | Rated speed: 1500 r/min | Rated torque: 0.26 N·m | Rated current: 0.33 A | Starting torque: 0.215 N·m | Capacitor: 2.0 µF / 450 VAC | Output shaft: D-cut (motor only) | Variants: thermal-protector version 8IDDD-40F; terminal-box version 8IDD2-40F-T
8IDG2-40FG Power supply: 1ø AC 220 V, 60 Hz | Rated speed: 1500 r/min | Rated torque: 0.26 N·m | Rated current: 0.33 A | Starting torque: 0.215 N·m | Capacitor: 2.0 µF / 450 VAC | Output shaft: Gear type (G) for general box-type gearbox | Variants: thermal-protector version 8IDGD-40FG; terminal-box version 8IDG2-40FG-T
8IDG2-40FW Power supply: 1ø AC 220 V, 60 Hz | Rated speed: 1500 r/min | Rated torque: 0.26 N·m | Rated current: 0.33 A | Starting torque: 0.215 N·m | Capacitor: 2.0 µF / 450 VAC | Output shaft: Gear type (W) for worm solid-shaft gearbox | Variants: thermal-protector version 8IDGD-40FW; terminal-box version 8IDG2-40FW-T
8IDDE-40F Power supply: 1ø AC 220 / 240 V, 50 Hz | Rated speed: 1200 r/min | Rated torque: 0.325 N·m | Rated current: 0.33 A | Starting torque: 0.215-0.26 N·m | Capacitor: 2.0 µF / 450 VAC | Output shaft: D-cut (motor only) | Variants: terminal-box version 8IDDE-40F-T
8IDGE-40FG Power supply: 1ø AC 220 / 240 V, 50 Hz | Rated speed: 1200 r/min | Rated torque: 0.325 N·m | Rated current: 0.33 A | Starting torque: 0.215-0.26 N·m | Capacitor: 2.0 µF / 450 VAC | Output shaft: Gear type (G) for general box-type gearbox | Variants: terminal-box version 8IDGE-40FG-T
8IDGE-40FW Power supply: 1ø AC 220 / 240 V, 50 Hz | Rated speed: 1200 r/min | Rated torque: 0.325 N·m | Rated current: 0.33 A | Starting torque: 0.215-0.26 N·m | Capacitor: 2.0 µF / 450 VAC | Output shaft: Gear type (W) for worm solid-shaft gearbox | Variants: terminal-box version 8IDGE-40FW-T
AC Induction MotorsDKM
15 product codes available in this family
Sourced direct from KoreaExport-ready supplyCompetitive pricing
RFQ List 0 Email about this

Need a different model, or a part not listed here? Send us your parts list →

DKM 8ID-40F Induction Motor 40W, 80 mm Frame

Brand DKM·AC Induction Motors

Available part numbers (15)

8IDD1-40F, 8IDG1-40FG, 8IDG1-40FW, 8IDDB-40F, 8IDGB-40FG, 8IDGB-40FW, 8IDDC-40F, 8IDGC-40FG, 8IDGC-40FW, 8IDD2-40F + 5 more — see full table ↓

How to order

Send the DKM part numbers and quantities through our RFQ form or to info@prosourcemro.com. We confirm price, availability and lead time within 1 business day — no account needed.

RFQ List 0 →
View full details
Product codes & specifications
DKM 8ID-40F Induction Motor 40W, 80 mm Frame
0 selected
RFQ List (0)
Product codeSpec
8IDD1-40FPower supply: 1ø AC 110 V, 60 Hz | Rated speed: 1550 r/min | Rated torque: 0.252 N·m | Rated current: 0.65 A | Starting torque: 0.215 N·m | Capacitor: 8.0 µF / 250 VAC | Output shaft: D-cut (motor only) | Variants: thermal-protector version 8IDDA-40F; terminal-box version 8IDD1-40F-T
8IDG1-40FGPower supply: 1ø AC 110 V, 60 Hz | Rated speed: 1550 r/min | Rated torque: 0.252 N·m | Rated current: 0.65 A | Starting torque: 0.215 N·m | Capacitor: 8.0 µF / 250 VAC | Output shaft: Gear type (G) for general box-type gearbox | Variants: thermal-protector version 8IDGA-40FG; terminal-box version 8IDG1-40FG-T
8IDG1-40FWPower supply: 1ø AC 110 V, 60 Hz | Rated speed: 1550 r/min | Rated torque: 0.252 N·m | Rated current: 0.65 A | Starting torque: 0.215 N·m | Capacitor: 8.0 µF / 250 VAC | Output shaft: Gear type (W) for worm solid-shaft gearbox | Variants: thermal-protector version 8IDGA-40FW; terminal-box version 8IDG1-40FW-T
8IDDB-40FPower supply: 1ø AC 100 V, 50/60 Hz | Rated speed: 1200 / 1500 r/min | Rated torque: 0.26-0.325 N·m | Rated current: 0.73-0.76 A | Starting torque: 0.23-0.235 N·m | Capacitor: 10.0 µF / 250 VAC | Output shaft: D-cut (motor only) | Variants: terminal-box version 8IDDB-40F-T
8IDGB-40FGPower supply: 1ø AC 100 V, 50/60 Hz | Rated speed: 1200 / 1500 r/min | Rated torque: 0.26-0.325 N·m | Rated current: 0.73-0.76 A | Starting torque: 0.23-0.235 N·m | Capacitor: 10.0 µF / 250 VAC | Output shaft: Gear type (G) for general box-type gearbox | Variants: terminal-box version 8IDGB-40FG-T
8IDGB-40FWPower supply: 1ø AC 100 V, 50/60 Hz | Rated speed: 1200 / 1500 r/min | Rated torque: 0.26-0.325 N·m | Rated current: 0.73-0.76 A | Starting torque: 0.23-0.235 N·m | Capacitor: 10.0 µF / 250 VAC | Output shaft: Gear type (W) for worm solid-shaft gearbox | Variants: terminal-box version 8IDGB-40FW-T
8IDDC-40FPower supply: 1ø AC 200 V, 50/60 Hz | Rated speed: 1200 / 1500 r/min | Rated torque: 0.26-0.325 N·m | Rated current: 0.33-0.36 A | Starting torque: 0.23-0.235 N·m | Capacitor: 2.5 µF / 450 VAC | Output shaft: D-cut (motor only) | Variants: terminal-box version 8IDDC-40F-T
8IDGC-40FGPower supply: 1ø AC 200 V, 50/60 Hz | Rated speed: 1200 / 1500 r/min | Rated torque: 0.26-0.325 N·m | Rated current: 0.33-0.36 A | Starting torque: 0.23-0.235 N·m | Capacitor: 2.5 µF / 450 VAC | Output shaft: Gear type (G) for general box-type gearbox | Variants: terminal-box version 8IDGC-40FG-T
8IDGC-40FWPower supply: 1ø AC 200 V, 50/60 Hz | Rated speed: 1200 / 1500 r/min | Rated torque: 0.26-0.325 N·m | Rated current: 0.33-0.36 A | Starting torque: 0.23-0.235 N·m | Capacitor: 2.5 µF / 450 VAC | Output shaft: Gear type (W) for worm solid-shaft gearbox | Variants: terminal-box version 8IDGC-40FW-T
8IDD2-40FPower supply: 1ø AC 220 V, 60 Hz | Rated speed: 1500 r/min | Rated torque: 0.26 N·m | Rated current: 0.33 A | Starting torque: 0.215 N·m | Capacitor: 2.0 µF / 450 VAC | Output shaft: D-cut (motor only) | Variants: thermal-protector version 8IDDD-40F; terminal-box version 8IDD2-40F-T
8IDG2-40FGPower supply: 1ø AC 220 V, 60 Hz | Rated speed: 1500 r/min | Rated torque: 0.26 N·m | Rated current: 0.33 A | Starting torque: 0.215 N·m | Capacitor: 2.0 µF / 450 VAC | Output shaft: Gear type (G) for general box-type gearbox | Variants: thermal-protector version 8IDGD-40FG; terminal-box version 8IDG2-40FG-T
8IDG2-40FWPower supply: 1ø AC 220 V, 60 Hz | Rated speed: 1500 r/min | Rated torque: 0.26 N·m | Rated current: 0.33 A | Starting torque: 0.215 N·m | Capacitor: 2.0 µF / 450 VAC | Output shaft: Gear type (W) for worm solid-shaft gearbox | Variants: thermal-protector version 8IDGD-40FW; terminal-box version 8IDG2-40FW-T
8IDDE-40FPower supply: 1ø AC 220 / 240 V, 50 Hz | Rated speed: 1200 r/min | Rated torque: 0.325 N·m | Rated current: 0.33 A | Starting torque: 0.215-0.26 N·m | Capacitor: 2.0 µF / 450 VAC | Output shaft: D-cut (motor only) | Variants: terminal-box version 8IDDE-40F-T
8IDGE-40FGPower supply: 1ø AC 220 / 240 V, 50 Hz | Rated speed: 1200 r/min | Rated torque: 0.325 N·m | Rated current: 0.33 A | Starting torque: 0.215-0.26 N·m | Capacitor: 2.0 µF / 450 VAC | Output shaft: Gear type (G) for general box-type gearbox | Variants: terminal-box version 8IDGE-40FG-T
8IDGE-40FWPower supply: 1ø AC 220 / 240 V, 50 Hz | Rated speed: 1200 r/min | Rated torque: 0.325 N·m | Rated current: 0.33 A | Starting torque: 0.215-0.26 N·m | Capacitor: 2.0 µF / 450 VAC | Output shaft: Gear type (W) for worm solid-shaft gearbox | Variants: terminal-box version 8IDGE-40FW-T
