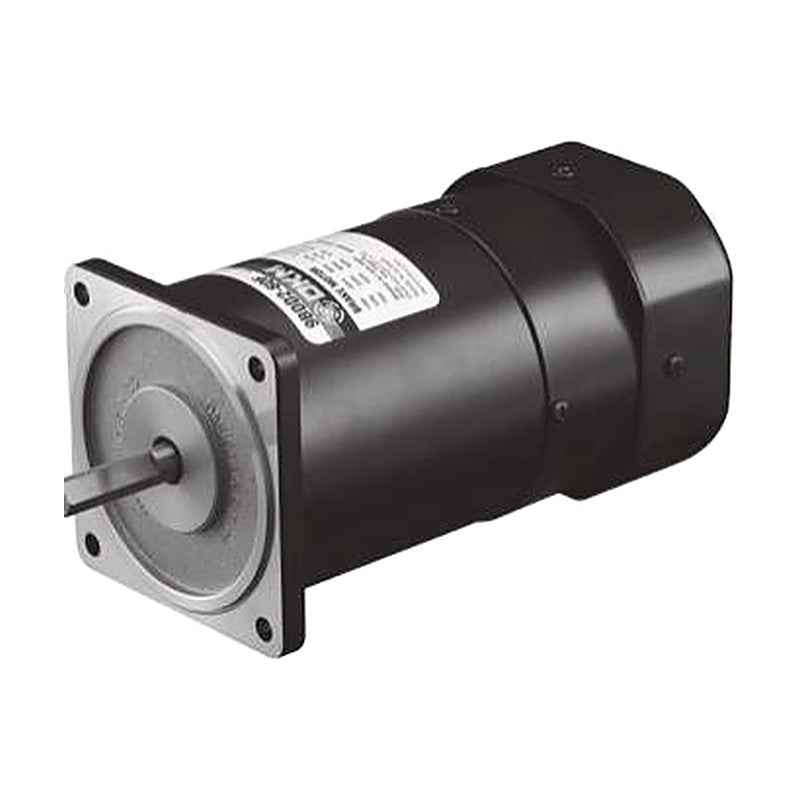

DKM 9BD-150F Electromagnetic Brake Motor 150W, 90 mm Frame
DKM 9BD-150F Electromagnetic Brake Motor 150W, 90 mm Frame
150 W three-phase AC motor with built-in power-off activated electromagnetic brake and 90 mm square frame, for stopping and holding loads (e.g. vertical axes, emergency stop); D-cut, key or gear-type (pinion) output shaft for DKM gearboxes.
Key features
- Power-off activated electromagnetic brake stops the motor instantly and holds the load when power is removed
- Overrun approx. 2-3 revolutions (induction motor: 30-40, reversible motor: 5-6)
- Motor and brake use the same power supply
- Frequent start/stop and direction changes possible
- Gear-type shaft models combine with DKM gearboxes
Specifications
| Output | 150 W |
|---|---|
| Frame size | 90 mm square |
| Poles | 4 |
| Duty | Continuous |
| Rated speed | 1300 / 1550 r/min (depends on voltage/frequency) |
| Rated torque | 0.943-1.124 N·m |
| Starting torque | 2-2.75 N·m |
| Shaft options | D-cut, key, gear type (H, WH, HC) |
| Connection | Lead wire |
| Matching gearboxes | 9HBK□BH, 9HFK□BH, 9WHD□-030, 9WHD□-040, 9HC□ (Helicross) (□ = gear ratio) |
| Brake static friction torque | 1.0 N·m |
| Brake type | Power-off activated electromagnetic brake |
| 9BDD3-150F | Power supply: 3ø AC 220 / 230 V, 50/60 Hz | Rated speed: 1300 / 1550 r/min | Rated torque: 0.943-1.124 N·m | Rated current: 0.84-1.02 A | Starting torque: 2.05-2.75 N·m | Output shaft: D-cut (motor only) | Variants: thermal-protector version 9BDDG-150F | |
| 9BDK3-150F | Power supply: 3ø AC 220 / 230 V, 50/60 Hz | Rated speed: 1300 / 1550 r/min | Rated torque: 0.943-1.124 N·m | Rated current: 0.84-1.02 A | Starting torque: 2.05-2.75 N·m | Output shaft: Key (motor only) | Variants: thermal-protector version 9BDKG-150F | |
| 9BDG3-150FH | Power supply: 3ø AC 220 / 230 V, 50/60 Hz | Rated speed: 1300 / 1550 r/min | Rated torque: 0.943-1.124 N·m | Rated current: 0.84-1.02 A | Starting torque: 2.05-2.75 N·m | Output shaft: Gear type (H) for high-power box/flange-type gearbox | Variants: thermal-protector version 9BDGG-150FH | |
| 9BDG3-150FWH | Power supply: 3ø AC 220 / 230 V, 50/60 Hz | Rated speed: 1300 / 1550 r/min | Rated torque: 0.943-1.124 N·m | Rated current: 0.84-1.02 A | Starting torque: 2.05-2.75 N·m | Output shaft: Gear type (WH) for worm hollow-shaft gearbox | Variants: thermal-protector version 9BDGG-150FWH | |
| 9BDG3-150FHC | Power supply: 3ø AC 220 / 230 V, 50/60 Hz | Rated speed: 1300 / 1550 r/min | Rated torque: 0.943-1.124 N·m | Rated current: 0.84-1.02 A | Starting torque: 2.05-2.75 N·m | Output shaft: Gear type (HC) for Helicross right-angle gearbox | Variants: thermal-protector version 9BDGG-150FHC | |
| 9BDD4-150F | Power supply: 3ø AC 380 / 400 V, 50/60 Hz | Rated speed: 1300 / 1550 r/min | Rated torque: 0.943-1.124 N·m | Rated current: 0.48-0.57 A | Starting torque: 2-2.73 N·m | Output shaft: D-cut (motor only) | Variants: thermal-protector version 9BDDK-150F | |
| 9BDK4-150F | Power supply: 3ø AC 380 / 400 V, 50/60 Hz | Rated speed: 1300 / 1550 r/min | Rated torque: 0.943-1.124 N·m | Rated current: 0.48-0.57 A | Starting torque: 2-2.73 N·m | Output shaft: Key (motor only) | Variants: thermal-protector version 9BDKK-150F | |
| 9BDG4-150FH | Power supply: 3ø AC 380 / 400 V, 50/60 Hz | Rated speed: 1300 / 1550 r/min | Rated torque: 0.943-1.124 N·m | Rated current: 0.48-0.57 A | Starting torque: 2-2.73 N·m | Output shaft: Gear type (H) for high-power box/flange-type gearbox | Variants: thermal-protector version 9BDGK-150FH | |
| 9BDG4-150FWH | Power supply: 3ø AC 380 / 400 V, 50/60 Hz | Rated speed: 1300 / 1550 r/min | Rated torque: 0.943-1.124 N·m | Rated current: 0.48-0.57 A | Starting torque: 2-2.73 N·m | Output shaft: Gear type (WH) for worm hollow-shaft gearbox | Variants: thermal-protector version 9BDGK-150FWH | |
| 9BDG4-150FHC | Power supply: 3ø AC 380 / 400 V, 50/60 Hz | Rated speed: 1300 / 1550 r/min | Rated torque: 0.943-1.124 N·m | Rated current: 0.48-0.57 A | Starting torque: 2-2.73 N·m | Output shaft: Gear type (HC) for Helicross right-angle gearbox | Variants: thermal-protector version 9BDGK-150FHC | |
| 9BDD5-150F | Power supply: 3ø AC 415 / 440 V, 50/60 Hz | Rated speed: 1300 / 1550 r/min | Rated torque: 0.943-1.124 N·m | Rated current: 0.45-0.55 A | Starting torque: 2.21-2.72 N·m | Output shaft: D-cut (motor only) | Variants: thermal-protector version 9BDDL-150F | |
| 9BDK5-150F | Power supply: 3ø AC 415 / 440 V, 50/60 Hz | Rated speed: 1300 / 1550 r/min | Rated torque: 0.943-1.124 N·m | Rated current: 0.45-0.55 A | Starting torque: 2.21-2.72 N·m | Output shaft: Key (motor only) | Variants: thermal-protector version 9BDKL-150F | |
| 9BDG5-150FH | Power supply: 3ø AC 415 / 440 V, 50/60 Hz | Rated speed: 1300 / 1550 r/min | Rated torque: 0.943-1.124 N·m | Rated current: 0.45-0.55 A | Starting torque: 2.21-2.72 N·m | Output shaft: Gear type (H) for high-power box/flange-type gearbox | Variants: thermal-protector version 9BDGL-150FH | |
| 9BDG5-150FWH | Power supply: 3ø AC 415 / 440 V, 50/60 Hz | Rated speed: 1300 / 1550 r/min | Rated torque: 0.943-1.124 N·m | Rated current: 0.45-0.55 A | Starting torque: 2.21-2.72 N·m | Output shaft: Gear type (WH) for worm hollow-shaft gearbox | Variants: thermal-protector version 9BDGL-150FWH | |
| 9BDG5-150FHC | Power supply: 3ø AC 415 / 440 V, 50/60 Hz | Rated speed: 1300 / 1550 r/min | Rated torque: 0.943-1.124 N·m | Rated current: 0.45-0.55 A | Starting torque: 2.21-2.72 N·m | Output shaft: Gear type (HC) for Helicross right-angle gearbox | Variants: thermal-protector version 9BDGL-150FHC |
