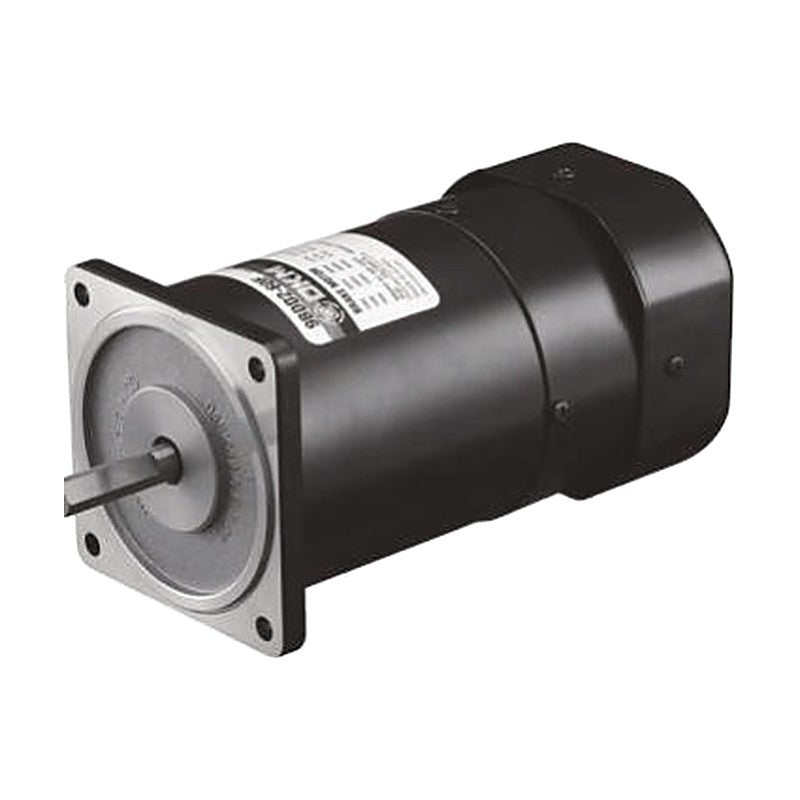

DKM 9BD-60F Electromagnetic Brake Motor 60W, 90 mm Frame

DKM 9BD-60F Electromagnetic Brake Motor 60W, 90 mm Frame

60 W single- and three-phase AC motor with built-in power-off activated electromagnetic brake and 90 mm square frame, for stopping and holding loads (e.g. vertical axes, emergency stop); D-cut, key or gear-type (pinion) output shaft for DKM gearboxes.

Key features

  • Power-off activated electromagnetic brake stops the motor instantly and holds the load when power is removed
  • Overrun approx. 2-3 revolutions (induction motor: 30-40, reversible motor: 5-6)
  • Motor and brake use the same power supply
  • Frequent start/stop and direction changes possible
  • Gear-type shaft models combine with DKM gearboxes

Specifications

Output 60 W
Frame size 90 mm square
Poles 4
Duty 30 minutes (single-phase) / continuous (three-phase); see each model
Rated speed 1300 / 1350 / 1550 / 1600 r/min (depends on voltage/frequency)
Rated torque 0.365-0.45 N·m
Starting torque 0.519-1.88 N·m
Shaft options D-cut, key, gear type (P, H, W, WH)
Connection Lead wire or terminal box (-T)
Matching gearboxes 9PBK□BH, 9PFK□BH, 9HBK□BH, 9HFK□BH, 9WD□BL/BR/BRL, 9WHD□-030 (□ = gear ratio)
Brake static friction torque 0.5 N·m
Brake type Power-off activated electromagnetic brake
DKM 9BD-60F Electromagnetic Brake Motor 60W, 90 mm Frame
9BDD1-60F Power supply: 1ø AC 110 V, 60 Hz | Rated speed: 1600 r/min | Rated torque: 0.365 N·m | Rated current: 1.6 A | Capacitor: 20.0 µF / 250 VAC | Duty: 30 min | Output shaft: D-cut (motor only) | Variants: thermal-protector version 9BDDA-60F; terminal-box version 9BDD1-60F-T
9BDK1-60F Power supply: 1ø AC 110 V, 60 Hz | Rated speed: 1600 r/min | Rated torque: 0.365 N·m | Rated current: 1.6 A | Capacitor: 20.0 µF / 250 VAC | Duty: 30 min | Output shaft: Key (motor only) | Variants: thermal-protector version 9BDKA-60F; terminal-box version 9BDK1-60F-T
9BDG1-60FP Power supply: 1ø AC 110 V, 60 Hz | Rated speed: 1600 r/min | Rated torque: 0.365 N·m | Rated current: 1.6 A | Capacitor: 20.0 µF / 250 VAC | Duty: 30 min | Output shaft: Gear type (P) for powerful box/flange-type gearbox | Variants: thermal-protector version 9BDGA-60FP; terminal-box version 9BDG1-60FP-T
9BDG1-60FH Power supply: 1ø AC 110 V, 60 Hz | Rated speed: 1600 r/min | Rated torque: 0.365 N·m | Rated current: 1.6 A | Capacitor: 20.0 µF / 250 VAC | Duty: 30 min | Output shaft: Gear type (H) for high-power box/flange-type gearbox | Variants: thermal-protector version 9BDGA-60FH; terminal-box version 9BDG1-60FH-T
9BDG1-60FW Power supply: 1ø AC 110 V, 60 Hz | Rated speed: 1600 r/min | Rated torque: 0.365 N·m | Rated current: 1.6 A | Capacitor: 20.0 µF / 250 VAC | Duty: 30 min | Output shaft: Gear type (W) for worm solid-shaft gearbox | Variants: thermal-protector version 9BDGA-60FW; terminal-box version 9BDG1-60FW-T
9BDG1-60FWH Power supply: 1ø AC 110 V, 60 Hz | Rated speed: 1600 r/min | Rated torque: 0.365 N·m | Rated current: 1.6 A | Capacitor: 20.0 µF / 250 VAC | Duty: 30 min | Output shaft: Gear type (WH) for worm hollow-shaft gearbox | Variants: thermal-protector version 9BDGA-60FWH; terminal-box version 9BDG1-60FWH-T
9BDDB-60F Power supply: 1ø AC 100 V, 50/60 Hz | Rated speed: 1300 / 1600 r/min | Rated torque: 0.365-0.45 N·m | Rated current: 1.6-1.7 A | Capacitor: 25.0 µF / 250 VAC | Duty: 30 min | Output shaft: D-cut (motor only) | Variants: terminal-box version 9BDDB-60F-T
9BDKB-60F Power supply: 1ø AC 100 V, 50/60 Hz | Rated speed: 1300 / 1600 r/min | Rated torque: 0.365-0.45 N·m | Rated current: 1.6-1.7 A | Capacitor: 25.0 µF / 250 VAC | Duty: 30 min | Output shaft: Key (motor only) | Variants: terminal-box version 9BDKB-60F-T
9BDGB-60FP Power supply: 1ø AC 100 V, 50/60 Hz | Rated speed: 1300 / 1600 r/min | Rated torque: 0.365-0.45 N·m | Rated current: 1.6-1.7 A | Capacitor: 25.0 µF / 250 VAC | Duty: 30 min | Output shaft: Gear type (P) for powerful box/flange-type gearbox | Variants: terminal-box version 9BDGB-60FP-T
9BDGB-60FH Power supply: 1ø AC 100 V, 50/60 Hz | Rated speed: 1300 / 1600 r/min | Rated torque: 0.365-0.45 N·m | Rated current: 1.6-1.7 A | Capacitor: 25.0 µF / 250 VAC | Duty: 30 min | Output shaft: Gear type (H) for high-power box/flange-type gearbox | Variants: terminal-box version 9BDGB-60FH-T
9BDGB-60FW Power supply: 1ø AC 100 V, 50/60 Hz | Rated speed: 1300 / 1600 r/min | Rated torque: 0.365-0.45 N·m | Rated current: 1.6-1.7 A | Capacitor: 25.0 µF / 250 VAC | Duty: 30 min | Output shaft: Gear type (W) for worm solid-shaft gearbox | Variants: terminal-box version 9BDGB-60FW-T
9BDGB-60FWH Power supply: 1ø AC 100 V, 50/60 Hz | Rated speed: 1300 / 1600 r/min | Rated torque: 0.365-0.45 N·m | Rated current: 1.6-1.7 A | Capacitor: 25.0 µF / 250 VAC | Duty: 30 min | Output shaft: Gear type (WH) for worm hollow-shaft gearbox | Variants: terminal-box version 9BDGB-60FWH-T
9BDDC-60F Power supply: 1ø AC 200 V, 50/60 Hz | Rated speed: 1300 / 1600 r/min | Rated torque: 0.365-0.45 N·m | Rated current: 0.76-0.79 A | Capacitor: 6.0 µF / 450 VAC | Duty: 30 min | Output shaft: D-cut (motor only) | Variants: terminal-box version 9BDDC-60F-T
9BDKC-60F Power supply: 1ø AC 200 V, 50/60 Hz | Rated speed: 1300 / 1600 r/min | Rated torque: 0.365-0.45 N·m | Rated current: 0.76-0.79 A | Capacitor: 6.0 µF / 450 VAC | Duty: 30 min | Output shaft: Key (motor only) | Variants: terminal-box version 9BDKC-60F-T
9BDGC-60FP Power supply: 1ø AC 200 V, 50/60 Hz | Rated speed: 1300 / 1600 r/min | Rated torque: 0.365-0.45 N·m | Rated current: 0.76-0.79 A | Capacitor: 6.0 µF / 450 VAC | Duty: 30 min | Output shaft: Gear type (P) for powerful box/flange-type gearbox | Variants: terminal-box version 9BDGC-60FP-T
9BDGC-60FH Power supply: 1ø AC 200 V, 50/60 Hz | Rated speed: 1300 / 1600 r/min | Rated torque: 0.365-0.45 N·m | Rated current: 0.76-0.79 A | Capacitor: 6.0 µF / 450 VAC | Duty: 30 min | Output shaft: Gear type (H) for high-power box/flange-type gearbox | Variants: terminal-box version 9BDGC-60FH-T
9BDGC-60FW Power supply: 1ø AC 200 V, 50/60 Hz | Rated speed: 1300 / 1600 r/min | Rated torque: 0.365-0.45 N·m | Rated current: 0.76-0.79 A | Capacitor: 6.0 µF / 450 VAC | Duty: 30 min | Output shaft: Gear type (W) for worm solid-shaft gearbox | Variants: terminal-box version 9BDGC-60FW-T
9BDGC-60FWH Power supply: 1ø AC 200 V, 50/60 Hz | Rated speed: 1300 / 1600 r/min | Rated torque: 0.365-0.45 N·m | Rated current: 0.76-0.79 A | Capacitor: 6.0 µF / 450 VAC | Duty: 30 min | Output shaft: Gear type (WH) for worm hollow-shaft gearbox | Variants: terminal-box version 9BDGC-60FWH-T
9BDD2-60F Power supply: 1ø AC 220 V, 60 Hz | Rated speed: 1600 r/min | Rated torque: 0.365 N·m | Rated current: 0.75 A | Capacitor: 5.0 µF / 450 VAC | Duty: 30 min | Output shaft: D-cut (motor only) | Variants: thermal-protector version 9BDDD-60F; terminal-box version 9BDD2-60F-T
9BDK2-60F Power supply: 1ø AC 220 V, 60 Hz | Rated speed: 1600 r/min | Rated torque: 0.365 N·m | Rated current: 0.75 A | Capacitor: 5.0 µF / 450 VAC | Duty: 30 min | Output shaft: Key (motor only) | Variants: thermal-protector version 9BDKD-60F; terminal-box version 9BDK2-60F-T
9BDG2-60FP Power supply: 1ø AC 220 V, 60 Hz | Rated speed: 1600 r/min | Rated torque: 0.365 N·m | Rated current: 0.75 A | Capacitor: 5.0 µF / 450 VAC | Duty: 30 min | Output shaft: Gear type (P) for powerful box/flange-type gearbox | Variants: thermal-protector version 9BDGD-60FP; terminal-box version 9BDG2-60FP-T
9BDG2-60FH Power supply: 1ø AC 220 V, 60 Hz | Rated speed: 1600 r/min | Rated torque: 0.365 N·m | Rated current: 0.75 A | Capacitor: 5.0 µF / 450 VAC | Duty: 30 min | Output shaft: Gear type (H) for high-power box/flange-type gearbox | Variants: thermal-protector version 9BDGD-60FH; terminal-box version 9BDG2-60FH-T
9BDG2-60FW Power supply: 1ø AC 220 V, 60 Hz | Rated speed: 1600 r/min | Rated torque: 0.365 N·m | Rated current: 0.75 A | Capacitor: 5.0 µF / 450 VAC | Duty: 30 min | Output shaft: Gear type (W) for worm solid-shaft gearbox | Variants: thermal-protector version 9BDGD-60FW; terminal-box version 9BDG2-60FW-T
9BDG2-60FWH Power supply: 1ø AC 220 V, 60 Hz | Rated speed: 1600 r/min | Rated torque: 0.365 N·m | Rated current: 0.75 A | Capacitor: 5.0 µF / 450 VAC | Duty: 30 min | Output shaft: Gear type (WH) for worm hollow-shaft gearbox | Variants: thermal-protector version 9BDGD-60FWH; terminal-box version 9BDG2-60FWH-T
9BDDE-60F Power supply: 1ø AC 220 / 240 V, 50 Hz | Rated speed: 1300 r/min | Rated torque: 0.45 N·m | Rated current: 0.59-0.64 A | Capacitor: 5.0 µF / 450 VAC | Duty: 30 min | Output shaft: D-cut (motor only) | Variants: terminal-box version 9BDDE-60F-T
9BDKE-60F Power supply: 1ø AC 220 / 240 V, 50 Hz | Rated speed: 1300 r/min | Rated torque: 0.45 N·m | Rated current: 0.59-0.64 A | Capacitor: 5.0 µF / 450 VAC | Duty: 30 min | Output shaft: Key (motor only) | Variants: terminal-box version 9BDKE-60F-T
9BDGE-60FP Power supply: 1ø AC 220 / 240 V, 50 Hz | Rated speed: 1300 r/min | Rated torque: 0.45 N·m | Rated current: 0.59-0.64 A | Capacitor: 5.0 µF / 450 VAC | Duty: 30 min | Output shaft: Gear type (P) for powerful box/flange-type gearbox | Variants: terminal-box version 9BDGE-60FP-T
9BDGE-60FH Power supply: 1ø AC 220 / 240 V, 50 Hz | Rated speed: 1300 r/min | Rated torque: 0.45 N·m | Rated current: 0.59-0.64 A | Capacitor: 5.0 µF / 450 VAC | Duty: 30 min | Output shaft: Gear type (H) for high-power box/flange-type gearbox | Variants: terminal-box version 9BDGE-60FH-T
9BDGE-60FW Power supply: 1ø AC 220 / 240 V, 50 Hz | Rated speed: 1300 r/min | Rated torque: 0.45 N·m | Rated current: 0.59-0.64 A | Capacitor: 5.0 µF / 450 VAC | Duty: 30 min | Output shaft: Gear type (W) for worm solid-shaft gearbox | Variants: terminal-box version 9BDGE-60FW-T
9BDGE-60FWH Power supply: 1ø AC 220 / 240 V, 50 Hz | Rated speed: 1300 r/min | Rated torque: 0.45 N·m | Rated current: 0.59-0.64 A | Capacitor: 5.0 µF / 450 VAC | Duty: 30 min | Output shaft: Gear type (WH) for worm hollow-shaft gearbox | Variants: terminal-box version 9BDGE-60FWH-T
9BDD3-60F Power supply: 3ø AC 220 / 230 V, 50/60 Hz | Rated speed: 1350 / 1600 r/min | Rated torque: 0.365-0.433 N·m | Rated current: 0.53-0.62 A | Duty: Continuous | Output shaft: D-cut (motor only) | Variants: thermal-protector version 9BDDG-60F; terminal-box version 9BDD3-60F-T
9BDK3-60F Power supply: 3ø AC 220 / 230 V, 50/60 Hz | Rated speed: 1350 / 1600 r/min | Rated torque: 0.365-0.433 N·m | Rated current: 0.53-0.62 A | Duty: Continuous | Output shaft: Key (motor only) | Variants: thermal-protector version 9BDKG-60F; terminal-box version 9BDK3-60F-T
9BDG3-60FP Power supply: 3ø AC 220 / 230 V, 50/60 Hz | Rated speed: 1350 / 1600 r/min | Rated torque: 0.365-0.433 N·m | Rated current: 0.53-0.62 A | Duty: Continuous | Output shaft: Gear type (P) for powerful box/flange-type gearbox | Variants: thermal-protector version 9BDGG-60FP; terminal-box version 9BDG3-60FP-T
9BDG3-60FH Power supply: 3ø AC 220 / 230 V, 50/60 Hz | Rated speed: 1350 / 1600 r/min | Rated torque: 0.365-0.433 N·m | Rated current: 0.53-0.62 A | Duty: Continuous | Output shaft: Gear type (H) for high-power box/flange-type gearbox | Variants: thermal-protector version 9BDGG-60FH; terminal-box version 9BDG3-60FH-T
9BDG3-60FW Power supply: 3ø AC 220 / 230 V, 50/60 Hz | Rated speed: 1350 / 1600 r/min | Rated torque: 0.365-0.433 N·m | Rated current: 0.53-0.62 A | Duty: Continuous | Output shaft: Gear type (W) for worm solid-shaft gearbox | Variants: thermal-protector version 9BDGG-60FW; terminal-box version 9BDG3-60FW-T
9BDG3-60FWH Power supply: 3ø AC 220 / 230 V, 50/60 Hz | Rated speed: 1350 / 1600 r/min | Rated torque: 0.365-0.433 N·m | Rated current: 0.53-0.62 A | Duty: Continuous | Output shaft: Gear type (WH) for worm hollow-shaft gearbox | Variants: thermal-protector version 9BDGG-60FWH; terminal-box version 9BDG3-60FWH-T
9BDDJ-60F Power supply: 3ø AC 200 / 220 V, 50/60 Hz | Rated speed: 1300 / 1550 / 1350 / 1600 r/min | Rated torque: 0.365-0.45 N·m | Rated current: 0.52-0.59 A | Duty: Continuous | Output shaft: D-cut (motor only) | Variants: terminal-box version 9BDDJ-60F-T
9BDKJ-60F Power supply: 3ø AC 200 / 220 V, 50/60 Hz | Rated speed: 1300 / 1550 / 1350 / 1600 r/min | Rated torque: 0.365-0.45 N·m | Rated current: 0.52-0.59 A | Duty: Continuous | Output shaft: Key (motor only) | Variants: terminal-box version 9BDKJ-60F-T
9BDGJ-60FP Power supply: 3ø AC 200 / 220 V, 50/60 Hz | Rated speed: 1300 / 1550 / 1350 / 1600 r/min | Rated torque: 0.365-0.45 N·m | Rated current: 0.52-0.59 A | Duty: Continuous | Output shaft: Gear type (P) for powerful box/flange-type gearbox | Variants: terminal-box version 9BDGJ-60FP-T
9BDGJ-60FH Power supply: 3ø AC 200 / 220 V, 50/60 Hz | Rated speed: 1300 / 1550 / 1350 / 1600 r/min | Rated torque: 0.365-0.45 N·m | Rated current: 0.52-0.59 A | Duty: Continuous | Output shaft: Gear type (H) for high-power box/flange-type gearbox | Variants: terminal-box version 9BDGJ-60FH-T
9BDGJ-60FW Power supply: 3ø AC 200 / 220 V, 50/60 Hz | Rated speed: 1300 / 1550 / 1350 / 1600 r/min | Rated torque: 0.365-0.45 N·m | Rated current: 0.52-0.59 A | Duty: Continuous | Output shaft: Gear type (W) for worm solid-shaft gearbox | Variants: terminal-box version 9BDGJ-60FW-T
9BDGJ-60FWH Power supply: 3ø AC 200 / 220 V, 50/60 Hz | Rated speed: 1300 / 1550 / 1350 / 1600 r/min | Rated torque: 0.365-0.45 N·m | Rated current: 0.52-0.59 A | Duty: Continuous | Output shaft: Gear type (WH) for worm hollow-shaft gearbox | Variants: terminal-box version 9BDGJ-60FWH-T
9BDD4-60F Power supply: 3ø AC 380 / 400 V, 50/60 Hz | Rated speed: 1350 / 1600 r/min | Rated torque: 0.365-0.433 N·m | Rated current: 0.28-0.34 A | Duty: Continuous | Output shaft: D-cut (motor only) | Variants: thermal-protector version 9BDDK-60F; terminal-box version 9BDD4-60F-T
9BDK4-60F Power supply: 3ø AC 380 / 400 V, 50/60 Hz | Rated speed: 1350 / 1600 r/min | Rated torque: 0.365-0.433 N·m | Rated current: 0.28-0.34 A | Duty: Continuous | Output shaft: Key (motor only) | Variants: thermal-protector version 9BDKK-60F; terminal-box version 9BDK4-60F-T
9BDG4-60FP Power supply: 3ø AC 380 / 400 V, 50/60 Hz | Rated speed: 1350 / 1600 r/min | Rated torque: 0.365-0.433 N·m | Rated current: 0.28-0.34 A | Duty: Continuous | Output shaft: Gear type (P) for powerful box/flange-type gearbox | Variants: thermal-protector version 9BDGK-60FP; terminal-box version 9BDG4-60FP-T
9BDG4-60FH Power supply: 3ø AC 380 / 400 V, 50/60 Hz | Rated speed: 1350 / 1600 r/min | Rated torque: 0.365-0.433 N·m | Rated current: 0.28-0.34 A | Duty: Continuous | Output shaft: Gear type (H) for high-power box/flange-type gearbox | Variants: thermal-protector version 9BDGK-60FH; terminal-box version 9BDG4-60FH-T
9BDG4-60FW Power supply: 3ø AC 380 / 400 V, 50/60 Hz | Rated speed: 1350 / 1600 r/min | Rated torque: 0.365-0.433 N·m | Rated current: 0.28-0.34 A | Duty: Continuous | Output shaft: Gear type (W) for worm solid-shaft gearbox | Variants: thermal-protector version 9BDGK-60FW; terminal-box version 9BDG4-60FW-T
9BDG4-60FWH Power supply: 3ø AC 380 / 400 V, 50/60 Hz | Rated speed: 1350 / 1600 r/min | Rated torque: 0.365-0.433 N·m | Rated current: 0.28-0.34 A | Duty: Continuous | Output shaft: Gear type (WH) for worm hollow-shaft gearbox | Variants: thermal-protector version 9BDGK-60FWH; terminal-box version 9BDG4-60FWH-T
9BDD5-60F Power supply: 3ø AC 415 / 440 V, 50/60 Hz | Rated speed: 1350 / 1600 r/min | Rated torque: 0.365-0.433 N·m | Rated current: 0.26-0.31 A | Duty: Continuous | Output shaft: D-cut (motor only) | Variants: thermal-protector version 9BDDL-60F; terminal-box version 9BDD5-60F-T
9BDK5-60F Power supply: 3ø AC 415 / 440 V, 50/60 Hz | Rated speed: 1350 / 1600 r/min | Rated torque: 0.365-0.433 N·m | Rated current: 0.26-0.31 A | Duty: Continuous | Output shaft: Key (motor only) | Variants: thermal-protector version 9BDKL-60F; terminal-box version 9BDK5-60F-T
9BDG5-60FP Power supply: 3ø AC 415 / 440 V, 50/60 Hz | Rated speed: 1350 / 1600 r/min | Rated torque: 0.365-0.433 N·m | Rated current: 0.26-0.31 A | Duty: Continuous | Output shaft: Gear type (P) for powerful box/flange-type gearbox | Variants: thermal-protector version 9BDGL-60FP; terminal-box version 9BDG5-60FP-T
9BDG5-60FH Power supply: 3ø AC 415 / 440 V, 50/60 Hz | Rated speed: 1350 / 1600 r/min | Rated torque: 0.365-0.433 N·m | Rated current: 0.26-0.31 A | Duty: Continuous | Output shaft: Gear type (H) for high-power box/flange-type gearbox | Variants: thermal-protector version 9BDGL-60FH; terminal-box version 9BDG5-60FH-T
9BDG5-60FW Power supply: 3ø AC 415 / 440 V, 50/60 Hz | Rated speed: 1350 / 1600 r/min | Rated torque: 0.365-0.433 N·m | Rated current: 0.26-0.31 A | Duty: Continuous | Output shaft: Gear type (W) for worm solid-shaft gearbox | Variants: thermal-protector version 9BDGL-60FW; terminal-box version 9BDG5-60FW-T
9BDG5-60FWH Power supply: 3ø AC 415 / 440 V, 50/60 Hz | Rated speed: 1350 / 1600 r/min | Rated torque: 0.365-0.433 N·m | Rated current: 0.26-0.31 A | Duty: Continuous | Output shaft: Gear type (WH) for worm hollow-shaft gearbox | Variants: thermal-protector version 9BDGL-60FWH; terminal-box version 9BDG5-60FWH-T
AC Brake MotorsDKM
54 product codes available in this family
Sourced direct from KoreaExport-ready supplyCompetitive pricing
RFQ List 0 Email about this

Need a different model, or a part not listed here? Send us your parts list →

DKM 9BD-60F Electromagnetic Brake Motor 60W, 90 mm Frame

Brand DKM·AC Brake Motors

Available part numbers (54)

9BDD1-60F, 9BDK1-60F, 9BDG1-60FP, 9BDG1-60FH, 9BDG1-60FW, 9BDG1-60FWH, 9BDDB-60F, 9BDKB-60F, 9BDGB-60FP, 9BDGB-60FH + 44 more — see full table ↓

How to order

Send the DKM part numbers and quantities through our RFQ form or to info@prosourcemro.com. We confirm price, availability and lead time within 1 business day — no account needed.
