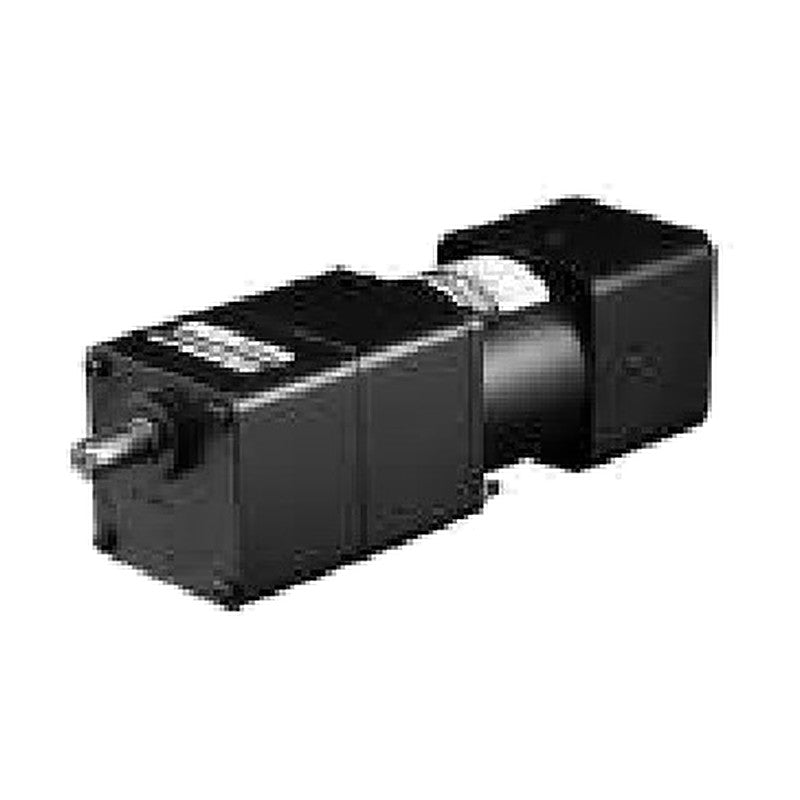

DKM 9CID-90F2 Clutch & Brake Motor 90W, 90 mm Frame
DKM 9CID-90F2 Clutch & Brake Motor 90W, 90 mm Frame
90 W single- and three-phase AC induction motor with built-in 24 VDC clutch & brake unit and 90 mm square frame, for frequent start/stop, positioning, indexing and incremental feeding; gear-type output shaft for direct mounting of a DKM gearbox.
Key features
- Internal clutch & brake mechanism between a continuously running induction motor and the gearbox
- Run/stop operation up to 100 times per minute
- Output shaft stops without influence of motor inertia; motor keeps rotating
- For unidirectional motion (not for frequent bi-directional start/stop)
- Clutch and brake coils: 24 VDC
Specifications
| Output | 90 W |
|---|---|
| Frame size | 90 mm square |
| Poles | 4 |
| Duty | Continuous |
| Rated speed | 1300 / 1350 / 1550 / 1600 r/min (depends on voltage/frequency) |
| Rated torque | 0.548-0.674 N·m |
| Starting torque | 0.5-2.27 N·m |
| Shaft options | Gear type (P) only |
| Connection | Lead wire |
| Matching gearboxes | 9PBK□BH, 9PFK□BH (□ = gear ratio) |
| Clutch/brake coil | 24 VDC (clutch 0.354 A, brake 0.253 A) |
| Insulation class | Class B (130 °C) |
| 9CIDG1-90F2P | Power supply: 1ø AC 110 V, 60 Hz | Rated speed: 1600 r/min | Rated torque: 0.548 N·m | Rated current: 1.8 A | Starting torque: 0.5 N·m | Capacitor: 20.0 µF / 250 VAC | Output shaft: Gear type (P) for powerful box/flange-type gearbox | Variants: thermal-protector version 9CIDGA-90F2P | |
| 9CIDGB-90F2P | Power supply: 1ø AC 100 V, 50/60 Hz | Rated speed: 1300 / 1600 r/min | Rated torque: 0.548-0.674 N·m | Rated current: 1.8-1.85 A | Starting torque: 0.54-0.59 N·m | Capacitor: 25.0 µF / 250 VAC | Output shaft: Gear type (P) for powerful box/flange-type gearbox | |
| 9CIDGC-90F2P | Power supply: 1ø AC 200 V, 50/60 Hz | Rated speed: 1300 / 1600 r/min | Rated torque: 0.548-0.674 N·m | Rated current: 0.94-1.1 A | Starting torque: 0.52-0.57 N·m | Capacitor: 6.0 µF / 450 VAC | Output shaft: Gear type (P) for powerful box/flange-type gearbox | |
| 9CIDG2-90F2P | Power supply: 1ø AC 220 V, 60 Hz | Rated speed: 1600 r/min | Rated torque: 0.548 N·m | Rated current: 1 A | Starting torque: 0.5 N·m | Capacitor: 5.0 µF / 450 VAC | Output shaft: Gear type (P) for powerful box/flange-type gearbox | Variants: thermal-protector version 9CIDGD-90F2P | |
| 9CIDGE-90F2P | Power supply: 1ø AC 220 / 240 V, 50 Hz | Rated speed: 1300 r/min | Rated torque: 0.674 N·m | Rated current: 0.7-0.76 A | Starting torque: 0.53-0.63 N·m | Capacitor: 5.0 µF / 450 VAC | Output shaft: Gear type (P) for powerful box/flange-type gearbox | |
| 9CIDG3-90F2P | Power supply: 3ø AC 220 / 230 V, 50/60 Hz | Rated speed: 1350 / 1600 r/min | Rated torque: 0.548-0.649 N·m | Rated current: 0.6-0.68 A | Starting torque: 1.62-2.2 N·m | Output shaft: Gear type (P) for powerful box/flange-type gearbox | Variants: thermal-protector version 9CIDGG-90F2P | |
| 9CIDGJ-90F2P | Power supply: 3ø AC 200 / 220 V, 50/60 Hz | Rated speed: 1300 / 1550 / 1350 / 1600 r/min | Rated torque: 0.548-0.674 N·m | Rated current: 0.6-0.65 A | Starting torque: 1.4-2.05 N·m | Output shaft: Gear type (P) for powerful box/flange-type gearbox | |
| 9CIDG4-90F2P | Power supply: 3ø AC 380 / 400 V, 50/60 Hz | Rated speed: 1350 / 1600 r/min | Rated torque: 0.548-0.649 N·m | Rated current: 0.33-0.37 A | Starting torque: 1.57-2.18 N·m | Output shaft: Gear type (P) for powerful box/flange-type gearbox | Variants: thermal-protector version 9CIDGK-90F2P | |
| 9CIDG5-90F2P | Power supply: 3ø AC 415 / 440 V, 50/60 Hz | Rated speed: 1350 / 1600 r/min | Rated torque: 0.548-0.649 N·m | Rated current: 0.31-0.36 A | Starting torque: 1.62-2.27 N·m | Output shaft: Gear type (P) for powerful box/flange-type gearbox | Variants: thermal-protector version 9CIDGL-90F2P |
