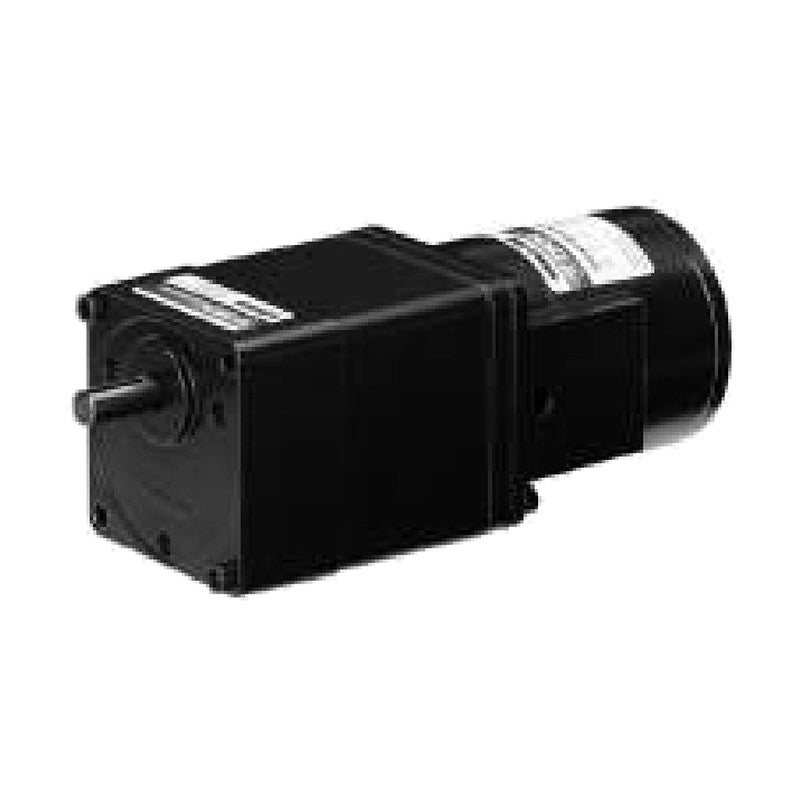

DKM 9CSD Speed Control Clutch & Brake Motor, 40 W, □90 mm Frame

DKM 9CSD Speed Control Clutch & Brake Motor, 40 W, □90 mm Frame

Single-phase AC speed control motor with internal clutch and brake mechanism and built-in tachogenerator, for frequent start/stop operation at variable speed.

Key features

  • Internal clutch and brake mechanism for frequent start/stop operation
  • Stops within approx. 0.1 s after switch-off (overrun approx. 1 turn)
  • Always used with a gearbox
  • Built-in tachogenerator (T.G) for speed control with DKM speed controllers
  • Available in connector type (-C) and lead wire type (-L)

Specifications

Output 40 W
Frame size 90 mm square
Poles 4
Phase Single-phase AC
Rating Continuous
Speed range 90-1400 r/min (50 Hz) / 90-1700 r/min (60 Hz)
Starting torque 0.15-0.19 N·m
Permissible torque at 1200 r/min 0.25-0.3 N·m
Permissible torque at 90 r/min 0.07-0.08 N·m
Capacitor 2.5 µF/450 VAC, 3.0 µF/450 VAC, 10.0 µF/250 VAC
Shaft Gear type pinion (always used with a gearbox)
Motor weight 3.90 kg
9CSDG1-40G-C Voltage: 1-phase 110 V 60 Hz | Connection: Connector type | For gearbox: 9GBK□BMH (general box)
9CSDG1-40G-L Voltage: 1-phase 110 V 60 Hz | Connection: Lead wire type | For gearbox: 9GBK□BMH (general box)
9CSDGA-40G-C Voltage: 1-phase 110 V 60 Hz, thermal protector | Connection: Connector type | For gearbox: 9GBK□BMH (general box)
9CSDGA-40G-L Voltage: 1-phase 110 V 60 Hz, thermal protector | Connection: Lead wire type | For gearbox: 9GBK□BMH (general box)
9CSDGB-40G-C Voltage: 1-phase 100 V 50/60 Hz, thermal protector | Connection: Connector type | For gearbox: 9GBK□BMH (general box)
9CSDGB-40G-L Voltage: 1-phase 100 V 50/60 Hz, thermal protector | Connection: Lead wire type | For gearbox: 9GBK□BMH (general box)
9CSDGC-40G-C Voltage: 1-phase 200 V 50/60 Hz, thermal protector | Connection: Connector type | For gearbox: 9GBK□BMH (general box)
9CSDGC-40G-L Voltage: 1-phase 200 V 50/60 Hz, thermal protector | Connection: Lead wire type | For gearbox: 9GBK□BMH (general box)
9CSDG2-40G-C Voltage: 1-phase 220 V 60 Hz | Connection: Connector type | For gearbox: 9GBK□BMH (general box)
9CSDG2-40G-L Voltage: 1-phase 220 V 60 Hz | Connection: Lead wire type | For gearbox: 9GBK□BMH (general box)
9CSDGD-40G-C Voltage: 1-phase 220 V 60 Hz, thermal protector | Connection: Connector type | For gearbox: 9GBK□BMH (general box)
9CSDGD-40G-L Voltage: 1-phase 220 V 60 Hz, thermal protector | Connection: Lead wire type | For gearbox: 9GBK□BMH (general box)
9CSDGE-40G-C Voltage: 1-phase 220-240 V 50 Hz, thermal protector | Connection: Connector type | For gearbox: 9GBK□BMH (general box)
9CSDGE-40G-L Voltage: 1-phase 220-240 V 50 Hz, thermal protector | Connection: Lead wire type | For gearbox: 9GBK□BMH (general box)
9CSDG1-40P-C Voltage: 1-phase 110 V 60 Hz | Connection: Connector type | For gearbox: 9PBK□BH / 9PFK□BH (powerful box/flange)
9CSDG1-40P-L Voltage: 1-phase 110 V 60 Hz | Connection: Lead wire type | For gearbox: 9PBK□BH / 9PFK□BH (powerful box/flange)
9CSDGA-40P-C Voltage: 1-phase 110 V 60 Hz, thermal protector | Connection: Connector type | For gearbox: 9PBK□BH / 9PFK□BH (powerful box/flange)
9CSDGA-40P-L Voltage: 1-phase 110 V 60 Hz, thermal protector | Connection: Lead wire type | For gearbox: 9PBK□BH / 9PFK□BH (powerful box/flange)
9CSDGB-40P-C Voltage: 1-phase 100 V 50/60 Hz, thermal protector | Connection: Connector type | For gearbox: 9PBK□BH / 9PFK□BH (powerful box/flange)
9CSDGB-40P-L Voltage: 1-phase 100 V 50/60 Hz, thermal protector | Connection: Lead wire type | For gearbox: 9PBK□BH / 9PFK□BH (powerful box/flange)
9CSDGC-40P-C Voltage: 1-phase 200 V 50/60 Hz, thermal protector | Connection: Connector type | For gearbox: 9PBK□BH / 9PFK□BH (powerful box/flange)
9CSDGC-40P-L Voltage: 1-phase 200 V 50/60 Hz, thermal protector | Connection: Lead wire type | For gearbox: 9PBK□BH / 9PFK□BH (powerful box/flange)
9CSDG2-40P-C Voltage: 1-phase 220 V 60 Hz | Connection: Connector type | For gearbox: 9PBK□BH / 9PFK□BH (powerful box/flange)
9CSDG2-40P-L Voltage: 1-phase 220 V 60 Hz | Connection: Lead wire type | For gearbox: 9PBK□BH / 9PFK□BH (powerful box/flange)
9CSDGD-40P-C Voltage: 1-phase 220 V 60 Hz, thermal protector | Connection: Connector type | For gearbox: 9PBK□BH / 9PFK□BH (powerful box/flange)
9CSDGD-40P-L Voltage: 1-phase 220 V 60 Hz, thermal protector | Connection: Lead wire type | For gearbox: 9PBK□BH / 9PFK□BH (powerful box/flange)
9CSDGE-40P-C Voltage: 1-phase 220-240 V 50 Hz, thermal protector | Connection: Connector type | For gearbox: 9PBK□BH / 9PFK□BH (powerful box/flange)
9CSDGE-40P-L Voltage: 1-phase 220-240 V 50 Hz, thermal protector | Connection: Lead wire type | For gearbox: 9PBK□BH / 9PFK□BH (powerful box/flange)
Speed Control MotorsDKM
28 product codes available in this family
Sourced direct from KoreaExport-ready supplyCompetitive pricing
RFQ List 0 Email about this

Need a different model, or a part not listed here? Send us your parts list →

DKM 9CSD Speed Control Clutch & Brake Motor, 40 W, □90 mm Frame

Brand DKM·Speed Control Motors

Available part numbers (28)

9CSDG1-40G-C, 9CSDG1-40G-L, 9CSDGA-40G-C, 9CSDGA-40G-L, 9CSDGB-40G-C, 9CSDGB-40G-L, 9CSDGC-40G-C, 9CSDGC-40G-L, 9CSDG2-40G-C, 9CSDG2-40G-L + 18 more — see full table ↓

How to order

Send the DKM part numbers and quantities through our RFQ form or to info@prosourcemro.com. We confirm price, availability and lead time within 1 business day — no account needed.

RFQ List 0 →
View full details
Product codes & specifications
0 selected
RFQ List (0)
Product codeSpec
9CSDG1-40G-CVoltage: 1-phase 110 V 60 Hz | Connection: Connector type | For gearbox: 9GBK□BMH (general box)
9CSDG1-40G-LVoltage: 1-phase 110 V 60 Hz | Connection: Lead wire type | For gearbox: 9GBK□BMH (general box)
9CSDGA-40G-CVoltage: 1-phase 110 V 60 Hz, thermal protector | Connection: Connector type | For gearbox: 9GBK□BMH (general box)
9CSDGA-40G-LVoltage: 1-phase 110 V 60 Hz, thermal protector | Connection: Lead wire type | For gearbox: 9GBK□BMH (general box)
9CSDGB-40G-CVoltage: 1-phase 100 V 50/60 Hz, thermal protector | Connection: Connector type | For gearbox: 9GBK□BMH (general box)
9CSDGB-40G-LVoltage: 1-phase 100 V 50/60 Hz, thermal protector | Connection: Lead wire type | For gearbox: 9GBK□BMH (general box)
9CSDGC-40G-CVoltage: 1-phase 200 V 50/60 Hz, thermal protector | Connection: Connector type | For gearbox: 9GBK□BMH (general box)
9CSDGC-40G-LVoltage: 1-phase 200 V 50/60 Hz, thermal protector | Connection: Lead wire type | For gearbox: 9GBK□BMH (general box)
9CSDG2-40G-CVoltage: 1-phase 220 V 60 Hz | Connection: Connector type | For gearbox: 9GBK□BMH (general box)
9CSDG2-40G-LVoltage: 1-phase 220 V 60 Hz | Connection: Lead wire type | For gearbox: 9GBK□BMH (general box)
9CSDGD-40G-CVoltage: 1-phase 220 V 60 Hz, thermal protector | Connection: Connector type | For gearbox: 9GBK□BMH (general box)
9CSDGD-40G-LVoltage: 1-phase 220 V 60 Hz, thermal protector | Connection: Lead wire type | For gearbox: 9GBK□BMH (general box)
9CSDGE-40G-CVoltage: 1-phase 220-240 V 50 Hz, thermal protector | Connection: Connector type | For gearbox: 9GBK□BMH (general box)
9CSDGE-40G-LVoltage: 1-phase 220-240 V 50 Hz, thermal protector | Connection: Lead wire type | For gearbox: 9GBK□BMH (general box)
9CSDG1-40P-CVoltage: 1-phase 110 V 60 Hz | Connection: Connector type | For gearbox: 9PBK□BH / 9PFK□BH (powerful box/flange)
9CSDG1-40P-LVoltage: 1-phase 110 V 60 Hz | Connection: Lead wire type | For gearbox: 9PBK□BH / 9PFK□BH (powerful box/flange)
9CSDGA-40P-CVoltage: 1-phase 110 V 60 Hz, thermal protector | Connection: Connector type | For gearbox: 9PBK□BH / 9PFK□BH (powerful box/flange)
9CSDGA-40P-LVoltage: 1-phase 110 V 60 Hz, thermal protector | Connection: Lead wire type | For gearbox: 9PBK□BH / 9PFK□BH (powerful box/flange)
9CSDGB-40P-CVoltage: 1-phase 100 V 50/60 Hz, thermal protector | Connection: Connector type | For gearbox: 9PBK□BH / 9PFK□BH (powerful box/flange)
9CSDGB-40P-LVoltage: 1-phase 100 V 50/60 Hz, thermal protector | Connection: Lead wire type | For gearbox: 9PBK□BH / 9PFK□BH (powerful box/flange)
9CSDGC-40P-CVoltage: 1-phase 200 V 50/60 Hz, thermal protector | Connection: Connector type | For gearbox: 9PBK□BH / 9PFK□BH (powerful box/flange)
9CSDGC-40P-LVoltage: 1-phase 200 V 50/60 Hz, thermal protector | Connection: Lead wire type | For gearbox: 9PBK□BH / 9PFK□BH (powerful box/flange)
9CSDG2-40P-CVoltage: 1-phase 220 V 60 Hz | Connection: Connector type | For gearbox: 9PBK□BH / 9PFK□BH (powerful box/flange)
9CSDG2-40P-LVoltage: 1-phase 220 V 60 Hz | Connection: Lead wire type | For gearbox: 9PBK□BH / 9PFK□BH (powerful box/flange)
9CSDGD-40P-CVoltage: 1-phase 220 V 60 Hz, thermal protector | Connection: Connector type | For gearbox: 9PBK□BH / 9PFK□BH (powerful box/flange)
9CSDGD-40P-LVoltage: 1-phase 220 V 60 Hz, thermal protector | Connection: Lead wire type | For gearbox: 9PBK□BH / 9PFK□BH (powerful box/flange)
9CSDGE-40P-CVoltage: 1-phase 220-240 V 50 Hz, thermal protector | Connection: Connector type | For gearbox: 9PBK□BH / 9PFK□BH (powerful box/flange)
9CSDGE-40P-LVoltage: 1-phase 220-240 V 50 Hz, thermal protector | Connection: Lead wire type | For gearbox: 9PBK□BH / 9PFK□BH (powerful box/flange)
