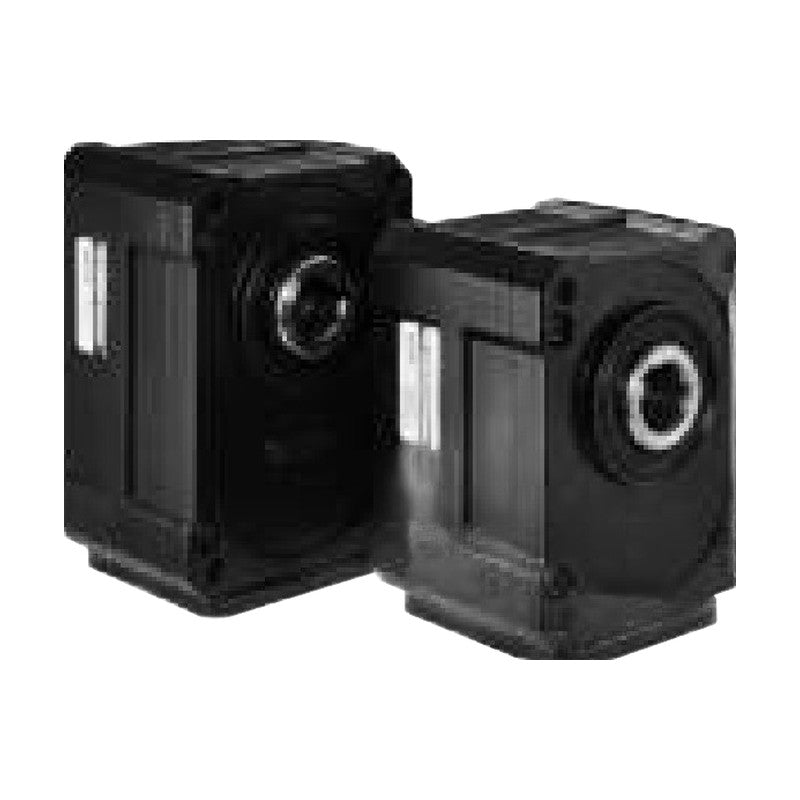

DKM 9HC / 10HC Helicross Right-Angle Gearbox

DKM 9HC / 10HC Helicross Right-Angle Gearbox

Helicross (helical/cross gear) right-angle gearbox with hollow output for □90 mm and □104 mm DKM motors, with high permissible torque.

Key features

  • Patented Helicross right-angle gear design
  • Gear ratios 15:1 to 240:1
  • Hollow output; output shaft (S45C or SUS) available separately

Specifications

Gearbox type HC type, Helicross (right angle)
Frame size 90 mm / 104 mm square
Gear ratio range 15:1 - 240:1
Max. permissible torque 1800 kgfcm (9HC), 3000 kgfcm (10HC)
9HC15-B Gear ratio: 15:1 | Output speed: 120 r/min (60 Hz) / 100 r/min (50 Hz) | Frame: 90 mm | Output shaft material: S45C | Motor output: 90-200 W
9HC20-B Gear ratio: 20:1 | Output speed: 90 r/min (60 Hz) / 75 r/min (50 Hz) | Frame: 90 mm | Output shaft material: S45C | Motor output: 90-200 W
9HC25-B Gear ratio: 25:1 | Output speed: 72 r/min (60 Hz) / 60 r/min (50 Hz) | Frame: 90 mm | Output shaft material: S45C | Motor output: 90-200 W
9HC30-B Gear ratio: 30:1 | Output speed: 60 r/min (60 Hz) / 50 r/min (50 Hz) | Frame: 90 mm | Output shaft material: S45C | Motor output: 90-200 W
9HC40-B Gear ratio: 40:1 | Output speed: 45 r/min (60 Hz) / 37.5 r/min (50 Hz) | Frame: 90 mm | Output shaft material: S45C | Motor output: 90-200 W
9HC50-B Gear ratio: 50:1 | Output speed: 36 r/min (60 Hz) / 30 r/min (50 Hz) | Frame: 90 mm | Output shaft material: S45C | Motor output: 90-200 W
9HC60-B Gear ratio: 60:1 | Output speed: 30 r/min (60 Hz) / 25 r/min (50 Hz) | Frame: 90 mm | Output shaft material: S45C | Motor output: 90-200 W
9HC80-B Gear ratio: 80:1 | Output speed: 22.5 r/min (60 Hz) / 18.8 r/min (50 Hz) | Frame: 90 mm | Output shaft material: S45C | Motor output: 90-200 W
9HC100-B Gear ratio: 100:1 | Output speed: 18 r/min (60 Hz) / 15 r/min (50 Hz) | Frame: 90 mm | Output shaft material: S45C | Motor output: 90-200 W
9HC120-B Gear ratio: 120:1 | Output speed: 15 r/min (60 Hz) / 12.5 r/min (50 Hz) | Frame: 90 mm | Output shaft material: S45C | Motor output: 90-200 W
9HC160-B Gear ratio: 160:1 | Output speed: 11.25 r/min (60 Hz) / 9.4 r/min (50 Hz) | Frame: 90 mm | Output shaft material: S45C | Motor output: 90-200 W
9HC200-B Gear ratio: 200:1 | Output speed: 9 r/min (60 Hz) / 7.5 r/min (50 Hz) | Frame: 90 mm | Output shaft material: S45C | Motor output: 90-200 W
9HC225-B Gear ratio: 225:1 | Output speed: 8 r/min (60 Hz) / 6.7 r/min (50 Hz) | Frame: 90 mm | Output shaft material: S45C | Motor output: 90-200 W
9HC240-B Gear ratio: 240:1 | Output speed: 7.5 r/min (60 Hz) / 6.25 r/min (50 Hz) | Frame: 90 mm | Output shaft material: S45C | Motor output: 90-200 W
9HC15-S Gear ratio: 15:1 | Output speed: 120 r/min (60 Hz) / 100 r/min (50 Hz) | Frame: 90 mm | Output shaft material: SUS | Motor output: 90-200 W
9HC20-S Gear ratio: 20:1 | Output speed: 90 r/min (60 Hz) / 75 r/min (50 Hz) | Frame: 90 mm | Output shaft material: SUS | Motor output: 90-200 W
9HC25-S Gear ratio: 25:1 | Output speed: 72 r/min (60 Hz) / 60 r/min (50 Hz) | Frame: 90 mm | Output shaft material: SUS | Motor output: 90-200 W
9HC30-S Gear ratio: 30:1 | Output speed: 60 r/min (60 Hz) / 50 r/min (50 Hz) | Frame: 90 mm | Output shaft material: SUS | Motor output: 90-200 W
9HC40-S Gear ratio: 40:1 | Output speed: 45 r/min (60 Hz) / 37.5 r/min (50 Hz) | Frame: 90 mm | Output shaft material: SUS | Motor output: 90-200 W
9HC50-S Gear ratio: 50:1 | Output speed: 36 r/min (60 Hz) / 30 r/min (50 Hz) | Frame: 90 mm | Output shaft material: SUS | Motor output: 90-200 W
9HC60-S Gear ratio: 60:1 | Output speed: 30 r/min (60 Hz) / 25 r/min (50 Hz) | Frame: 90 mm | Output shaft material: SUS | Motor output: 90-200 W
9HC80-S Gear ratio: 80:1 | Output speed: 22.5 r/min (60 Hz) / 18.8 r/min (50 Hz) | Frame: 90 mm | Output shaft material: SUS | Motor output: 90-200 W
9HC100-S Gear ratio: 100:1 | Output speed: 18 r/min (60 Hz) / 15 r/min (50 Hz) | Frame: 90 mm | Output shaft material: SUS | Motor output: 90-200 W
9HC120-S Gear ratio: 120:1 | Output speed: 15 r/min (60 Hz) / 12.5 r/min (50 Hz) | Frame: 90 mm | Output shaft material: SUS | Motor output: 90-200 W
9HC160-S Gear ratio: 160:1 | Output speed: 11.25 r/min (60 Hz) / 9.4 r/min (50 Hz) | Frame: 90 mm | Output shaft material: SUS | Motor output: 90-200 W
9HC200-S Gear ratio: 200:1 | Output speed: 9 r/min (60 Hz) / 7.5 r/min (50 Hz) | Frame: 90 mm | Output shaft material: SUS | Motor output: 90-200 W
9HC225-S Gear ratio: 225:1 | Output speed: 8 r/min (60 Hz) / 6.7 r/min (50 Hz) | Frame: 90 mm | Output shaft material: SUS | Motor output: 90-200 W
9HC240-S Gear ratio: 240:1 | Output speed: 7.5 r/min (60 Hz) / 6.25 r/min (50 Hz) | Frame: 90 mm | Output shaft material: SUS | Motor output: 90-200 W
10HC15-B Gear ratio: 15:1 | Output speed: 120 r/min (60 Hz) / 100 r/min (50 Hz) | Frame: 104 mm | Output shaft material: S45C | Motor output: 250-400 W
10HC20-B Gear ratio: 20:1 | Output speed: 90 r/min (60 Hz) / 75 r/min (50 Hz) | Frame: 104 mm | Output shaft material: S45C | Motor output: 250-400 W
10HC25-B Gear ratio: 25:1 | Output speed: 72 r/min (60 Hz) / 60 r/min (50 Hz) | Frame: 104 mm | Output shaft material: S45C | Motor output: 250-400 W
10HC30-B Gear ratio: 30:1 | Output speed: 60 r/min (60 Hz) / 50 r/min (50 Hz) | Frame: 104 mm | Output shaft material: S45C | Motor output: 250-400 W
10HC40-B Gear ratio: 40:1 | Output speed: 45 r/min (60 Hz) / 37.5 r/min (50 Hz) | Frame: 104 mm | Output shaft material: S45C | Motor output: 250-400 W
10HC50-B Gear ratio: 50:1 | Output speed: 36 r/min (60 Hz) / 30 r/min (50 Hz) | Frame: 104 mm | Output shaft material: S45C | Motor output: 250-400 W
10HC60-B Gear ratio: 60:1 | Output speed: 30 r/min (60 Hz) / 25 r/min (50 Hz) | Frame: 104 mm | Output shaft material: S45C | Motor output: 250-400 W
10HC80-B Gear ratio: 80:1 | Output speed: 22.5 r/min (60 Hz) / 18.8 r/min (50 Hz) | Frame: 104 mm | Output shaft material: S45C | Motor output: 250-400 W
10HC100-B Gear ratio: 100:1 | Output speed: 18 r/min (60 Hz) / 15 r/min (50 Hz) | Frame: 104 mm | Output shaft material: S45C | Motor output: 250-400 W
10HC120-B Gear ratio: 120:1 | Output speed: 15 r/min (60 Hz) / 12.5 r/min (50 Hz) | Frame: 104 mm | Output shaft material: S45C | Motor output: 250-400 W
10HC160-B Gear ratio: 160:1 | Output speed: 11.25 r/min (60 Hz) / 9.4 r/min (50 Hz) | Frame: 104 mm | Output shaft material: S45C | Motor output: 250-400 W
10HC200-B Gear ratio: 200:1 | Output speed: 9 r/min (60 Hz) / 7.5 r/min (50 Hz) | Frame: 104 mm | Output shaft material: S45C | Motor output: 250-400 W
10HC225-B Gear ratio: 225:1 | Output speed: 8 r/min (60 Hz) / 6.7 r/min (50 Hz) | Frame: 104 mm | Output shaft material: S45C | Motor output: 250-400 W
10HC240-B Gear ratio: 240:1 | Output speed: 7.5 r/min (60 Hz) / 6.25 r/min (50 Hz) | Frame: 104 mm | Output shaft material: S45C | Motor output: 250-400 W
10HC15-S Gear ratio: 15:1 | Output speed: 120 r/min (60 Hz) / 100 r/min (50 Hz) | Frame: 104 mm | Output shaft material: SUS | Motor output: 250-400 W
10HC20-S Gear ratio: 20:1 | Output speed: 90 r/min (60 Hz) / 75 r/min (50 Hz) | Frame: 104 mm | Output shaft material: SUS | Motor output: 250-400 W
10HC25-S Gear ratio: 25:1 | Output speed: 72 r/min (60 Hz) / 60 r/min (50 Hz) | Frame: 104 mm | Output shaft material: SUS | Motor output: 250-400 W
10HC30-S Gear ratio: 30:1 | Output speed: 60 r/min (60 Hz) / 50 r/min (50 Hz) | Frame: 104 mm | Output shaft material: SUS | Motor output: 250-400 W
10HC40-S Gear ratio: 40:1 | Output speed: 45 r/min (60 Hz) / 37.5 r/min (50 Hz) | Frame: 104 mm | Output shaft material: SUS | Motor output: 250-400 W
10HC50-S Gear ratio: 50:1 | Output speed: 36 r/min (60 Hz) / 30 r/min (50 Hz) | Frame: 104 mm | Output shaft material: SUS | Motor output: 250-400 W
10HC60-S Gear ratio: 60:1 | Output speed: 30 r/min (60 Hz) / 25 r/min (50 Hz) | Frame: 104 mm | Output shaft material: SUS | Motor output: 250-400 W
10HC80-S Gear ratio: 80:1 | Output speed: 22.5 r/min (60 Hz) / 18.8 r/min (50 Hz) | Frame: 104 mm | Output shaft material: SUS | Motor output: 250-400 W
10HC100-S Gear ratio: 100:1 | Output speed: 18 r/min (60 Hz) / 15 r/min (50 Hz) | Frame: 104 mm | Output shaft material: SUS | Motor output: 250-400 W
10HC120-S Gear ratio: 120:1 | Output speed: 15 r/min (60 Hz) / 12.5 r/min (50 Hz) | Frame: 104 mm | Output shaft material: SUS | Motor output: 250-400 W
10HC160-S Gear ratio: 160:1 | Output speed: 11.25 r/min (60 Hz) / 9.4 r/min (50 Hz) | Frame: 104 mm | Output shaft material: SUS | Motor output: 250-400 W
10HC200-S Gear ratio: 200:1 | Output speed: 9 r/min (60 Hz) / 7.5 r/min (50 Hz) | Frame: 104 mm | Output shaft material: SUS | Motor output: 250-400 W
10HC225-S Gear ratio: 225:1 | Output speed: 8 r/min (60 Hz) / 6.7 r/min (50 Hz) | Frame: 104 mm | Output shaft material: SUS | Motor output: 250-400 W
10HC240-S Gear ratio: 240:1 | Output speed: 7.5 r/min (60 Hz) / 6.25 r/min (50 Hz) | Frame: 104 mm | Output shaft material: SUS | Motor output: 250-400 W
GearboxesDKM
56 product codes available in this family
Sourced direct from KoreaExport-ready supplyCompetitive pricing
RFQ List 0 Email about this

Need a different model, or a part not listed here? Send us your parts list →

DKM 9HC / 10HC Helicross Right-Angle Gearbox

Brand DKM·Gearboxes

Available part numbers (56)

9HC15-B, 9HC20-B, 9HC25-B, 9HC30-B, 9HC40-B, 9HC50-B, 9HC60-B, 9HC80-B, 9HC100-B, 9HC120-B + 46 more — see full table ↓

How to order

Send the DKM part numbers and quantities through our RFQ form or to info@prosourcemro.com. We confirm price, availability and lead time within 1 business day — no account needed.

RFQ List 0 →
View full details
Product codes & specifications
0 selected
RFQ List (0)
Product codeSpec
9HC15-BGear ratio: 15:1 | Output speed: 120 r/min (60 Hz) / 100 r/min (50 Hz) | Frame: 90 mm | Output shaft material: S45C | Motor output: 90-200 W
9HC20-BGear ratio: 20:1 | Output speed: 90 r/min (60 Hz) / 75 r/min (50 Hz) | Frame: 90 mm | Output shaft material: S45C | Motor output: 90-200 W
9HC25-BGear ratio: 25:1 | Output speed: 72 r/min (60 Hz) / 60 r/min (50 Hz) | Frame: 90 mm | Output shaft material: S45C | Motor output: 90-200 W
9HC30-BGear ratio: 30:1 | Output speed: 60 r/min (60 Hz) / 50 r/min (50 Hz) | Frame: 90 mm | Output shaft material: S45C | Motor output: 90-200 W
9HC40-BGear ratio: 40:1 | Output speed: 45 r/min (60 Hz) / 37.5 r/min (50 Hz) | Frame: 90 mm | Output shaft material: S45C | Motor output: 90-200 W
9HC50-BGear ratio: 50:1 | Output speed: 36 r/min (60 Hz) / 30 r/min (50 Hz) | Frame: 90 mm | Output shaft material: S45C | Motor output: 90-200 W
9HC60-BGear ratio: 60:1 | Output speed: 30 r/min (60 Hz) / 25 r/min (50 Hz) | Frame: 90 mm | Output shaft material: S45C | Motor output: 90-200 W
9HC80-BGear ratio: 80:1 | Output speed: 22.5 r/min (60 Hz) / 18.8 r/min (50 Hz) | Frame: 90 mm | Output shaft material: S45C | Motor output: 90-200 W
9HC100-BGear ratio: 100:1 | Output speed: 18 r/min (60 Hz) / 15 r/min (50 Hz) | Frame: 90 mm | Output shaft material: S45C | Motor output: 90-200 W
9HC120-BGear ratio: 120:1 | Output speed: 15 r/min (60 Hz) / 12.5 r/min (50 Hz) | Frame: 90 mm | Output shaft material: S45C | Motor output: 90-200 W
9HC160-BGear ratio: 160:1 | Output speed: 11.25 r/min (60 Hz) / 9.4 r/min (50 Hz) | Frame: 90 mm | Output shaft material: S45C | Motor output: 90-200 W
9HC200-BGear ratio: 200:1 | Output speed: 9 r/min (60 Hz) / 7.5 r/min (50 Hz) | Frame: 90 mm | Output shaft material: S45C | Motor output: 90-200 W
9HC225-BGear ratio: 225:1 | Output speed: 8 r/min (60 Hz) / 6.7 r/min (50 Hz) | Frame: 90 mm | Output shaft material: S45C | Motor output: 90-200 W
9HC240-BGear ratio: 240:1 | Output speed: 7.5 r/min (60 Hz) / 6.25 r/min (50 Hz) | Frame: 90 mm | Output shaft material: S45C | Motor output: 90-200 W
9HC15-SGear ratio: 15:1 | Output speed: 120 r/min (60 Hz) / 100 r/min (50 Hz) | Frame: 90 mm | Output shaft material: SUS | Motor output: 90-200 W
9HC20-SGear ratio: 20:1 | Output speed: 90 r/min (60 Hz) / 75 r/min (50 Hz) | Frame: 90 mm | Output shaft material: SUS | Motor output: 90-200 W
9HC25-SGear ratio: 25:1 | Output speed: 72 r/min (60 Hz) / 60 r/min (50 Hz) | Frame: 90 mm | Output shaft material: SUS | Motor output: 90-200 W
9HC30-SGear ratio: 30:1 | Output speed: 60 r/min (60 Hz) / 50 r/min (50 Hz) | Frame: 90 mm | Output shaft material: SUS | Motor output: 90-200 W
9HC40-SGear ratio: 40:1 | Output speed: 45 r/min (60 Hz) / 37.5 r/min (50 Hz) | Frame: 90 mm | Output shaft material: SUS | Motor output: 90-200 W
9HC50-SGear ratio: 50:1 | Output speed: 36 r/min (60 Hz) / 30 r/min (50 Hz) | Frame: 90 mm | Output shaft material: SUS | Motor output: 90-200 W
9HC60-SGear ratio: 60:1 | Output speed: 30 r/min (60 Hz) / 25 r/min (50 Hz) | Frame: 90 mm | Output shaft material: SUS | Motor output: 90-200 W
9HC80-SGear ratio: 80:1 | Output speed: 22.5 r/min (60 Hz) / 18.8 r/min (50 Hz) | Frame: 90 mm | Output shaft material: SUS | Motor output: 90-200 W
9HC100-SGear ratio: 100:1 | Output speed: 18 r/min (60 Hz) / 15 r/min (50 Hz) | Frame: 90 mm | Output shaft material: SUS | Motor output: 90-200 W
9HC120-SGear ratio: 120:1 | Output speed: 15 r/min (60 Hz) / 12.5 r/min (50 Hz) | Frame: 90 mm | Output shaft material: SUS | Motor output: 90-200 W
9HC160-SGear ratio: 160:1 | Output speed: 11.25 r/min (60 Hz) / 9.4 r/min (50 Hz) | Frame: 90 mm | Output shaft material: SUS | Motor output: 90-200 W
9HC200-SGear ratio: 200:1 | Output speed: 9 r/min (60 Hz) / 7.5 r/min (50 Hz) | Frame: 90 mm | Output shaft material: SUS | Motor output: 90-200 W
9HC225-SGear ratio: 225:1 | Output speed: 8 r/min (60 Hz) / 6.7 r/min (50 Hz) | Frame: 90 mm | Output shaft material: SUS | Motor output: 90-200 W
9HC240-SGear ratio: 240:1 | Output speed: 7.5 r/min (60 Hz) / 6.25 r/min (50 Hz) | Frame: 90 mm | Output shaft material: SUS | Motor output: 90-200 W
10HC15-BGear ratio: 15:1 | Output speed: 120 r/min (60 Hz) / 100 r/min (50 Hz) | Frame: 104 mm | Output shaft material: S45C | Motor output: 250-400 W
10HC20-BGear ratio: 20:1 | Output speed: 90 r/min (60 Hz) / 75 r/min (50 Hz) | Frame: 104 mm | Output shaft material: S45C | Motor output: 250-400 W
10HC25-BGear ratio: 25:1 | Output speed: 72 r/min (60 Hz) / 60 r/min (50 Hz) | Frame: 104 mm | Output shaft material: S45C | Motor output: 250-400 W
10HC30-BGear ratio: 30:1 | Output speed: 60 r/min (60 Hz) / 50 r/min (50 Hz) | Frame: 104 mm | Output shaft material: S45C | Motor output: 250-400 W
10HC40-BGear ratio: 40:1 | Output speed: 45 r/min (60 Hz) / 37.5 r/min (50 Hz) | Frame: 104 mm | Output shaft material: S45C | Motor output: 250-400 W
10HC50-BGear ratio: 50:1 | Output speed: 36 r/min (60 Hz) / 30 r/min (50 Hz) | Frame: 104 mm | Output shaft material: S45C | Motor output: 250-400 W
10HC60-BGear ratio: 60:1 | Output speed: 30 r/min (60 Hz) / 25 r/min (50 Hz) | Frame: 104 mm | Output shaft material: S45C | Motor output: 250-400 W
10HC80-BGear ratio: 80:1 | Output speed: 22.5 r/min (60 Hz) / 18.8 r/min (50 Hz) | Frame: 104 mm | Output shaft material: S45C | Motor output: 250-400 W
10HC100-BGear ratio: 100:1 | Output speed: 18 r/min (60 Hz) / 15 r/min (50 Hz) | Frame: 104 mm | Output shaft material: S45C | Motor output: 250-400 W
10HC120-BGear ratio: 120:1 | Output speed: 15 r/min (60 Hz) / 12.5 r/min (50 Hz) | Frame: 104 mm | Output shaft material: S45C | Motor output: 250-400 W
10HC160-BGear ratio: 160:1 | Output speed: 11.25 r/min (60 Hz) / 9.4 r/min (50 Hz) | Frame: 104 mm | Output shaft material: S45C | Motor output: 250-400 W
10HC200-BGear ratio: 200:1 | Output speed: 9 r/min (60 Hz) / 7.5 r/min (50 Hz) | Frame: 104 mm | Output shaft material: S45C | Motor output: 250-400 W
10HC225-BGear ratio: 225:1 | Output speed: 8 r/min (60 Hz) / 6.7 r/min (50 Hz) | Frame: 104 mm | Output shaft material: S45C | Motor output: 250-400 W
10HC240-BGear ratio: 240:1 | Output speed: 7.5 r/min (60 Hz) / 6.25 r/min (50 Hz) | Frame: 104 mm | Output shaft material: S45C | Motor output: 250-400 W
10HC15-SGear ratio: 15:1 | Output speed: 120 r/min (60 Hz) / 100 r/min (50 Hz) | Frame: 104 mm | Output shaft material: SUS | Motor output: 250-400 W
10HC20-SGear ratio: 20:1 | Output speed: 90 r/min (60 Hz) / 75 r/min (50 Hz) | Frame: 104 mm | Output shaft material: SUS | Motor output: 250-400 W
10HC25-SGear ratio: 25:1 | Output speed: 72 r/min (60 Hz) / 60 r/min (50 Hz) | Frame: 104 mm | Output shaft material: SUS | Motor output: 250-400 W
10HC30-SGear ratio: 30:1 | Output speed: 60 r/min (60 Hz) / 50 r/min (50 Hz) | Frame: 104 mm | Output shaft material: SUS | Motor output: 250-400 W
10HC40-SGear ratio: 40:1 | Output speed: 45 r/min (60 Hz) / 37.5 r/min (50 Hz) | Frame: 104 mm | Output shaft material: SUS | Motor output: 250-400 W
10HC50-SGear ratio: 50:1 | Output speed: 36 r/min (60 Hz) / 30 r/min (50 Hz) | Frame: 104 mm | Output shaft material: SUS | Motor output: 250-400 W
10HC60-SGear ratio: 60:1 | Output speed: 30 r/min (60 Hz) / 25 r/min (50 Hz) | Frame: 104 mm | Output shaft material: SUS | Motor output: 250-400 W
10HC80-SGear ratio: 80:1 | Output speed: 22.5 r/min (60 Hz) / 18.8 r/min (50 Hz) | Frame: 104 mm | Output shaft material: SUS | Motor output: 250-400 W
10HC100-SGear ratio: 100:1 | Output speed: 18 r/min (60 Hz) / 15 r/min (50 Hz) | Frame: 104 mm | Output shaft material: SUS | Motor output: 250-400 W
10HC120-SGear ratio: 120:1 | Output speed: 15 r/min (60 Hz) / 12.5 r/min (50 Hz) | Frame: 104 mm | Output shaft material: SUS | Motor output: 250-400 W
10HC160-SGear ratio: 160:1 | Output speed: 11.25 r/min (60 Hz) / 9.4 r/min (50 Hz) | Frame: 104 mm | Output shaft material: SUS | Motor output: 250-400 W
10HC200-SGear ratio: 200:1 | Output speed: 9 r/min (60 Hz) / 7.5 r/min (50 Hz) | Frame: 104 mm | Output shaft material: SUS | Motor output: 250-400 W
10HC225-SGear ratio: 225:1 | Output speed: 8 r/min (60 Hz) / 6.7 r/min (50 Hz) | Frame: 104 mm | Output shaft material: SUS | Motor output: 250-400 W
10HC240-SGear ratio: 240:1 | Output speed: 7.5 r/min (60 Hz) / 6.25 r/min (50 Hz) | Frame: 104 mm | Output shaft material: SUS | Motor output: 250-400 W
