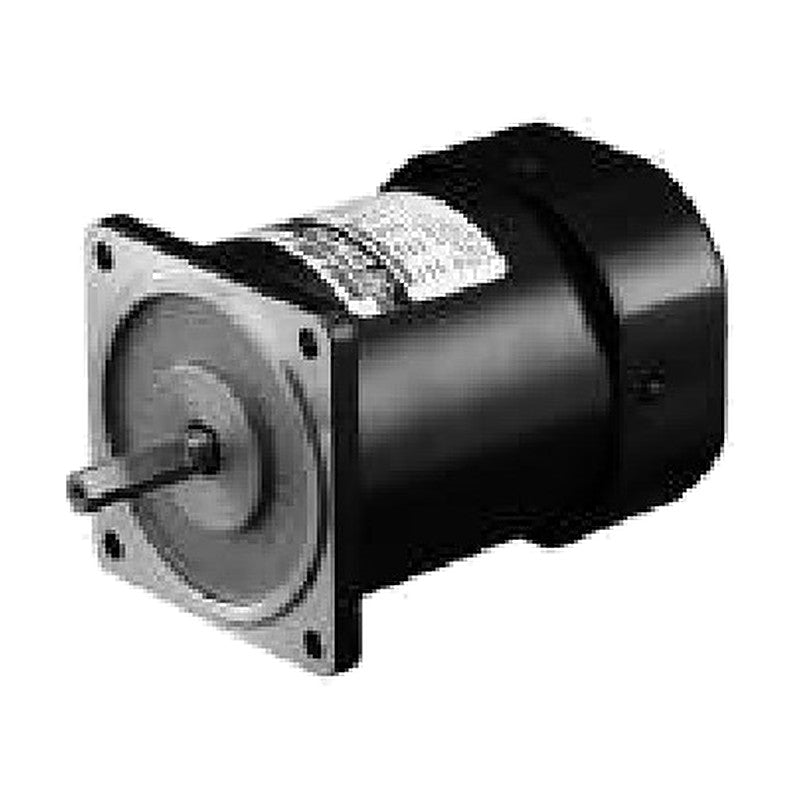

DKM 9ID-120F-A 2-Pole Induction Motor 120W, 90 mm Frame

DKM 9ID-120F-A 2-Pole Induction Motor 120W, 90 mm Frame

120 W single- and three-phase 2-pole AC induction motor with 90 mm square frame for high-speed (approx. 2,700-3,300 r/min) unidirectional continuous operation; D-cut or key output shaft.

Key features

  • 2-pole design for high-speed continuous operation
  • Single-phase capacitor-run and three-phase versions
  • D-cut or key output shaft for direct drive (no gearbox)
  • Lead-wire or terminal-box connection

Specifications

Output 120 W
Frame size 90 mm square
Poles 2
Duty Continuous
Rated speed 2600 / 2700 / 3200 r/min (depends on voltage/frequency)
Rated torque 0.36-0.45 N·m
Starting torque 0.3-1.355 N·m
Shaft options D-cut, key
Connection Lead wire or terminal box (-T)
Insulation class Class B (130 °C)
Insulation resistance 100 MΩ min. at 500 VDC megger (windings to frame)
Dielectric strength 1.5 kV at 50/60 Hz for 1 minute
DKM 9ID-120F-A 2-Pole Induction Motor 120W, 90 mm Frame
9IDD1-120F-A Power supply: 1ø AC 110 V, 60 Hz | Rated speed: 3200 r/min | Rated torque: 0.365 N·m | Rated current: 2.3 A | Starting torque: 0.3 N·m | Capacitor: 25.0 µF / 250 VAC | Output shaft: D-cut (motor only) | Variants: thermal-protector version 9IDDA-120F-A; terminal-box version 9IDD1-120F-AT
9IDK1-120F-A Power supply: 1ø AC 110 V, 60 Hz | Rated speed: 3200 r/min | Rated torque: 0.365 N·m | Rated current: 2.3 A | Starting torque: 0.3 N·m | Capacitor: 25.0 µF / 250 VAC | Output shaft: Key (motor only) | Variants: thermal-protector version 9IDKA-120F-A; terminal-box version 9IDK1-120F-AT
9IDD2-120F-A Power supply: 1ø AC 220 V, 60 Hz | Rated speed: 3200 r/min | Rated torque: 0.365 N·m | Rated current: 1.15 A | Starting torque: 0.3 N·m | Capacitor: 6.5 µF / 450 VAC | Output shaft: D-cut (motor only) | Variants: thermal-protector version 9IDDD-120F-A; terminal-box version 9IDD2-120F-AT
9IDK2-120F-A Power supply: 1ø AC 220 V, 60 Hz | Rated speed: 3200 r/min | Rated torque: 0.365 N·m | Rated current: 1.15 A | Starting torque: 0.3 N·m | Capacitor: 6.5 µF / 450 VAC | Output shaft: Key (motor only) | Variants: thermal-protector version 9IDKD-120F-A; terminal-box version 9IDK2-120F-AT
9IDDE-120F-A Power supply: 1ø AC 220 / 240 V, 50 Hz | Rated speed: 2600 r/min | Rated torque: 0.45 N·m | Rated current: 0.98-1.08 A | Starting torque: 0.32-0.38 N·m | Capacitor: 6.5 µF / 450 VAC | Output shaft: D-cut (motor only) | Variants: terminal-box version 9IDDE-120F-AT
9IDKE-120F-A Power supply: 1ø AC 220 / 240 V, 50 Hz | Rated speed: 2600 r/min | Rated torque: 0.45 N·m | Rated current: 0.98-1.08 A | Starting torque: 0.32-0.38 N·m | Capacitor: 6.5 µF / 450 VAC | Output shaft: Key (motor only) | Variants: terminal-box version 9IDKE-120F-AT
9IDD3-120F-A Power supply: 3ø AC 220 / 230 V, 50/60 Hz | Rated speed: 2700 / 3200 r/min | Rated torque: 0.365-0.433 N·m | Rated current: 0.63-0.69 A | Starting torque: 0.967-1.335 N·m | Output shaft: D-cut (motor only) | Variants: thermal-protector version 9IDDG-120F-A; terminal-box version 9IDD3-120F-AT
9IDK3-120F-A Power supply: 3ø AC 220 / 230 V, 50/60 Hz | Rated speed: 2700 / 3200 r/min | Rated torque: 0.365-0.433 N·m | Rated current: 0.63-0.69 A | Starting torque: 0.967-1.335 N·m | Output shaft: Key (motor only) | Variants: thermal-protector version 9IDKG-120F-A; terminal-box version 9IDK3-120F-AT
9IDD4-120F-A Power supply: 3ø AC 380 / 400 V, 50/60 Hz | Rated speed: 2700 / 3200 r/min | Rated torque: 0.365-0.433 N·m | Rated current: 0.34-0.37 A | Starting torque: 0.958-1.355 N·m | Output shaft: D-cut (motor only) | Variants: thermal-protector version 9IDDK-120F-A; terminal-box version 9IDD4-120F-AT
9IDK4-120F-A Power supply: 3ø AC 380 / 400 V, 50/60 Hz | Rated speed: 2700 / 3200 r/min | Rated torque: 0.365-0.433 N·m | Rated current: 0.34-0.37 A | Starting torque: 0.958-1.355 N·m | Output shaft: Key (motor only) | Variants: thermal-protector version 9IDKK-120F-A; terminal-box version 9IDK4-120F-AT
9IDD5-120F-A Power supply: 3ø AC 415 / 440 V, 50/60 Hz | Rated speed: 2700 / 3200 r/min | Rated torque: 0.36-0.433 N·m | Rated current: 0.33-0.37 A | Starting torque: 0.927-1.335 N·m | Output shaft: D-cut (motor only) | Variants: thermal-protector version 9IDDL-120F-A; terminal-box version 9IDD5-120F-AT
9IDK5-120F-A Power supply: 3ø AC 415 / 440 V, 50/60 Hz | Rated speed: 2700 / 3200 r/min | Rated torque: 0.36-0.433 N·m | Rated current: 0.33-0.37 A | Starting torque: 0.927-1.335 N·m | Output shaft: Key (motor only) | Variants: thermal-protector version 9IDKL-120F-A; terminal-box version 9IDK5-120F-AT
AC Induction MotorsDKM
12 product codes available in this family
Sourced direct from KoreaExport-ready supplyCompetitive pricing
RFQ List 0 Email about this

Need a different model, or a part not listed here? Send us your parts list →

DKM 9ID-120F-A 2-Pole Induction Motor 120W, 90 mm Frame

Brand DKM·AC Induction Motors

Available part numbers (12)

9IDD1-120F-A, 9IDK1-120F-A, 9IDD2-120F-A, 9IDK2-120F-A, 9IDDE-120F-A, 9IDKE-120F-A, 9IDD3-120F-A, 9IDK3-120F-A, 9IDD4-120F-A, 9IDK4-120F-A + 2 more — see full table ↓

How to order

Send the DKM part numbers and quantities through our RFQ form or to info@prosourcemro.com. We confirm price, availability and lead time within 1 business day — no account needed.

RFQ List 0 →
View full details
Product codes & specifications
DKM 9ID-120F-A 2-Pole Induction Motor 120W, 90 mm Frame
0 selected
RFQ List (0)
Product codeSpec
9IDD1-120F-APower supply: 1ø AC 110 V, 60 Hz | Rated speed: 3200 r/min | Rated torque: 0.365 N·m | Rated current: 2.3 A | Starting torque: 0.3 N·m | Capacitor: 25.0 µF / 250 VAC | Output shaft: D-cut (motor only) | Variants: thermal-protector version 9IDDA-120F-A; terminal-box version 9IDD1-120F-AT
9IDK1-120F-APower supply: 1ø AC 110 V, 60 Hz | Rated speed: 3200 r/min | Rated torque: 0.365 N·m | Rated current: 2.3 A | Starting torque: 0.3 N·m | Capacitor: 25.0 µF / 250 VAC | Output shaft: Key (motor only) | Variants: thermal-protector version 9IDKA-120F-A; terminal-box version 9IDK1-120F-AT
9IDD2-120F-APower supply: 1ø AC 220 V, 60 Hz | Rated speed: 3200 r/min | Rated torque: 0.365 N·m | Rated current: 1.15 A | Starting torque: 0.3 N·m | Capacitor: 6.5 µF / 450 VAC | Output shaft: D-cut (motor only) | Variants: thermal-protector version 9IDDD-120F-A; terminal-box version 9IDD2-120F-AT
9IDK2-120F-APower supply: 1ø AC 220 V, 60 Hz | Rated speed: 3200 r/min | Rated torque: 0.365 N·m | Rated current: 1.15 A | Starting torque: 0.3 N·m | Capacitor: 6.5 µF / 450 VAC | Output shaft: Key (motor only) | Variants: thermal-protector version 9IDKD-120F-A; terminal-box version 9IDK2-120F-AT
9IDDE-120F-APower supply: 1ø AC 220 / 240 V, 50 Hz | Rated speed: 2600 r/min | Rated torque: 0.45 N·m | Rated current: 0.98-1.08 A | Starting torque: 0.32-0.38 N·m | Capacitor: 6.5 µF / 450 VAC | Output shaft: D-cut (motor only) | Variants: terminal-box version 9IDDE-120F-AT
9IDKE-120F-APower supply: 1ø AC 220 / 240 V, 50 Hz | Rated speed: 2600 r/min | Rated torque: 0.45 N·m | Rated current: 0.98-1.08 A | Starting torque: 0.32-0.38 N·m | Capacitor: 6.5 µF / 450 VAC | Output shaft: Key (motor only) | Variants: terminal-box version 9IDKE-120F-AT
9IDD3-120F-APower supply: 3ø AC 220 / 230 V, 50/60 Hz | Rated speed: 2700 / 3200 r/min | Rated torque: 0.365-0.433 N·m | Rated current: 0.63-0.69 A | Starting torque: 0.967-1.335 N·m | Output shaft: D-cut (motor only) | Variants: thermal-protector version 9IDDG-120F-A; terminal-box version 9IDD3-120F-AT
9IDK3-120F-APower supply: 3ø AC 220 / 230 V, 50/60 Hz | Rated speed: 2700 / 3200 r/min | Rated torque: 0.365-0.433 N·m | Rated current: 0.63-0.69 A | Starting torque: 0.967-1.335 N·m | Output shaft: Key (motor only) | Variants: thermal-protector version 9IDKG-120F-A; terminal-box version 9IDK3-120F-AT
9IDD4-120F-APower supply: 3ø AC 380 / 400 V, 50/60 Hz | Rated speed: 2700 / 3200 r/min | Rated torque: 0.365-0.433 N·m | Rated current: 0.34-0.37 A | Starting torque: 0.958-1.355 N·m | Output shaft: D-cut (motor only) | Variants: thermal-protector version 9IDDK-120F-A; terminal-box version 9IDD4-120F-AT
9IDK4-120F-APower supply: 3ø AC 380 / 400 V, 50/60 Hz | Rated speed: 2700 / 3200 r/min | Rated torque: 0.365-0.433 N·m | Rated current: 0.34-0.37 A | Starting torque: 0.958-1.355 N·m | Output shaft: Key (motor only) | Variants: thermal-protector version 9IDKK-120F-A; terminal-box version 9IDK4-120F-AT
9IDD5-120F-APower supply: 3ø AC 415 / 440 V, 50/60 Hz | Rated speed: 2700 / 3200 r/min | Rated torque: 0.36-0.433 N·m | Rated current: 0.33-0.37 A | Starting torque: 0.927-1.335 N·m | Output shaft: D-cut (motor only) | Variants: thermal-protector version 9IDDL-120F-A; terminal-box version 9IDD5-120F-AT
9IDK5-120F-APower supply: 3ø AC 415 / 440 V, 50/60 Hz | Rated speed: 2700 / 3200 r/min | Rated torque: 0.36-0.433 N·m | Rated current: 0.33-0.37 A | Starting torque: 0.927-1.335 N·m | Output shaft: Key (motor only) | Variants: thermal-protector version 9IDKL-120F-A; terminal-box version 9IDK5-120F-AT
