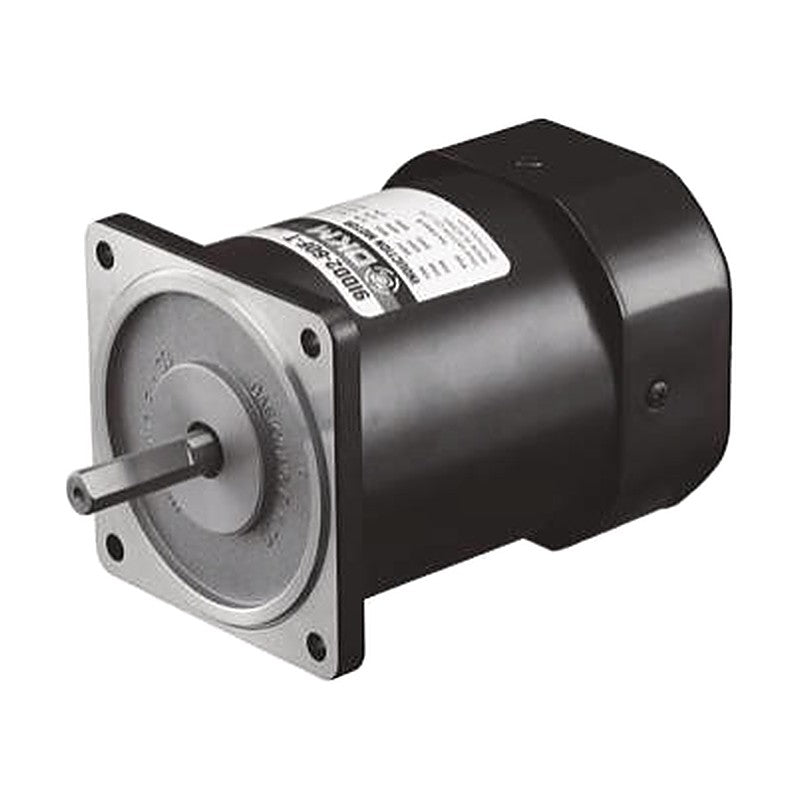

DKM 9ID-120F Induction Motor 120W, 90 mm Frame
DKM 9ID-120F Induction Motor 120W, 90 mm Frame
120 W single- and three-phase AC induction motor with 90 mm square frame for unidirectional continuous operation such as conveyors; D-cut, key or gear-type (pinion) output shaft for DKM gearboxes.
Key features
- Suitable for unidirectional continuous operation such as conveyor systems
- Single-phase capacitor-run and three-phase versions
- Three-phase versions offer higher starting torque and can run directly from a three-phase supply
- Gear-type shaft models combine with DKM gearboxes; D-cut and key shaft models are for use as a motor only
Specifications
| Output | 120 W |
|---|---|
| Frame size | 90 mm square |
| Poles | 4 |
| Duty | Continuous |
| Rated speed | 1250 / 1300 / 1350 / 1600 r/min (depends on voltage/frequency) |
| Rated torque | 0.731-0.935 N·m |
| Starting torque | 0.62-2.75 N·m |
| Shaft options | D-cut, key, gear type (P, H, W, HC, WH) |
| Connection | Lead wire or terminal box (-T) |
| Matching gearboxes | 9PBK□BH, 9PFK□BH, 9HBK□BH, 9HFK□BH, 9WD□BL/BR/BRL, 9HC□ (Helicross), 9WHD□-030 (□ = gear ratio) |
| Insulation class | Class B (130 °C) |
| Insulation resistance | 100 MΩ min. at 500 VDC megger (windings to frame) |
| 9IDD1-120F | Power supply: 1ø AC 110 V, 60 Hz | Rated speed: 1600 r/min | Rated torque: 0.731 N·m | Rated current: 2 A | Starting torque: 0.65 N·m | Capacitor: 25.0 µF / 250 VAC | Output shaft: D-cut (motor only) | Variants: thermal-protector version 9IDDA-120F; terminal-box version 9IDD1-120F-T | |
| 9IDK1-120F | Power supply: 1ø AC 110 V, 60 Hz | Rated speed: 1600 r/min | Rated torque: 0.731 N·m | Rated current: 2 A | Starting torque: 0.65 N·m | Capacitor: 25.0 µF / 250 VAC | Output shaft: Key (motor only) | Variants: thermal-protector version 9IDKA-120F; terminal-box version 9IDK1-120F-T | |
| 9IDG1-120FP | Power supply: 1ø AC 110 V, 60 Hz | Rated speed: 1600 r/min | Rated torque: 0.731 N·m | Rated current: 2 A | Starting torque: 0.65 N·m | Capacitor: 25.0 µF / 250 VAC | Output shaft: Gear type (P) for powerful box/flange-type gearbox | Variants: thermal-protector version 9IDGA-120FP; terminal-box version 9IDG1-120FP-T | |
| 9IDG1-120FH | Power supply: 1ø AC 110 V, 60 Hz | Rated speed: 1600 r/min | Rated torque: 0.731 N·m | Rated current: 2 A | Starting torque: 0.65 N·m | Capacitor: 25.0 µF / 250 VAC | Output shaft: Gear type (H) for high-power box/flange-type gearbox | Variants: thermal-protector version 9IDGA-120FH; terminal-box version 9IDG1-120FH-T | |
| 9IDG1-120FW | Power supply: 1ø AC 110 V, 60 Hz | Rated speed: 1600 r/min | Rated torque: 0.731 N·m | Rated current: 2 A | Starting torque: 0.65 N·m | Capacitor: 25.0 µF / 250 VAC | Output shaft: Gear type (W) for worm solid-shaft gearbox | Variants: thermal-protector version 9IDGA-120FW; terminal-box version 9IDG1-120FW-T | |
| 9IDG1-120FHC | Power supply: 1ø AC 110 V, 60 Hz | Rated speed: 1600 r/min | Rated torque: 0.731 N·m | Rated current: 2 A | Starting torque: 0.65 N·m | Capacitor: 25.0 µF / 250 VAC | Output shaft: Gear type (HC) for Helicross right-angle gearbox | Variants: thermal-protector version 9IDGA-120FHC; terminal-box version 9IDG1-120FHC-T | |
| 9IDG1-120FWH | Power supply: 1ø AC 110 V, 60 Hz | Rated speed: 1600 r/min | Rated torque: 0.731 N·m | Rated current: 2 A | Starting torque: 0.65 N·m | Capacitor: 25.0 µF / 250 VAC | Output shaft: Gear type (WH) for worm hollow-shaft gearbox | Variants: thermal-protector version 9IDGA-120FWH; terminal-box version 9IDG1-120FWH-T | |
| 9IDD2-120F | Power supply: 1ø AC 220 V, 60 Hz | Rated speed: 1600 r/min | Rated torque: 0.731 N·m | Rated current: 1.04 A | Starting torque: 0.62 N·m | Capacitor: 6.0 µF / 450 VAC | Output shaft: D-cut (motor only) | Variants: thermal-protector version 9IDDD-120F; terminal-box version 9IDD2-120F-T | |
| 9IDK2-120F | Power supply: 1ø AC 220 V, 60 Hz | Rated speed: 1600 r/min | Rated torque: 0.731 N·m | Rated current: 1.04 A | Starting torque: 0.62 N·m | Capacitor: 6.0 µF / 450 VAC | Output shaft: Key (motor only) | Variants: thermal-protector version 9IDKD-120F; terminal-box version 9IDK2-120F-T | |
| 9IDG2-120FP | Power supply: 1ø AC 220 V, 60 Hz | Rated speed: 1600 r/min | Rated torque: 0.731 N·m | Rated current: 1.04 A | Starting torque: 0.62 N·m | Capacitor: 6.0 µF / 450 VAC | Output shaft: Gear type (P) for powerful box/flange-type gearbox | Variants: thermal-protector version 9IDGD-120FP; terminal-box version 9IDG2-120FP-T | |
| 9IDG2-120FH | Power supply: 1ø AC 220 V, 60 Hz | Rated speed: 1600 r/min | Rated torque: 0.731 N·m | Rated current: 1.04 A | Starting torque: 0.62 N·m | Capacitor: 6.0 µF / 450 VAC | Output shaft: Gear type (H) for high-power box/flange-type gearbox | Variants: thermal-protector version 9IDGD-120FH; terminal-box version 9IDG2-120FH-T | |
| 9IDG2-120FW | Power supply: 1ø AC 220 V, 60 Hz | Rated speed: 1600 r/min | Rated torque: 0.731 N·m | Rated current: 1.04 A | Starting torque: 0.62 N·m | Capacitor: 6.0 µF / 450 VAC | Output shaft: Gear type (W) for worm solid-shaft gearbox | Variants: thermal-protector version 9IDGD-120FW; terminal-box version 9IDG2-120FW-T | |
| 9IDG2-120FHC | Power supply: 1ø AC 220 V, 60 Hz | Rated speed: 1600 r/min | Rated torque: 0.731 N·m | Rated current: 1.04 A | Starting torque: 0.62 N·m | Capacitor: 6.0 µF / 450 VAC | Output shaft: Gear type (HC) for Helicross right-angle gearbox | Variants: thermal-protector version 9IDGD-120FHC; terminal-box version 9IDG2-120FHC-T | |
| 9IDG2-120FWH | Power supply: 1ø AC 220 V, 60 Hz | Rated speed: 1600 r/min | Rated torque: 0.731 N·m | Rated current: 1.04 A | Starting torque: 0.62 N·m | Capacitor: 6.0 µF / 450 VAC | Output shaft: Gear type (WH) for worm hollow-shaft gearbox | Variants: thermal-protector version 9IDGD-120FWH; terminal-box version 9IDG2-120FWH-T | |
| 9IDDE-120F | Power supply: 1ø AC 220 / 240 V, 50 Hz | Rated speed: 1250 r/min | Rated torque: 0.935 N·m | Rated current: 0.9-1 A | Starting torque: 0.64-0.75 N·m | Capacitor: 6.0 µF / 450 VAC | Output shaft: D-cut (motor only) | Variants: terminal-box version 9IDDE-120F-T | |
| 9IDKE-120F | Power supply: 1ø AC 220 / 240 V, 50 Hz | Rated speed: 1250 r/min | Rated torque: 0.935 N·m | Rated current: 0.9-1 A | Starting torque: 0.64-0.75 N·m | Capacitor: 6.0 µF / 450 VAC | Output shaft: Key (motor only) | Variants: terminal-box version 9IDKE-120F-T | |
| 9IDGE-120FP | Power supply: 1ø AC 220 / 240 V, 50 Hz | Rated speed: 1250 r/min | Rated torque: 0.935 N·m | Rated current: 0.9-1 A | Starting torque: 0.64-0.75 N·m | Capacitor: 6.0 µF / 450 VAC | Output shaft: Gear type (P) for powerful box/flange-type gearbox | Variants: terminal-box version 9IDGE-120FP-T | |
| 9IDGE-120FH | Power supply: 1ø AC 220 / 240 V, 50 Hz | Rated speed: 1250 r/min | Rated torque: 0.935 N·m | Rated current: 0.9-1 A | Starting torque: 0.64-0.75 N·m | Capacitor: 6.0 µF / 450 VAC | Output shaft: Gear type (H) for high-power box/flange-type gearbox | Variants: terminal-box version 9IDGE-120FH-T | |
| 9IDGE-120FW | Power supply: 1ø AC 220 / 240 V, 50 Hz | Rated speed: 1250 r/min | Rated torque: 0.935 N·m | Rated current: 0.9-1 A | Starting torque: 0.64-0.75 N·m | Capacitor: 6.0 µF / 450 VAC | Output shaft: Gear type (W) for worm solid-shaft gearbox | Variants: terminal-box version 9IDGE-120FW-T | |
| 9IDGE-120FHC | Power supply: 1ø AC 220 / 240 V, 50 Hz | Rated speed: 1250 r/min | Rated torque: 0.935 N·m | Rated current: 0.9-1 A | Starting torque: 0.64-0.75 N·m | Capacitor: 6.0 µF / 450 VAC | Output shaft: Gear type (HC) for Helicross right-angle gearbox | Variants: terminal-box version 9IDGE-120FHC-T | |
| 9IDGE-120FWH | Power supply: 1ø AC 220 / 240 V, 50 Hz | Rated speed: 1250 r/min | Rated torque: 0.935 N·m | Rated current: 0.9-1 A | Starting torque: 0.64-0.75 N·m | Capacitor: 6.0 µF / 450 VAC | Output shaft: Gear type (WH) for worm hollow-shaft gearbox | Variants: terminal-box version 9IDGE-120FWH-T | |
| 9IDD3-120F | Power supply: 3ø AC 220 / 230 V, 50/60 Hz | Rated speed: 1300 / 1600 / 1350 r/min | Rated torque: 0.731-0.899 N·m | Rated current: 0.71-0.88 A | Starting torque: 2-2.7 N·m | Output shaft: D-cut (motor only) | Variants: thermal-protector version 9IDDG-120F; terminal-box version 9IDD3-120F-T | |
| 9IDK3-120F | Power supply: 3ø AC 220 / 230 V, 50/60 Hz | Rated speed: 1300 / 1600 / 1350 r/min | Rated torque: 0.731-0.899 N·m | Rated current: 0.71-0.88 A | Starting torque: 2-2.7 N·m | Output shaft: Key (motor only) | Variants: thermal-protector version 9IDKG-120F; terminal-box version 9IDK3-120F-T | |
| 9IDG3-120FP | Power supply: 3ø AC 220 / 230 V, 50/60 Hz | Rated speed: 1300 / 1600 / 1350 r/min | Rated torque: 0.731-0.899 N·m | Rated current: 0.71-0.88 A | Starting torque: 2-2.7 N·m | Output shaft: Gear type (P) for powerful box/flange-type gearbox | Variants: thermal-protector version 9IDGG-120FP; terminal-box version 9IDG3-120FP-T | |
| 9IDG3-120FH | Power supply: 3ø AC 220 / 230 V, 50/60 Hz | Rated speed: 1300 / 1600 / 1350 r/min | Rated torque: 0.731-0.899 N·m | Rated current: 0.71-0.88 A | Starting torque: 2-2.7 N·m | Output shaft: Gear type (H) for high-power box/flange-type gearbox | Variants: thermal-protector version 9IDGG-120FH; terminal-box version 9IDG3-120FH-T | |
| 9IDG3-120FW | Power supply: 3ø AC 220 / 230 V, 50/60 Hz | Rated speed: 1300 / 1600 / 1350 r/min | Rated torque: 0.731-0.899 N·m | Rated current: 0.71-0.88 A | Starting torque: 2-2.7 N·m | Output shaft: Gear type (W) for worm solid-shaft gearbox | Variants: thermal-protector version 9IDGG-120FW; terminal-box version 9IDG3-120FW-T | |
| 9IDG3-120FHC | Power supply: 3ø AC 220 / 230 V, 50/60 Hz | Rated speed: 1300 / 1600 / 1350 r/min | Rated torque: 0.731-0.899 N·m | Rated current: 0.71-0.88 A | Starting torque: 2-2.7 N·m | Output shaft: Gear type (HC) for Helicross right-angle gearbox | Variants: thermal-protector version 9IDGG-120FHC; terminal-box version 9IDG3-120FHC-T | |
| 9IDG3-120FWH | Power supply: 3ø AC 220 / 230 V, 50/60 Hz | Rated speed: 1300 / 1600 / 1350 r/min | Rated torque: 0.731-0.899 N·m | Rated current: 0.71-0.88 A | Starting torque: 2-2.7 N·m | Output shaft: Gear type (WH) for worm hollow-shaft gearbox | Variants: thermal-protector version 9IDGG-120FWH; terminal-box version 9IDG3-120FWH-T | |
| 9IDD4-120F | Power supply: 3ø AC 380 / 400 V, 50/60 Hz | Rated speed: 1300 / 1600 / 1350 r/min | Rated torque: 0.731-0.899 N·m | Rated current: 0.41-0.5 A | Starting torque: 1.99-2.71 N·m | Output shaft: D-cut (motor only) | Variants: thermal-protector version 9IDDK-120F; terminal-box version 9IDD4-120F-T | |
| 9IDK4-120F | Power supply: 3ø AC 380 / 400 V, 50/60 Hz | Rated speed: 1300 / 1600 / 1350 r/min | Rated torque: 0.731-0.899 N·m | Rated current: 0.41-0.5 A | Starting torque: 1.99-2.71 N·m | Output shaft: Key (motor only) | Variants: thermal-protector version 9IDKK-120F; terminal-box version 9IDK4-120F-T | |
| 9IDG4-120FP | Power supply: 3ø AC 380 / 400 V, 50/60 Hz | Rated speed: 1300 / 1600 / 1350 r/min | Rated torque: 0.731-0.899 N·m | Rated current: 0.41-0.5 A | Starting torque: 1.99-2.71 N·m | Output shaft: Gear type (P) for powerful box/flange-type gearbox | Variants: thermal-protector version 9IDGK-120FP; terminal-box version 9IDG4-120FP-T | |
| 9IDG4-120FH | Power supply: 3ø AC 380 / 400 V, 50/60 Hz | Rated speed: 1300 / 1600 / 1350 r/min | Rated torque: 0.731-0.899 N·m | Rated current: 0.41-0.5 A | Starting torque: 1.99-2.71 N·m | Output shaft: Gear type (H) for high-power box/flange-type gearbox | Variants: thermal-protector version 9IDGK-120FH; terminal-box version 9IDG4-120FH-T | |
| 9IDG4-120FW | Power supply: 3ø AC 380 / 400 V, 50/60 Hz | Rated speed: 1300 / 1600 / 1350 r/min | Rated torque: 0.731-0.899 N·m | Rated current: 0.41-0.5 A | Starting torque: 1.99-2.71 N·m | Output shaft: Gear type (W) for worm solid-shaft gearbox | Variants: thermal-protector version 9IDGK-120FW; terminal-box version 9IDG4-120FW-T | |
| 9IDG4-120FHC | Power supply: 3ø AC 380 / 400 V, 50/60 Hz | Rated speed: 1300 / 1600 / 1350 r/min | Rated torque: 0.731-0.899 N·m | Rated current: 0.41-0.5 A | Starting torque: 1.99-2.71 N·m | Output shaft: Gear type (HC) for Helicross right-angle gearbox | Variants: thermal-protector version 9IDGK-120FHC; terminal-box version 9IDG4-120FHC-T | |
| 9IDG4-120FWH | Power supply: 3ø AC 380 / 400 V, 50/60 Hz | Rated speed: 1300 / 1600 / 1350 r/min | Rated torque: 0.731-0.899 N·m | Rated current: 0.41-0.5 A | Starting torque: 1.99-2.71 N·m | Output shaft: Gear type (WH) for worm hollow-shaft gearbox | Variants: thermal-protector version 9IDGK-120FWH; terminal-box version 9IDG4-120FWH-T | |
| 9IDD5-120F | Power supply: 3ø AC 415 / 440 V, 50/60 Hz | Rated speed: 1300 / 1600 / 1350 r/min | Rated torque: 0.731-0.899 N·m | Rated current: 0.37-0.47 A | Starting torque: 1.99-2.75 N·m | Output shaft: D-cut (motor only) | Variants: thermal-protector version 9IDDL-120F; terminal-box version 9IDD5-120F-T | |
| 9IDK5-120F | Power supply: 3ø AC 415 / 440 V, 50/60 Hz | Rated speed: 1300 / 1600 / 1350 r/min | Rated torque: 0.731-0.899 N·m | Rated current: 0.37-0.47 A | Starting torque: 1.99-2.75 N·m | Output shaft: Key (motor only) | Variants: thermal-protector version 9IDKL-120F; terminal-box version 9IDK5-120F-T | |
| 9IDG5-120FP | Power supply: 3ø AC 415 / 440 V, 50/60 Hz | Rated speed: 1300 / 1600 / 1350 r/min | Rated torque: 0.731-0.899 N·m | Rated current: 0.37-0.47 A | Starting torque: 1.99-2.75 N·m | Output shaft: Gear type (P) for powerful box/flange-type gearbox | Variants: thermal-protector version 9IDGL-120FP; terminal-box version 9IDG5-120FP-T | |
| 9IDG5-120FH | Power supply: 3ø AC 415 / 440 V, 50/60 Hz | Rated speed: 1300 / 1600 / 1350 r/min | Rated torque: 0.731-0.899 N·m | Rated current: 0.37-0.47 A | Starting torque: 1.99-2.75 N·m | Output shaft: Gear type (H) for high-power box/flange-type gearbox | Variants: thermal-protector version 9IDGL-120FH; terminal-box version 9IDG5-120FH-T | |
| 9IDG5-120FW | Power supply: 3ø AC 415 / 440 V, 50/60 Hz | Rated speed: 1300 / 1600 / 1350 r/min | Rated torque: 0.731-0.899 N·m | Rated current: 0.37-0.47 A | Starting torque: 1.99-2.75 N·m | Output shaft: Gear type (W) for worm solid-shaft gearbox | Variants: thermal-protector version 9IDGL-120FW; terminal-box version 9IDG5-120FW-T | |
| 9IDG5-120FHC | Power supply: 3ø AC 415 / 440 V, 50/60 Hz | Rated speed: 1300 / 1600 / 1350 r/min | Rated torque: 0.731-0.899 N·m | Rated current: 0.37-0.47 A | Starting torque: 1.99-2.75 N·m | Output shaft: Gear type (HC) for Helicross right-angle gearbox | Variants: thermal-protector version 9IDGL-120FHC; terminal-box version 9IDG5-120FHC-T | |
| 9IDG5-120FWH | Power supply: 3ø AC 415 / 440 V, 50/60 Hz | Rated speed: 1300 / 1600 / 1350 r/min | Rated torque: 0.731-0.899 N·m | Rated current: 0.37-0.47 A | Starting torque: 1.99-2.75 N·m | Output shaft: Gear type (WH) for worm hollow-shaft gearbox | Variants: thermal-protector version 9IDGL-120FWH; terminal-box version 9IDG5-120FWH-T |
AC Induction MotorsDKM
42 product codes available in this family
Sourced direct from KoreaExport-ready supplyCompetitive pricing
Need a different model, or a part not listed here? Send us your parts list →
DKM 9ID-120F Induction Motor 120W, 90 mm Frame
Available part numbers (42)
9IDD1-120F, 9IDK1-120F, 9IDG1-120FP, 9IDG1-120FH, 9IDG1-120FW, 9IDG1-120FHC, 9IDG1-120FWH, 9IDD2-120F, 9IDK2-120F, 9IDG2-120FP + 32 more — see full table ↓
How to order
Send the DKM part numbers and quantities through our RFQ form or to info@prosourcemro.com. We confirm price, availability and lead time within 1 business day — no account needed.
DKM
AC Induction Motors
Photo on request
Product codes & specifications
| Product code | Spec | ||
|---|---|---|---|
| 9IDD1-120F | Power supply: 1ø AC 110 V, 60 Hz | Rated speed: 1600 r/min | Rated torque: 0.731 N·m | Rated current: 2 A | Starting torque: 0.65 N·m | Capacitor: 25.0 µF / 250 VAC | Output shaft: D-cut (motor only) | Variants: thermal-protector version 9IDDA-120F; terminal-box version 9IDD1-120F-T | ||
| 9IDK1-120F | Power supply: 1ø AC 110 V, 60 Hz | Rated speed: 1600 r/min | Rated torque: 0.731 N·m | Rated current: 2 A | Starting torque: 0.65 N·m | Capacitor: 25.0 µF / 250 VAC | Output shaft: Key (motor only) | Variants: thermal-protector version 9IDKA-120F; terminal-box version 9IDK1-120F-T | ||
| 9IDG1-120FP | Power supply: 1ø AC 110 V, 60 Hz | Rated speed: 1600 r/min | Rated torque: 0.731 N·m | Rated current: 2 A | Starting torque: 0.65 N·m | Capacitor: 25.0 µF / 250 VAC | Output shaft: Gear type (P) for powerful box/flange-type gearbox | Variants: thermal-protector version 9IDGA-120FP; terminal-box version 9IDG1-120FP-T | ||
| 9IDG1-120FH | Power supply: 1ø AC 110 V, 60 Hz | Rated speed: 1600 r/min | Rated torque: 0.731 N·m | Rated current: 2 A | Starting torque: 0.65 N·m | Capacitor: 25.0 µF / 250 VAC | Output shaft: Gear type (H) for high-power box/flange-type gearbox | Variants: thermal-protector version 9IDGA-120FH; terminal-box version 9IDG1-120FH-T | ||
| 9IDG1-120FW | Power supply: 1ø AC 110 V, 60 Hz | Rated speed: 1600 r/min | Rated torque: 0.731 N·m | Rated current: 2 A | Starting torque: 0.65 N·m | Capacitor: 25.0 µF / 250 VAC | Output shaft: Gear type (W) for worm solid-shaft gearbox | Variants: thermal-protector version 9IDGA-120FW; terminal-box version 9IDG1-120FW-T | ||
| 9IDG1-120FHC | Power supply: 1ø AC 110 V, 60 Hz | Rated speed: 1600 r/min | Rated torque: 0.731 N·m | Rated current: 2 A | Starting torque: 0.65 N·m | Capacitor: 25.0 µF / 250 VAC | Output shaft: Gear type (HC) for Helicross right-angle gearbox | Variants: thermal-protector version 9IDGA-120FHC; terminal-box version 9IDG1-120FHC-T | ||
| 9IDG1-120FWH | Power supply: 1ø AC 110 V, 60 Hz | Rated speed: 1600 r/min | Rated torque: 0.731 N·m | Rated current: 2 A | Starting torque: 0.65 N·m | Capacitor: 25.0 µF / 250 VAC | Output shaft: Gear type (WH) for worm hollow-shaft gearbox | Variants: thermal-protector version 9IDGA-120FWH; terminal-box version 9IDG1-120FWH-T | ||
| 9IDD2-120F | Power supply: 1ø AC 220 V, 60 Hz | Rated speed: 1600 r/min | Rated torque: 0.731 N·m | Rated current: 1.04 A | Starting torque: 0.62 N·m | Capacitor: 6.0 µF / 450 VAC | Output shaft: D-cut (motor only) | Variants: thermal-protector version 9IDDD-120F; terminal-box version 9IDD2-120F-T | ||
| 9IDK2-120F | Power supply: 1ø AC 220 V, 60 Hz | Rated speed: 1600 r/min | Rated torque: 0.731 N·m | Rated current: 1.04 A | Starting torque: 0.62 N·m | Capacitor: 6.0 µF / 450 VAC | Output shaft: Key (motor only) | Variants: thermal-protector version 9IDKD-120F; terminal-box version 9IDK2-120F-T | ||
| 9IDG2-120FP | Power supply: 1ø AC 220 V, 60 Hz | Rated speed: 1600 r/min | Rated torque: 0.731 N·m | Rated current: 1.04 A | Starting torque: 0.62 N·m | Capacitor: 6.0 µF / 450 VAC | Output shaft: Gear type (P) for powerful box/flange-type gearbox | Variants: thermal-protector version 9IDGD-120FP; terminal-box version 9IDG2-120FP-T | ||
| 9IDG2-120FH | Power supply: 1ø AC 220 V, 60 Hz | Rated speed: 1600 r/min | Rated torque: 0.731 N·m | Rated current: 1.04 A | Starting torque: 0.62 N·m | Capacitor: 6.0 µF / 450 VAC | Output shaft: Gear type (H) for high-power box/flange-type gearbox | Variants: thermal-protector version 9IDGD-120FH; terminal-box version 9IDG2-120FH-T | ||
| 9IDG2-120FW | Power supply: 1ø AC 220 V, 60 Hz | Rated speed: 1600 r/min | Rated torque: 0.731 N·m | Rated current: 1.04 A | Starting torque: 0.62 N·m | Capacitor: 6.0 µF / 450 VAC | Output shaft: Gear type (W) for worm solid-shaft gearbox | Variants: thermal-protector version 9IDGD-120FW; terminal-box version 9IDG2-120FW-T | ||
| 9IDG2-120FHC | Power supply: 1ø AC 220 V, 60 Hz | Rated speed: 1600 r/min | Rated torque: 0.731 N·m | Rated current: 1.04 A | Starting torque: 0.62 N·m | Capacitor: 6.0 µF / 450 VAC | Output shaft: Gear type (HC) for Helicross right-angle gearbox | Variants: thermal-protector version 9IDGD-120FHC; terminal-box version 9IDG2-120FHC-T | ||
| 9IDG2-120FWH | Power supply: 1ø AC 220 V, 60 Hz | Rated speed: 1600 r/min | Rated torque: 0.731 N·m | Rated current: 1.04 A | Starting torque: 0.62 N·m | Capacitor: 6.0 µF / 450 VAC | Output shaft: Gear type (WH) for worm hollow-shaft gearbox | Variants: thermal-protector version 9IDGD-120FWH; terminal-box version 9IDG2-120FWH-T | ||
| 9IDDE-120F | Power supply: 1ø AC 220 / 240 V, 50 Hz | Rated speed: 1250 r/min | Rated torque: 0.935 N·m | Rated current: 0.9-1 A | Starting torque: 0.64-0.75 N·m | Capacitor: 6.0 µF / 450 VAC | Output shaft: D-cut (motor only) | Variants: terminal-box version 9IDDE-120F-T | ||
| 9IDKE-120F | Power supply: 1ø AC 220 / 240 V, 50 Hz | Rated speed: 1250 r/min | Rated torque: 0.935 N·m | Rated current: 0.9-1 A | Starting torque: 0.64-0.75 N·m | Capacitor: 6.0 µF / 450 VAC | Output shaft: Key (motor only) | Variants: terminal-box version 9IDKE-120F-T | ||
| 9IDGE-120FP | Power supply: 1ø AC 220 / 240 V, 50 Hz | Rated speed: 1250 r/min | Rated torque: 0.935 N·m | Rated current: 0.9-1 A | Starting torque: 0.64-0.75 N·m | Capacitor: 6.0 µF / 450 VAC | Output shaft: Gear type (P) for powerful box/flange-type gearbox | Variants: terminal-box version 9IDGE-120FP-T | ||
| 9IDGE-120FH | Power supply: 1ø AC 220 / 240 V, 50 Hz | Rated speed: 1250 r/min | Rated torque: 0.935 N·m | Rated current: 0.9-1 A | Starting torque: 0.64-0.75 N·m | Capacitor: 6.0 µF / 450 VAC | Output shaft: Gear type (H) for high-power box/flange-type gearbox | Variants: terminal-box version 9IDGE-120FH-T | ||
| 9IDGE-120FW | Power supply: 1ø AC 220 / 240 V, 50 Hz | Rated speed: 1250 r/min | Rated torque: 0.935 N·m | Rated current: 0.9-1 A | Starting torque: 0.64-0.75 N·m | Capacitor: 6.0 µF / 450 VAC | Output shaft: Gear type (W) for worm solid-shaft gearbox | Variants: terminal-box version 9IDGE-120FW-T | ||
| 9IDGE-120FHC | Power supply: 1ø AC 220 / 240 V, 50 Hz | Rated speed: 1250 r/min | Rated torque: 0.935 N·m | Rated current: 0.9-1 A | Starting torque: 0.64-0.75 N·m | Capacitor: 6.0 µF / 450 VAC | Output shaft: Gear type (HC) for Helicross right-angle gearbox | Variants: terminal-box version 9IDGE-120FHC-T | ||
| 9IDGE-120FWH | Power supply: 1ø AC 220 / 240 V, 50 Hz | Rated speed: 1250 r/min | Rated torque: 0.935 N·m | Rated current: 0.9-1 A | Starting torque: 0.64-0.75 N·m | Capacitor: 6.0 µF / 450 VAC | Output shaft: Gear type (WH) for worm hollow-shaft gearbox | Variants: terminal-box version 9IDGE-120FWH-T | ||
| 9IDD3-120F | Power supply: 3ø AC 220 / 230 V, 50/60 Hz | Rated speed: 1300 / 1600 / 1350 r/min | Rated torque: 0.731-0.899 N·m | Rated current: 0.71-0.88 A | Starting torque: 2-2.7 N·m | Output shaft: D-cut (motor only) | Variants: thermal-protector version 9IDDG-120F; terminal-box version 9IDD3-120F-T | ||
| 9IDK3-120F | Power supply: 3ø AC 220 / 230 V, 50/60 Hz | Rated speed: 1300 / 1600 / 1350 r/min | Rated torque: 0.731-0.899 N·m | Rated current: 0.71-0.88 A | Starting torque: 2-2.7 N·m | Output shaft: Key (motor only) | Variants: thermal-protector version 9IDKG-120F; terminal-box version 9IDK3-120F-T | ||
| 9IDG3-120FP | Power supply: 3ø AC 220 / 230 V, 50/60 Hz | Rated speed: 1300 / 1600 / 1350 r/min | Rated torque: 0.731-0.899 N·m | Rated current: 0.71-0.88 A | Starting torque: 2-2.7 N·m | Output shaft: Gear type (P) for powerful box/flange-type gearbox | Variants: thermal-protector version 9IDGG-120FP; terminal-box version 9IDG3-120FP-T | ||
| 9IDG3-120FH | Power supply: 3ø AC 220 / 230 V, 50/60 Hz | Rated speed: 1300 / 1600 / 1350 r/min | Rated torque: 0.731-0.899 N·m | Rated current: 0.71-0.88 A | Starting torque: 2-2.7 N·m | Output shaft: Gear type (H) for high-power box/flange-type gearbox | Variants: thermal-protector version 9IDGG-120FH; terminal-box version 9IDG3-120FH-T | ||
| 9IDG3-120FW | Power supply: 3ø AC 220 / 230 V, 50/60 Hz | Rated speed: 1300 / 1600 / 1350 r/min | Rated torque: 0.731-0.899 N·m | Rated current: 0.71-0.88 A | Starting torque: 2-2.7 N·m | Output shaft: Gear type (W) for worm solid-shaft gearbox | Variants: thermal-protector version 9IDGG-120FW; terminal-box version 9IDG3-120FW-T | ||
| 9IDG3-120FHC | Power supply: 3ø AC 220 / 230 V, 50/60 Hz | Rated speed: 1300 / 1600 / 1350 r/min | Rated torque: 0.731-0.899 N·m | Rated current: 0.71-0.88 A | Starting torque: 2-2.7 N·m | Output shaft: Gear type (HC) for Helicross right-angle gearbox | Variants: thermal-protector version 9IDGG-120FHC; terminal-box version 9IDG3-120FHC-T | ||
| 9IDG3-120FWH | Power supply: 3ø AC 220 / 230 V, 50/60 Hz | Rated speed: 1300 / 1600 / 1350 r/min | Rated torque: 0.731-0.899 N·m | Rated current: 0.71-0.88 A | Starting torque: 2-2.7 N·m | Output shaft: Gear type (WH) for worm hollow-shaft gearbox | Variants: thermal-protector version 9IDGG-120FWH; terminal-box version 9IDG3-120FWH-T | ||
| 9IDD4-120F | Power supply: 3ø AC 380 / 400 V, 50/60 Hz | Rated speed: 1300 / 1600 / 1350 r/min | Rated torque: 0.731-0.899 N·m | Rated current: 0.41-0.5 A | Starting torque: 1.99-2.71 N·m | Output shaft: D-cut (motor only) | Variants: thermal-protector version 9IDDK-120F; terminal-box version 9IDD4-120F-T | ||
| 9IDK4-120F | Power supply: 3ø AC 380 / 400 V, 50/60 Hz | Rated speed: 1300 / 1600 / 1350 r/min | Rated torque: 0.731-0.899 N·m | Rated current: 0.41-0.5 A | Starting torque: 1.99-2.71 N·m | Output shaft: Key (motor only) | Variants: thermal-protector version 9IDKK-120F; terminal-box version 9IDK4-120F-T | ||
| 9IDG4-120FP | Power supply: 3ø AC 380 / 400 V, 50/60 Hz | Rated speed: 1300 / 1600 / 1350 r/min | Rated torque: 0.731-0.899 N·m | Rated current: 0.41-0.5 A | Starting torque: 1.99-2.71 N·m | Output shaft: Gear type (P) for powerful box/flange-type gearbox | Variants: thermal-protector version 9IDGK-120FP; terminal-box version 9IDG4-120FP-T | ||
| 9IDG4-120FH | Power supply: 3ø AC 380 / 400 V, 50/60 Hz | Rated speed: 1300 / 1600 / 1350 r/min | Rated torque: 0.731-0.899 N·m | Rated current: 0.41-0.5 A | Starting torque: 1.99-2.71 N·m | Output shaft: Gear type (H) for high-power box/flange-type gearbox | Variants: thermal-protector version 9IDGK-120FH; terminal-box version 9IDG4-120FH-T | ||
| 9IDG4-120FW | Power supply: 3ø AC 380 / 400 V, 50/60 Hz | Rated speed: 1300 / 1600 / 1350 r/min | Rated torque: 0.731-0.899 N·m | Rated current: 0.41-0.5 A | Starting torque: 1.99-2.71 N·m | Output shaft: Gear type (W) for worm solid-shaft gearbox | Variants: thermal-protector version 9IDGK-120FW; terminal-box version 9IDG4-120FW-T | ||
| 9IDG4-120FHC | Power supply: 3ø AC 380 / 400 V, 50/60 Hz | Rated speed: 1300 / 1600 / 1350 r/min | Rated torque: 0.731-0.899 N·m | Rated current: 0.41-0.5 A | Starting torque: 1.99-2.71 N·m | Output shaft: Gear type (HC) for Helicross right-angle gearbox | Variants: thermal-protector version 9IDGK-120FHC; terminal-box version 9IDG4-120FHC-T | ||
| 9IDG4-120FWH | Power supply: 3ø AC 380 / 400 V, 50/60 Hz | Rated speed: 1300 / 1600 / 1350 r/min | Rated torque: 0.731-0.899 N·m | Rated current: 0.41-0.5 A | Starting torque: 1.99-2.71 N·m | Output shaft: Gear type (WH) for worm hollow-shaft gearbox | Variants: thermal-protector version 9IDGK-120FWH; terminal-box version 9IDG4-120FWH-T | ||
| 9IDD5-120F | Power supply: 3ø AC 415 / 440 V, 50/60 Hz | Rated speed: 1300 / 1600 / 1350 r/min | Rated torque: 0.731-0.899 N·m | Rated current: 0.37-0.47 A | Starting torque: 1.99-2.75 N·m | Output shaft: D-cut (motor only) | Variants: thermal-protector version 9IDDL-120F; terminal-box version 9IDD5-120F-T | ||
| 9IDK5-120F | Power supply: 3ø AC 415 / 440 V, 50/60 Hz | Rated speed: 1300 / 1600 / 1350 r/min | Rated torque: 0.731-0.899 N·m | Rated current: 0.37-0.47 A | Starting torque: 1.99-2.75 N·m | Output shaft: Key (motor only) | Variants: thermal-protector version 9IDKL-120F; terminal-box version 9IDK5-120F-T | ||
| 9IDG5-120FP | Power supply: 3ø AC 415 / 440 V, 50/60 Hz | Rated speed: 1300 / 1600 / 1350 r/min | Rated torque: 0.731-0.899 N·m | Rated current: 0.37-0.47 A | Starting torque: 1.99-2.75 N·m | Output shaft: Gear type (P) for powerful box/flange-type gearbox | Variants: thermal-protector version 9IDGL-120FP; terminal-box version 9IDG5-120FP-T | ||
| 9IDG5-120FH | Power supply: 3ø AC 415 / 440 V, 50/60 Hz | Rated speed: 1300 / 1600 / 1350 r/min | Rated torque: 0.731-0.899 N·m | Rated current: 0.37-0.47 A | Starting torque: 1.99-2.75 N·m | Output shaft: Gear type (H) for high-power box/flange-type gearbox | Variants: thermal-protector version 9IDGL-120FH; terminal-box version 9IDG5-120FH-T | ||
| 9IDG5-120FW | Power supply: 3ø AC 415 / 440 V, 50/60 Hz | Rated speed: 1300 / 1600 / 1350 r/min | Rated torque: 0.731-0.899 N·m | Rated current: 0.37-0.47 A | Starting torque: 1.99-2.75 N·m | Output shaft: Gear type (W) for worm solid-shaft gearbox | Variants: thermal-protector version 9IDGL-120FW; terminal-box version 9IDG5-120FW-T | ||
| 9IDG5-120FHC | Power supply: 3ø AC 415 / 440 V, 50/60 Hz | Rated speed: 1300 / 1600 / 1350 r/min | Rated torque: 0.731-0.899 N·m | Rated current: 0.37-0.47 A | Starting torque: 1.99-2.75 N·m | Output shaft: Gear type (HC) for Helicross right-angle gearbox | Variants: thermal-protector version 9IDGL-120FHC; terminal-box version 9IDG5-120FHC-T | ||
| 9IDG5-120FWH | Power supply: 3ø AC 415 / 440 V, 50/60 Hz | Rated speed: 1300 / 1600 / 1350 r/min | Rated torque: 0.731-0.899 N·m | Rated current: 0.37-0.47 A | Starting torque: 1.99-2.75 N·m | Output shaft: Gear type (WH) for worm hollow-shaft gearbox | Variants: thermal-protector version 9IDGL-120FWH; terminal-box version 9IDG5-120FWH-T |
