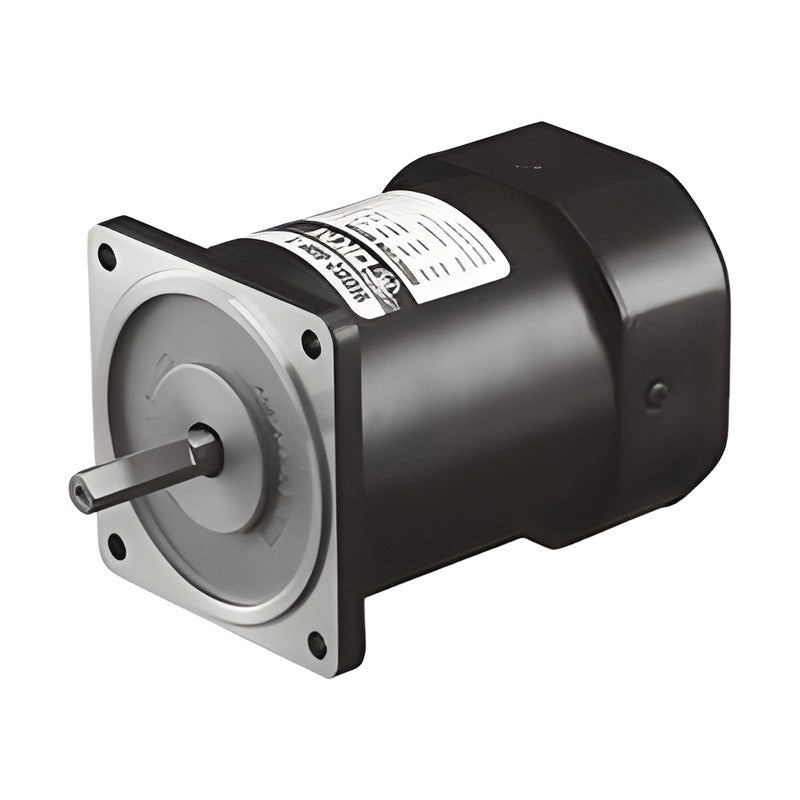

DKM 9ID-150F Induction Motor 150W, 90 mm Frame

DKM 9ID-150F Induction Motor 150W, 90 mm Frame

150 W three-phase AC induction motor with 90 mm square frame for unidirectional continuous operation such as conveyors; D-cut, key or gear-type (pinion) output shaft for DKM gearboxes.

Key features

  • Suitable for unidirectional continuous operation such as conveyor systems
  • Single-phase capacitor-run and three-phase versions
  • Three-phase versions offer higher starting torque and can run directly from a three-phase supply
  • Gear-type shaft models combine with DKM gearboxes; D-cut and key shaft models are for use as a motor only

Specifications

Output 150 W
Frame size 90 mm square
Poles 4
Duty Continuous
Rated speed 1300 / 1550 r/min (depends on voltage/frequency)
Rated torque 0.943-1.124 N·m
Starting torque 2-2.75 N·m
Shaft options D-cut, key, gear type (H, WH, HC)
Connection Lead wire or terminal box (-T)
Matching gearboxes 9HBK□BH, 9HFK□BH, 9WHD□-030, 9WHD□-040, 9HC□ (Helicross) (□ = gear ratio)
Insulation class Class B (130 °C)
Insulation resistance 100 MΩ min. at 500 VDC megger (windings to frame)
DKM 9ID-150F Induction Motor 150W, 90 mm Frame
9IDD3-150F Power supply: 3ø AC 220 / 230 V, 50/60 Hz | Rated speed: 1300 / 1550 r/min | Rated torque: 0.943-1.124 N·m | Rated current: 0.84-1.02 A | Starting torque: 2.05-2.75 N·m | Output shaft: D-cut (motor only) | Variants: thermal-protector version 9IDDG-150F; terminal-box version 9IDD3-150F-T
9IDK3-150F Power supply: 3ø AC 220 / 230 V, 50/60 Hz | Rated speed: 1300 / 1550 r/min | Rated torque: 0.943-1.124 N·m | Rated current: 0.84-1.02 A | Starting torque: 2.05-2.75 N·m | Output shaft: Key (motor only) | Variants: thermal-protector version 9IDKG-150F; terminal-box version 9IDK3-150F-T
9IDG3-150FH Power supply: 3ø AC 220 / 230 V, 50/60 Hz | Rated speed: 1300 / 1550 r/min | Rated torque: 0.943-1.124 N·m | Rated current: 0.84-1.02 A | Starting torque: 2.05-2.75 N·m | Output shaft: Gear type (H) for high-power box/flange-type gearbox | Variants: thermal-protector version 9IDGG-150FH; terminal-box version 9IDG3-150FH-T
9IDG3-150FWH Power supply: 3ø AC 220 / 230 V, 50/60 Hz | Rated speed: 1300 / 1550 r/min | Rated torque: 0.943-1.124 N·m | Rated current: 0.84-1.02 A | Starting torque: 2.05-2.75 N·m | Output shaft: Gear type (WH) for worm hollow-shaft gearbox | Variants: thermal-protector version 9IDGG-150FWH; terminal-box version 9IDG3-150FWH-T
9IDG3-150FHC Power supply: 3ø AC 220 / 230 V, 50/60 Hz | Rated speed: 1300 / 1550 r/min | Rated torque: 0.943-1.124 N·m | Rated current: 0.84-1.02 A | Starting torque: 2.05-2.75 N·m | Output shaft: Gear type (HC) for Helicross right-angle gearbox | Variants: thermal-protector version 9IDGG-150FHC; terminal-box version 9IDG3-150FHC-T
9IDD4-150F Power supply: 3ø AC 380 / 400 V, 50/60 Hz | Rated speed: 1300 / 1550 r/min | Rated torque: 0.943-1.124 N·m | Rated current: 0.48-0.57 A | Starting torque: 2-2.73 N·m | Output shaft: D-cut (motor only) | Variants: thermal-protector version 9IDDK-150F; terminal-box version 9IDD4-150F-T
9IDK4-150F Power supply: 3ø AC 380 / 400 V, 50/60 Hz | Rated speed: 1300 / 1550 r/min | Rated torque: 0.943-1.124 N·m | Rated current: 0.48-0.57 A | Starting torque: 2-2.73 N·m | Output shaft: Key (motor only) | Variants: thermal-protector version 9IDKK-150F; terminal-box version 9IDK4-150F-T
9IDG4-150FH Power supply: 3ø AC 380 / 400 V, 50/60 Hz | Rated speed: 1300 / 1550 r/min | Rated torque: 0.943-1.124 N·m | Rated current: 0.48-0.57 A | Starting torque: 2-2.73 N·m | Output shaft: Gear type (H) for high-power box/flange-type gearbox | Variants: thermal-protector version 9IDGK-150FH; terminal-box version 9IDG4-150FH-T
9IDG4-150FWH Power supply: 3ø AC 380 / 400 V, 50/60 Hz | Rated speed: 1300 / 1550 r/min | Rated torque: 0.943-1.124 N·m | Rated current: 0.48-0.57 A | Starting torque: 2-2.73 N·m | Output shaft: Gear type (WH) for worm hollow-shaft gearbox | Variants: thermal-protector version 9IDGK-150FWH; terminal-box version 9IDG4-150FWH-T
9IDG4-150FHC Power supply: 3ø AC 380 / 400 V, 50/60 Hz | Rated speed: 1300 / 1550 r/min | Rated torque: 0.943-1.124 N·m | Rated current: 0.48-0.57 A | Starting torque: 2-2.73 N·m | Output shaft: Gear type (HC) for Helicross right-angle gearbox | Variants: thermal-protector version 9IDGK-150FHC; terminal-box version 9IDG4-150FHC-T
9IDD5-150F Power supply: 3ø AC 415 / 440 V, 50/60 Hz | Rated speed: 1300 / 1550 r/min | Rated torque: 0.943-1.124 N·m | Rated current: 0.45-0.55 A | Starting torque: 2.21-2.72 N·m | Output shaft: D-cut (motor only) | Variants: thermal-protector version 9IDDL-150F; terminal-box version 9IDD5-150F-T
9IDK5-150F Power supply: 3ø AC 415 / 440 V, 50/60 Hz | Rated speed: 1300 / 1550 r/min | Rated torque: 0.943-1.124 N·m | Rated current: 0.45-0.55 A | Starting torque: 2.21-2.72 N·m | Output shaft: Key (motor only) | Variants: thermal-protector version 9IDKL-150F; terminal-box version 9IDK5-150F-T
9IDG5-150FH Power supply: 3ø AC 415 / 440 V, 50/60 Hz | Rated speed: 1300 / 1550 r/min | Rated torque: 0.943-1.124 N·m | Rated current: 0.45-0.55 A | Starting torque: 2.21-2.72 N·m | Output shaft: Gear type (H) for high-power box/flange-type gearbox | Variants: thermal-protector version 9IDGL-150FH; terminal-box version 9IDG5-150FH-T
9IDG5-150FWH Power supply: 3ø AC 415 / 440 V, 50/60 Hz | Rated speed: 1300 / 1550 r/min | Rated torque: 0.943-1.124 N·m | Rated current: 0.45-0.55 A | Starting torque: 2.21-2.72 N·m | Output shaft: Gear type (WH) for worm hollow-shaft gearbox | Variants: thermal-protector version 9IDGL-150FWH; terminal-box version 9IDG5-150FWH-T
9IDG5-150FHC Power supply: 3ø AC 415 / 440 V, 50/60 Hz | Rated speed: 1300 / 1550 r/min | Rated torque: 0.943-1.124 N·m | Rated current: 0.45-0.55 A | Starting torque: 2.21-2.72 N·m | Output shaft: Gear type (HC) for Helicross right-angle gearbox | Variants: thermal-protector version 9IDGL-150FHC; terminal-box version 9IDG5-150FHC-T
AC Induction MotorsDKM
15 product codes available in this family
Sourced direct from KoreaExport-ready supplyCompetitive pricing
RFQ List 0 Email about this

Need a different model, or a part not listed here? Send us your parts list →

DKM 9ID-150F Induction Motor 150W, 90 mm Frame

Brand DKM·AC Induction Motors

Available part numbers (15)

9IDD3-150F, 9IDK3-150F, 9IDG3-150FH, 9IDG3-150FWH, 9IDG3-150FHC, 9IDD4-150F, 9IDK4-150F, 9IDG4-150FH, 9IDG4-150FWH, 9IDG4-150FHC + 5 more — see full table ↓

How to order

Send the DKM part numbers and quantities through our RFQ form or to info@prosourcemro.com. We confirm price, availability and lead time within 1 business day — no account needed.

RFQ List 0 →
View full details
Product codes & specifications
DKM 9ID-150F Induction Motor 150W, 90 mm Frame
0 selected
RFQ List (0)
Product codeSpec
9IDD3-150FPower supply: 3ø AC 220 / 230 V, 50/60 Hz | Rated speed: 1300 / 1550 r/min | Rated torque: 0.943-1.124 N·m | Rated current: 0.84-1.02 A | Starting torque: 2.05-2.75 N·m | Output shaft: D-cut (motor only) | Variants: thermal-protector version 9IDDG-150F; terminal-box version 9IDD3-150F-T
9IDK3-150FPower supply: 3ø AC 220 / 230 V, 50/60 Hz | Rated speed: 1300 / 1550 r/min | Rated torque: 0.943-1.124 N·m | Rated current: 0.84-1.02 A | Starting torque: 2.05-2.75 N·m | Output shaft: Key (motor only) | Variants: thermal-protector version 9IDKG-150F; terminal-box version 9IDK3-150F-T
9IDG3-150FHPower supply: 3ø AC 220 / 230 V, 50/60 Hz | Rated speed: 1300 / 1550 r/min | Rated torque: 0.943-1.124 N·m | Rated current: 0.84-1.02 A | Starting torque: 2.05-2.75 N·m | Output shaft: Gear type (H) for high-power box/flange-type gearbox | Variants: thermal-protector version 9IDGG-150FH; terminal-box version 9IDG3-150FH-T
9IDG3-150FWHPower supply: 3ø AC 220 / 230 V, 50/60 Hz | Rated speed: 1300 / 1550 r/min | Rated torque: 0.943-1.124 N·m | Rated current: 0.84-1.02 A | Starting torque: 2.05-2.75 N·m | Output shaft: Gear type (WH) for worm hollow-shaft gearbox | Variants: thermal-protector version 9IDGG-150FWH; terminal-box version 9IDG3-150FWH-T
9IDG3-150FHCPower supply: 3ø AC 220 / 230 V, 50/60 Hz | Rated speed: 1300 / 1550 r/min | Rated torque: 0.943-1.124 N·m | Rated current: 0.84-1.02 A | Starting torque: 2.05-2.75 N·m | Output shaft: Gear type (HC) for Helicross right-angle gearbox | Variants: thermal-protector version 9IDGG-150FHC; terminal-box version 9IDG3-150FHC-T
9IDD4-150FPower supply: 3ø AC 380 / 400 V, 50/60 Hz | Rated speed: 1300 / 1550 r/min | Rated torque: 0.943-1.124 N·m | Rated current: 0.48-0.57 A | Starting torque: 2-2.73 N·m | Output shaft: D-cut (motor only) | Variants: thermal-protector version 9IDDK-150F; terminal-box version 9IDD4-150F-T
9IDK4-150FPower supply: 3ø AC 380 / 400 V, 50/60 Hz | Rated speed: 1300 / 1550 r/min | Rated torque: 0.943-1.124 N·m | Rated current: 0.48-0.57 A | Starting torque: 2-2.73 N·m | Output shaft: Key (motor only) | Variants: thermal-protector version 9IDKK-150F; terminal-box version 9IDK4-150F-T
9IDG4-150FHPower supply: 3ø AC 380 / 400 V, 50/60 Hz | Rated speed: 1300 / 1550 r/min | Rated torque: 0.943-1.124 N·m | Rated current: 0.48-0.57 A | Starting torque: 2-2.73 N·m | Output shaft: Gear type (H) for high-power box/flange-type gearbox | Variants: thermal-protector version 9IDGK-150FH; terminal-box version 9IDG4-150FH-T
9IDG4-150FWHPower supply: 3ø AC 380 / 400 V, 50/60 Hz | Rated speed: 1300 / 1550 r/min | Rated torque: 0.943-1.124 N·m | Rated current: 0.48-0.57 A | Starting torque: 2-2.73 N·m | Output shaft: Gear type (WH) for worm hollow-shaft gearbox | Variants: thermal-protector version 9IDGK-150FWH; terminal-box version 9IDG4-150FWH-T
9IDG4-150FHCPower supply: 3ø AC 380 / 400 V, 50/60 Hz | Rated speed: 1300 / 1550 r/min | Rated torque: 0.943-1.124 N·m | Rated current: 0.48-0.57 A | Starting torque: 2-2.73 N·m | Output shaft: Gear type (HC) for Helicross right-angle gearbox | Variants: thermal-protector version 9IDGK-150FHC; terminal-box version 9IDG4-150FHC-T
9IDD5-150FPower supply: 3ø AC 415 / 440 V, 50/60 Hz | Rated speed: 1300 / 1550 r/min | Rated torque: 0.943-1.124 N·m | Rated current: 0.45-0.55 A | Starting torque: 2.21-2.72 N·m | Output shaft: D-cut (motor only) | Variants: thermal-protector version 9IDDL-150F; terminal-box version 9IDD5-150F-T
9IDK5-150FPower supply: 3ø AC 415 / 440 V, 50/60 Hz | Rated speed: 1300 / 1550 r/min | Rated torque: 0.943-1.124 N·m | Rated current: 0.45-0.55 A | Starting torque: 2.21-2.72 N·m | Output shaft: Key (motor only) | Variants: thermal-protector version 9IDKL-150F; terminal-box version 9IDK5-150F-T
9IDG5-150FHPower supply: 3ø AC 415 / 440 V, 50/60 Hz | Rated speed: 1300 / 1550 r/min | Rated torque: 0.943-1.124 N·m | Rated current: 0.45-0.55 A | Starting torque: 2.21-2.72 N·m | Output shaft: Gear type (H) for high-power box/flange-type gearbox | Variants: thermal-protector version 9IDGL-150FH; terminal-box version 9IDG5-150FH-T
9IDG5-150FWHPower supply: 3ø AC 415 / 440 V, 50/60 Hz | Rated speed: 1300 / 1550 r/min | Rated torque: 0.943-1.124 N·m | Rated current: 0.45-0.55 A | Starting torque: 2.21-2.72 N·m | Output shaft: Gear type (WH) for worm hollow-shaft gearbox | Variants: thermal-protector version 9IDGL-150FWH; terminal-box version 9IDG5-150FWH-T
9IDG5-150FHCPower supply: 3ø AC 415 / 440 V, 50/60 Hz | Rated speed: 1300 / 1550 r/min | Rated torque: 0.943-1.124 N·m | Rated current: 0.45-0.55 A | Starting torque: 2.21-2.72 N·m | Output shaft: Gear type (HC) for Helicross right-angle gearbox | Variants: thermal-protector version 9IDGL-150FHC; terminal-box version 9IDG5-150FHC-T
