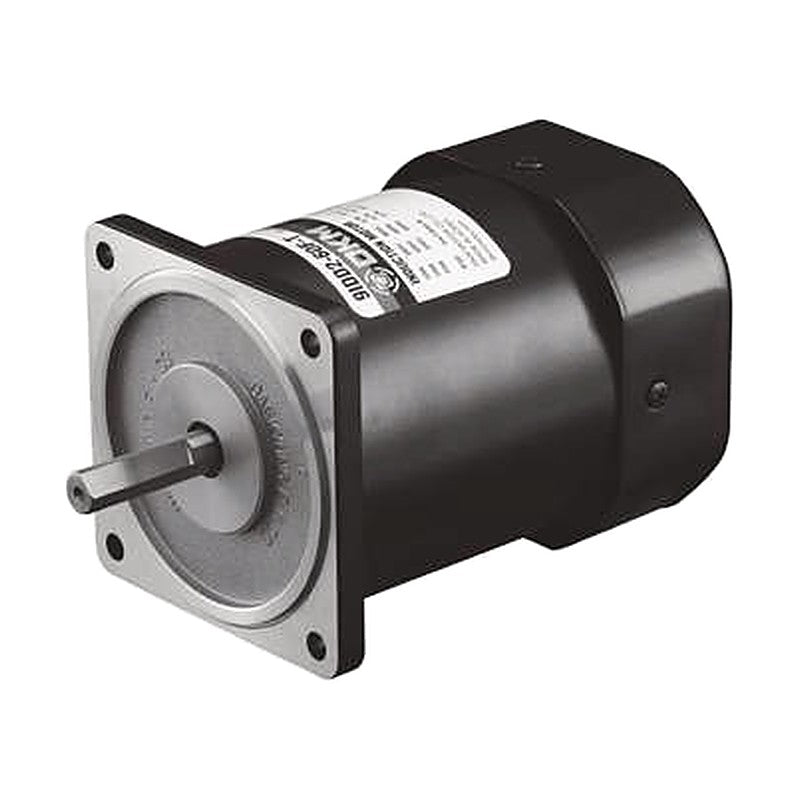

• DKM 9RD-180F Reversible Motor 180W, 90 mm Frame
1 1

DKM 9RD-180F Reversible Motor 180W, 90 mm Frame

DKM 9RD-180F Reversible Motor 180W, 90 mm Frame

180 W single-phase reversible motor with 90 mm square frame, designed for frequent forward/reverse switching, with built-in friction brake; D-cut, key or gear-type (pinion) output shaft for DKM gearboxes.

Key features

  • Designed for applications that require frequent changes of direction
  • Capacitor-run single-phase motor with higher starting torque than an induction motor
  • Built-in simple friction brake (approx. 10% of motor output) reduces overrun and improves instant reversing
  • Rated time 30 minutes; longer operation possible with intermittent duty
  • Gear-type shaft models combine with DKM gearboxes

Specifications

Output 180 W
Frame size 90 mm square
Poles 4
Duty 30 minutes (short-time rating)
Rated speed 1250 / 1300 / 1600 r/min (depends on voltage/frequency)
Rated torque 1.096-1.403 N·m
Starting torque 0.7-0.78 N·m
Shaft options D-cut, key, gear type (H, WH)
Connection Lead wire or terminal box (-T)
Matching gearboxes 9HBK□BH, 9HFK□BH, 9WHD□-030, 9WHD□-040 (□ = gear ratio)
Built-in brake Friction brake, approx. 10% of motor output
Insulation class Class B (130 °C)
DKM 9RD-180F Reversible Motor 180W, 90 mm Frame
9RDD1-180F Power supply: 1ø AC 110 V, 60 Hz | Rated speed: 1600 r/min | Rated torque: 1.096 N·m | Rated current: 3 A | Starting torque: 0.74 N·m | Capacitor: 30.0 µF / 250 VAC | Output shaft: D-cut (motor only) | Variants: thermal-protector version 9RDDA-180F; terminal-box version 9RDD1-180F-T
9RDK1-180F Power supply: 1ø AC 110 V, 60 Hz | Rated speed: 1600 r/min | Rated torque: 1.096 N·m | Rated current: 3 A | Starting torque: 0.74 N·m | Capacitor: 30.0 µF / 250 VAC | Output shaft: Key (motor only) | Variants: thermal-protector version 9RDKA-180F; terminal-box version 9RDK1-180F-T
9RDG1-180FH Power supply: 1ø AC 110 V, 60 Hz | Rated speed: 1600 r/min | Rated torque: 1.096 N·m | Rated current: 3 A | Starting torque: 0.74 N·m | Capacitor: 30.0 µF / 250 VAC | Output shaft: Gear type (H) for high-power box/flange-type gearbox | Variants: thermal-protector version 9RDGA-180FH; terminal-box version 9RDG1-180FH-T
9RDG1-180FWH Power supply: 1ø AC 110 V, 60 Hz | Rated speed: 1600 r/min | Rated torque: 1.096 N·m | Rated current: 3 A | Starting torque: 0.74 N·m | Capacitor: 30.0 µF / 250 VAC | Output shaft: Gear type (WH) for worm hollow-shaft gearbox | Variants: thermal-protector version 9RDGA-180FWH; terminal-box version 9RDG1-180FWH-T
9RDD2-180F Power supply: 1ø AC 220 V, 60 Hz | Rated speed: 1600 r/min | Rated torque: 1.096 N·m | Rated current: 1.5 A | Starting torque: 0.74 N·m | Capacitor: 8.0 µF / 450 VAC | Output shaft: D-cut (motor only) | Variants: thermal-protector version 9RDDD-180F; terminal-box version 9RDD2-180F-T
9RDK2-180F Power supply: 1ø AC 220 V, 60 Hz | Rated speed: 1600 r/min | Rated torque: 1.096 N·m | Rated current: 1.5 A | Starting torque: 0.74 N·m | Capacitor: 8.0 µF / 450 VAC | Output shaft: Key (motor only) | Variants: thermal-protector version 9RDKD-180F; terminal-box version 9RDK2-180F-T
9RDG2-180FH Power supply: 1ø AC 220 V, 60 Hz | Rated speed: 1600 r/min | Rated torque: 1.096 N·m | Rated current: 1.5 A | Starting torque: 0.74 N·m | Capacitor: 8.0 µF / 450 VAC | Output shaft: Gear type (H) for high-power box/flange-type gearbox | Variants: thermal-protector version 9RDGD-180FH; terminal-box version 9RDG2-180FH-T
9RDG2-180FWH Power supply: 1ø AC 220 V, 60 Hz | Rated speed: 1600 r/min | Rated torque: 1.096 N·m | Rated current: 1.5 A | Starting torque: 0.74 N·m | Capacitor: 8.0 µF / 450 VAC | Output shaft: Gear type (WH) for worm hollow-shaft gearbox | Variants: thermal-protector version 9RDGD-180FWH; terminal-box version 9RDG2-180FWH-T
9RDDE-180F Power supply: 1ø AC 220 / 240 V, 50 Hz | Rated speed: 1250 / 1300 r/min | Rated torque: 1.349-1.403 N·m | Rated current: 1.5-1.6 A | Starting torque: 0.7-0.78 N·m | Capacitor: 8.0 µF / 450 VAC | Output shaft: D-cut (motor only) | Variants: terminal-box version 9RDDE-180F-T
9RDKE-180F Power supply: 1ø AC 220 / 240 V, 50 Hz | Rated speed: 1250 / 1300 r/min | Rated torque: 1.349-1.403 N·m | Rated current: 1.5-1.6 A | Starting torque: 0.7-0.78 N·m | Capacitor: 8.0 µF / 450 VAC | Output shaft: Key (motor only) | Variants: terminal-box version 9RDKE-180F-T
9RDGE-180FH Power supply: 1ø AC 220 / 240 V, 50 Hz | Rated speed: 1250 / 1300 r/min | Rated torque: 1.349-1.403 N·m | Rated current: 1.5-1.6 A | Starting torque: 0.7-0.78 N·m | Capacitor: 8.0 µF / 450 VAC | Output shaft: Gear type (H) for high-power box/flange-type gearbox | Variants: terminal-box version 9RDGE-180FH-T
9RDGE-180FWH Power supply: 1ø AC 220 / 240 V, 50 Hz | Rated speed: 1250 / 1300 r/min | Rated torque: 1.349-1.403 N·m | Rated current: 1.5-1.6 A | Starting torque: 0.7-0.78 N·m | Capacitor: 8.0 µF / 450 VAC | Output shaft: Gear type (WH) for worm hollow-shaft gearbox | Variants: terminal-box version 9RDGE-180FWH-T
AC Reversible MotorsDKM
12 product codes available in this family
Sourced direct from KoreaExport-ready supplyCompetitive pricing
RFQ List 0 Email about this

Need a different model, or a part not listed here? Send us your parts list →

DKM 9RD-180F Reversible Motor 180W, 90 mm Frame

Brand DKM·AC Reversible Motors

Available part numbers (12)

9RDD1-180F, 9RDK1-180F, 9RDG1-180FH, 9RDG1-180FWH, 9RDD2-180F, 9RDK2-180F, 9RDG2-180FH, 9RDG2-180FWH, 9RDDE-180F, 9RDKE-180F + 2 more — see full table ↓

How to order

Send the DKM part numbers and quantities through our RFQ form or to info@prosourcemro.com. We confirm price, availability and lead time within 1 business day — no account needed.

RFQ List 0 →
View full details
Product codes & specifications
DKM 9RD-180F Reversible Motor 180W, 90 mm Frame
0 selected
RFQ List (0)
Product codeSpec
9RDD1-180FPower supply: 1ø AC 110 V, 60 Hz | Rated speed: 1600 r/min | Rated torque: 1.096 N·m | Rated current: 3 A | Starting torque: 0.74 N·m | Capacitor: 30.0 µF / 250 VAC | Output shaft: D-cut (motor only) | Variants: thermal-protector version 9RDDA-180F; terminal-box version 9RDD1-180F-T
9RDK1-180FPower supply: 1ø AC 110 V, 60 Hz | Rated speed: 1600 r/min | Rated torque: 1.096 N·m | Rated current: 3 A | Starting torque: 0.74 N·m | Capacitor: 30.0 µF / 250 VAC | Output shaft: Key (motor only) | Variants: thermal-protector version 9RDKA-180F; terminal-box version 9RDK1-180F-T
9RDG1-180FHPower supply: 1ø AC 110 V, 60 Hz | Rated speed: 1600 r/min | Rated torque: 1.096 N·m | Rated current: 3 A | Starting torque: 0.74 N·m | Capacitor: 30.0 µF / 250 VAC | Output shaft: Gear type (H) for high-power box/flange-type gearbox | Variants: thermal-protector version 9RDGA-180FH; terminal-box version 9RDG1-180FH-T
9RDG1-180FWHPower supply: 1ø AC 110 V, 60 Hz | Rated speed: 1600 r/min | Rated torque: 1.096 N·m | Rated current: 3 A | Starting torque: 0.74 N·m | Capacitor: 30.0 µF / 250 VAC | Output shaft: Gear type (WH) for worm hollow-shaft gearbox | Variants: thermal-protector version 9RDGA-180FWH; terminal-box version 9RDG1-180FWH-T
9RDD2-180FPower supply: 1ø AC 220 V, 60 Hz | Rated speed: 1600 r/min | Rated torque: 1.096 N·m | Rated current: 1.5 A | Starting torque: 0.74 N·m | Capacitor: 8.0 µF / 450 VAC | Output shaft: D-cut (motor only) | Variants: thermal-protector version 9RDDD-180F; terminal-box version 9RDD2-180F-T
9RDK2-180FPower supply: 1ø AC 220 V, 60 Hz | Rated speed: 1600 r/min | Rated torque: 1.096 N·m | Rated current: 1.5 A | Starting torque: 0.74 N·m | Capacitor: 8.0 µF / 450 VAC | Output shaft: Key (motor only) | Variants: thermal-protector version 9RDKD-180F; terminal-box version 9RDK2-180F-T
9RDG2-180FHPower supply: 1ø AC 220 V, 60 Hz | Rated speed: 1600 r/min | Rated torque: 1.096 N·m | Rated current: 1.5 A | Starting torque: 0.74 N·m | Capacitor: 8.0 µF / 450 VAC | Output shaft: Gear type (H) for high-power box/flange-type gearbox | Variants: thermal-protector version 9RDGD-180FH; terminal-box version 9RDG2-180FH-T
9RDG2-180FWHPower supply: 1ø AC 220 V, 60 Hz | Rated speed: 1600 r/min | Rated torque: 1.096 N·m | Rated current: 1.5 A | Starting torque: 0.74 N·m | Capacitor: 8.0 µF / 450 VAC | Output shaft: Gear type (WH) for worm hollow-shaft gearbox | Variants: thermal-protector version 9RDGD-180FWH; terminal-box version 9RDG2-180FWH-T
9RDDE-180FPower supply: 1ø AC 220 / 240 V, 50 Hz | Rated speed: 1250 / 1300 r/min | Rated torque: 1.349-1.403 N·m | Rated current: 1.5-1.6 A | Starting torque: 0.7-0.78 N·m | Capacitor: 8.0 µF / 450 VAC | Output shaft: D-cut (motor only) | Variants: terminal-box version 9RDDE-180F-T
9RDKE-180FPower supply: 1ø AC 220 / 240 V, 50 Hz | Rated speed: 1250 / 1300 r/min | Rated torque: 1.349-1.403 N·m | Rated current: 1.5-1.6 A | Starting torque: 0.7-0.78 N·m | Capacitor: 8.0 µF / 450 VAC | Output shaft: Key (motor only) | Variants: terminal-box version 9RDKE-180F-T
9RDGE-180FHPower supply: 1ø AC 220 / 240 V, 50 Hz | Rated speed: 1250 / 1300 r/min | Rated torque: 1.349-1.403 N·m | Rated current: 1.5-1.6 A | Starting torque: 0.7-0.78 N·m | Capacitor: 8.0 µF / 450 VAC | Output shaft: Gear type (H) for high-power box/flange-type gearbox | Variants: terminal-box version 9RDGE-180FH-T
9RDGE-180FWHPower supply: 1ø AC 220 / 240 V, 50 Hz | Rated speed: 1250 / 1300 r/min | Rated torque: 1.349-1.403 N·m | Rated current: 1.5-1.6 A | Starting torque: 0.7-0.78 N·m | Capacitor: 8.0 µF / 450 VAC | Output shaft: Gear type (WH) for worm hollow-shaft gearbox | Variants: terminal-box version 9RDGE-180FWH-T
