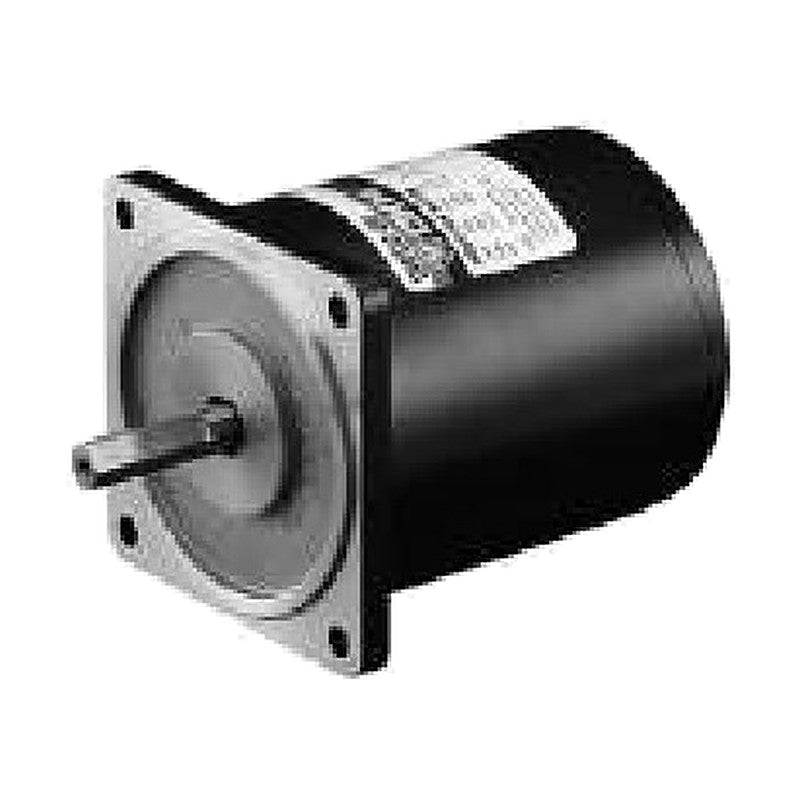

DKM 9RD-40 Reversible Motor 40W, 90 mm Frame

DKM 9RD-40 Reversible Motor 40W, 90 mm Frame

40 W single-phase reversible motor with 90 mm square frame, designed for frequent forward/reverse switching, with built-in friction brake; D-cut, key or gear-type (pinion) output shaft for DKM gearboxes.

Key features

  • Designed for applications that require frequent changes of direction
  • Capacitor-run single-phase motor with higher starting torque than an induction motor
  • Built-in simple friction brake (approx. 10% of motor output) reduces overrun and improves instant reversing
  • Rated time 30 minutes; longer operation possible with intermittent duty
  • Gear-type shaft models combine with DKM gearboxes

Specifications

Output 40 W
Frame size 90 mm square
Poles 4
Duty 30 minutes (short-time rating)
Rated speed 1300 / 1350 / 1600 r/min (depends on voltage/frequency)
Rated torque 0.244-0.3 N·m
Starting torque 0.32-0.4 N·m
Shaft options D-cut, key, gear type (G, P, W)
Connection Lead wire or terminal box (-T)
Matching gearboxes 9GBK□BMH, 9PBK□BH, 9PFK□BH, 9WD□BL/BR/BRL (□ = gear ratio)
Built-in brake Friction brake, approx. 10% of motor output
Insulation class Class B (130 °C)
DKM 9RD-40 Reversible Motor 40W, 90 mm Frame
9RDD1-40 Power supply: 1ø AC 110 V, 60 Hz | Rated speed: 1600 r/min | Rated torque: 0.244 N·m | Rated current: 1.25 A | Starting torque: 0.4 N·m | Capacitor: 16.0 µF / 250 VAC | Output shaft: D-cut (motor only) | Variants: thermal-protector version 9RDDA-40; terminal-box version 9RDD1-40-T
9RDK1-40 Power supply: 1ø AC 110 V, 60 Hz | Rated speed: 1600 r/min | Rated torque: 0.244 N·m | Rated current: 1.25 A | Starting torque: 0.4 N·m | Capacitor: 16.0 µF / 250 VAC | Output shaft: Key (motor only) | Variants: thermal-protector version 9RDKA-40; terminal-box version 9RDK1-40-T
9RDG1-40G Power supply: 1ø AC 110 V, 60 Hz | Rated speed: 1600 r/min | Rated torque: 0.244 N·m | Rated current: 1.25 A | Starting torque: 0.4 N·m | Capacitor: 16.0 µF / 250 VAC | Output shaft: Gear type (G) for general box-type gearbox | Variants: thermal-protector version 9RDGA-40G; terminal-box version 9RDG1-40G-T
9RDG1-40P Power supply: 1ø AC 110 V, 60 Hz | Rated speed: 1600 r/min | Rated torque: 0.244 N·m | Rated current: 1.25 A | Starting torque: 0.4 N·m | Capacitor: 16.0 µF / 250 VAC | Output shaft: Gear type (P) for powerful box/flange-type gearbox | Variants: thermal-protector version 9RDGA-40P; terminal-box version 9RDG1-40P-T
9RDG1-40W Power supply: 1ø AC 110 V, 60 Hz | Rated speed: 1600 r/min | Rated torque: 0.244 N·m | Rated current: 1.25 A | Starting torque: 0.4 N·m | Capacitor: 16.0 µF / 250 VAC | Output shaft: Gear type (W) for worm solid-shaft gearbox | Variants: thermal-protector version 9RDGA-40W; terminal-box version 9RDG1-40W-T
9RDDB-40 Power supply: 1ø AC 100 V, 50/60 Hz | Rated speed: 1300 / 1600 r/min | Rated torque: 0.244-0.3 N·m | Rated current: 0.95-1.15 A | Starting torque: 0.355 N·m | Capacitor: 16.0 µF / 250 VAC | Output shaft: D-cut (motor only) | Variants: terminal-box version 9RDDB-40-T
9RDKB-40 Power supply: 1ø AC 100 V, 50/60 Hz | Rated speed: 1300 / 1600 r/min | Rated torque: 0.244-0.3 N·m | Rated current: 0.95-1.15 A | Starting torque: 0.355 N·m | Capacitor: 16.0 µF / 250 VAC | Output shaft: Key (motor only) | Variants: terminal-box version 9RDKB-40-T
9RDGB-40G Power supply: 1ø AC 100 V, 50/60 Hz | Rated speed: 1300 / 1600 r/min | Rated torque: 0.244-0.3 N·m | Rated current: 0.95-1.15 A | Starting torque: 0.355 N·m | Capacitor: 16.0 µF / 250 VAC | Output shaft: Gear type (G) for general box-type gearbox | Variants: terminal-box version 9RDGB-40G-T
9RDGB-40P Power supply: 1ø AC 100 V, 50/60 Hz | Rated speed: 1300 / 1600 r/min | Rated torque: 0.244-0.3 N·m | Rated current: 0.95-1.15 A | Starting torque: 0.355 N·m | Capacitor: 16.0 µF / 250 VAC | Output shaft: Gear type (P) for powerful box/flange-type gearbox | Variants: terminal-box version 9RDGB-40P-T
9RDGB-40W Power supply: 1ø AC 100 V, 50/60 Hz | Rated speed: 1300 / 1600 r/min | Rated torque: 0.244-0.3 N·m | Rated current: 0.95-1.15 A | Starting torque: 0.355 N·m | Capacitor: 16.0 µF / 250 VAC | Output shaft: Gear type (W) for worm solid-shaft gearbox | Variants: terminal-box version 9RDGB-40W-T
9RDDC-40 Power supply: 1ø AC 200 V, 50/60 Hz | Rated speed: 1300 / 1600 r/min | Rated torque: 0.244-0.3 N·m | Rated current: 0.51-0.53 A | Starting torque: 0.35-0.37 N·m | Capacitor: 4.0 µF / 450 VAC | Output shaft: D-cut (motor only) | Variants: terminal-box version 9RDDC-40-T
9RDKC-40 Power supply: 1ø AC 200 V, 50/60 Hz | Rated speed: 1300 / 1600 r/min | Rated torque: 0.244-0.3 N·m | Rated current: 0.51-0.53 A | Starting torque: 0.35-0.37 N·m | Capacitor: 4.0 µF / 450 VAC | Output shaft: Key (motor only) | Variants: terminal-box version 9RDKC-40-T
9RDGC-40G Power supply: 1ø AC 200 V, 50/60 Hz | Rated speed: 1300 / 1600 r/min | Rated torque: 0.244-0.3 N·m | Rated current: 0.51-0.53 A | Starting torque: 0.35-0.37 N·m | Capacitor: 4.0 µF / 450 VAC | Output shaft: Gear type (G) for general box-type gearbox | Variants: terminal-box version 9RDGC-40G-T
9RDGC-40P Power supply: 1ø AC 200 V, 50/60 Hz | Rated speed: 1300 / 1600 r/min | Rated torque: 0.244-0.3 N·m | Rated current: 0.51-0.53 A | Starting torque: 0.35-0.37 N·m | Capacitor: 4.0 µF / 450 VAC | Output shaft: Gear type (P) for powerful box/flange-type gearbox | Variants: terminal-box version 9RDGC-40P-T
9RDGC-40W Power supply: 1ø AC 200 V, 50/60 Hz | Rated speed: 1300 / 1600 r/min | Rated torque: 0.244-0.3 N·m | Rated current: 0.51-0.53 A | Starting torque: 0.35-0.37 N·m | Capacitor: 4.0 µF / 450 VAC | Output shaft: Gear type (W) for worm solid-shaft gearbox | Variants: terminal-box version 9RDGC-40W-T
9RDD2-40 Power supply: 1ø AC 220 V, 60 Hz | Rated speed: 1600 r/min | Rated torque: 0.244 N·m | Rated current: 0.61 A | Starting torque: 0.4 N·m | Capacitor: 4.0 µF / 450 VAC | Output shaft: D-cut (motor only) | Variants: thermal-protector version 9RDDD-40; terminal-box version 9RDD2-40-T
9RDK2-40 Power supply: 1ø AC 220 V, 60 Hz | Rated speed: 1600 r/min | Rated torque: 0.244 N·m | Rated current: 0.61 A | Starting torque: 0.4 N·m | Capacitor: 4.0 µF / 450 VAC | Output shaft: Key (motor only) | Variants: thermal-protector version 9RDKD-40; terminal-box version 9RDK2-40-T
9RDG2-40G Power supply: 1ø AC 220 V, 60 Hz | Rated speed: 1600 r/min | Rated torque: 0.244 N·m | Rated current: 0.61 A | Starting torque: 0.4 N·m | Capacitor: 4.0 µF / 450 VAC | Output shaft: Gear type (G) for general box-type gearbox | Variants: thermal-protector version 9RDGD-40G; terminal-box version 9RDG2-40G-T
9RDG2-40P Power supply: 1ø AC 220 V, 60 Hz | Rated speed: 1600 r/min | Rated torque: 0.244 N·m | Rated current: 0.61 A | Starting torque: 0.4 N·m | Capacitor: 4.0 µF / 450 VAC | Output shaft: Gear type (P) for powerful box/flange-type gearbox | Variants: thermal-protector version 9RDGD-40P; terminal-box version 9RDG2-40P-T
9RDG2-40W Power supply: 1ø AC 220 V, 60 Hz | Rated speed: 1600 r/min | Rated torque: 0.244 N·m | Rated current: 0.61 A | Starting torque: 0.4 N·m | Capacitor: 4.0 µF / 450 VAC | Output shaft: Gear type (W) for worm solid-shaft gearbox | Variants: thermal-protector version 9RDGD-40W; terminal-box version 9RDG2-40W-T
9RDDE-40 Power supply: 1ø AC 220 / 240 V, 50 Hz | Rated speed: 1350 r/min | Rated torque: 0.289 N·m | Rated current: 0.36-0.39 A | Starting torque: 0.32-0.391 N·m | Capacitor: 3.0 µF / 450 VAC | Output shaft: D-cut (motor only) | Variants: terminal-box version 9RDDE-40-T
9RDKE-40 Power supply: 1ø AC 220 / 240 V, 50 Hz | Rated speed: 1350 r/min | Rated torque: 0.289 N·m | Rated current: 0.36-0.39 A | Starting torque: 0.32-0.391 N·m | Capacitor: 3.0 µF / 450 VAC | Output shaft: Key (motor only) | Variants: terminal-box version 9RDKE-40-T
9RDGE-40G Power supply: 1ø AC 220 / 240 V, 50 Hz | Rated speed: 1350 r/min | Rated torque: 0.289 N·m | Rated current: 0.36-0.39 A | Starting torque: 0.32-0.391 N·m | Capacitor: 3.0 µF / 450 VAC | Output shaft: Gear type (G) for general box-type gearbox | Variants: terminal-box version 9RDGE-40G-T
9RDGE-40P Power supply: 1ø AC 220 / 240 V, 50 Hz | Rated speed: 1350 r/min | Rated torque: 0.289 N·m | Rated current: 0.36-0.39 A | Starting torque: 0.32-0.391 N·m | Capacitor: 3.0 µF / 450 VAC | Output shaft: Gear type (P) for powerful box/flange-type gearbox | Variants: terminal-box version 9RDGE-40P-T
9RDGE-40W Power supply: 1ø AC 220 / 240 V, 50 Hz | Rated speed: 1350 r/min | Rated torque: 0.289 N·m | Rated current: 0.36-0.39 A | Starting torque: 0.32-0.391 N·m | Capacitor: 3.0 µF / 450 VAC | Output shaft: Gear type (W) for worm solid-shaft gearbox | Variants: terminal-box version 9RDGE-40W-T
AC Reversible MotorsDKM
25 product codes available in this family
Sourced direct from KoreaExport-ready supplyCompetitive pricing
RFQ List 0 Email about this

Need a different model, or a part not listed here? Send us your parts list →

DKM 9RD-40 Reversible Motor 40W, 90 mm Frame

Brand DKM·AC Reversible Motors

Available part numbers (25)

9RDD1-40, 9RDK1-40, 9RDG1-40G, 9RDG1-40P, 9RDG1-40W, 9RDDB-40, 9RDKB-40, 9RDGB-40G, 9RDGB-40P, 9RDGB-40W + 15 more — see full table ↓

How to order

Send the DKM part numbers and quantities through our RFQ form or to info@prosourcemro.com. We confirm price, availability and lead time within 1 business day — no account needed.

RFQ List 0 →
View full details
Product codes & specifications
DKM 9RD-40 Reversible Motor 40W, 90 mm Frame
0 selected
RFQ List (0)
Product codeSpec
9RDD1-40Power supply: 1ø AC 110 V, 60 Hz | Rated speed: 1600 r/min | Rated torque: 0.244 N·m | Rated current: 1.25 A | Starting torque: 0.4 N·m | Capacitor: 16.0 µF / 250 VAC | Output shaft: D-cut (motor only) | Variants: thermal-protector version 9RDDA-40; terminal-box version 9RDD1-40-T
9RDK1-40Power supply: 1ø AC 110 V, 60 Hz | Rated speed: 1600 r/min | Rated torque: 0.244 N·m | Rated current: 1.25 A | Starting torque: 0.4 N·m | Capacitor: 16.0 µF / 250 VAC | Output shaft: Key (motor only) | Variants: thermal-protector version 9RDKA-40; terminal-box version 9RDK1-40-T
9RDG1-40GPower supply: 1ø AC 110 V, 60 Hz | Rated speed: 1600 r/min | Rated torque: 0.244 N·m | Rated current: 1.25 A | Starting torque: 0.4 N·m | Capacitor: 16.0 µF / 250 VAC | Output shaft: Gear type (G) for general box-type gearbox | Variants: thermal-protector version 9RDGA-40G; terminal-box version 9RDG1-40G-T
9RDG1-40PPower supply: 1ø AC 110 V, 60 Hz | Rated speed: 1600 r/min | Rated torque: 0.244 N·m | Rated current: 1.25 A | Starting torque: 0.4 N·m | Capacitor: 16.0 µF / 250 VAC | Output shaft: Gear type (P) for powerful box/flange-type gearbox | Variants: thermal-protector version 9RDGA-40P; terminal-box version 9RDG1-40P-T
9RDG1-40WPower supply: 1ø AC 110 V, 60 Hz | Rated speed: 1600 r/min | Rated torque: 0.244 N·m | Rated current: 1.25 A | Starting torque: 0.4 N·m | Capacitor: 16.0 µF / 250 VAC | Output shaft: Gear type (W) for worm solid-shaft gearbox | Variants: thermal-protector version 9RDGA-40W; terminal-box version 9RDG1-40W-T
9RDDB-40Power supply: 1ø AC 100 V, 50/60 Hz | Rated speed: 1300 / 1600 r/min | Rated torque: 0.244-0.3 N·m | Rated current: 0.95-1.15 A | Starting torque: 0.355 N·m | Capacitor: 16.0 µF / 250 VAC | Output shaft: D-cut (motor only) | Variants: terminal-box version 9RDDB-40-T
9RDKB-40Power supply: 1ø AC 100 V, 50/60 Hz | Rated speed: 1300 / 1600 r/min | Rated torque: 0.244-0.3 N·m | Rated current: 0.95-1.15 A | Starting torque: 0.355 N·m | Capacitor: 16.0 µF / 250 VAC | Output shaft: Key (motor only) | Variants: terminal-box version 9RDKB-40-T
9RDGB-40GPower supply: 1ø AC 100 V, 50/60 Hz | Rated speed: 1300 / 1600 r/min | Rated torque: 0.244-0.3 N·m | Rated current: 0.95-1.15 A | Starting torque: 0.355 N·m | Capacitor: 16.0 µF / 250 VAC | Output shaft: Gear type (G) for general box-type gearbox | Variants: terminal-box version 9RDGB-40G-T
9RDGB-40PPower supply: 1ø AC 100 V, 50/60 Hz | Rated speed: 1300 / 1600 r/min | Rated torque: 0.244-0.3 N·m | Rated current: 0.95-1.15 A | Starting torque: 0.355 N·m | Capacitor: 16.0 µF / 250 VAC | Output shaft: Gear type (P) for powerful box/flange-type gearbox | Variants: terminal-box version 9RDGB-40P-T
9RDGB-40WPower supply: 1ø AC 100 V, 50/60 Hz | Rated speed: 1300 / 1600 r/min | Rated torque: 0.244-0.3 N·m | Rated current: 0.95-1.15 A | Starting torque: 0.355 N·m | Capacitor: 16.0 µF / 250 VAC | Output shaft: Gear type (W) for worm solid-shaft gearbox | Variants: terminal-box version 9RDGB-40W-T
9RDDC-40Power supply: 1ø AC 200 V, 50/60 Hz | Rated speed: 1300 / 1600 r/min | Rated torque: 0.244-0.3 N·m | Rated current: 0.51-0.53 A | Starting torque: 0.35-0.37 N·m | Capacitor: 4.0 µF / 450 VAC | Output shaft: D-cut (motor only) | Variants: terminal-box version 9RDDC-40-T
9RDKC-40Power supply: 1ø AC 200 V, 50/60 Hz | Rated speed: 1300 / 1600 r/min | Rated torque: 0.244-0.3 N·m | Rated current: 0.51-0.53 A | Starting torque: 0.35-0.37 N·m | Capacitor: 4.0 µF / 450 VAC | Output shaft: Key (motor only) | Variants: terminal-box version 9RDKC-40-T
9RDGC-40GPower supply: 1ø AC 200 V, 50/60 Hz | Rated speed: 1300 / 1600 r/min | Rated torque: 0.244-0.3 N·m | Rated current: 0.51-0.53 A | Starting torque: 0.35-0.37 N·m | Capacitor: 4.0 µF / 450 VAC | Output shaft: Gear type (G) for general box-type gearbox | Variants: terminal-box version 9RDGC-40G-T
9RDGC-40PPower supply: 1ø AC 200 V, 50/60 Hz | Rated speed: 1300 / 1600 r/min | Rated torque: 0.244-0.3 N·m | Rated current: 0.51-0.53 A | Starting torque: 0.35-0.37 N·m | Capacitor: 4.0 µF / 450 VAC | Output shaft: Gear type (P) for powerful box/flange-type gearbox | Variants: terminal-box version 9RDGC-40P-T
9RDGC-40WPower supply: 1ø AC 200 V, 50/60 Hz | Rated speed: 1300 / 1600 r/min | Rated torque: 0.244-0.3 N·m | Rated current: 0.51-0.53 A | Starting torque: 0.35-0.37 N·m | Capacitor: 4.0 µF / 450 VAC | Output shaft: Gear type (W) for worm solid-shaft gearbox | Variants: terminal-box version 9RDGC-40W-T
9RDD2-40Power supply: 1ø AC 220 V, 60 Hz | Rated speed: 1600 r/min | Rated torque: 0.244 N·m | Rated current: 0.61 A | Starting torque: 0.4 N·m | Capacitor: 4.0 µF / 450 VAC | Output shaft: D-cut (motor only) | Variants: thermal-protector version 9RDDD-40; terminal-box version 9RDD2-40-T
9RDK2-40Power supply: 1ø AC 220 V, 60 Hz | Rated speed: 1600 r/min | Rated torque: 0.244 N·m | Rated current: 0.61 A | Starting torque: 0.4 N·m | Capacitor: 4.0 µF / 450 VAC | Output shaft: Key (motor only) | Variants: thermal-protector version 9RDKD-40; terminal-box version 9RDK2-40-T
9RDG2-40GPower supply: 1ø AC 220 V, 60 Hz | Rated speed: 1600 r/min | Rated torque: 0.244 N·m | Rated current: 0.61 A | Starting torque: 0.4 N·m | Capacitor: 4.0 µF / 450 VAC | Output shaft: Gear type (G) for general box-type gearbox | Variants: thermal-protector version 9RDGD-40G; terminal-box version 9RDG2-40G-T
9RDG2-40PPower supply: 1ø AC 220 V, 60 Hz | Rated speed: 1600 r/min | Rated torque: 0.244 N·m | Rated current: 0.61 A | Starting torque: 0.4 N·m | Capacitor: 4.0 µF / 450 VAC | Output shaft: Gear type (P) for powerful box/flange-type gearbox | Variants: thermal-protector version 9RDGD-40P; terminal-box version 9RDG2-40P-T
9RDG2-40WPower supply: 1ø AC 220 V, 60 Hz | Rated speed: 1600 r/min | Rated torque: 0.244 N·m | Rated current: 0.61 A | Starting torque: 0.4 N·m | Capacitor: 4.0 µF / 450 VAC | Output shaft: Gear type (W) for worm solid-shaft gearbox | Variants: thermal-protector version 9RDGD-40W; terminal-box version 9RDG2-40W-T
9RDDE-40Power supply: 1ø AC 220 / 240 V, 50 Hz | Rated speed: 1350 r/min | Rated torque: 0.289 N·m | Rated current: 0.36-0.39 A | Starting torque: 0.32-0.391 N·m | Capacitor: 3.0 µF / 450 VAC | Output shaft: D-cut (motor only) | Variants: terminal-box version 9RDDE-40-T
9RDKE-40Power supply: 1ø AC 220 / 240 V, 50 Hz | Rated speed: 1350 r/min | Rated torque: 0.289 N·m | Rated current: 0.36-0.39 A | Starting torque: 0.32-0.391 N·m | Capacitor: 3.0 µF / 450 VAC | Output shaft: Key (motor only) | Variants: terminal-box version 9RDKE-40-T
9RDGE-40GPower supply: 1ø AC 220 / 240 V, 50 Hz | Rated speed: 1350 r/min | Rated torque: 0.289 N·m | Rated current: 0.36-0.39 A | Starting torque: 0.32-0.391 N·m | Capacitor: 3.0 µF / 450 VAC | Output shaft: Gear type (G) for general box-type gearbox | Variants: terminal-box version 9RDGE-40G-T
9RDGE-40PPower supply: 1ø AC 220 / 240 V, 50 Hz | Rated speed: 1350 r/min | Rated torque: 0.289 N·m | Rated current: 0.36-0.39 A | Starting torque: 0.32-0.391 N·m | Capacitor: 3.0 µF / 450 VAC | Output shaft: Gear type (P) for powerful box/flange-type gearbox | Variants: terminal-box version 9RDGE-40P-T
9RDGE-40WPower supply: 1ø AC 220 / 240 V, 50 Hz | Rated speed: 1350 r/min | Rated torque: 0.289 N·m | Rated current: 0.36-0.39 A | Starting torque: 0.32-0.391 N·m | Capacitor: 3.0 µF / 450 VAC | Output shaft: Gear type (W) for worm solid-shaft gearbox | Variants: terminal-box version 9RDGE-40W-T
