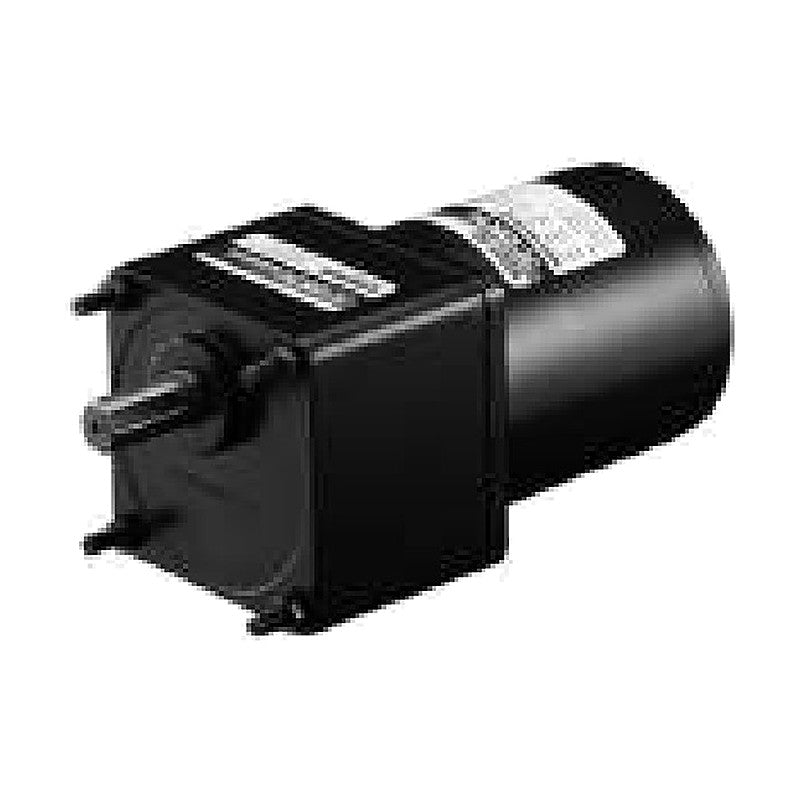

DKM 9SD Speed Control Induction Motor, 40 W, □90 mm Frame

DKM 9SD Speed Control Induction Motor, 40 W, □90 mm Frame

Single-phase AC speed control induction motor with built-in tachogenerator, for variable-speed continuous operation together with a DKM speed controller.

Key features

  • Speed adjustable with DKM speed controllers FX3000, DX3000, DSA or DSKM
  • Built-in tachogenerator (T.G) for speed feedback
  • Speed range 90-1400 r/min (50 Hz) / 90-1700 r/min (60 Hz)
  • Available in connector type (-C) and lead wire type (-L)

Specifications

Output 40 W
Frame size 90 mm square
Poles 4
Phase Single-phase AC
Voltage codes 1 = 1-phase 110 V 60 Hz; A = 1-phase 110 V 60 Hz, thermal protector; B = 1-phase 100 V 50/60 Hz, thermal protector; C = 1-phase 200 V 50/60 Hz, thermal protector; 2 = 1-phase 220 V 60 Hz; D = 1-phase 220 V 60 Hz, thermal protector; E = 1-phase 220-240 V 50 Hz, thermal protector
Rating Continuous
Speed range 90-1400 r/min (50 Hz) / 90-1700 r/min (60 Hz)
Starting torque 0.15-0.19 N·m
Permissible torque at 1200 r/min 0.25-0.3 N·m
Permissible torque at 90 r/min 0.07-0.08 N·m
Capacitor 1/A: 10.0 µF/250 VAC; B: 10.0 µF/250 VAC; C: 3.0 µF/450 VAC; 2/D: 2.5 µF/450 VAC; E: 2.5 µF/450 VAC
Motor weight 2.55 kg
9SDG-40G Shaft: gear type pinion | For gearbox: 9GBK□BMH (general box) | Voltage codes: 1/A/B/C/2/D/E | Order as: 9SDG[voltage code]-40G + -C (connector) or -L (lead wire)
9SDG-40P Shaft: gear type pinion | For gearbox: powerful box/flange gearbox 9PBK□BH / 9PFK□BH | Voltage codes: 1/A/B/C/2/D/E | Order as: 9SDG[voltage code]-40P + -C (connector) or -L (lead wire)
9SDG-40W Shaft: gear type pinion | For gearbox: worm solid right-angle gearbox (WD□BL/BR/BRL) | Voltage codes: 1/A/B/C/2/D/E | Order as: 9SDG[voltage code]-40W + -C (connector) or -L (lead wire)
9SDD-40 Shaft: D-cut shaft (motor only) | Voltage codes: 1/A/B/C/2/D/E | Order as: 9SDD[voltage code]-40 + -C (connector) or -L (lead wire)
9SDK-40 Shaft: Key shaft (motor only) | Voltage codes: 1/A/B/C/2/D/E | Order as: 9SDK[voltage code]-40 + -C (connector) or -L (lead wire)
Speed Control MotorsDKM
5 product codes available in this family
Sourced direct from KoreaExport-ready supplyCompetitive pricing
RFQ List 0 Email about this

Need a different model, or a part not listed here? Send us your parts list →

DKM 9SD Speed Control Induction Motor, 40 W, □90 mm Frame

Brand DKM·Speed Control Motors

Available part numbers (5)

9SDG-40G, 9SDG-40P, 9SDG-40W, 9SDD-40, 9SDK-40

How to order

Send the DKM part numbers and quantities through our RFQ form or to info@prosourcemro.com. We confirm price, availability and lead time within 1 business day — no account needed.

RFQ List 0 →
View full details
Product codes & specifications
0 selected
RFQ List (0)
Product codeSpec
9SDG-40GShaft: gear type pinion | For gearbox: 9GBK□BMH (general box) | Voltage codes: 1/A/B/C/2/D/E | Order as: 9SDG[voltage code]-40G + -C (connector) or -L (lead wire)
9SDG-40PShaft: gear type pinion | For gearbox: powerful box/flange gearbox 9PBK□BH / 9PFK□BH | Voltage codes: 1/A/B/C/2/D/E | Order as: 9SDG[voltage code]-40P + -C (connector) or -L (lead wire)
9SDG-40WShaft: gear type pinion | For gearbox: worm solid right-angle gearbox (WD□BL/BR/BRL) | Voltage codes: 1/A/B/C/2/D/E | Order as: 9SDG[voltage code]-40W + -C (connector) or -L (lead wire)
9SDD-40Shaft: D-cut shaft (motor only) | Voltage codes: 1/A/B/C/2/D/E | Order as: 9SDD[voltage code]-40 + -C (connector) or -L (lead wire)
9SDK-40Shaft: Key shaft (motor only) | Voltage codes: 1/A/B/C/2/D/E | Order as: 9SDK[voltage code]-40 + -C (connector) or -L (lead wire)
