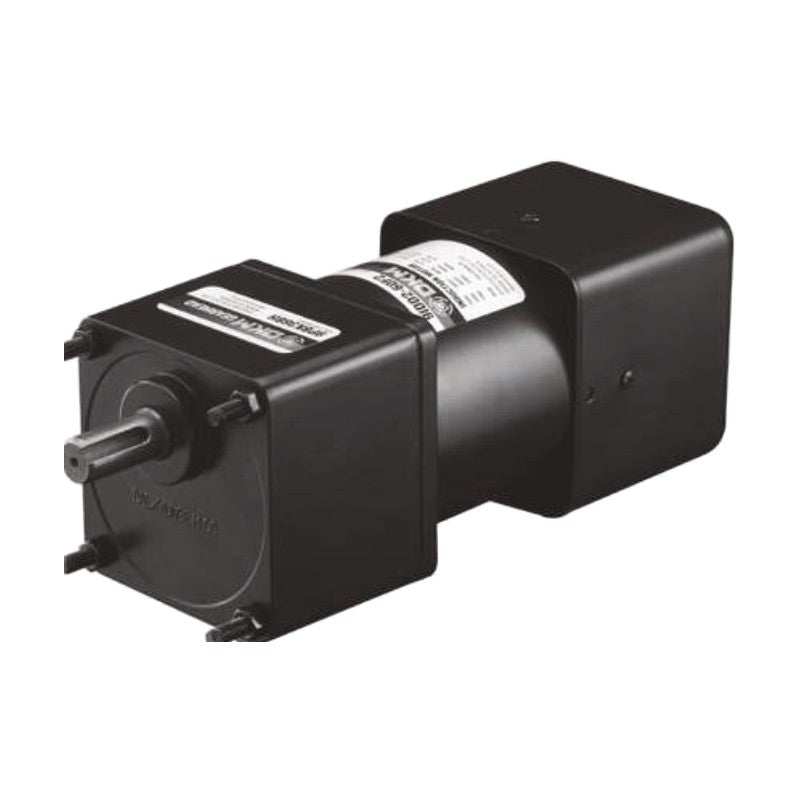

DKM 9SRD Speed Control Reversible Motor, 60 W, □90 mm Frame

DKM 9SRD Speed Control Reversible Motor, 60 W, □90 mm Frame

Single-phase AC speed control reversible motor with built-in tachogenerator and simple brake mechanism, for variable-speed operation with frequent direction changes.

Key features

  • Built-in simple brake mechanism keeps overrun small; suited to frequent direction changes
  • Built-in tachogenerator (T.G) for speed feedback with DKM speed controllers
  • Speed range 90-1400 r/min (50 Hz) / 90-1700 r/min (60 Hz)
  • Available in connector type (-C) and lead wire type (-L)

Specifications

Output 60 W
Frame size 90 mm square
Poles 4
Phase Single-phase AC
Voltage codes 1 = 1-phase 110 V 60 Hz; A = 1-phase 110 V 60 Hz, thermal protector; B = 1-phase 100 V 50/60 Hz, thermal protector; C = 1-phase 200 V 50/60 Hz, thermal protector; 2 = 1-phase 220 V 60 Hz; D = 1-phase 220 V 60 Hz, thermal protector; E = 1-phase 220-240 V 50 Hz, thermal protector
Rating Continuous
Speed range 90-1400 r/min (50 Hz) / 90-1700 r/min (60 Hz)
Starting torque 0.49-0.55 N·m
Permissible torque at 1200 r/min 0.52-0.58 N·m
Permissible torque at 90 r/min 0.27-0.29 N·m
Capacitor 1/A: 20.0 µF/250 VAC; B: 25.0 µF/250 VAC; C: 6.0 µF/450 VAC; 2/D: 6.0 µF/450 VAC; E: 6.0 µF/450 VAC
Motor weight 3.15 kg
9SRDG-60F2P Shaft: gear type pinion | For gearbox: powerful box/flange gearbox 9PBK□BH / 9PFK□BH | Voltage codes: 1/A/B/C/2/D/E | Order as: 9SRDG[voltage code]-60F2P + -C (connector) or -L (lead wire)
9SRDG-60F2H Shaft: gear type pinion | For gearbox: high powerful box/flange gearbox 9HBK□BH / 9HFK□BH | Voltage codes: 1/A/B/C/2/D/E | Order as: 9SRDG[voltage code]-60F2H + -C (connector) or -L (lead wire)
9SRDG-60F2W Shaft: gear type pinion | For gearbox: worm solid right-angle gearbox (WD□BL/BR/BRL) | Voltage codes: 1/A/B/C/2/D/E | Order as: 9SRDG[voltage code]-60F2W + -C (connector) or -L (lead wire)
9SRDG-60F2WH Shaft: gear type pinion | For gearbox: worm hollow right-angle gearbox (9WHD□) | Voltage codes: 1/A/B/C/2/D/E | Order as: 9SRDG[voltage code]-60F2WH + -C (connector) or -L (lead wire)
9SRDD-60F2 Shaft: D-cut shaft (motor only) | Voltage codes: 1/A/B/C/2/D/E | Order as: 9SRDD[voltage code]-60F2 + -C (connector) or -L (lead wire)
9SRDK-60F2 Shaft: Key shaft (motor only) | Voltage codes: 1/A/B/C/2/D/E | Order as: 9SRDK[voltage code]-60F2 + -C (connector) or -L (lead wire)
Speed Control MotorsDKM
6 product codes available in this family
Sourced direct from KoreaExport-ready supplyCompetitive pricing
RFQ List 0 Email about this

Need a different model, or a part not listed here? Send us your parts list →

DKM 9SRD Speed Control Reversible Motor, 60 W, □90 mm Frame

Brand DKM·Speed Control Motors

Available part numbers (6)

9SRDG-60F2P, 9SRDG-60F2H, 9SRDG-60F2W, 9SRDG-60F2WH, 9SRDD-60F2, 9SRDK-60F2

How to order

Send the DKM part numbers and quantities through our RFQ form or to info@prosourcemro.com. We confirm price, availability and lead time within 1 business day — no account needed.

RFQ List 0 →
View full details
Product codes & specifications
0 selected
RFQ List (0)
Product codeSpec
9SRDG-60F2PShaft: gear type pinion | For gearbox: powerful box/flange gearbox 9PBK□BH / 9PFK□BH | Voltage codes: 1/A/B/C/2/D/E | Order as: 9SRDG[voltage code]-60F2P + -C (connector) or -L (lead wire)
9SRDG-60F2HShaft: gear type pinion | For gearbox: high powerful box/flange gearbox 9HBK□BH / 9HFK□BH | Voltage codes: 1/A/B/C/2/D/E | Order as: 9SRDG[voltage code]-60F2H + -C (connector) or -L (lead wire)
9SRDG-60F2WShaft: gear type pinion | For gearbox: worm solid right-angle gearbox (WD□BL/BR/BRL) | Voltage codes: 1/A/B/C/2/D/E | Order as: 9SRDG[voltage code]-60F2W + -C (connector) or -L (lead wire)
9SRDG-60F2WHShaft: gear type pinion | For gearbox: worm hollow right-angle gearbox (9WHD□) | Voltage codes: 1/A/B/C/2/D/E | Order as: 9SRDG[voltage code]-60F2WH + -C (connector) or -L (lead wire)
9SRDD-60F2Shaft: D-cut shaft (motor only) | Voltage codes: 1/A/B/C/2/D/E | Order as: 9SRDD[voltage code]-60F2 + -C (connector) or -L (lead wire)
9SRDK-60F2Shaft: Key shaft (motor only) | Voltage codes: 1/A/B/C/2/D/E | Order as: 9SRDK[voltage code]-60F2 + -C (connector) or -L (lead wire)
