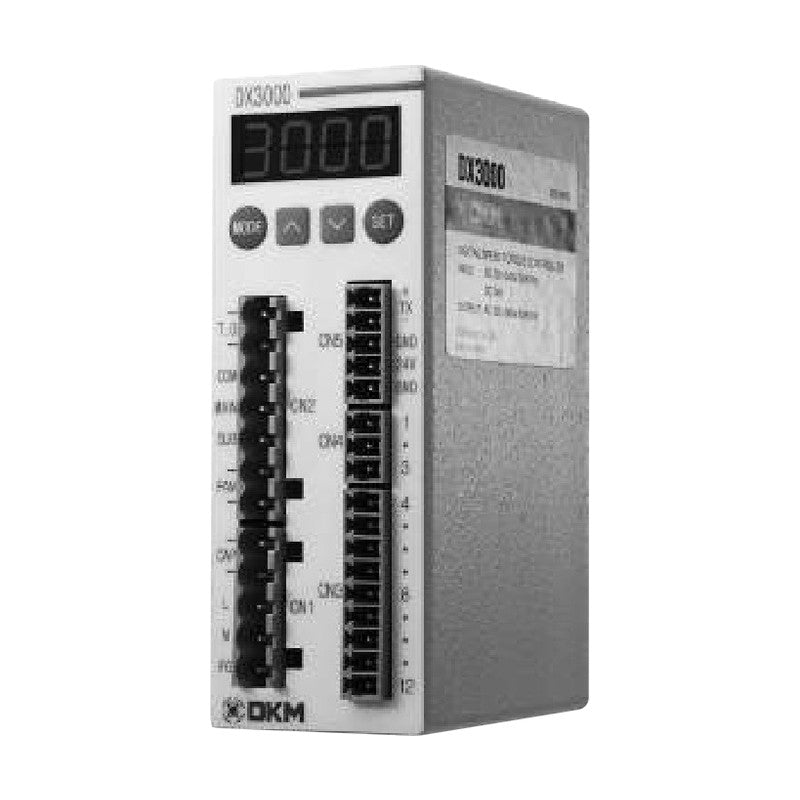

DKM DX3000 Digital Torque/Speed Controller with RS485

DIN-rail digital controller for DKM AC torque and speed-control motors, providing speed and torque control with tacho feedback, PLC I/O and RS485 Modbus RTU communication.

Key features

RS485 communication with Modbus RTU protocol for networking several controllers
PLC I/O control: forward, reverse, alarm reset and speed select inputs; speed pulse and alarm outputs
Connector-type wiring for easy installation and maintenance; DIN-rail mounting
4-digit display of current speed (r/min) and torque; external touch screen connectable
Parameter functions incl. internal speed/torque presets, speed limit, acceleration time and gear ratio

Specifications

Motor power supply	AC 220-240 V 50/60 Hz ±10%
Control power supply	24 VDC ±10%
Rated current	4 A
Max. current	6 A
Control function	Speed control, torque control
Control system	Phase-duty control
Speed control range	50 Hz: 100-1460 r/min; 60 Hz: 100-1760 r/min
Torque control range	0-100% (of maximum torque)
Feedback sensor	Tacho generator, 12 ppr
Ambient temperature	-10 to +55 °C
Sequence inputs	Forward, reverse, alarm reset, velocity select
Sequence outputs	Speed pulse out, alarm out

DX3000

Supply: AC 220-240 V 50/60 Hz (motor), 24 VDC (control) | Rated current: 4 A | Control: speed and torque | Communication: RS485 Modbus RTU
