Dongkuk CM GIX Zn-Al-Mg Coated Steel Sheet (Zn 94% Al 4% Mg 2%)

Dongkuk CM GIX Zn-Al-Mg Coated Steel Sheet (Zn 94% Al 4% Mg 2%)

GIX is a hot-dip zinc-aluminum-magnesium alloy coated steel sheet (Zn 94%, Al 4%, Mg 2%) for applications requiring high corrosion resistance. Per Dongkuk, it delivers 5-7 times the corrosion resistance of conventional GI.

Key features

  • 5-7 times higher corrosion resistance than existing GI (per brochure)
  • Self-sealing: Mg promotes a Simonkolleite film that protects cut edges and scratches
  • Works with existing GI roll forming, press and welding processes
  • Strong paint adhesion as a base for powder coating and PCM colour-coated sheet
  • Fine spangle and high gloss; usable unpainted for exteriors

Specifications

Coating composition Zn 94%, Al 4%, Mg 2%
Coating mass range 60 - 310 g/m2 (9 - 49 um); 11 steps
Thickness range 0.24 - 2.3 mm
Width range 600 - 1,270 mm
Length (sheet) 600 - 5,000 mm
Post process Chromate Cr6+, Chromate Cr3+, AFP (Cr-free), AFP (Cr type), Oiling
Coil ID 508 / 610 mm, OD 2,100 mm max, 22 t max
Production capacity 300,000 t/year
Certifications Korean patent 10-1758715, KS certificate

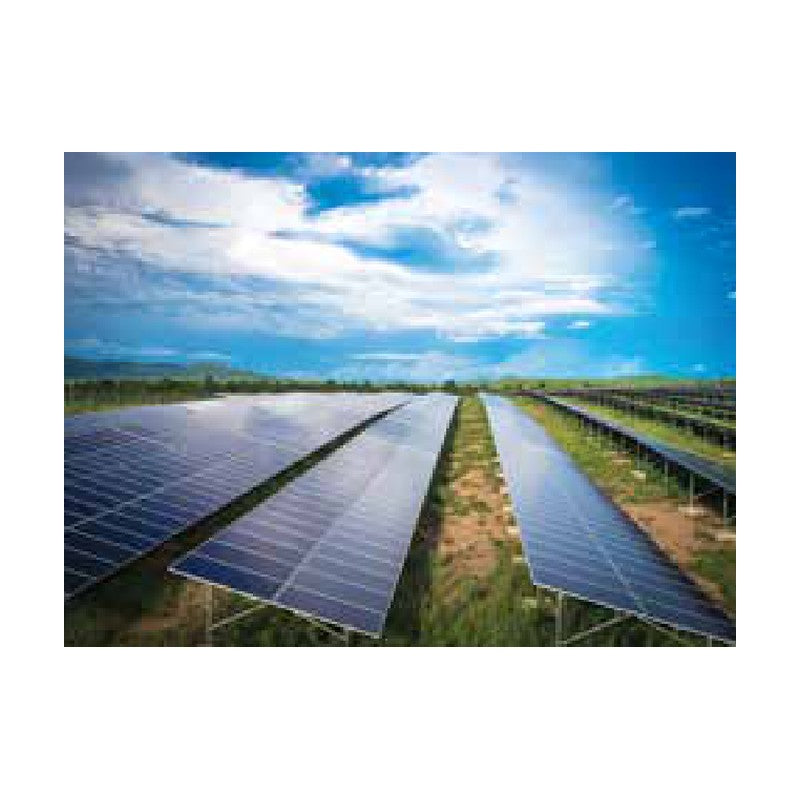

Solar structure gauges Brace / purlin 1.6-1.8 mm; girder / post 2.1-2.3 mm
Applications Solar mounting, building walls, gutters, light-gauge steel, guard rails, greenhouses, poultry farms, appliances
Source Dongkuk CM GIX_en.pdf, p. 2-11; SUN_GIX.pdf, p. 2
GIX CQ (Commercial Quality) Use: Commercial | Coating: 60-310 g/m2 | Thk: 0.24-2.3 mm
GIX CQ-Full Grade: CQ-Full | Coating: 60-310 g/m2 | Thk: 0.24-2.3 mm
GIX DQ (Drawing Quality) Use: Drawing | Coating: 60-310 g/m2 | Thk: 0.24-2.3 mm
GIX EDDQ (Extra Deep Drawing Quality) Use: Extra deep drawing | Coating: 60-310 g/m2 | Thk: 0.24-2.3 mm
GIX Gr-A (Structural) Use: Structural | Coating: 60-310 g/m2 | Thk: 0.24-2.3 mm
GIX Gr-B (Structural) Use: Structural | Coating: 60-310 g/m2 | Thk: 0.24-2.3 mm
GIX Gr-C (Structural) Use: Structural | Coating: 60-310 g/m2 | Thk: 0.24-2.3 mm
GIX Gr-D (Structural) Use: Structural | Coating: 60-310 g/m2 | Thk: 0.24-2.3 mm
GIX Gr-E (Structural) Use: Structural | Coating: 60-310 g/m2 | Thk: 0.24-2.3 mm
Zn-Al-Mg Coated Steel SheetDongkuk CM
9 product codes available in this family
Sourced direct from KoreaExport-ready supplyCompetitive pricing
RFQ List 0 Email about this

Need a different model, or a part not listed here? Send us your parts list →

Dongkuk CM GIX Zn-Al-Mg Coated Steel Sheet (Zn 94% Al 4% Mg 2%)

Brand Dongkuk CM·Zn-Al-Mg Coated Steel Sheet

Available part numbers (9)

GIX CQ (Commercial Quality), GIX CQ-Full, GIX DQ (Drawing Quality), GIX EDDQ (Extra Deep Drawing Quality), GIX Gr-A (Structural), GIX Gr-B (Structural), GIX Gr-C (Structural), GIX Gr-D (Structural), GIX Gr-E (Structural)

How to order

Send the Dongkuk CM part numbers and quantities through our RFQ form or to info@prosourcemro.com. We confirm price, availability and lead time within 1 business day — no account needed.

RFQ List 0 →
View full details
Product codes & specifications
0 selected
RFQ List (0)
Product codeSpec
GIX CQ (Commercial Quality)Use: Commercial | Coating: 60-310 g/m2 | Thk: 0.24-2.3 mm
GIX CQ-FullGrade: CQ-Full | Coating: 60-310 g/m2 | Thk: 0.24-2.3 mm
GIX DQ (Drawing Quality)Use: Drawing | Coating: 60-310 g/m2 | Thk: 0.24-2.3 mm
GIX EDDQ (Extra Deep Drawing Quality)Use: Extra deep drawing | Coating: 60-310 g/m2 | Thk: 0.24-2.3 mm
GIX Gr-A (Structural)Use: Structural | Coating: 60-310 g/m2 | Thk: 0.24-2.3 mm
GIX Gr-B (Structural)Use: Structural | Coating: 60-310 g/m2 | Thk: 0.24-2.3 mm
GIX Gr-C (Structural)Use: Structural | Coating: 60-310 g/m2 | Thk: 0.24-2.3 mm
GIX Gr-D (Structural)Use: Structural | Coating: 60-310 g/m2 | Thk: 0.24-2.3 mm
GIX Gr-E (Structural)Use: Structural | Coating: 60-310 g/m2 | Thk: 0.24-2.3 mm
