Dongkuk CM GLX Al-Zn-Mg Coated Steel Sheet (Mg-Alloyed Galvalume)

Dongkuk CM GLX Al-Zn-Mg Coated Steel Sheet (Mg-Alloyed Galvalume)

GLX is a next-generation Galvalume: a hot-dip aluminum-zinc-magnesium-silicon alloy coating (Al 55%, Zn-Mg 43.4%, Si 1.6%) designed for applications requiring high corrosion resistance. Patented in Korea, Australia, China and Taiwan.

Key features

  • Mg stabilizes zinc's sacrificial action, protecting cut edges and scratches from bending or site installation
  • Flat-part corrosion resistance over 60% higher than other high-corrosion alloy-coated sheets tested (per brochure)
  • No discoloration in sustained use at 315 C; up to 370 C intermittently
  • More than twice the heat reflexibility of galvanized steel
  • Paints without additional pre-treatment; base for LUXTEEL pre-painted steel

Specifications

Coating composition Al 55%, Zn + Mg 43.4%, Si 1.6%
Coating mass range 90 - 200 g/m2 (24 - 52 um)
Thickness range 0.23 - 2.5 mm
Width range 600 - 1,600 mm
Length (sheet) 600 - 5,000 mm
Post-processing Chromate, inorganic Cr-free resin (NT), organic Cr-free resin (NB, E5), oil, AFP, coloured resin, lubrication resin
Coil ID 508 / 610 mm, OD 2,300 mm max, 35 t max
Production capacity 920,000 t/year
Certifications Korean patent 10-1535073, Australian and Taiwanese patents, KS certificate

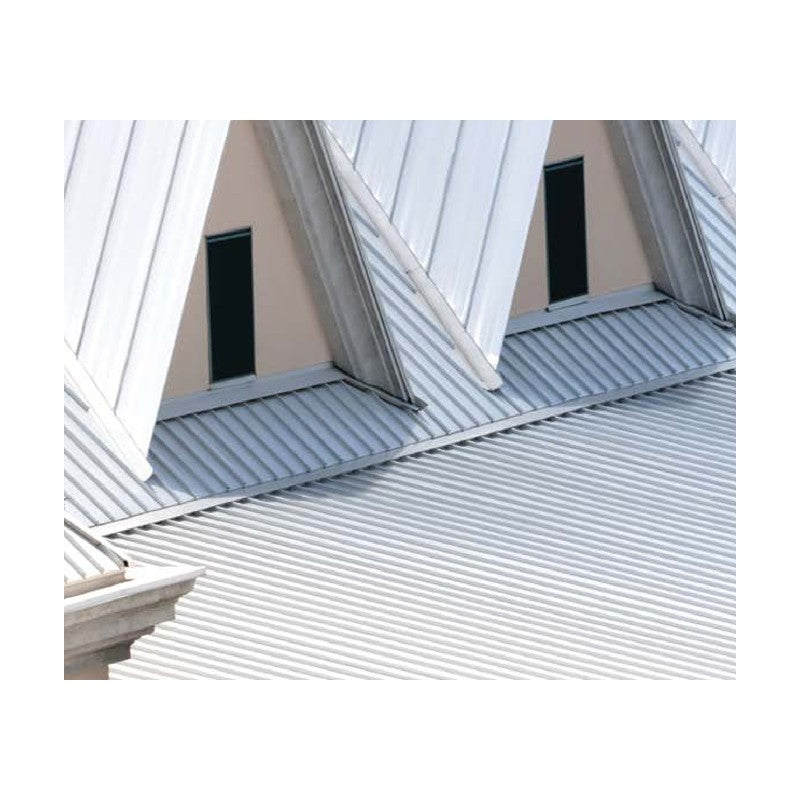

Applications Roofs and walls, warehouses, livestock housing, mufflers, electric ovens
Source Dongkuk CM GLX_en.pdf, p. 1-6
GLX CQ (Commercial quality) Use: Commercial quality | Coating: 90-200 g/m2 | Thk: 0.23-2.5 mm
GLX LFQ (Lock forming quality) Use: Lock forming quality | Coating: 90-200 g/m2 | Thk: 0.23-2.5 mm
GLX DQ (Drawing quality) Use: Drawing quality | Coating: 90-200 g/m2 | Thk: 0.23-2.5 mm
GLX DDQ (Deep drawing quality) Use: Deep drawing quality | Coating: 90-200 g/m2 | Thk: 0.23-2.5 mm
GLX EDDQ (Extra deep drawing quality) Use: Extra deep drawing quality | Coating: 90-200 g/m2 | Thk: 0.23-2.5 mm
GLX Gr-A (Structural) Use: Structural | Coating: 90-200 g/m2 | Thk: 0.23-2.5 mm
GLX Gr-B (Structural) Use: Structural | Coating: 90-200 g/m2 | Thk: 0.23-2.5 mm
GLX Gr-C (Structural) Use: Structural | Coating: 90-200 g/m2 | Thk: 0.23-2.5 mm
GLX Gr-D (Structural) Use: Structural | Coating: 90-200 g/m2 | Thk: 0.23-2.5 mm
GLX Gr-E (Structural) Use: Structural | Coating: 90-200 g/m2 | Thk: 0.23-2.5 mm
Al-Zn-Mg Coated Steel SheetDongkuk CM
10 product codes available in this family
Sourced direct from KoreaExport-ready supplyCompetitive pricing
RFQ List 0 Email about this

Need a different model, or a part not listed here? Send us your parts list →

Dongkuk CM GLX Al-Zn-Mg Coated Steel Sheet (Mg-Alloyed Galvalume)

Brand Dongkuk CM·Al-Zn-Mg Coated Steel Sheet

Available part numbers (10)

GLX CQ (Commercial quality), GLX LFQ (Lock forming quality), GLX DQ (Drawing quality), GLX DDQ (Deep drawing quality), GLX EDDQ (Extra deep drawing quality), GLX Gr-A (Structural), GLX Gr-B (Structural), GLX Gr-C (Structural), GLX Gr-D (Structural), GLX Gr-E (Structural)

How to order

Send the Dongkuk CM part numbers and quantities through our RFQ form or to info@prosourcemro.com. We confirm price, availability and lead time within 1 business day — no account needed.

RFQ List 0 →
View full details
Product codes & specifications
0 selected
RFQ List (0)
Product codeSpec
GLX CQ (Commercial quality)Use: Commercial quality | Coating: 90-200 g/m2 | Thk: 0.23-2.5 mm
GLX LFQ (Lock forming quality)Use: Lock forming quality | Coating: 90-200 g/m2 | Thk: 0.23-2.5 mm
GLX DQ (Drawing quality)Use: Drawing quality | Coating: 90-200 g/m2 | Thk: 0.23-2.5 mm
GLX DDQ (Deep drawing quality)Use: Deep drawing quality | Coating: 90-200 g/m2 | Thk: 0.23-2.5 mm
GLX EDDQ (Extra deep drawing quality)Use: Extra deep drawing quality | Coating: 90-200 g/m2 | Thk: 0.23-2.5 mm
GLX Gr-A (Structural)Use: Structural | Coating: 90-200 g/m2 | Thk: 0.23-2.5 mm
GLX Gr-B (Structural)Use: Structural | Coating: 90-200 g/m2 | Thk: 0.23-2.5 mm
GLX Gr-C (Structural)Use: Structural | Coating: 90-200 g/m2 | Thk: 0.23-2.5 mm
GLX Gr-D (Structural)Use: Structural | Coating: 90-200 g/m2 | Thk: 0.23-2.5 mm
GLX Gr-E (Structural)Use: Structural | Coating: 90-200 g/m2 | Thk: 0.23-2.5 mm
