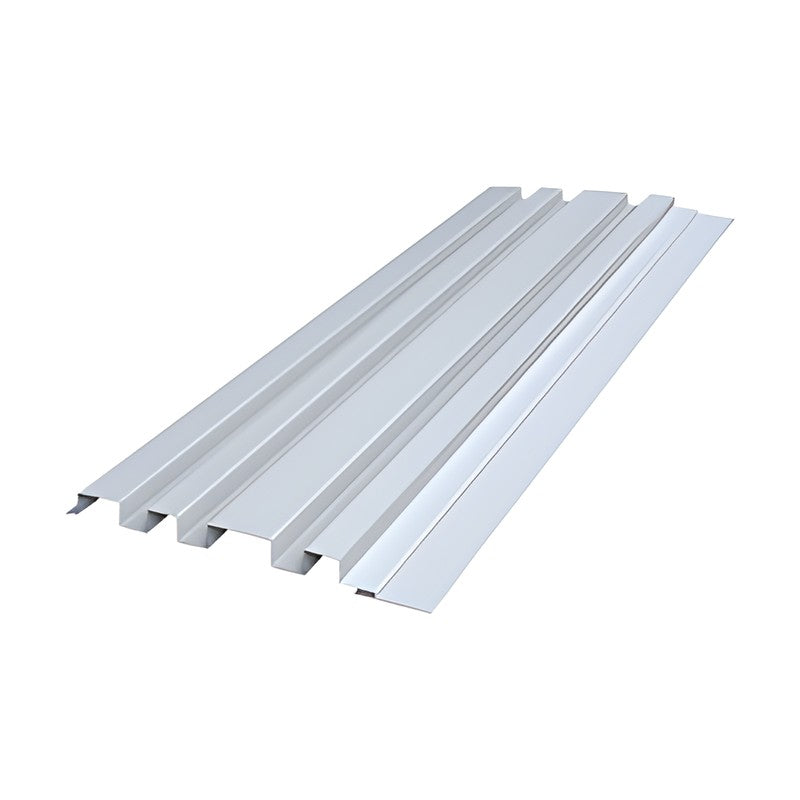

ENGONE Bent Steel Louver (Press-Formed A-Series, 270-800 mm)

ENGONE Bent Steel Louver (Press-Formed A-Series, 270-800 mm)

Press-brake formed louver-profile steel panels in fourteen standard A-series widths. Shapes can be adapted to the design, giving deeper relief than roll-formed louvers.

Key features

  • 14 standard profiles from 270 mm to 800 mm effective width
  • Rib heights from 17 mm to 55 mm
  • Boltless interlocking joint with concealed screw
  • Profile can be modified to project design on request
  • Colour-coated, printed, stone-colour and digital-print finishes

Specifications

Profiles DS-270A to DS-800A (14 types)
Thickness 0.5-0.8 mm
Length 700-6,000 mm
Substrate Pre-painted per KS D 3520 (GI base) / KS D 3862 (GL base)
Base metal GI (KS D 3506), GL (KS D 3770), Zn-Al-Mg (KS D 3030), 55% Al-Zn-Mg (KS D 3033)
Coating build-up Epoxy primer 3-5 µm + PE/PVDF top 15-20 µm; back epoxy 3-5 µm
Fixing Boltless concealed-fix, interlocking joint
Physical (0.5 mm) Weight 4.17 kg/m² (0.5 mm); E 211x10^4 kgf/cm²; CTE 11.5x10^-6 /°C
Louver colours Dark Wood, Light Wood, Natural Wood, Rose Wood, Basalt, Marble, Zinc Black, Zinc Grey, Corten Brown, Zinc Copper, Hairline Silver, Matte Black, Titanium Silver, Red, Orange, Blue, Dark Grey, Yellow, Grey, Silver Grey, Ivory, White, Champagne Gold, Blue Purple
Source ENGONE product data sheet
LOUVER DS-270A W: 270 mm | H: 35 mm | t: 0.5-0.8 mm
LOUVER DS-280A W: 280 mm | H: 35 mm | t: 0.5-0.8 mm
LOUVER DS-288A W: 288 mm | H: 35 mm | t: 0.5-0.8 mm
LOUVER DS-290A W: 290 mm | H: 21 mm | t: 0.5-0.8 mm
LOUVER DS-300A W: 300 mm | H: 45 mm | t: 0.5-0.8 mm
LOUVER DS-315A W: 315 mm | H: 35 mm | t: 0.5-0.8 mm
LOUVER DS-335A W: 335 mm | H: 23 mm | t: 0.5-0.8 mm
LOUVER DS-350A W: 350 mm | H: 35 mm | t: 0.5-0.8 mm
LOUVER DS-430A W: 430 mm | H: 17 mm | t: 0.5-0.8 mm
LOUVER DS-435A W: 435 mm | H: 40 mm | t: 0.5-0.8 mm
LOUVER DS-470A W: 470 mm | H: 30 mm | t: 0.5-0.8 mm
LOUVER DS-495A W: 495 mm | H: 55 mm | t: 0.5-0.8 mm
LOUVER DS-570A W: 570 mm | H: 35 mm | t: 0.5-0.8 mm
LOUVER DS-800A W: 800 mm | H: 35 mm | t: 0.5-0.8 mm
Steel LouversENGONE
14 product codes available in this family
Sourced direct from KoreaExport-ready supplyCompetitive pricing
RFQ List 0 Email about this

Need a different model, or a part not listed here? Send us your parts list →

ENGONE Bent Steel Louver (Press-Formed A-Series, 270-800 mm)

Brand ENGONE·Steel Louvers

Available part numbers (14)

LOUVER DS-270A, LOUVER DS-280A, LOUVER DS-288A, LOUVER DS-290A, LOUVER DS-300A, LOUVER DS-315A, LOUVER DS-335A, LOUVER DS-350A, LOUVER DS-430A, LOUVER DS-435A + 4 more — see full table ↓

How to order

Send the ENGONE part numbers and quantities through our RFQ form or to info@prosourcemro.com. We confirm price, availability and lead time within 1 business day — no account needed.

RFQ List 0 →
Colours & finishes
Open full size ↗
View full details
Product codes & specifications
0 selected
RFQ List (0)
Product codeSpec
LOUVER DS-270AW: 270 mm | H: 35 mm | t: 0.5-0.8 mm
LOUVER DS-280AW: 280 mm | H: 35 mm | t: 0.5-0.8 mm
LOUVER DS-288AW: 288 mm | H: 35 mm | t: 0.5-0.8 mm
LOUVER DS-290AW: 290 mm | H: 21 mm | t: 0.5-0.8 mm
LOUVER DS-300AW: 300 mm | H: 45 mm | t: 0.5-0.8 mm
LOUVER DS-315AW: 315 mm | H: 35 mm | t: 0.5-0.8 mm
LOUVER DS-335AW: 335 mm | H: 23 mm | t: 0.5-0.8 mm
LOUVER DS-350AW: 350 mm | H: 35 mm | t: 0.5-0.8 mm
LOUVER DS-430AW: 430 mm | H: 17 mm | t: 0.5-0.8 mm
LOUVER DS-435AW: 435 mm | H: 40 mm | t: 0.5-0.8 mm
LOUVER DS-470AW: 470 mm | H: 30 mm | t: 0.5-0.8 mm
LOUVER DS-495AW: 495 mm | H: 55 mm | t: 0.5-0.8 mm
LOUVER DS-570AW: 570 mm | H: 35 mm | t: 0.5-0.8 mm
LOUVER DS-800AW: 800 mm | H: 35 mm | t: 0.5-0.8 mm
