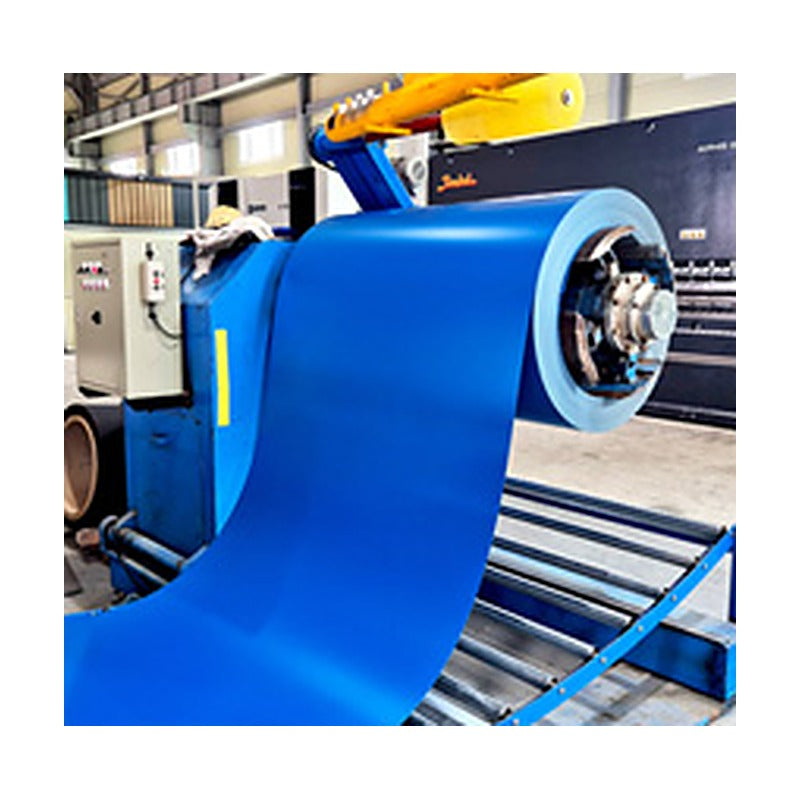

ENGONE Colour-Coated Steel Coil (PPGI / PPGL, PE / SMP / PVDF)

Pre-painted galvanized (PPGI) and Galvalume (PPGL) steel coil for roofing, cladding, louvers and panel fabrication. Supplied in standard, printed and project colours with slitting and processing to order.

Key features

Hot-dip GI or 55% Al-Zn (GL) substrate, pre-painted on a continuous line
Polyester (PE), silicone-modified polyester (SMP) and fluorocarbon (PVDF) paint systems
Printed-pattern and antibacterial coatings available
Standard, print and project/development colour ranges
Coil slitting and one-stop processing (cutting, bending, roll forming) to order

Specifications

Product form	Coil (slitting available)
Substrate standard	Pre-painted per KS D 3520 (GI base) / KS D 3862 (GL base)
Base metal	GI or GL; Zn-Al-Mg substrates on request
Paint systems	PE, SMP, PVDF, printed, antibacterial (AB)
Coating build-up	Epoxy primer 3-5 µm + PE/PVDF top 15-20 µm; back epoxy 3-5 µm
Physical (0.5 mm GI)	Weight 4.17 kg/m² (0.5 mm); E 211x10^4 kgf/cm²; CTE 11.5x10^-6 /°C
Standard colours	White, Ivory, Dark Beige, Silver Grey, Titanium Silver, Grey, Galvalume, Stainless Look (STS), Yellow, Orange, Red, Chestnut Brown, Green, Blue, Cobalt Blue, Black
Print colours	Zinc Copper, Real Zinc, Zinc Black, Anodizing Grey, Hairline Silver Grey, Hairline Brown, Wrinkle Grey, Wrinkle Black, Wrinkle Brown, Corten Grey, Corten Black, Corten Brown, Natural Wood, Rose Wood, Light Wood, Bronze Wood, Dark Wood
Project colours	Project: Cream, Vanilla, Tangerine, Jade, JW0H6A, JW0J0A, JW0L6A; Development: DDC-01 to DDC-04
Source	ENGONE product data sheet

COIL PPGI PE		Base: GI \| Paint: PE \| Std: KS D 3520
COIL PPGI SMP		Base: GI \| Paint: SMP \| Std: KS D 3520
COIL PPGI PVDF		Base: GI \| Paint: PVDF \| Std: KS D 3520
COIL PPGL PE		Base: GL \| Paint: PE \| Std: KS D 3862
COIL PPGL SMP		Base: GL \| Paint: SMP \| Std: KS D 3862
COIL PPGL PVDF		Base: GL \| Paint: PVDF \| Std: KS D 3862
COIL PPGI PRINT		Base: GI \| Paint: print \| Std: KS D 3520
COIL PPGI ANTIBAC		Base: GI \| Paint: AB \| Std: KS D 3520

Steel Coils & SheetsENGONE

8 product codes available in this family

Sourced direct from KoreaExport-ready supplyCompetitive pricing

RFQ List 0 Email about this

Need a different model, or a part not listed here? Send us your parts list →

ENGONE Colour-Coated Steel Coil (PPGI / PPGL, PE / SMP / PVDF)

Brand ENGONE·Steel Coils & Sheets

Available part numbers (8)

COIL PPGI PE, COIL PPGI SMP, COIL PPGI PVDF, COIL PPGL PE, COIL PPGL SMP, COIL PPGL PVDF, COIL PPGI PRINT, COIL PPGI ANTIBAC

How to order

Send the ENGONE part numbers and quantities through our RFQ form or to info@prosourcemro.com. We confirm price, availability and lead time within 1 business day — no account needed.

RFQ List 0 →

Colours & finishes

View full details

Product codes & specifications

0 selected

RFQ List (0)

	Product code	Spec
	COIL PPGI PE	Base: GI \| Paint: PE \| Std: KS D 3520
	COIL PPGI SMP	Base: GI \| Paint: SMP \| Std: KS D 3520
	COIL PPGI PVDF	Base: GI \| Paint: PVDF \| Std: KS D 3520
	COIL PPGL PE	Base: GL \| Paint: PE \| Std: KS D 3862
	COIL PPGL SMP	Base: GL \| Paint: SMP \| Std: KS D 3862
	COIL PPGL PVDF	Base: GL \| Paint: PVDF \| Std: KS D 3862
	COIL PPGI PRINT	Base: GI \| Paint: print \| Std: KS D 3520
	COIL PPGI ANTIBAC	Base: GI \| Paint: AB \| Std: KS D 3520
