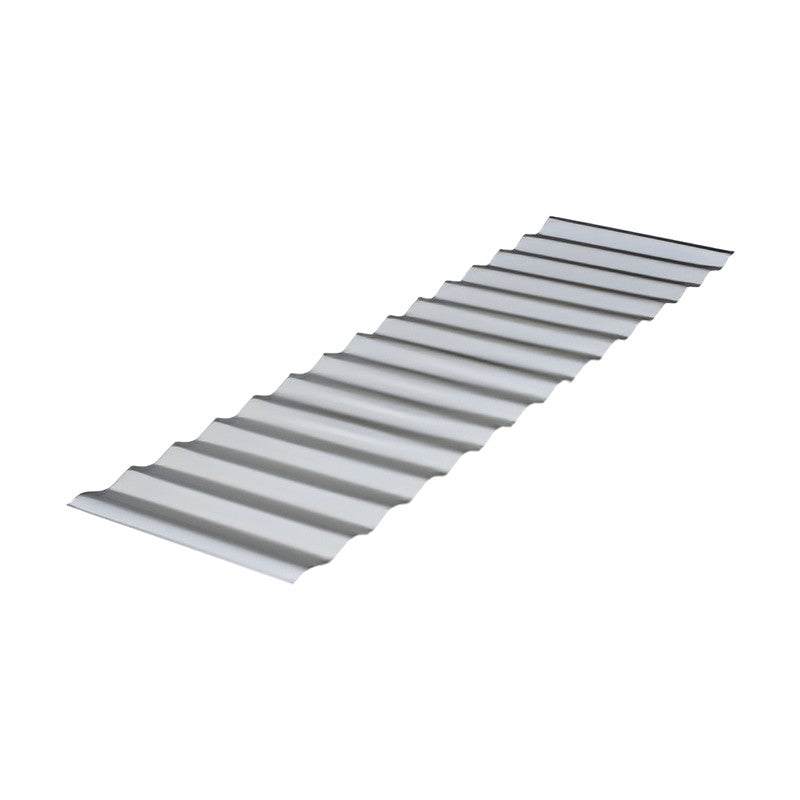

ENGONE Corrugated Formed Steel Sheet (C-52 / C-76 / C-180)

ENGONE Corrugated Formed Steel Sheet (C-52 / C-76 / C-180)

Sinusoidal corrugated steel sheet in fine, standard and large wave profiles for roofs and walls. Widely used for overlay re-roofing of factories, farm buildings and houses.

Key features

  • C-52 (52 mm pitch), C-76 (76 mm pitch) and C-180 (180 mm pitch) profiles
  • Stainless (SUS) option on C-52 and C-76
  • Overlap side joint for roof and wall
  • Overlay installation over existing roofs
  • Colour-coated and printed finishes

Specifications

Flat sheet width 1,219 mm
Thickness 0.5 mm, 0.8 mm
Material Colour-coated carbon steel (CS); SUS on C-52 / C-76
Joint Overlap
Substrate Pre-painted per KS D 3520 (GI base) / KS D 3862 (GL base)
Base metal GI (KS D 3506), GL (KS D 3770), Zn-Al-Mg (KS D 3030), 55% Al-Zn-Mg (KS D 3033)
Coating build-up Epoxy primer 3-5 µm + PE/PVDF top 15-20 µm; back epoxy 3-5 µm
Physical (0.5 mm) Weight 4.17 kg/m² (0.5 mm); E 211x10^4 kgf/cm²; CTE 11.5x10^-6 /°C
Standard colours White, Ivory, Dark Beige, Silver Grey, Titanium Silver, Grey, Galvalume, Stainless Look (STS), Yellow, Orange, Red, Chestnut Brown, Green, Blue, Cobalt Blue, Black
Print colours Zinc Copper, Real Zinc, Zinc Black, Anodizing Grey, Hairline Silver Grey, Hairline Brown, Wrinkle Grey, Wrinkle Black, Wrinkle Brown, Corten Grey, Corten Black, Corten Brown, Natural Wood, Rose Wood, Light Wood, Bronze Wood, Dark Wood
Source ENGONE product data sheet
C-52 CS 0.5T Cover: 1040 mm | H: 13 mm | t: 0.5
C-52 CS 0.8T Cover: 1040 mm | H: 13 mm | t: 0.8
C-52 SUS 0.5T Cover: 1040 mm | H: 13 mm | t: 0.5
C-52 SUS 0.8T Cover: 1040 mm | H: 13 mm | t: 0.8
C-76 CS 0.5T Cover: 985 mm | H: 18 mm | t: 0.5
C-76 CS 0.8T Cover: 985 mm | H: 18 mm | t: 0.8
C-76 SUS 0.5T Cover: 985 mm | H: 18 mm | t: 0.5
C-76 SUS 0.8T Cover: 985 mm | H: 18 mm | t: 0.8
C-180 CS 0.5T Cover: 900 mm | H: 45 mm | t: 0.5
C-180 CS 0.8T Cover: 900 mm | H: 45 mm | t: 0.8
Formed Steel SheetsENGONE
10 product codes available in this family
Sourced direct from KoreaExport-ready supplyCompetitive pricing
RFQ List 0 Email about this

Need a different model, or a part not listed here? Send us your parts list →

ENGONE Corrugated Formed Steel Sheet (C-52 / C-76 / C-180)

Brand ENGONE·Formed Steel Sheets

Available part numbers (10)

C-52 CS 0.5T, C-52 CS 0.8T, C-52 SUS 0.5T, C-52 SUS 0.8T, C-76 CS 0.5T, C-76 CS 0.8T, C-76 SUS 0.5T, C-76 SUS 0.8T, C-180 CS 0.5T, C-180 CS 0.8T

How to order

Send the ENGONE part numbers and quantities through our RFQ form or to info@prosourcemro.com. We confirm price, availability and lead time within 1 business day — no account needed.

RFQ List 0 →
Colours & finishes
Open full size ↗
View full details
Product codes & specifications
0 selected
RFQ List (0)
Product codeSpec
C-52 CS 0.5TCover: 1040 mm | H: 13 mm | t: 0.5
C-52 CS 0.8TCover: 1040 mm | H: 13 mm | t: 0.8
C-52 SUS 0.5TCover: 1040 mm | H: 13 mm | t: 0.5
C-52 SUS 0.8TCover: 1040 mm | H: 13 mm | t: 0.8
C-76 CS 0.5TCover: 985 mm | H: 18 mm | t: 0.5
C-76 CS 0.8TCover: 985 mm | H: 18 mm | t: 0.8
C-76 SUS 0.5TCover: 985 mm | H: 18 mm | t: 0.5
C-76 SUS 0.8TCover: 985 mm | H: 18 mm | t: 0.8
C-180 CS 0.5TCover: 900 mm | H: 45 mm | t: 0.5
C-180 CS 0.8TCover: 900 mm | H: 45 mm | t: 0.8
