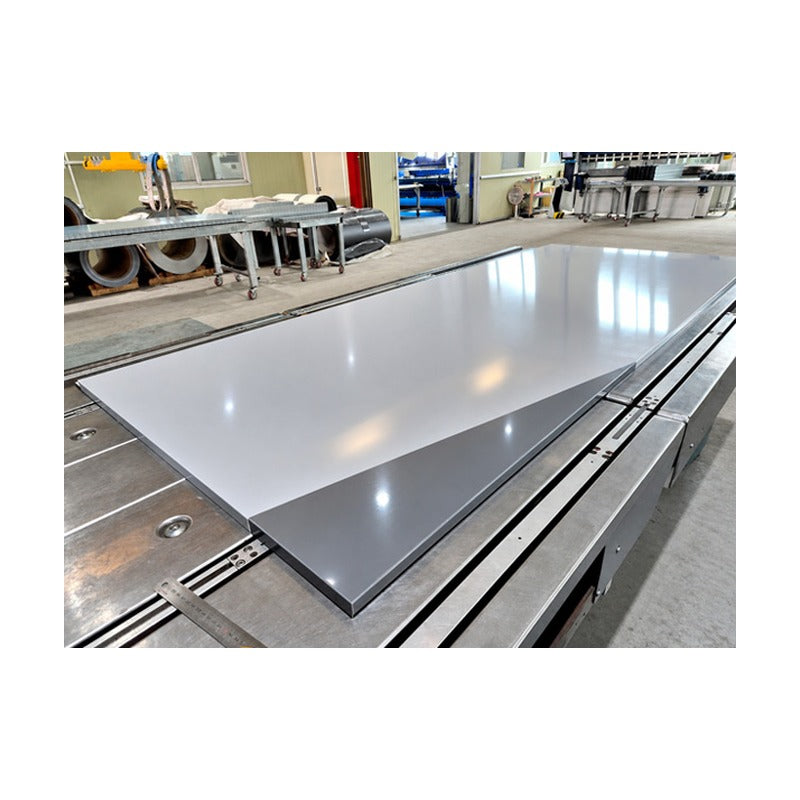

ENGONE Cut-to-Length Steel Sheet (GI / GA / GL / Colour-Coated)

Flat steel sheet cut to length from metallic-coated and colour-coated coil. Supplied with cutting, bending and fabrication in one order.

Key features

Bare GI, GA and GL or pre-painted PPGI/PPGL flat sheet
Cut to project length on precision cutting lines
Printed-pattern and functional coatings available
Bending, trimming and punching services available
Standard and print colour ranges

Specifications

Product form	Flat sheet, cut to length
Base metals	GI, GA, GL; PPGI / PPGL
Coated substrate	Pre-painted per KS D 3520 (GI base) / KS D 3862 (GL base)
Coating build-up	Epoxy primer 3-5 µm + PE/PVDF top 15-20 µm; back epoxy 3-5 µm
Physical (0.5 mm GI)	Weight 4.17 kg/m² (0.5 mm); E 211x10^4 kgf/cm²; CTE 11.5x10^-6 /°C
Processing	Cutting, bending, trimming, punching
Standard colours	White, Ivory, Dark Beige, Silver Grey, Titanium Silver, Grey, Galvalume, Stainless Look (STS), Yellow, Orange, Red, Chestnut Brown, Green, Blue, Cobalt Blue, Black
Print colours	Zinc Copper, Real Zinc, Zinc Black, Anodizing Grey, Hairline Silver Grey, Hairline Brown, Wrinkle Grey, Wrinkle Black, Wrinkle Brown, Corten Grey, Corten Black, Corten Brown, Natural Wood, Rose Wood, Light Wood, Bronze Wood, Dark Wood
Source	ENGONE product data sheet

SHEET GI		Base: GI \| Paint: none \| Std: KS D 3506
SHEET GA		Base: GA \| Paint: none \| Coat: Zn-Fe
SHEET GL		Base: GL \| Paint: none \| Std: KS D 3770
SHEET PPGI PE		Base: GI \| Paint: PE \| Std: KS D 3520
SHEET PPGI PVDF		Base: GI \| Paint: PVDF \| Std: KS D 3520
SHEET PPGL PE		Base: GL \| Paint: PE \| Std: KS D 3862
SHEET PPGL PVDF		Base: GL \| Paint: PVDF \| Std: KS D 3862
SHEET PRINT		Base: GI \| Paint: print \| Std: KS D 3520

Steel Coils & SheetsENGONE

8 product codes available in this family

Sourced direct from KoreaExport-ready supplyCompetitive pricing

RFQ List 0 Email about this

Need a different model, or a part not listed here? Send us your parts list →

ENGONE Cut-to-Length Steel Sheet (GI / GA / GL / Colour-Coated)

Brand ENGONE·Steel Coils & Sheets

Available part numbers (8)

SHEET GI, SHEET GA, SHEET GL, SHEET PPGI PE, SHEET PPGI PVDF, SHEET PPGL PE, SHEET PPGL PVDF, SHEET PRINT

How to order

Send the ENGONE part numbers and quantities through our RFQ form or to info@prosourcemro.com. We confirm price, availability and lead time within 1 business day — no account needed.

RFQ List 0 →

Colours & finishes

View full details

Product codes & specifications

0 selected

RFQ List (0)

	Product code	Spec
	SHEET GI	Base: GI \| Paint: none \| Std: KS D 3506
	SHEET GA	Base: GA \| Paint: none \| Coat: Zn-Fe
	SHEET GL	Base: GL \| Paint: none \| Std: KS D 3770
	SHEET PPGI PE	Base: GI \| Paint: PE \| Std: KS D 3520
	SHEET PPGI PVDF	Base: GI \| Paint: PVDF \| Std: KS D 3520
	SHEET PPGL PE	Base: GL \| Paint: PE \| Std: KS D 3862
	SHEET PPGL PVDF	Base: GL \| Paint: PVDF \| Std: KS D 3862
	SHEET PRINT	Base: GI \| Paint: print \| Std: KS D 3520
