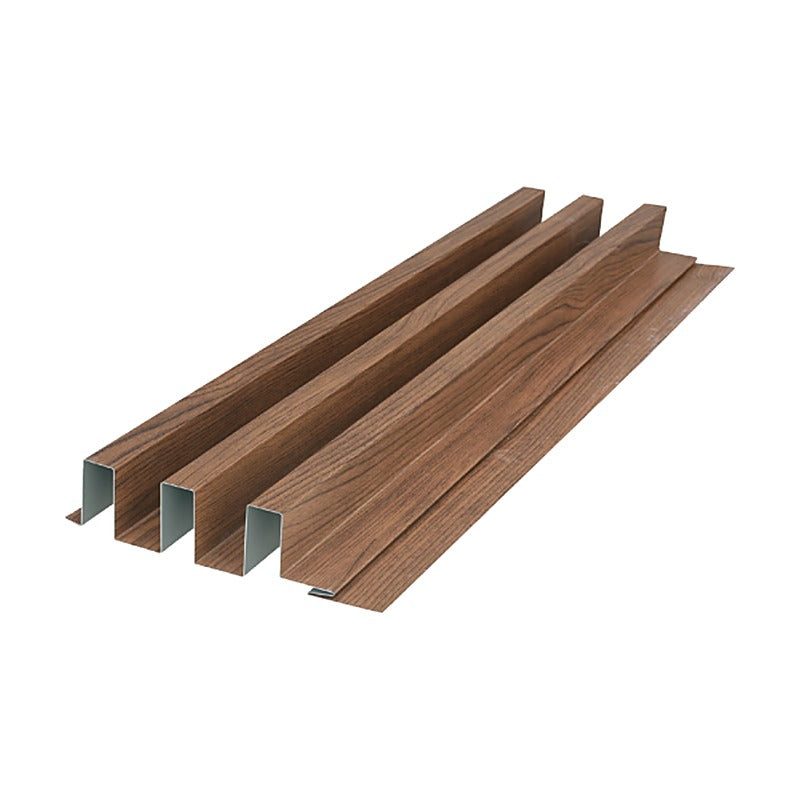

ENGONE Deep Steel Louver (Deep-Rib Profiles 120-360 mm)

Deep-rib folded steel louvers that create strong shadow lines on facades. Rib depths up to 130 mm for a fin-like architectural look.

Key features

Deep profiles DS-120A, DS-160A, DS-200A, DS-360A and 195 mm deep-groove type
Rib depths from 40 mm to 130 mm
Boltless interlocking joint with concealed screw
Wood-grain, stone and digital-print finishes
Lengths 700-6,000 mm

Specifications

Profiles	DS-120A, DS-160A, DS-200A, DS-360A, deep-groove 195
Thickness	0.5-0.8 mm
Length	700-6,000 mm
Substrate	Pre-painted per KS D 3520 (GI base) / KS D 3862 (GL base)
Base metal	GI (KS D 3506), GL (KS D 3770), Zn-Al-Mg (KS D 3030), 55% Al-Zn-Mg (KS D 3033)
Coating build-up	Epoxy primer 3-5 µm + PE/PVDF top 15-20 µm; back epoxy 3-5 µm
Fixing	Boltless concealed-fix, interlocking joint
Louver colours	Dark Wood, Light Wood, Natural Wood, Rose Wood, Basalt, Marble, Zinc Black, Zinc Grey, Corten Brown, Zinc Copper, Hairline Silver, Matte Black, Titanium Silver, Red, Orange, Blue, Dark Grey, Yellow, Grey, Silver Grey, Ivory, White, Champagne Gold, Blue Purple
Source	ENGONE product data sheet

LOUVER DS-120A		W: 120 mm \| H: 100 mm \| t: 0.5-0.8 mm
LOUVER DS-160A		W: 160 mm \| H: 40-80 mm \| t: 0.5-0.8 mm
LOUVER DS-200A		W: 200 mm \| H: 130 mm \| t: 0.5-0.8 mm
LOUVER DS-360A		W: 360 mm \| H: 45 mm \| t: 0.5-0.8 mm
LOUVER DEEP W195		W: 195 mm \| H: 55 mm \| t: 0.5-0.8 mm

Steel LouversENGONE

5 product codes available in this family

Sourced direct from KoreaExport-ready supplyCompetitive pricing

RFQ List 0 Email about this

Need a different model, or a part not listed here? Send us your parts list →

ENGONE Deep Steel Louver (Deep-Rib Profiles 120-360 mm)

Brand ENGONE·Steel Louvers

Available part numbers (5)

LOUVER DS-120A, LOUVER DS-160A, LOUVER DS-200A, LOUVER DS-360A, LOUVER DEEP W195

How to order

Send the ENGONE part numbers and quantities through our RFQ form or to info@prosourcemro.com. We confirm price, availability and lead time within 1 business day — no account needed.

RFQ List 0 →

Colours & finishes

View full details

Product codes & specifications

0 selected

RFQ List (0)

	Product code	Spec
	LOUVER DS-120A	W: 120 mm \| H: 100 mm \| t: 0.5-0.8 mm
	LOUVER DS-160A	W: 160 mm \| H: 40-80 mm \| t: 0.5-0.8 mm
	LOUVER DS-200A	W: 200 mm \| H: 130 mm \| t: 0.5-0.8 mm
	LOUVER DS-360A	W: 360 mm \| H: 45 mm \| t: 0.5-0.8 mm
	LOUVER DEEP W195	W: 195 mm \| H: 55 mm \| t: 0.5-0.8 mm
